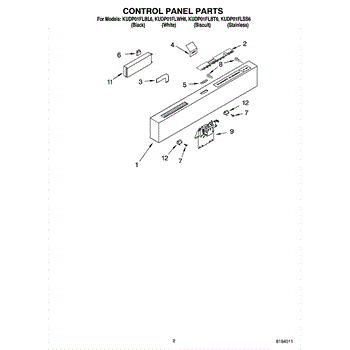

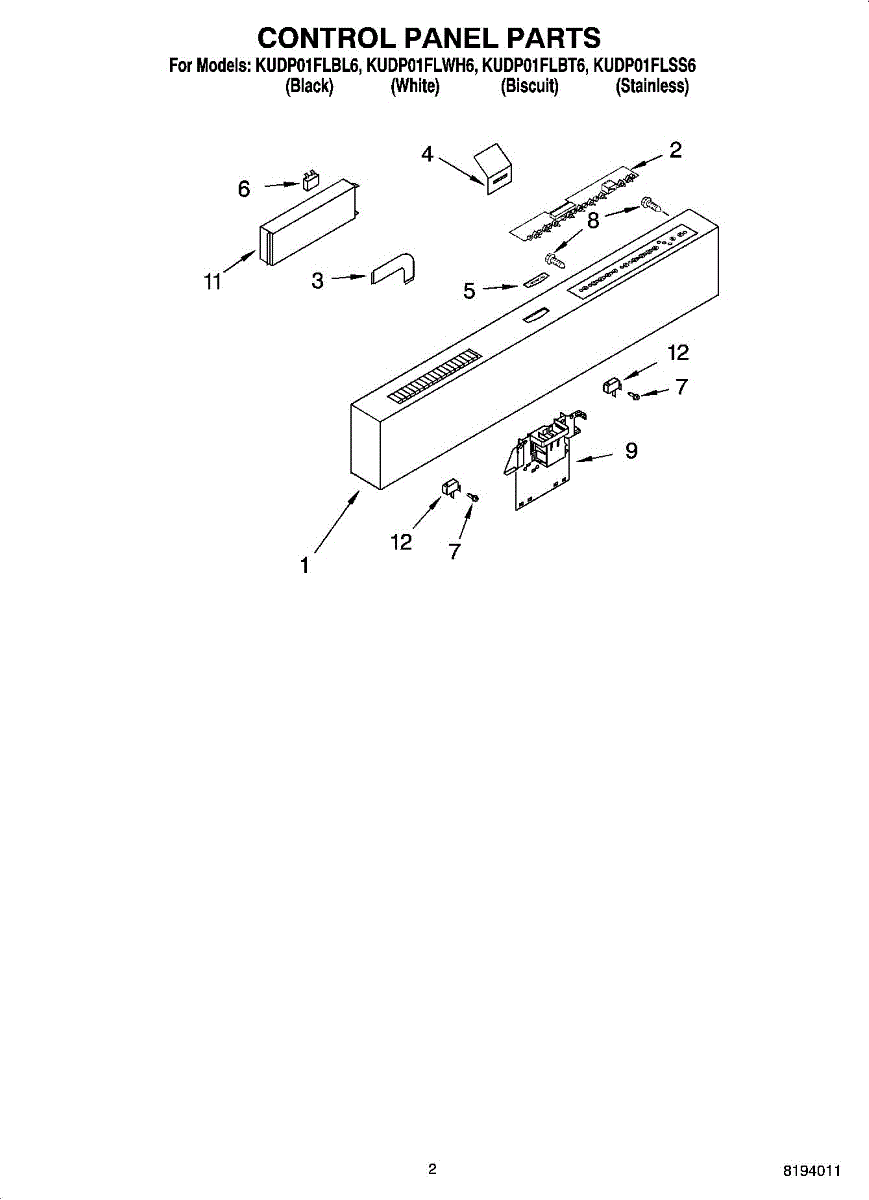

Parts for Kitchenaid KUDP01FLSS6: 02 - Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This control panel mounts on the appliance's door and provides the push-button interface for selecting cycles and options. Replacing a cracked or unresponsive console restores reliable button operation and a clean, factory look. What it does:

• Houses the user-interface buttons and indicator windows used to select cycles/options
• Provides a rigid mounting surface for the door's UI components
• Helps protect internal wiring at the top of the door
• Typical symptoms: buttons don't respond or work intermittently, unit won't start when Start/Resume is pressed, selections change unpredictably, or the console is cracked/loose

• One console assembly

• Disconnect electrical power; turn off the water supply if needed
• Open the door and remove the inner-door perimeter screws to separate the console from the inner panel
• Note and transfer any reusable parts from the old console as required; make secure, straight ribbon/harness connections
• Reassemble the door, restore power, and run a quick function check before final tightening

This user interface is the electronics behind a full-door console dishwasher panel. It reads your button selections and communicates with the main control so cycles start and options respond reliably.

• Interprets keypad inputs from the console and sends commands to the control board
• Helps restore proper control of wash cycles, options, and start/delay functions
• Common symptoms: unresponsive or intermittent buttons, no console lights, can't start from the panel, erratic beeping/stuck-key behavior
• Built for full-door (full-console) configurations used on select models

• Disconnect power at the breaker; turn off the water supply
• Remove inner door/console screws to access the UI; support the panel to avoid straining wires
• Handle the board with ESD care; transfer any mounting clips/brackets and seat ribbon cables/connectors fully and correctly
• Reassemble the door and test console operation before running a full cycle

This inner tail ribbon cable transmits signals between the control/display assembly and the main harness, restoring reliable communication for user inputs and display functions. It's a direct replacement designed to match the original connector fit. What it does:

• Carries low-voltage data/signals from the control panel to the main board
• Restores unresponsive or intermittent control panel behavior
• Helps resolve blank or flickering display and erratic touchpad responses
• Maintains proper connector alignment and secure electrical contact

What's included: One inner tail ribbon cable Install notes:

• Disconnect power before beginning any repair to avoid shock or damage
• Handle the cable by the reinforced ends; avoid bending, kinking, or touching exposed contacts
• Ensure connectors are fully seated and retained with original clips or fasteners

The Dishwasher Fuse Kit is an OEM replacement part for Whirlpool dishwashers. It contains the necessary thermal fuses that protect the dishwasher's electrical system from overheating or short circuits. These fuses are critical safety components that help prevent potential fire hazards or damage to the appliance. When replacing this fuse, the included wire harness must be replaced as well.

Symptoms of a blown dishwasher fuse kit include:

• The dishwasher not turning on or powering up at all
• Error codes related to heating or electrical system issues
• Intermittent power failures during wash cycles

Causes of a faulty fuse kit can include electrical surges, wiring problems, component malfunctions leading to overcurrent situations, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a genuine 4-24 x 3/8 screw used to fasten trim and components on compatible appliance assemblies. It provides a secure, vibration-resistant connection so panels and parts stay properly aligned during use. What it does:

• Secures panels, brackets, or components to the appliance frame
• Helps prevent rattling or loosening from normal vibration
• Works with threaded or self-tapping holes sized for a #4-24 fastener
• Common replacement for stripped, rusted, or missing mounting screws

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Replace any corroded or damaged screws in sets when multiple fasteners show wear
• Disconnect power and follow appliance safety guidance before servicing

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Door Latch is an OEM replacement part for Whirlpool dishwashers. It secures the dishwasher door securely closed during the wash cycle. The latch mechanism works with the door handle to provide a sturdy closure and maintains proper sealing to prevent leaks.

Causes of a bad latch door can include normal wear and tear from repeated opening and closing of the dishwasher door over time. Components like springs or latches may lose tension.

Symptoms of a bad latch-door include:

• The door not closing or latching properly
• Difficulty opening or closing the door
• Gaps appearing around the door seal when closed
• The possibility of the door unintentionally opening during a cycle

This OEM Whirlpool replacement part is also compatible with KitchenAid, Jenn-Air, Amana, Roper, and some Kenmore models.

The Door Switch is an OEM part for Whirlpool dishwashers. It plays a crucial role in ensuring the dishwasher operates only when the door is securely closed. The switch signals the control board that the door is shut, allowing the wash cycle to begin safely.

You should replace the door switch if it becomes faulty or damaged. Causes of a bad door switch can include wear and tear from regular use, electrical issues, or physical damage from forceful closing of the door.

Symptoms of a bad door switch include:

• The dishwasher not starting or stopping mid-cycle
• Error codes related to the door latch or door switch
• The dishwasher operating with the door open (safety issue)
• No response when pressing the start button

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
