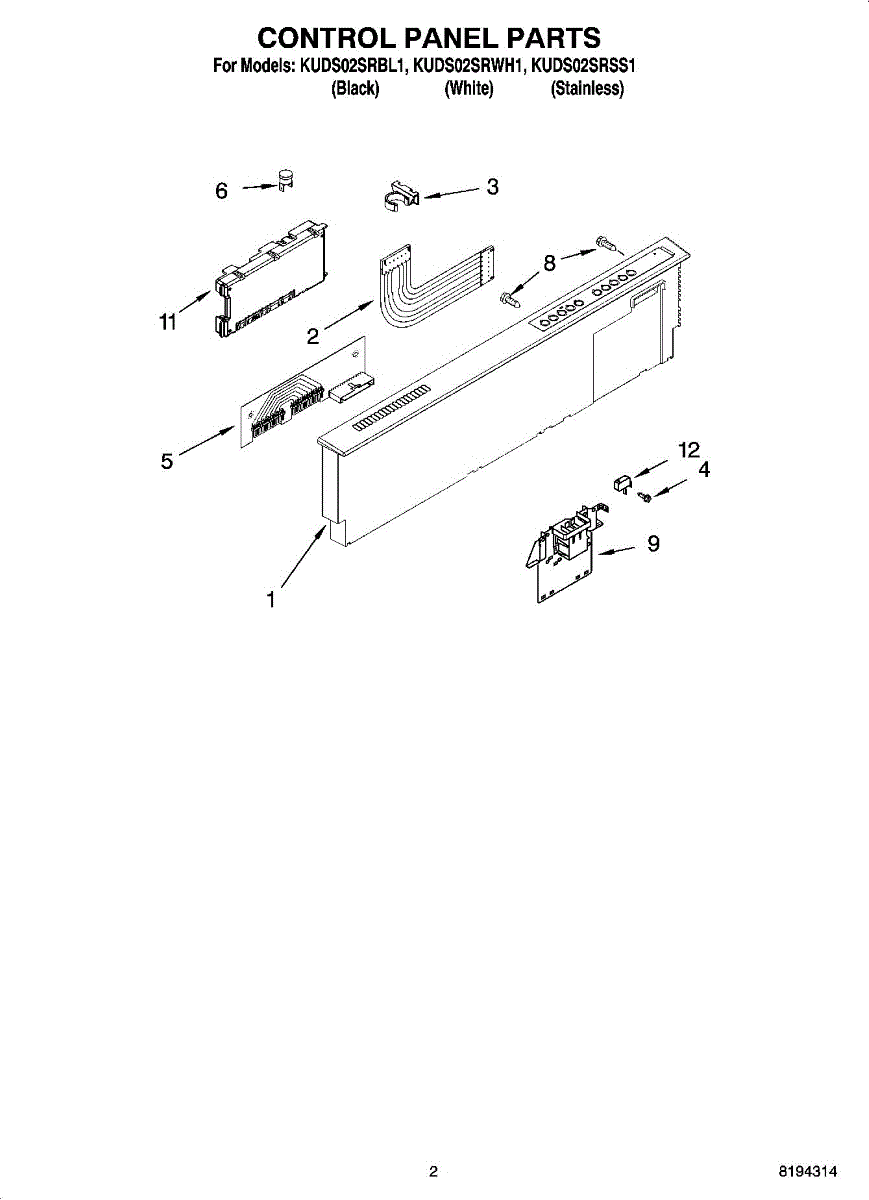

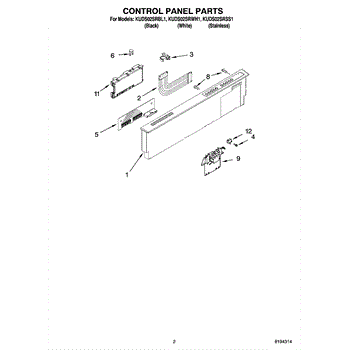

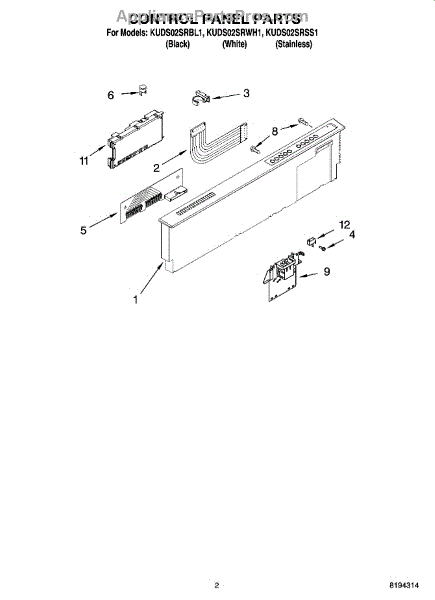

Parts for Kitchenaid KUDS02SRBL1: 02 - Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a genuine 4-24 x 3/8 screw used to fasten trim and components on compatible appliance assemblies. It provides a secure, vibration-resistant connection so panels and parts stay properly aligned during use. What it does:

• Secures panels, brackets, or components to the appliance frame
• Helps prevent rattling or loosening from normal vibration
• Works with threaded or self-tapping holes sized for a #4-24 fastener
• Common replacement for stripped, rusted, or missing mounting screws

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Replace any corroded or damaged screws in sets when multiple fasteners show wear
• Disconnect power and follow appliance safety guidance before servicing

Located between console and electronic control board

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Thermal Fuse Kit is a genuine OEM Replacement part. This kit is designed to cut off power to the dishwasher if it overheats. The fuse ensures that your appliance operates safely and effectively. If your dishwasher is not starting, it may be due to a failed thermal fuse. Investigate what caused the dishwasher to overheat before replacing the thermal fuse.

This Kit Includes:

• (1) Thermal Cutoff (TCO)
• (1) Harness Assembly
• (2) Zip Ties
• Instructions

Specs:

• Electrical specs: 86°C, 187°F fuse
• Construction: metal/plastic
• Fuse dimensions: 5/8""L x 5/8""W x 1-1/4""H
• Harness and plug dimensions: 4-7/8""L
• Zip tie dimensions: 6-3/4""L

Repair your dishwasher today with the Thermal Fuse Kit and ensure that your appliance operates safely and efficiently for years to come.

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Door Latch is an OEM replacement part for Whirlpool dishwashers. It secures the dishwasher door securely closed during the wash cycle. The latch mechanism works with the door handle to provide a sturdy closure and maintains proper sealing to prevent leaks.

Causes of a bad latch door can include normal wear and tear from repeated opening and closing of the dishwasher door over time. Components like springs or latches may lose tension.

Symptoms of a bad latch-door include:

• The door not closing or latching properly
• Difficulty opening or closing the door
• Gaps appearing around the door seal when closed
• The possibility of the door unintentionally opening during a cycle

This OEM Whirlpool replacement part is also compatible with KitchenAid, Jenn-Air, Amana, Roper, and some Kenmore models.

The Control Board is an OEM part for Whirlpool dishwashers. As the central processing unit, this board regulates all cycles and component functions including wash and rinse settings, heating controls and the digital display.

Symptoms of a failed control board include:

• Inability to select or change wash/rinse options
• Cycles failing to complete through all settings
• Error codes displayed or unresponsive controls

Causes can be normal wear of electronic components over extended use. Exposure to fluctuating internal temperatures may also deteriorate electrical connections over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Switch is an OEM part for Whirlpool dishwashers. It plays a crucial role in ensuring the dishwasher operates only when the door is securely closed. The switch signals the control board that the door is shut, allowing the wash cycle to begin safely.

You should replace the door switch if it becomes faulty or damaged. Causes of a bad door switch can include wear and tear from regular use, electrical issues, or physical damage from forceful closing of the door.

Symptoms of a bad door switch include:

• The dishwasher not starting or stopping mid-cycle
• Error codes related to the door latch or door switch
• The dishwasher operating with the door open (safety issue)
• No response when pressing the start button

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
