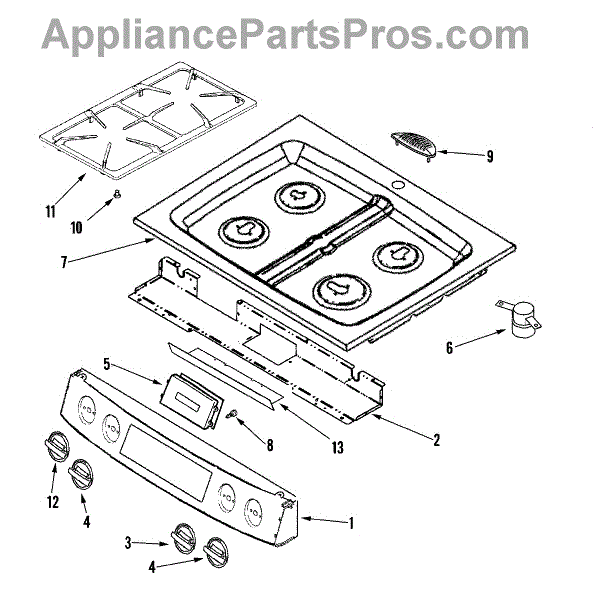

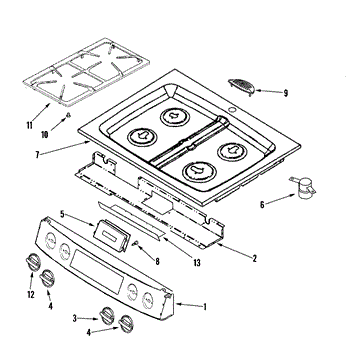

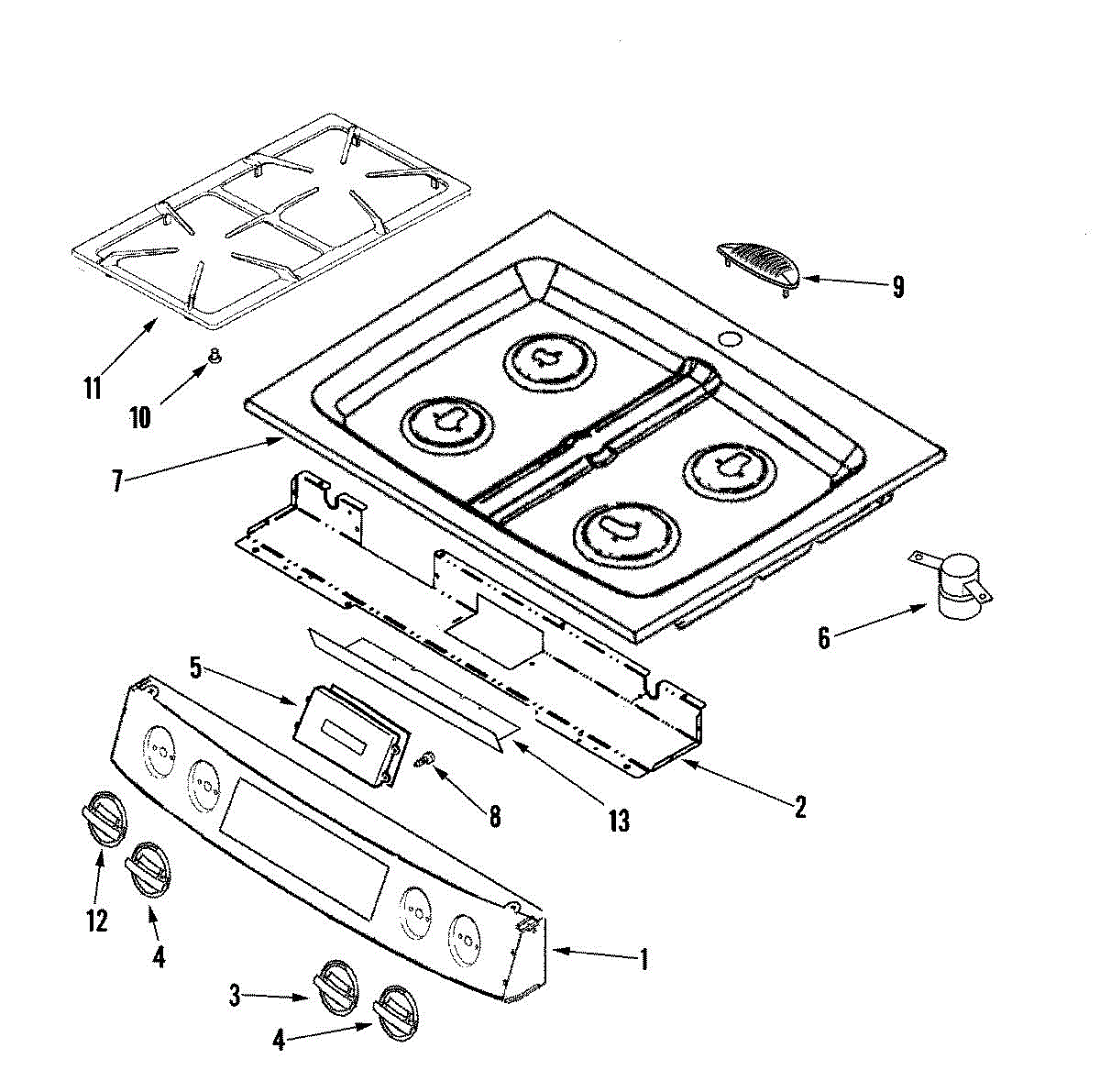

Parts for Jenn-Air JDS8850BDS: 02 - Control Panel / Top Assembly Parts

This stainless steel control panel assembly is the user interface for your appliance. Replacing a worn panel restores a clean look and reliable button operation when the original is cracked, dented, or the keys stop responding.

• Provides the buttons and labels used to select settings and cycles
• Sends keypad selections to the appliance's control
• Secures the user-interface components at the front of the unit
• Typical symptoms: unresponsive or intermittent buttons, stuck keys, cracked/dented console, worn or illegible labels, loose panel

• Disconnect power at the breaker before servicing
• Support the panel as you remove screws to avoid straining wiring
• Carefully release and reconnect any ribbon/plug connectors; keep contacts clean and unbent
• Reuse mounting hardware and transfer any trim or brackets from the original panel; test all buttons after reassembly

Replace a damaged or missing surface burner control knob with this SMR-variant knob. It attaches to the burner valve stem so you can turn the control smoothly, set the heat level, and restore a clean, uniform look.

• Attaches to the surface burner valve stem to select and adjust heat
• Restores positive grip if the original knob is cracked or stripped
• Common fix for a loose, slipping, or missing burner knob
• Helps ensure the indicator points correctly to OFF and settings

• Disconnect power, shut off gas if applicable, and allow the cooktop/range to cool
• Pull the old knob straight off the control stem; avoid bending the stem
• Align the new knob's orientation with the stem/indicator and press straight on until fully seated
• Verify smooth operation and correct OFF alignment before use; if the stem is damaged, additional repair may be required

Color: chrome. Measures about 2 inches in diameter.

This is a Whirlpool oven control board. The oven control board sits behind the main user interface assembly. This board works in direct conjunction with the buttons on the interface to control the vital functions of the oven, such as bake, broil, and self-cleaning. Telltale signs of a malfunctioning control board are smells of burning plastic coming from the interface and losing one or more oven functions. Immediately discontinue using the appliance if a shorted control board is suspected. Begin installation by unplugging the oven from the power source. Open the oven door and remove the screws beneath the control board assembly. On the sides of the control assembly, two tiny screws hold it in place. Remove these, and with a slight pull, the user interface should pop off. The control board is directly behind the main assembly and is held by either two tiny screws or clips that loosen with a flat head screwdriver. Remove the control board from the wiring harness and begin installing the new component.This product is sold individually and is sourced directly from the manufacturer as a genuine OEM part. This product is compatible with Whirlpool and Jenn Air appliances.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This OEM Replacement Part is an Adhesive designed for use in high-temperature areas of your Whirlpool appliances. Approximately 7.5 inches long, this white adhesive is suitable for securing parts such as grate feet, gaskets, and felt seals. It is especially useful, particularly in hot zones like a cooktop. The heat-resistant properties of this adhesive ensure that the bond integrity remains uncompromised even under high-temperature conditions.

Contained in a 3oz bottle, this adhesive forms a resilient bond between various components. It is commonly used in conjunction with gaskets, felt seals, and rubber feet. The RTV high temp silicone adhesive/sealant guarantees the safety and longevity of your appliance by ensuring a secure fit of parts exposed to high heat.

This replacement surface burner knob is designed for the dual burner control. It restores positive, precise control so you can turn the dual burner on and adjust heat after the original knob becomes cracked, stripped, or missing.

• Attaches to the dual-burner control shaft to turn the burner on and adjust heat level
• Common symptoms: knob cracks, slips or spins without turning the control, feels loose/wobbly, or is missing
• Specific to the dual burner location—using a different position's knob may not align or function correctly
• Restores normal control feel and appearance

• Ensure all burners are off and cool; disconnect power to the appliance to prevent accidental activation while working
• Pull the old knob straight off the control shaft; avoid prying that could damage the control
• Align the new knob with the shaft in the OFF position, then press straight on until fully seated
• Verify smooth operation across the full range of settings
