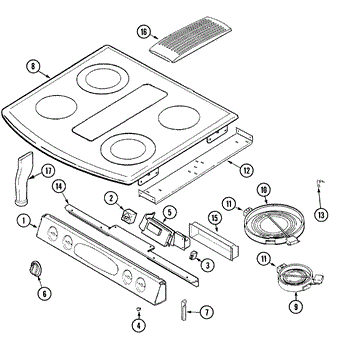

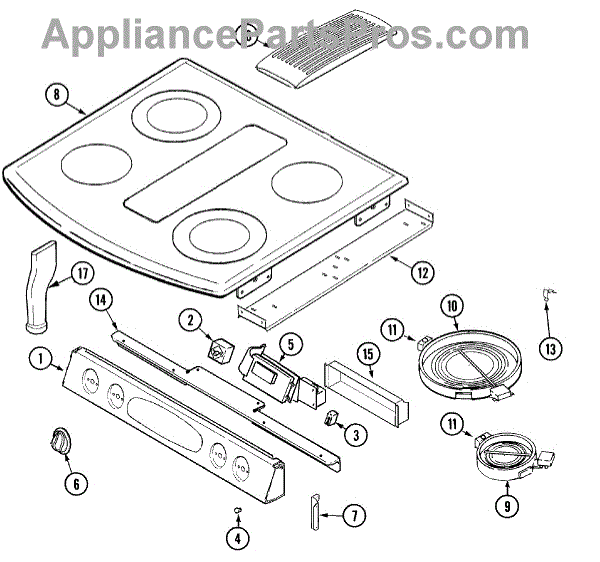

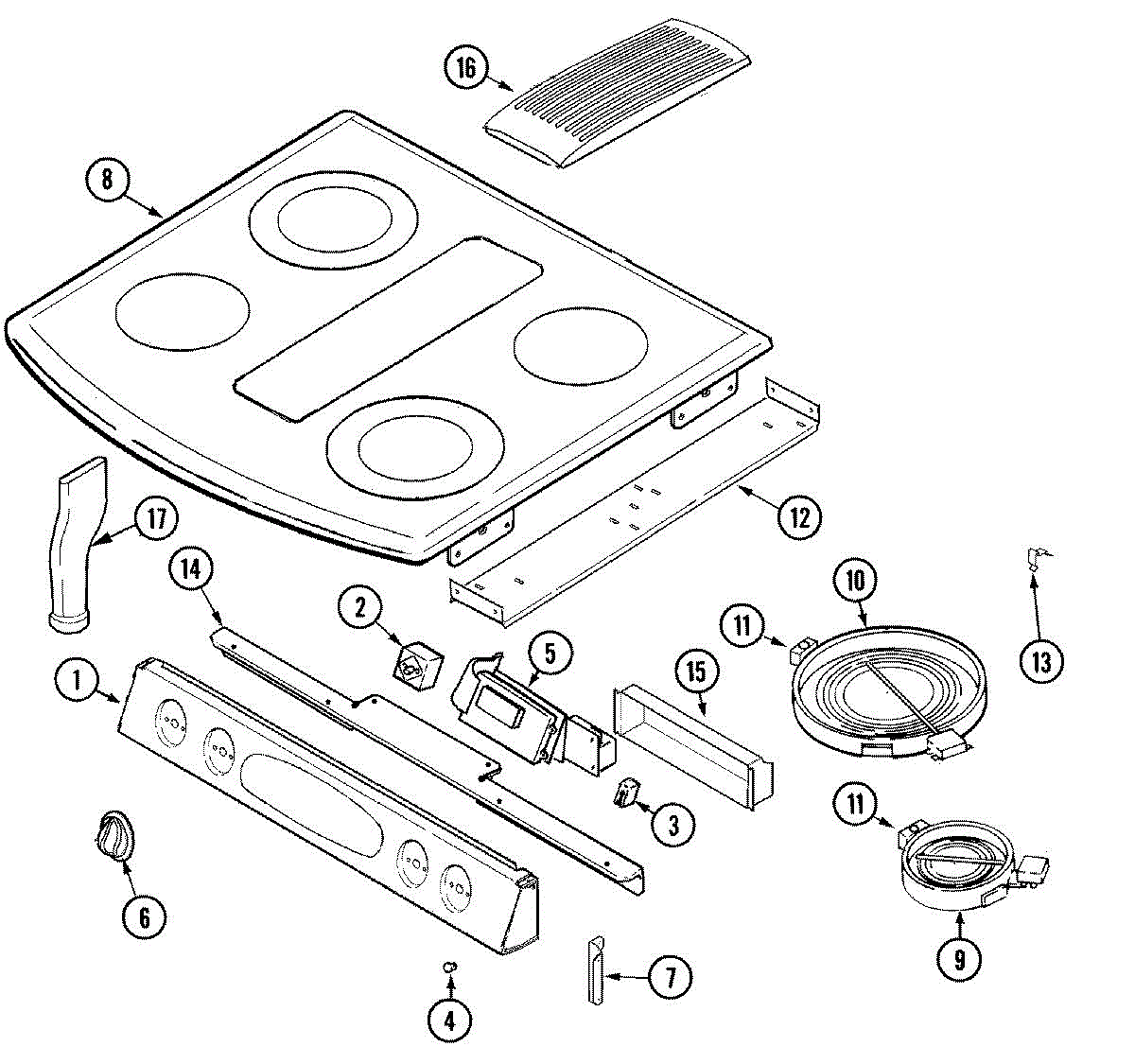

Parts for Jenn-Air JES9800ACB: 03 - Control Panel / Top Assembly Parts

This OEM replacement part is a Whirlpool control panel assembly. The control panel assembly is the component that houses the control board. It is the piece that holds the display, as well as the buttons that control the various functions of the oven.To replace the control panel assembly, gain access to the back of the stove after it has been unplugged. Remove the upper back panel of the stove, then remove the screws that secure the control panel assembly to the range. Replace the old panel with new, and refasten the screws to secure the new panel assembly. Reinstall the upper back panel and put the stove back in place.This OEM control panel assembly is sold individually. It is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore Brand stoves.

The Infinite Switch Kit (Dual) is an OEM part for Whirlpool ranges and cooktops. This kit includes the dual infinite switch, which allows for the independent control of two heating elements on the same burner. It provides precise control over the temperature settings for cooking surfaces, ensuring optimal performance.

Causes of a bad infinite switch can include wear and tear from frequent use, electrical surges, or exposure to moisture and spills. These issues can affect the switch's ability to regulate the burner temperature effectively.

Symptoms of a bad infinite switch include:

• One or both burners not heating up or heating inconsistently
• Burners staying at a fixed heat level regardless of the setting
• Difficulty in adjusting the burner temperature
• The switch feeling loose, stuck, or unresponsive

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

To order indicator light use WP903115.

This cooktop kit replaces a damaged or worn main top, restoring a safe, level cooking surface and a clean, factory appearance. Install it when the original top is cracked, chipped, bent, or the finish is beyond recovery.

• Replaces the main cooktop surface panel
• Restores stable, even support for cookware
• Helps contain spills and protect internal components
• Common fix for visible cracks, chips, dents, or severe discoloration

• Disconnect power; allow the appliance to cool completely; wear cut-resistant gloves and eye protection
• Support the top while removing fasteners; watch for sharp edges and any attached wiring/components
• Transfer any brackets, clips, insulation, or trim from the old top to the new as directed by your service information
• Align and secure without overtightening; verify clearances and operation before restoring power

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

The Surface Heating Element is an OEM part for Whirlpool cooktops and ranges. It provides the heat necessary for cooking. This element is designed to deliver consistent and even heat distribution, ensuring your cooking results are optimal every time.

Causes of a bad surface heating element can include wear and tear from regular use, damage due to spills or impacts, and electrical issues such as short circuits or burned-out connections.

Symptoms of a bad surface heating element include:

• The element not heating up or taking longer to heat
• Inconsistent heating or hot spots
• Visible damage or burns on the element
• The element not responding to temperature controls

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This part has been discontinued by the manufacturer and is no longer available.
