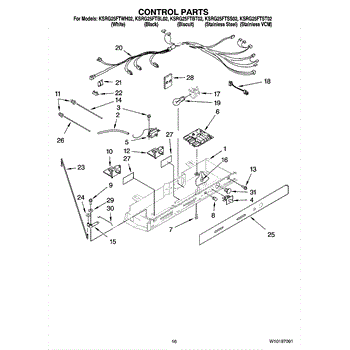

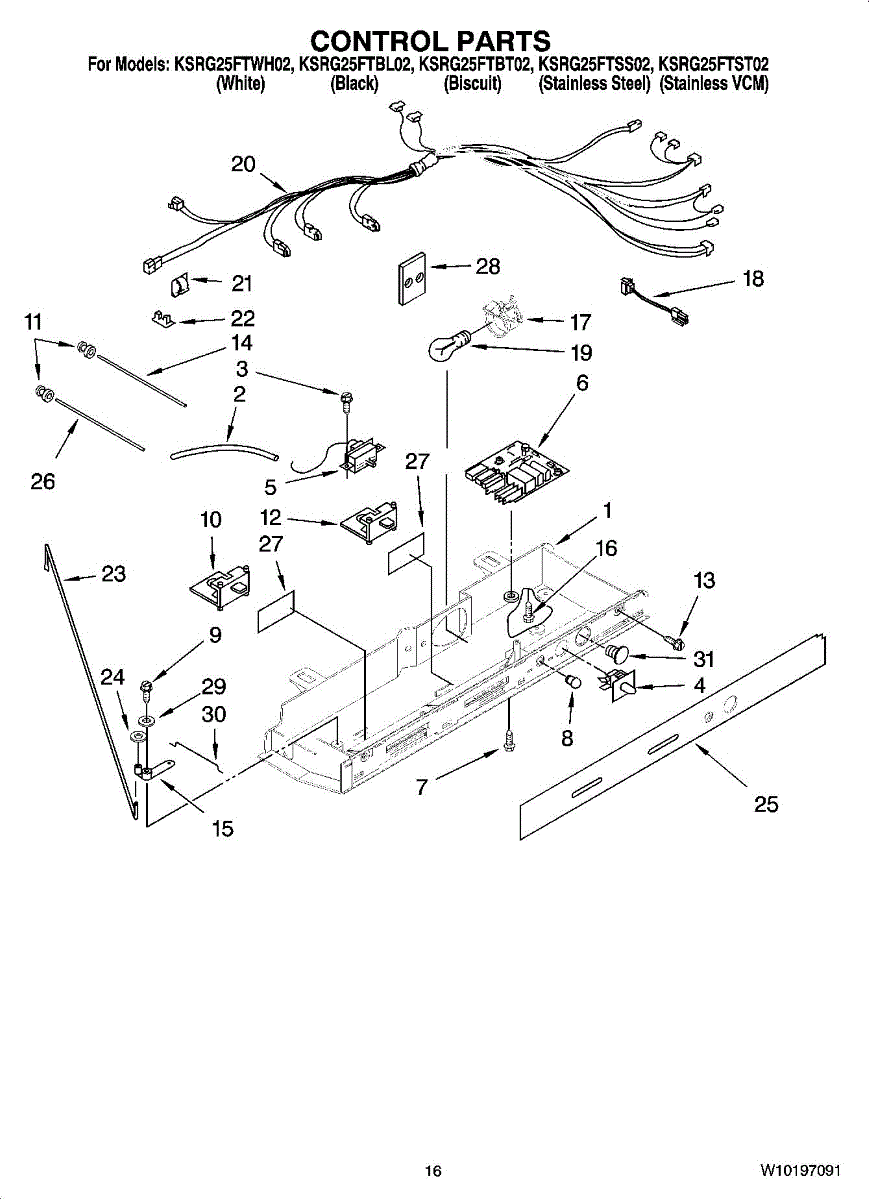

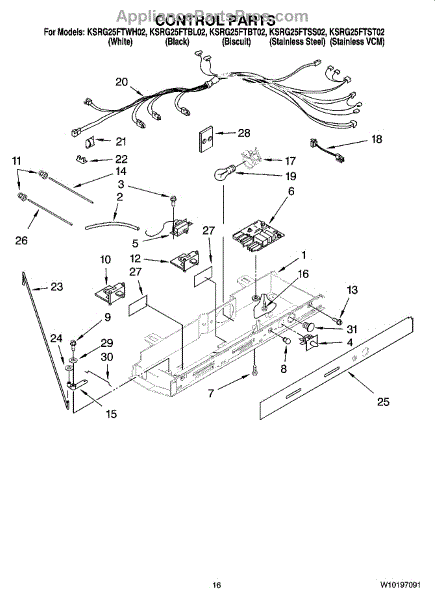

Parts for Kitchenaid KSRG25FTSS02: 10 - Control Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

6 - 19 x .250

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Thermostat is an OEM part for Whirlpool refrigerators. This component is crucial for regulating the internal temperature of the refrigerator, ensuring that food and beverages are stored at the correct temperature for optimal freshness and safety. The thermostat monitors the temperature inside the refrigerator and signals the cooling system to turn on or off to maintain the desired temperature.

You should replace the thermostat if it becomes faulty or unresponsive. Causes of a bad thermostat can include regular wear and tear from frequent use, electrical issues, or exposure to extreme temperatures. Over time, these factors can lead to the thermostat failing to accurately monitor or control the refrigerator's temperature.

Symptoms of a bad thermostat include:

• The refrigerator not maintaining the correct temperature
• Food items freezing or spoiling faster than usual
• The refrigerator running constantly or not running at all
• Inconsistent temperature readings or fluctuations inside the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Defrost Control Board is an OEM replacement part for Whirlpool refrigerators. This circuit board coordinates defrost heating cycles to remove built-up frost from evaporator coils.

Causes relate to water damage following leaks, component failure due to power surges loosening connectors, or general component wear over time.

Symptoms of issues include:

• Frost accumulation on interior freezer walls reducing capacity
• Food freezing underneath heavy buildup layers
• Inoperable heating element failing to restore airflow

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

This slide air control is the user-adjustable vent regulator that directs and limits airflow in the appliance, restoring selectable ventilation for proper operation and performance. What it does

• Opens and closes the vent path so you can increase or restrict airflow.
• Replaces a cracked, stuck, or missing slider that prevents proper vent adjustment.
• Helps resolve weak or inconsistent airflow caused by a broken control slide.
• Fits into the appliance's air control assembly to provide smooth, selectable operation.

• One slide air control.

• Disconnect power before beginning any service to avoid shock or injury.
• Typical replacement requires access to the front or control housing; remove panels and retain fasteners for reassembly.
• Handle plastic components gently to avoid cracking; ensure the slider is aligned in its track before securing panels.
• Test operation after reassembly to ensure the airflow selector moves freely and vents appropriately.

This slide is the support guide that helps a drawer or rack move smoothly and stay aligned, restoring dependable opening and closing. It replaces a worn or broken guide to improve fit and operation. What it does

• Guides and supports a drawer or rack so it slides in and out smoothly
• Keeps the drawer or rack aligned and prevents binding or uneven movement
• Replaces damaged or worn slide hardware that can cause sticking or sagging
• Restores stable support for loads carried by the drawer or rack

• One slide support

• Disconnect power to the appliance before beginning any repair
• Installation usually requires basic hand tools; follow OEM instructions for correct placement
• Inspect mating parts (screws, brackets) and replace any damaged hardware

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This pivot arm is a direct-replacement lever that restores stable pivoting for the appliance door/assembly, helping the door open and close smoothly and reducing play or binding. It's a simple, durable part for reliable motion. What it does:

• Supports the door or related assembly and provides the pivot point for opening and closing
• Restores proper alignment and reduces excessive wobble or looseness at the hinge
• Eliminates binding, rubbing, or uneven movement that can cause noise or wear
• Works with the existing hinge hardware and mounting points to return smooth operation

• One pivot arm

• Disconnect power (and water if applicable) before beginning any repair
• Access may require opening the cabinet or removing the outer panel—use basic hand tools
• Reinstall using the original fasteners; ensure the arm is seated and moves freely after assembly

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
