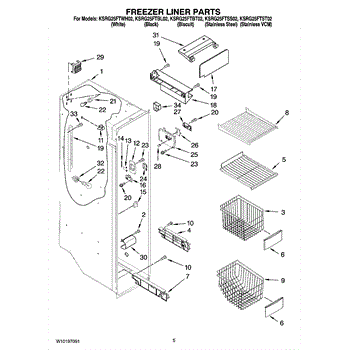

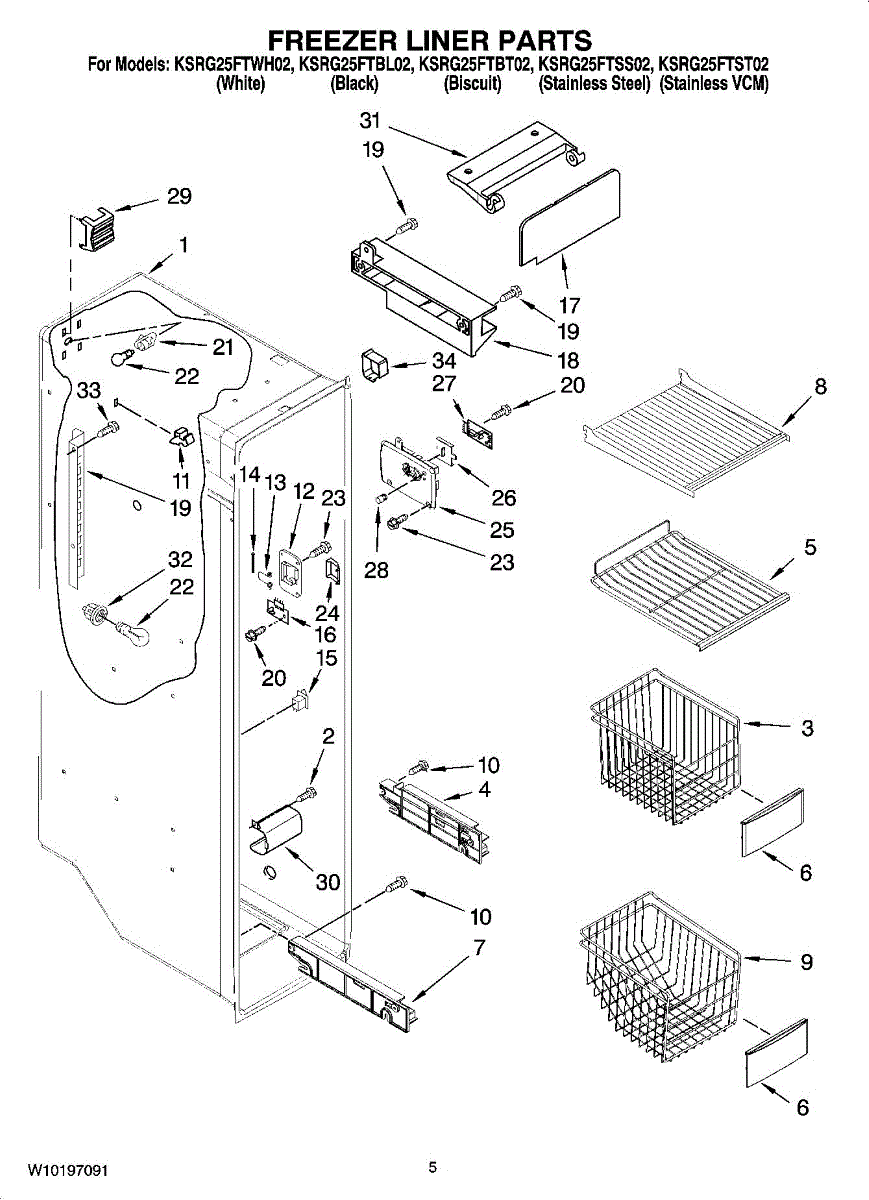

Parts for Kitchenaid KSRG25FTSS02: 04 - Freezer Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This track is the roller support that guides a sliding assembly for proper alignment and smooth movement, helping restore stable, quieter operation. It's a direct-fit replacement when the original track is worn, bent, or damaged. What it does:

• Guides rollers or glides so doors/drawers/drums move smoothly along their path
• Keeps the sliding assembly aligned to prevent sticking, wobbling, or binding
• Reduces noise caused by uneven or damaged tracks
• Restores proper movement after wear, corrosion, or physical damage

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools typically required; support the assembly to prevent drops
• Inspect associated rollers, clips, and fasteners and replace if worn
• Test the unit after installation to ensure smooth, quiet operation

This is for the left hand side

This is for the right hand side

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This emitter cover is the molded housing that shields and positions the infrared emitter for the refrigerator's ice level optics. Replacing a cracked or missing cover helps protect the board and keep the beam path clear for reliable ice making. What it does:

• Shields the emitter board and lens from moisture, frost, and debris
• Aligns the infrared beam path across the ice bin to the receiver
• Helps secure and position the ice level optics assembly
• Common symptoms: broken/missing cover, intermittent or no ice production due to optics misalignment or obstruction

• 1 emitter cover

• Disconnect power to the refrigerator before servicing
• Remove the ice bin to access the optics components
• Release the old cover's retaining tabs or fastener and lift it off; avoid touching board components
• Position and secure the new cover, then restore power and test ice maker operation

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement ice maker cover snaps over the icemaker assembly to shield moving parts and keep frost and debris out. Replacing a cracked or missing cover helps restore reliable ice production and a clean, finished look inside the freezer.

• Protects the ice maker's internal components from accidental contact and debris
• Helps reduce frost buildup around the ejector and motor area
• Maintains proper fit and clearance for smooth ice harvesting
• Common symptoms: cover cracked, broken tabs, loose or missing cover, excess frost around the icemaker

• Disconnect power to the refrigerator and turn off the water supply
• Remove the ice bin to access the ice maker
• Release any retaining tabs or screws and remove the old cover
• Install the new cover, ensuring the ejector and shutoff arm move freely; restore power and water

Size: 8 x 1/2 ab.

6 - 19 x .250

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

The Emitter Cover is an OEM part for Whirlpool refrigerators. It is designed to protect the ice maker's emitter sensor, which plays a crucial role in detecting the level of ice in the ice bin and controlling the ice production process. This cover ensures the sensor operates correctly by shielding it from debris and damage.

Common causes of a bad emitter cover include accidental impacts, wear and tear from regular use, or exposure to moisture.

Symptoms of a bad emitter cover include:

• Inconsistent ice production
• The ice maker not turning off when the bin is full
• Visible damage or cracks on the cover
• The ice maker failing to detect the ice level properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This slide is the replacement rack or drawer support that restores smooth, stable movement and keeps interior racks or drawers aligned. It helps parts glide in and out without binding or sagging. What it does:

• Replaces a worn or broken rack/drawer support to restore smooth sliding motion
• Keeps the rack or drawer level and prevents tilting or falling when extended
• Reduces noise and binding from damaged or loose slide hardware
• Commonly replaced when drawers or racks stick, sag, drop, or slide unevenly

• One replacement slide

• High-level home repair — unplug the appliance or shut off power before working near electrical components
• Remove the rack/drawer and follow OEM instructions for accessing and fastening the slide
• Use basic hand tools; keep fasteners and clips from the old slide to match new installation
• If the slide secures to water or electrical assemblies, turn off the water or power and consult the OEM guide.

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement receiver lens covers and protects the appliance's infrared/receiver area and indicator light while allowing signals and status lights to show through clearly. It restores proper protection and visibility for the sensor/indicator assembly. What it does:

• Protects the IR/receiver and indicator area from dust, spills, and impact
• Allows remote/IR signals and indicator lights to pass through without obstruction
• Replaces cracked, discolored or missing lens that can hide status lights or reduce signal clarity
• Helps maintain original appearance of the control/console area

• Disconnect power to the appliance before beginning any repair.
• Remove the control console or front panel per the service manual to access the lens.
• Handle the lens gently to avoid scratching; seat it into the bezel until it snaps or rests securely.

This bracket secures the ice maker's front cover in place. It supports and positions the cover so it stays attached to the ice maker head, protecting internal components and maintaining a clean, finished appearance inside the freezer. What it does:

• Holds the ice maker cover securely against the ice maker assembly
• Maintains proper alignment and a finished look
• Helps reduce vibration and rattling from a loose cover
• Common signs of failure: cracked/missing bracket, cover won't stay on, visible sagging or gaps

• One ice maker cover bracket

• Disconnect power to the refrigerator and turn off the water supply before servicing
• Remove the ice bin and the ice maker cover; retain any screws/fasteners
• Replace the bracket and reuse existing hardware; avoid overtightening into plastic
• Ensure the cover seats fully and moves/operates without interference

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This is for the left hand side

This is for the right hand side
