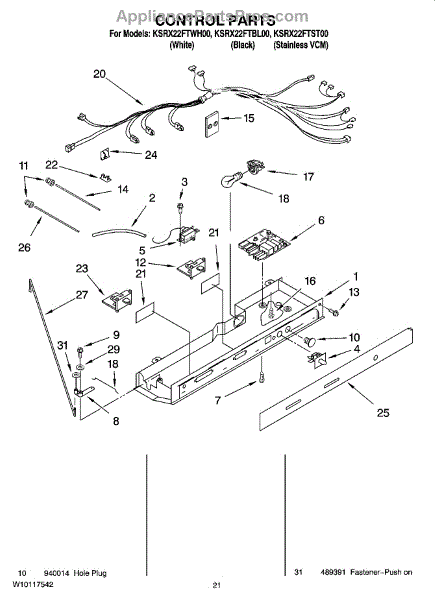

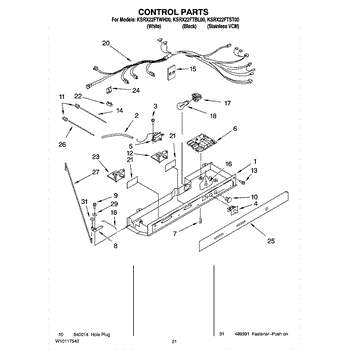

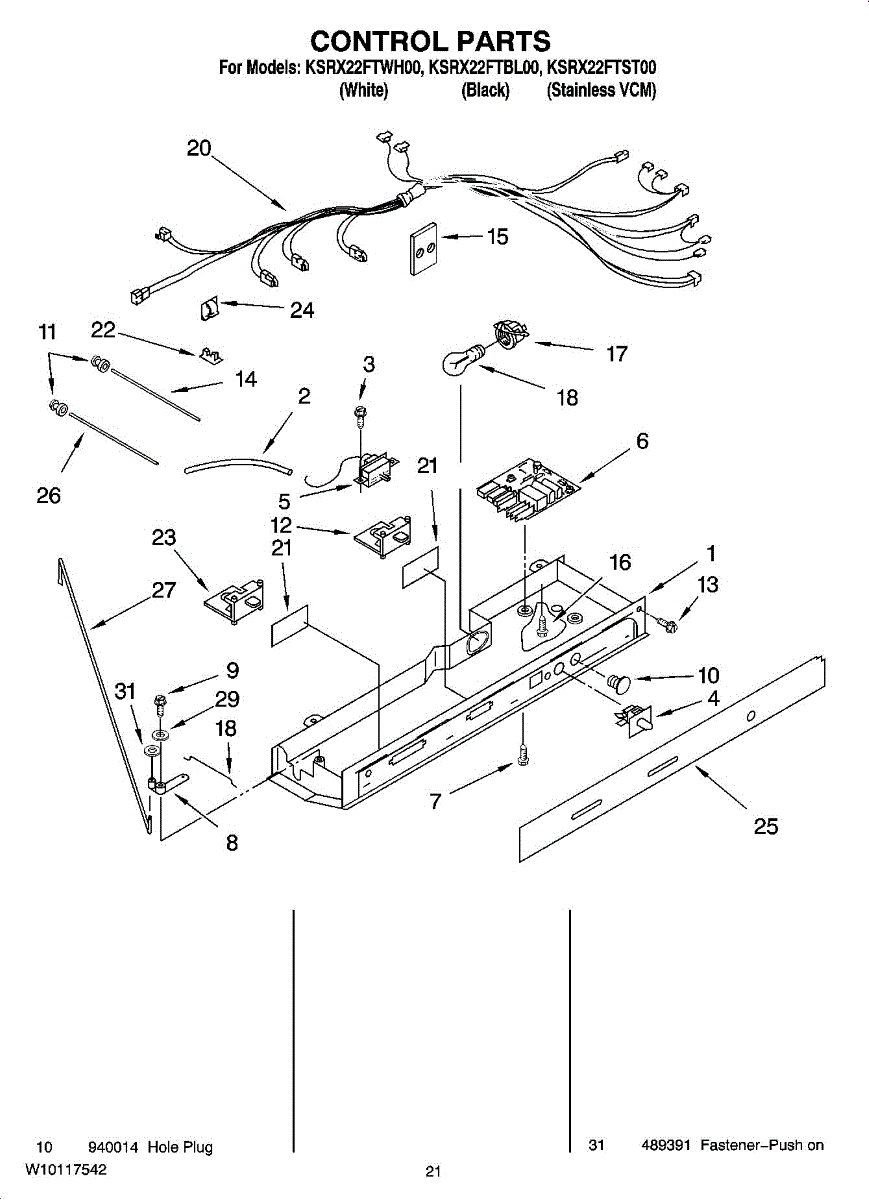

Parts for Kitchenaid KSRX22FTST00: 12 - Control Parts, Optional Parts (Not Included) Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

6 - 19 x .250

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Thermostat is an OEM part for Whirlpool refrigerators. This component is crucial for regulating the internal temperature of the refrigerator, ensuring that food and beverages are stored at the correct temperature for optimal freshness and safety. The thermostat monitors the temperature inside the refrigerator and signals the cooling system to turn on or off to maintain the desired temperature.

You should replace the thermostat if it becomes faulty or unresponsive. Causes of a bad thermostat can include regular wear and tear from frequent use, electrical issues, or exposure to extreme temperatures. Over time, these factors can lead to the thermostat failing to accurately monitor or control the refrigerator's temperature.

Symptoms of a bad thermostat include:

• The refrigerator not maintaining the correct temperature
• Food items freezing or spoiling faster than usual
• The refrigerator running constantly or not running at all
• Inconsistent temperature readings or fluctuations inside the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Adaptive Defrost Control Board

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

This pivot arm is a direct-replacement lever that restores stable pivoting for the appliance door/assembly, helping the door open and close smoothly and reducing play or binding. It's a simple, durable part for reliable motion. What it does:

• Supports the door or related assembly and provides the pivot point for opening and closing
• Restores proper alignment and reduces excessive wobble or looseness at the hinge
• Eliminates binding, rubbing, or uneven movement that can cause noise or wear
• Works with the existing hinge hardware and mounting points to return smooth operation

• One pivot arm

• Disconnect power (and water if applicable) before beginning any repair
• Access may require opening the cabinet or removing the outer panel—use basic hand tools
• Reinstall using the original fasteners; ensure the arm is seated and moves freely after assembly

This slide is the support guide that helps a drawer or rack move smoothly and stay aligned, restoring dependable opening and closing. It replaces a worn or broken guide to improve fit and operation. What it does

• Guides and supports a drawer or rack so it slides in and out smoothly
• Keeps the drawer or rack aligned and prevents binding or uneven movement
• Replaces damaged or worn slide hardware that can cause sticking or sagging
• Restores stable support for loads carried by the drawer or rack

• One slide support

• Disconnect power to the appliance before beginning any repair
• Installation usually requires basic hand tools; follow OEM instructions for correct placement
• Inspect mating parts (screws, brackets) and replace any damaged hardware

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This slide air control is the user-adjustable vent regulator that directs and limits airflow in the appliance, restoring selectable ventilation for proper operation and performance. What it does

• Opens and closes the vent path so you can increase or restrict airflow.
• Replaces a cracked, stuck, or missing slider that prevents proper vent adjustment.
• Helps resolve weak or inconsistent airflow caused by a broken control slide.
• Fits into the appliance's air control assembly to provide smooth, selectable operation.

• One slide air control.

• Disconnect power before beginning any service to avoid shock or injury.
• Typical replacement requires access to the front or control housing; remove panels and retain fasteners for reassembly.
• Handle plastic components gently to avoid cracking; ensure the slider is aligned in its track before securing panels.
• Test operation after reassembly to ensure the airflow selector moves freely and vents appropriately.

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

This aerosol spray paint restores the graphite finish on appliance surfaces for quick, low-effort cosmetic touch-ups. Use it to cover small chips, scratches and scuffs so the exterior looks uniform again. What it does:

• Matches graphite appliance finishes for spot repairs and touch-ups
• Covers visible chips, scratches and minor surface scuffs
• Restores a uniform appearance on painted metal appliance surfaces
• Helps protect exposed metal from surface corrosion after repair

• Clean and dry the surface; remove grease, dirt and loose paint before spraying
• Shake can well and test spray on a scrap piece or inconspicuous area first
• Apply in light, even coats from a recommended distance; allow coats to dry between passes
• Use in a well-ventilated area, keep away from heat/open flames, and follow all safety and disposal instructions on the can

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
