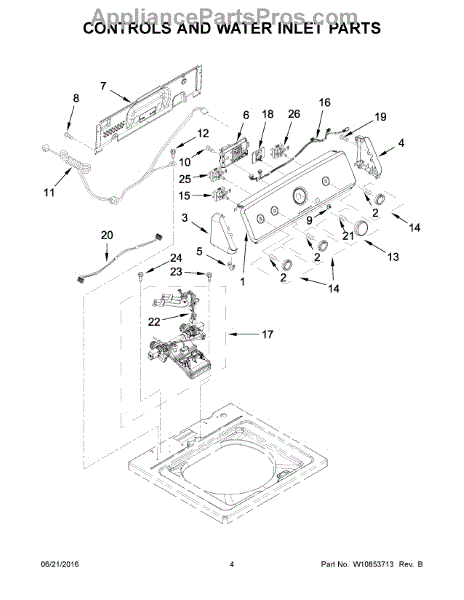

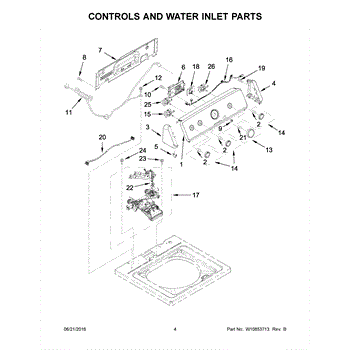

Parts for Maytag MVWC215EW1: 03 - Controls And Water Inlet Parts

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This left-hand end cap assembly restores a secure, finished mounting point on the appliance cabinet and helps keep internal components aligned and protected from friction or debris. Ideal when the original end cap is cracked, warped, or missing. What it does:

• Replaces a damaged or worn left-hand end cap to maintain proper alignment of adjacent components
• Provides a protective cover to prevent contact, rubbing, or debris entry at the cabinet edge
• Helps reduce vibration-related noise caused by loose or misaligned parts
• Fits into the original mounting location and matches OEM fit where specified

• Disconnect power to the appliance before starting any repair
• Verify left/right orientation by comparing to the removed part prior to installation
• Typical install requires removal of the adjacent trim or panel; handle parts gently to avoid damaging clips
• If mounting hardware is missing or damaged, replace with OEM-specified fasteners

This right-side endcap assembly replaces a damaged or missing trim piece to restore a clean finished edge and secure adjacent panels. It helps keep the appliance sealed at the outer edge and prevents rubbing or gaps. What it does:

• Replaces the right-side exterior endcap/trim on the appliance
• Holds adjoining panels in proper alignment and reduces edge movement
• Helps prevent debris and moisture from entering the seam at the appliance edge
• Stops rattling or scraping caused by a broken or loose endcap

• Disconnect power to the appliance before starting any work.
• Access may require removing the cooktop, control panel, or adjacent trim—refer to the model service manual.
• Handle edges and painted surfaces carefully to avoid scratches; use gloves if needed.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This pushbutton is a direct-replacement control button that restores reliable tactile feedback and button function on the control panel. Use it when a worn, cracked, or unresponsive button prevents proper appliance operation. What it does:

• Replaces a damaged or worn control button so the corresponding control can be reliably selected
• Restores tactile "click" and engagement when original button sticks, cracks, or falls off
• Helps resolve failures where pressing the button does not register a selection on the control panel
• Compatible with control-panel mounting; interfaces with the existing button actuator on the console

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Access usually requires removing the console or control panel trim—retain screws and fasteners
• Carefully remove the old button and snap or secure the new button in place; avoid forcing plastic tabs

This replacement power cord restores the electrical connection to your appliance so it can receive consistent power and operate safely. It's a direct-fit service part used when the original cord is damaged or no longer supplying power. What it does:

• Provides the main electrical connection from the wall outlet to the appliance
• Replaces frayed, cut, or melted cord insulation that can cause power loss or shorts
• Stops intermittent or no-power symptoms caused by a damaged cord
• Restores safe, reliable power delivery when the original cord is faulty

• Always disconnect power at the breaker or unplug the appliance before installation
• Route and secure the cord away from sharp edges, moving parts and high-heat areas

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM replacement part for Whirlpool dryers. This part is what you turn to select different drying cycles, temperatures, or settings on your machine. The knob is designed to fit onto the dryer's control panel and is used for manual operation of the appliance.

Symptoms of a bad Knob include:

• Difficulty in turning or setting the knob
• The knob slipping or coming off the control panel
• Inability to select or change cycles
• Visible cracks or damage to the knob itself
• Causes for a deteriorating knob can be frequent use, which may lead to wear and tear, or accidental damage from impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement control knob restores smooth, reliable turning on your appliance's control panel so you can select settings accurately again. It's designed to slide onto the control shaft and provide a secure, easy-grip interface. What it does

• Attaches to the control shaft to let you select settings
• Replaces cracked, stripped, or missing knobs
• Helps ensure the switch or valve engages properly when turned
• Improves grip and appearance on the front panel

• 1 control knob

• Disconnect power; if servicing a gas appliance, also shut off the gas supply
• Pull the old knob straight off the shaft—do not pry against the panel
• Align the new knob with the shaft flats/splines and press straight on without forcing
• Test operation to ensure the knob fully engages the control

Rotary encoder that restores precise cycle selection and reliable knob feedback on the control panel. Replaces a worn or unresponsive cycle switch so the control board can detect the chosen program correctly. What it does:

• Senses knob/shaft position and sends cycle-selection signals to the control board.
• Restores tactile detents and accurate position indexing for the user control knob.
• Commonly fixes symptoms like the control not recognizing selected cycles, intermittent cycle changes, or a loose/unresponsive selector.
• Works as the electronic/mechanical cycle switch used by the control assembly to select programs.

• Disconnect power to the appliance before starting any service.
• Access typically requires removing the control knob and control panel—note screw and connector locations during disassembly.
• Handle the part and nearby PCB/terminals carefully to avoid bending contacts or ESD damage.
• Reassemble panels and test cycle selection through several positions to confirm correct operation before finishing.

The Washer Water Inlet Valve is an OEM part for Whirlpool washing machines. This valve controls the flow of water into the washer, opening and closing to allow the correct amount of hot and cold water into the machine during different stages of the wash cycle.

Causes of a bad water inlet valve can include wear and tear over time, sediment build-up, or damage from high water pressure. These issues can cause the valve to malfunction, leading to improper water levels or no water entering the machine at all.

Symptoms of a bad water inlet valve include:

• Washer not filling with water
• Slow fill or no water flow
• Water leaking from the valve area
• Inconsistent water temperature during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pushbutton is the user-facing control button used to select cycles or settings on compatible Whirlpool appliances. It restores tactile control response and replaces a cracked, stuck, or unresponsive button for reliable operation. What it does:

• Replaces a worn, broken, or non-moving control button to restore user input function
• Provides a tactile press action so selections register correctly on the control panel
• Helps address symptoms like buttons that stick, feel loose, or do not engage
• Matches OEM form and fit for straightforward replacement when installed correctly

• One pushbutton/control button

• Disconnect power before servicing to avoid shock or injury
• Access may require removal of the control panel or console—refer to your model's service instructions
• Handle clips and plastic tabs gently to avoid breakage during removal and installation

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This wire harness assembly routes power and signals between appliance components to restore proper electrical connections and reliable operation. It replaces a damaged or worn harness to help eliminate intermittent power, control failures, or no-start conditions. What it does:

• Provides factory-style wiring connections between control, motor, heating element, and other components
• Restores lost or intermittent electrical continuity that can cause no-start or inconsistent operation
• Replaces frayed, burnt, or corroded wiring and terminals that create safety or performance issues
• Ensures correct wire routing and secure terminals to prevent shorts and improve reliability

• One complete wire harness assembly with terminals and connectors as shown

• Disconnect all power to the appliance before starting; follow lockout/tagout for safety
• Compare the harness to the original for matching connector types and lengths before installing
• Route and secure wiring away from moving parts and heat sources; use retained clips or ties

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the main wire harness that routes power and signals between an appliance's control board and electrical components, restoring reliable electrical connections for proper operation. What it does

• Carries power and control signals between the control board, motor, switches and sensors.
• Replaces damaged or burned wiring that can cause intermittent operation or loss of functions.
• Commonly used when an appliance won't start, has unresponsive controls, or experiences random shutdowns.
• Ensures secure connector mating to reduce arcing and poor electrical contact.

• Disconnect power before any repair to avoid shock or damage.
• Compare connectors and wire colors to the old harness to match before installing.
• Route harness along original clips and channels; avoid sharp edges and pinch points.
• Inspect connectors and terminals for corrosion; replace any damaged terminals for a reliable repair.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

The Cycle Switch is an OEM part for Whirlpool washing machines. It is responsible for controlling the various cycles of the washing machine, such as wash, rinse, and spin. This switch ensures that the machine progresses through each cycle correctly, maintaining the proper sequence for effective cleaning.

Causes of a bad cycle switch can include wear and tear from frequent use, electrical malfunctions, or mechanical failure within the switch mechanism.

Symptoms of a bad cycle switch include:

• The washing machine not advancing through cycles
• The machine getting stuck on a particular cycle
• Irregular or inconsistent cycle timings
• The machine not starting or stopping at the correct times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load
