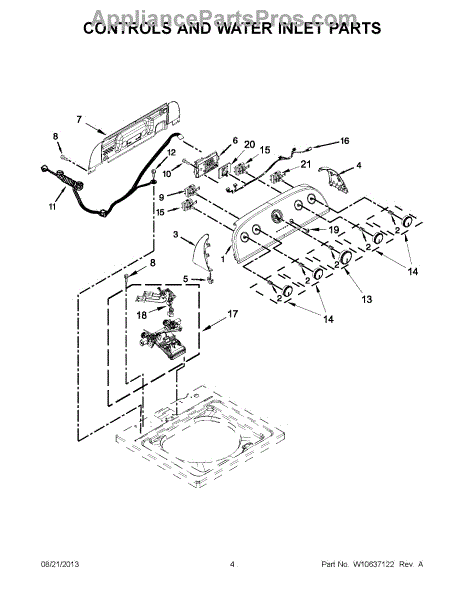

Parts for Whirlpool WTW4850BW0: 03 - Controls And Water Inlet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement control panel that restores the appliance's front surface and provides a secure mounting area for buttons and switches. Replaces a damaged or worn panel to help maintain proper control operation and appearance. What it does:

• Provides the exterior mounting surface for control buttons, knobs, and switches
• Protects internal control components from spills, grease and accidental damage
• Restores a flush, secure fit to the appliance front where the panel was cracked, warped, or dented
• Can reduce issues caused by loose or misaligned controls

• One replacement control panel

• Disconnect power to the appliance before beginning any repairs
• Typically secures with screws and may require removing trim or the main console for access
• Handle carefully to avoid scratching the finish; use appropriate tools and fasteners

This control panel is the exterior console that houses the washer/dryer controls and user interface, restoring a clean, functional front for the appliance. It replaces a damaged or worn panel to improve operation and appearance. What it does:

• Provides the mounting surface and openings for knobs, buttons, and display elements
• Protects internal control components from dust and debris
• Restores correct alignment of user controls and labels for reliable operation
• Helps resolve issues caused by cracked, warped, or cosmetically damaged panels

• One control panel assembly as shown

• Disconnect power (and water if applicable) before starting any repair
• Handle carefully to avoid scratching the finish and damaging clips or mounting tabs
• Some disassembly of the top or front may be required; follow OEM instructions
• If the panel contains attached switches or overlays, verify connectors are secure before reassembly

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear panel replaces the backguard that covers the appliance's rear housing, protecting internal components and wiring while giving the unit a finished appearance. It restores a safe, enclosed back area and helps prevent debris entry. What it does:

• Covers and protects control wiring, terminals, and components at the appliance rear
• Prevents accidental contact with electrical parts and reduces debris or grease buildup
• Restores a finished exterior back surface for safety and appearance
• Helps maintain proper airflow routing behind the appliance

• Disconnect power (unplug or shut off circuit breaker) before starting work.
• Handle edges carefully—metal panels may be sharp; wear gloves.
• Typical installation requires removing a few screws and aligning tabs; keep original fasteners if present.
• If clips, insulation, or mounting hardware are missing or damaged, replace with OEM-specified hardware for proper fit.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Cycle Switch is an OEM part for Whirlpool washing machines. It is responsible for controlling the various cycles of the washing machine, such as wash, rinse, and spin. This switch ensures that the machine progresses through each cycle correctly, maintaining the proper sequence for effective cleaning.

Causes of a bad cycle switch can include wear and tear from frequent use, electrical malfunctions, or mechanical failure within the switch mechanism.

Symptoms of a bad cycle switch include:

• The washing machine not advancing through cycles
• The machine getting stuck on a particular cycle
• Irregular or inconsistent cycle timings
• The machine not starting or stopping at the correct times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This heavy-duty replacement power cord restores the appliance's connection to household power, delivering reliable electrical continuity for normal operation. Ideal when the original cord is damaged, burned, or fails to supply power. What it does:

• Carries mains electricity from the wall outlet to the appliance so controls and heating elements can operate
• Replaces frayed, cracked, melted, or otherwise damaged cords that may cause intermittent power or no power
• Helps eliminate sparking, overheating, or visible insulation damage at the cord or plug
• Matches the OEM fit and wiring configuration for a direct replacement when compatible

• One power cord

• Disconnect power at the breaker or unplug the appliance before beginning any work
• Verify wiring color and connector orientation match the appliance before attaching
• Secure strain relief and routing to prevent pinching or chafing; tighten terminal connections firmly

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement control knob restores safe, reliable control of a range or oven burner. It provides a secure grip and clear pointer so you can set heat levels accurately and replace a missing or damaged knob quickly. What it does

• Replaces a worn, cracked, or missing control knob so the appliance can be operated normally
• Provides a clear pointer for setting temperature or burner power levels
• Allows the shaft to be turned smoothly when selecting settings
• Helps prevent accidental changes caused by a damaged knob

• One control knob

• Disconnect power to the appliance (or shut off gas) before servicing
• Most knobs pull straight off the control shaft; inspect shaft for damage before installing
• Align the knob's socket and press on until fully seated; test operation after restoring power
• If the shaft or underlying control is damaged, replace the damaged component rather than just the knob

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

The Water Inlet Valve is an OEM part for Whirlpool washing machines. This valve controls the flow of water into the washer, allowing it to fill with the correct amount of water during the wash and rinse cycles.

Over time, the water inlet valve can become clogged with debris, develop electrical issues, or wear out, leading to problems with the water flow. Causes of a bad water inlet valve include mineral buildup from hard water, internal component failure, or damage to the valve body.

Symptoms of a bad water inlet valve include:

• The washing machine not filling with water
• Slow or insufficient water flow into the washer
• The washer filling with water when it should not
• Unusual noises during the filling process
• Leaks around the valve area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This main wire harness routes power and signals between the appliance control and internal components to restore proper electrical connections and operation. It's a direct-fit replacement when the original harness is damaged. What it does:

• Connects control board, motors, switches and sensors so circuits receive power and communicate correctly
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation or component failure
• Helps stop issues like no power to controls, intermittent runs, or unexpected shutdowns when caused by damaged wiring
• Maintains factory routing and connector types for reliable electrical connections

• One main wire harness

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness
• Compare harness and connectors to the original and route wires following factory paths to prevent chafing
• Secure connectors fully until they click; avoid stretching wires when reinstalling

A replacement pushbutton that restores tactile control to appliance control panels. Designed to replace a broken, stuck, or missing selector button so you can reliably operate affected controls. What it does:

• Replaces a damaged or missing pushbutton on the control panel to restore normal button operation
• Provides a firm, tactile feel for reliable control input
• Helps resolve symptoms like a button that sticks, won't depress, or is physically broken
• Snaps into the console bezel for a secure fit without complex parts

• Turn power to the appliance off at the breaker or unplug before starting any repair
• Access typically requires removing the control panel or console; keep track of screws and clips
• Snap-in design usually requires simple hand tools; do not force parts—inspect clips for alignment
• If electrical problems persist after replacing the button, test the underlying switch or control board

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load
