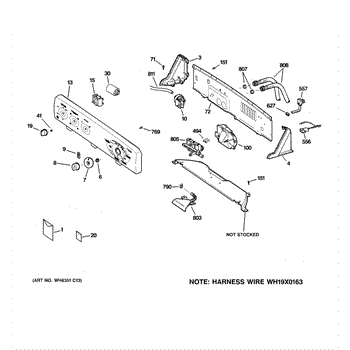

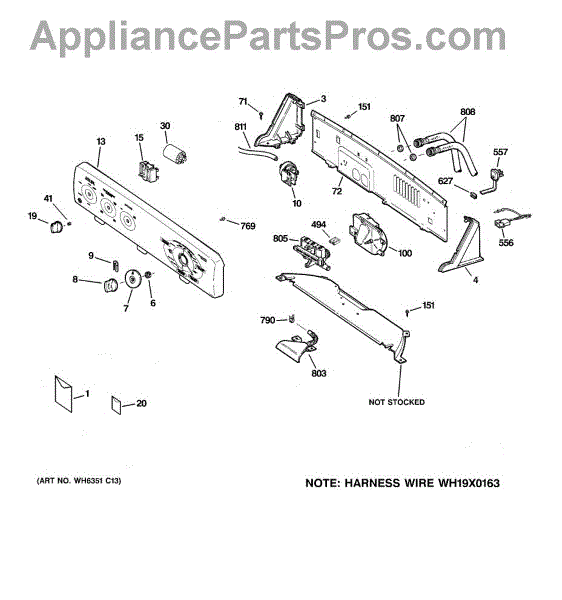

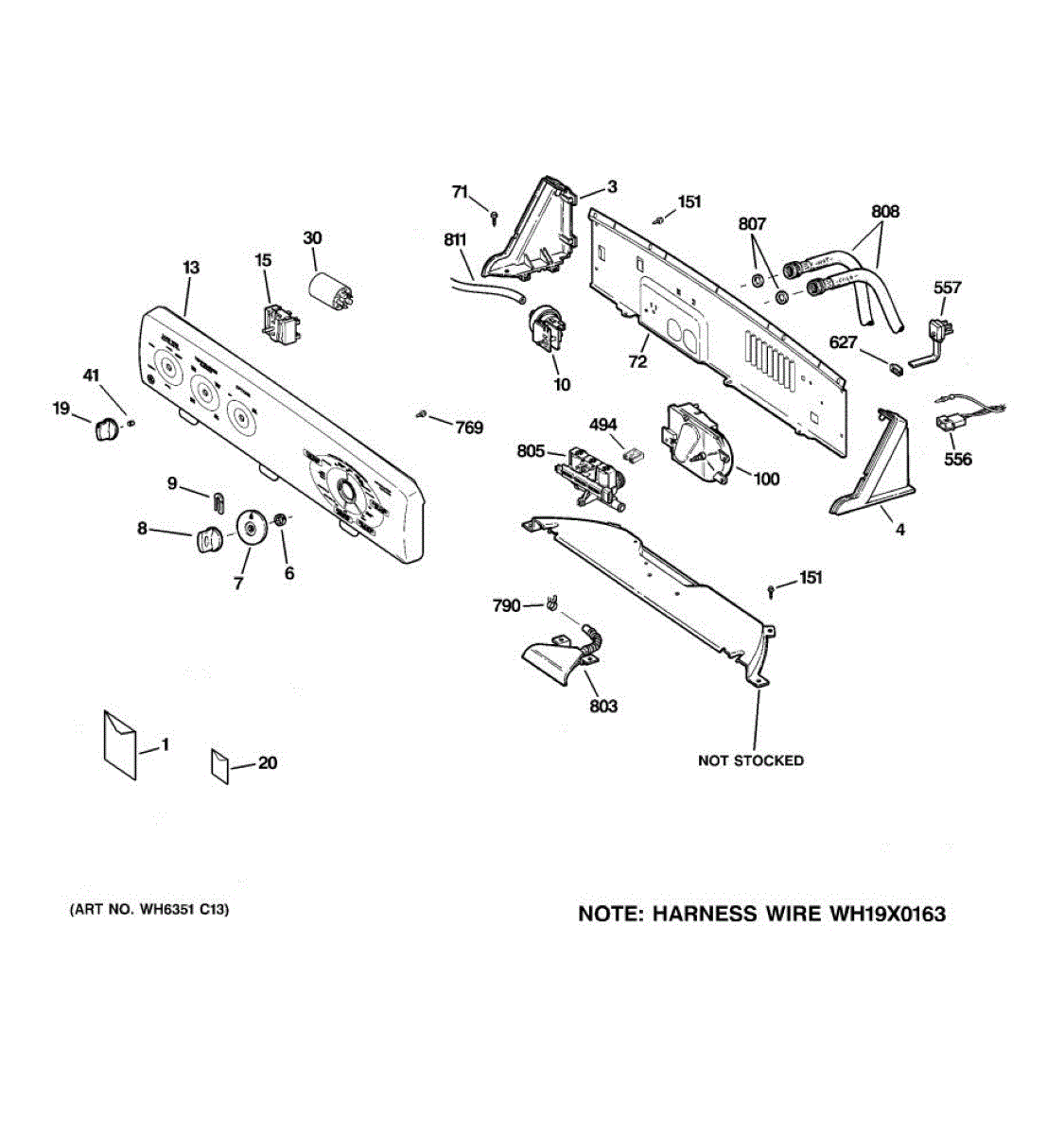

Parts for Ge WHDSR316G2WW: 01 - Controls & Backsplash Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Replacement end cap for washer left-side assembly. Secures cabinet alignment and protects internal components. Needed when original is cracked or missing.

Right-side cabinet end cap for washers. Replaces cracked, broken, or missing trim piece. Restores proper fit and protects internal components.

The Compression Ring is an OEM part for GE washing machines. This ring is essential for securing the tub within the washing machine, ensuring it remains in place during the wash and spin cycles. It helps maintain the stability and proper function of the washing machine.

You should replace the compression ring if it becomes worn, cracked, or damaged. Causes of a bad compression ring can include frequent use, high-stress loads during wash cycles, or physical damage, which can lead to instability and poor washing performance.

Symptoms of a bad compression ring include:

• Excessive shaking or movement of the washing machine during cycles
• Unusual noises during operation
• The washing machine tub appearing misaligned or loose
• Ineffective washing due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Timer dial knob for washers. Installs on control panel to select wash cycles. Replace if knob spins freely, teeth are worn, or it won't engage cycles.

Replacement timer control knob assembly for washers. Installs on control panel to select cycles and settings. Needed when knob is cracked, broken, worn, or won't grip timer shaft.

Secures the timer knob to the shaft for accurate cycle selection. Replace if worn, broken, or lost causing knob to spin freely. Confirm fit with model.

This water level pressure switch monitors the tub's fill level and tells the washer when to stop filling and move to the next step. Replace it to restore accurate water levels and dependable cycle progress.

• Monitors air pressure from the tub to determine the selected water level
• Signals the control to open/close the inlet valves for proper fill
• Allows agitation and spin only after the correct level is reached
• Typical symptoms: overfilling or continuous filling, underfilling/low water level, cycle won't start or advance to wash/spin

What's included: 1 pressure switch Install notes:

• Unplug the washer and turn off the water supply before servicing
• Access the control console; note wire positions or take a photo and transfer connectors one at a time
• Move the pressure hose to the new switch; ensure the hose is clear, undamaged, and fully seated
• Secure the switch, reassemble, and run a fill test to confirm proper shutoff

This replacement backsplash assembly restores the finished rear panel on compatible ranges, protecting the wall behind the cooktop and returning the appliance's original appearance. Use it when the original panel is bent, rusted or cosmetically damaged. What it does

• Covers and protects the rear area of the cooktop from heat, grease and splatter
• Restores the appliance's finished look after dents, scratches or corrosion
• Provides the mounting surface for rear-mounted controls and components
• Prevents drafts and gaps behind the range that can collect debris

• Disconnect power to the range before beginning any service to avoid shock
• Typical installation requires removing a few screws and lifting the old panel out; basic hand tools are usually sufficient
• Take care with sharp edges and painted surfaces to avoid cuts or damage

This is a white plastic control knob that attaches to the timer or cycle selector shaft on the dryer's control panel. It allows you to select the desired drying cycle or timer setting. Replace this knob if it is cracked, broken, or if the shaft connection has worn out so the knob spins without engaging the timer.

This thermal fuse protects the washer motor from electrical overload by breaking the circuit when excessive current is detected. Located in the motor assembly, it needs replacement when the washer won't start or operate despite having power.

Power line filter sits between household AC and washer's internal wiring. Replace when cracked, corroded, or causing breaker trips due to electrical noise.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 b.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Fix a washer that won't advance cycles, stops mid-cycle, or repeats steps. This timer controls fill, wash, rinse, drain, and spin sequences.

Stainless steel hex washer head screw for securing appliance panels, brackets, and trim. Replace missing, stripped, or corroded fasteners during repair.

Plastic housing that secures the drain solenoid to the pump assembly. Replace if cracked, broken, or missing to properly position the solenoid mechanism.

Harness to corset & shifter

This power cord assembly connects your washer to the electrical outlet and supplies power to all machine components. It includes the proper gauge wiring and safety features required for washer operation. Replace this part if the cord is damaged, frayed, or if your washer won't power on despite having electrical power at the outlet.

8-18 hi/lo 5/8

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Guides water from the inlet valve into the wash tub. Replace if cracked, broken, leaking, or causing uneven water distribution in your top-load washer.

If water leaks into your washer drum when off or won't fill properly, the inlet valve may be faulty. Most DIYers complete this repair in 20-50 minutes.

12-pack of inlet hose washers for washers and washer dryer combos. Replace cracked, worn, or missing washers to prevent leaks at water connections.

Replacement water fill hoses for washing machines. Connect home water supply to washer. Replace when cracked, leaking, or showing rubber wear or corrosion.

Connects the pressure switch to the tub in top-load washers. Replace if cracked, punctured, or brittle to restore proper water level monitoring.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
