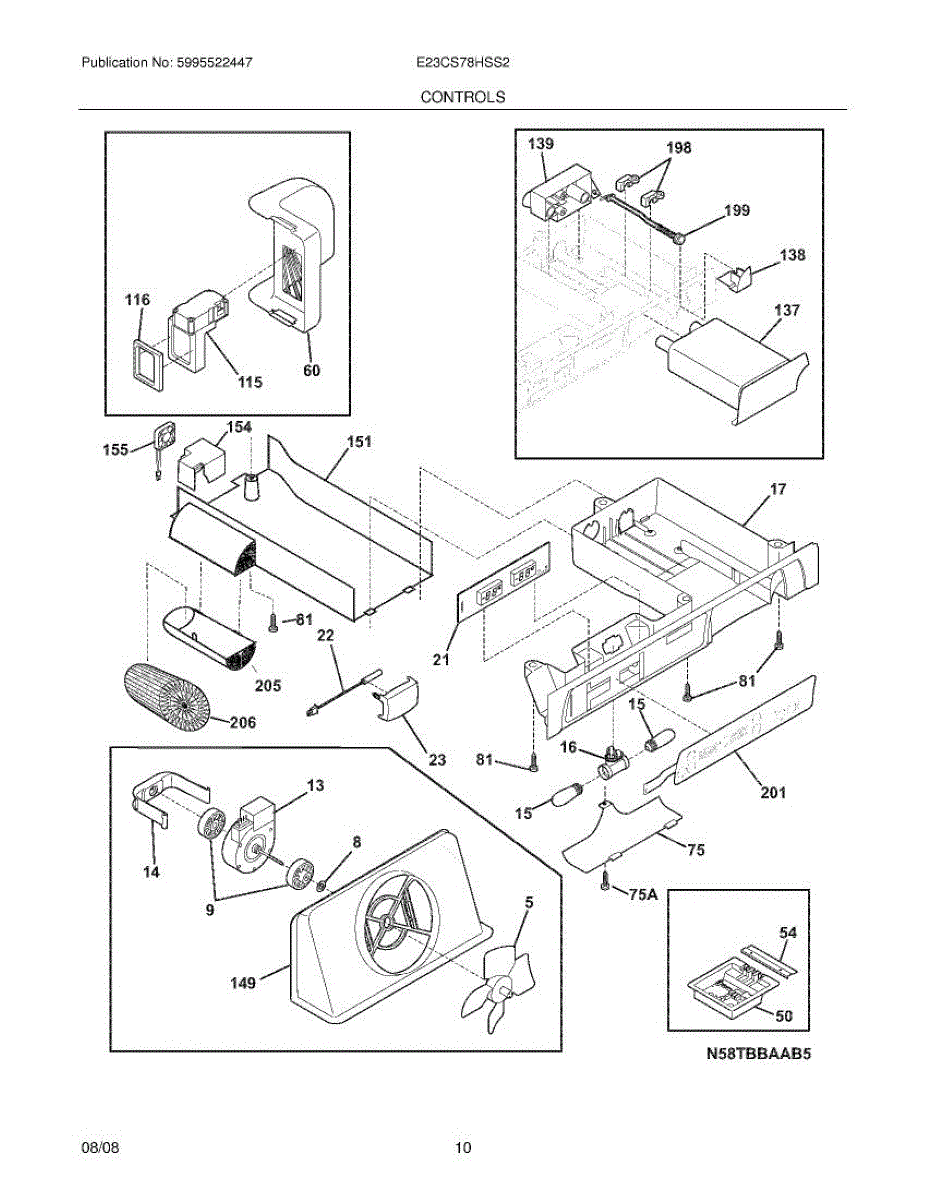

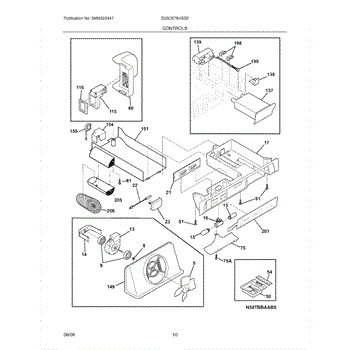

Parts for Electrolux E23CS78HSS2: 11 - Controls Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

A replacement bushing that supports a rotating shaft and reduces wear between moving metal parts, restoring smooth, quiet operation. Fits OEM specification to ensure proper alignment and long-lasting performance. What it does:

• Cushions and guides a rotating shaft or drum to prevent metal-on-metal contact
• Reduces noise, vibration, and wobble caused by worn support surfaces
• Helps maintain proper shaft/drum alignment for even operation
• Limits premature wear to adjacent bearings, seals, and housing

• One bushing

• Disconnect power before starting any repair and follow OEM disassembly instructions
• Replacement typically requires access to the motor/shaft or drum housing; some disassembly may be necessary
• Inspect adjacent bearings and seals and replace if worn to prevent repeat failures

The Evaporator Fan Motor is an OEM replacement part for Electrolux refrigerators. It is responsible for circulating air throughout the refrigerator’s interior to maintain consistent cooling and optimal temperature distribution. This motor works to move air over the evaporator coils, aiding in the cooling process and ensuring that the refrigerator and freezer compartments remain at the desired temperature.

Over time, the evaporator fan motor can wear out or fail due to mechanical stress, dust or debris accumulation, or electrical issues. A malfunctioning motor can lead to uneven cooling or inadequate refrigeration, impacting the overall performance of the appliance.

Symptoms of a bad evaporator fan motor include:

• Unusual noises such as rattling or humming
• Inconsistent or inadequate cooling
• Ice buildup in the freezer or refrigerator compartments
• The refrigerator running constantly without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Frigidaire, Gibson, Kelvinator, and Kenmore models.

NOTE: THE CHANGE FROM 4-WIRE TO 3-WIRE DOES NOT IMPACT PART

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This interior light shield protects and diffuses the refrigerator light, helping produce even illumination while covering the bulb. It restores a finished look and prevents direct contact with the lamp for safer operation. What it does:

• Covers the interior light to diffuse and soften illumination for better visibility
• Protects the bulb from accidental impact and food contact
• Helps prevent direct glare from the lamp
• Replaces cracked, yellowed, missing, or loose light covers that reduce light output

• Disconnect power before servicing the appliance to avoid shock
• Handle the plastic shield carefully to avoid cracking during removal/installation
• Usually snaps or screws into place; align tabs with housing and press gently

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Damper is an OEM replacement part for Frigidaire refrigerators. It controls the flow of cold air circulating inside the fridge compartment including the damper seals. The damper opens and closes automatically depending on temperature conditions to maintain proper cooling levels.

Causes of a bad damper can include seal failure allowing air leaks over time, restricted movement from mineral deposits binding internal parts, or physical damage bending critical damper components.

Symptoms of a bad damper include:

• Inability to achieve recommended temperature settings
• Areas inside the fridge feeling warmer than others
• Fluctuating temperatures requiring frequent adjustments

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This seal-damper is the gasket that fits around a refrigerator's air damper to help keep compartments properly separated and maintain intended airflow. Replacing a torn or compressed seal helps reduce uneven cooling and drafts. What it does:

• Seals the air damper opening to limit unwanted air exchange between compartments
• Helps maintain stable temperatures by preventing cold or warm air leakage
• Common symptom fix: reduces uneven cooling or warm spots near the damper area
• Also helps reduce excess frost or condensation that can form from persistent air leaks

• Disconnect power to the appliance before starting any repair and remove nearby food/shelves for access
• Access the damper housing per your model's service instructions, remove the old seal, and seat the new seal onto the damper frame or mounting groove
• Clean the mounting surface of debris or old adhesive so the new seal sits flat; use gentle pressure to fully engage the seal
• If the damper housing is cracked or the seal does not seat properly, replace the damper assembly.

This is not a filter. Use this bypasss if don't want to use the PureSource 2 Water Filter WF2CB or the Pure Advantage Water Filter EWF2CBPA.

The Electrolux ICON Pure Advantage Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. It is designed to filter and purify the water that dispenses from the refrigerator, ensuring clean and fresh-tasting water and ice. The coconut shell carbon filter should be replaced every 6 months or 400 gallons for optimal performance. It has a 0.5 flow rate and operates at 30-100 PSI and 33-100°F. Made to original specifications, this replacement meets NSF 42 standards.

Causes of a bad water filter can include clogging due to sediment buildup, reaching the end of its service life, or physical damage to the filter housing.

Symptoms of a bad water filter include:

• Decreased water flow from the dispenser
• Poor-tasting or cloudy water
• Ice cubes with an unusual taste or odor
• The filter warning light on the refrigerator indicating a replacement is needed

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Refrigerator Water Filter Base is an OEM part for Frigidaire refrigerators. It holds the water filter in place and provides a secure connection to the water supply, ensuring clean and filtered water flows through the refrigerator.

Causes of a bad water filter base can include wear and tear over time, damage from improper filter installation, or issues with the water connections leading to leaks. Additionally, mineral buildup from hard water can affect the performance and integrity of the base.

Symptoms of a bad water filter base include:

• Water leaks around the filter area
• Poor water flow or reduced water pressure
• Filter not fitting securely or falling out
• Unusual tastes or odors in the filtered water

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This shroud assembly is the molded housing that directs airflow and protects internal components. It restores proper airflow routing for efficient operation and helps reduce noise and debris entry around the blower area. What it does:

• Directs and channels airflow from the blower to the vent or drum, improving performance.
• Protects the blower motor and wiring from lint, debris, and incidental contact.
• Helps reduce blower noise by enclosing and stabilizing the blower area.
• Worn, cracked, or damaged shrouds can contribute to reduced airflow, unusual noise, or visible gaps near the blower.

• One shroud assembly

• Disconnect power (and gas if applicable) before beginning work.
• Remove outer panels or access covers to reach the blower housing.
• Support the blower/motor assembly during removal and align mounting tabs carefully; avoid forcing fasteners.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

This genuine replacement spring provides the tension for the refrigerator water/filter release rod so the filter stays secured and releases correctly. Restores proper filter engagement for smooth insert and removal. What it does:

• Applies tension to the filter release rod so the filter locks and ejects reliably
• Helps prevent the filter from slipping or failing to latch
• Reduces binding or sticking when inserting or removing the filter
• Works with the filter housing release mechanism to maintain normal operation

• One filter release rod spring

• Disconnect power to the appliance before servicing; shut off water if accessing the water/filter area
• Remove the filter housing cover per your model's service instructions to access the spring
• Springs can be under tension—wear eye protection and handle carefully

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.
