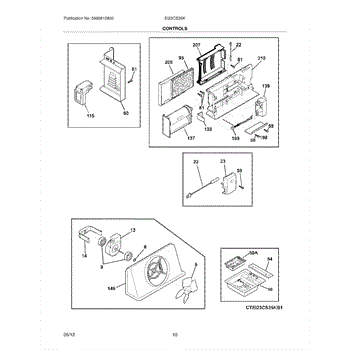

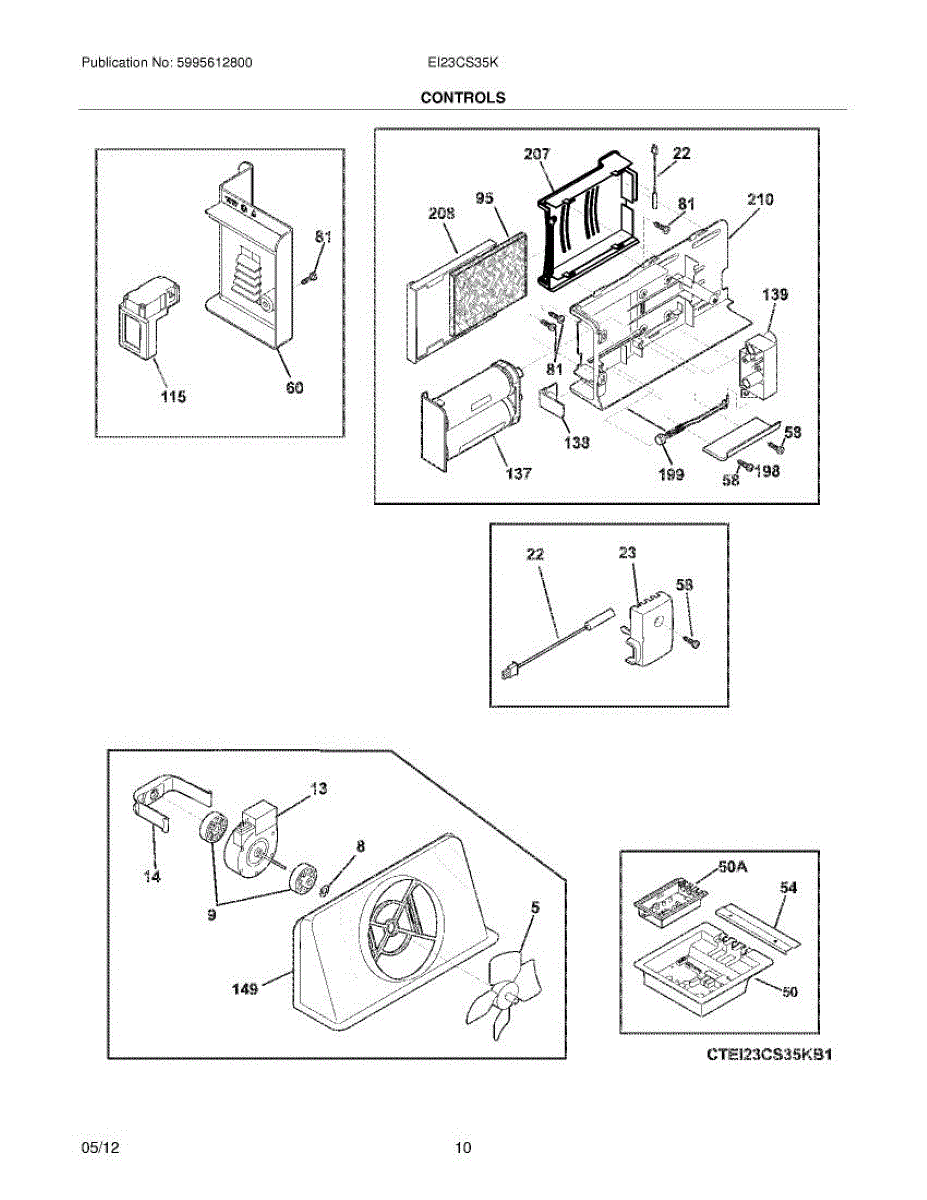

Parts for Electrolux EI23CS35KS1: 11 - Controls Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

A replacement bushing that supports a rotating shaft and reduces wear between moving metal parts, restoring smooth, quiet operation. Fits OEM specification to ensure proper alignment and long-lasting performance. What it does:

• Cushions and guides a rotating shaft or drum to prevent metal-on-metal contact
• Reduces noise, vibration, and wobble caused by worn support surfaces
• Helps maintain proper shaft/drum alignment for even operation
• Limits premature wear to adjacent bearings, seals, and housing

• One bushing

• Disconnect power before starting any repair and follow OEM disassembly instructions
• Replacement typically requires access to the motor/shaft or drum housing; some disassembly may be necessary
• Inspect adjacent bearings and seals and replace if worn to prevent repeat failures

The Evaporator Fan Motor is an OEM replacement part for Electrolux refrigerators. It is responsible for circulating air throughout the refrigerator’s interior to maintain consistent cooling and optimal temperature distribution. This motor works to move air over the evaporator coils, aiding in the cooling process and ensuring that the refrigerator and freezer compartments remain at the desired temperature.

Over time, the evaporator fan motor can wear out or fail due to mechanical stress, dust or debris accumulation, or electrical issues. A malfunctioning motor can lead to uneven cooling or inadequate refrigeration, impacting the overall performance of the appliance.

Symptoms of a bad evaporator fan motor include:

• Unusual noises such as rattling or humming
• Inconsistent or inadequate cooling
• Ice buildup in the freezer or refrigerator compartments
• The refrigerator running constantly without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Frigidaire, Gibson, Kelvinator, and Kenmore models.

NOTE: THE CHANGE FROM 4-WIRE TO 3-WIRE DOES NOT IMPACT PART

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Main Power Control Board (assembly) replaces the refrigerator's primary electronic control that distributes power and manages compressor, fan, and user interface circuits. Installing the correct board restores normal power control and enables reliable operation. What it does:

• Regulates and routes power to the compressor, evaporator/condenser fans, lights, and control/display electronics
• Controls start/stop signals for cooling cycles to maintain proper temperature operation
• Works as the central interface between sensors, user controls, and mechanical components

• One Main Power Control Board assembly (single complete board)

• Disconnect power to the appliance before starting any repair
• Handle the board carefully; avoid static discharge and contact with component terminals
• Confirm connectors align and seat fully; do not force connectors or bend pins

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

The damper control regulates the flow of cold air from the freezer into the fresh food compartment, helping maintain steady temperatures. Replacing this assembly restores proper airflow and consistent cooling.

• Opens and closes the air door to meter cold air from the freezer into the refrigerator
• Helps maintain the set temperature and even cooling across shelves
• Common failure signs: fresh food section too warm or too cold, weak/no airflow, clicking or grinding from the damper area
• Visible damage or a door stuck in one position can indicate replacement is needed

• Disconnect power before servicing
• Access the damper in the refrigerator control/air duct area; remove covers and retain screws per your model
• Transfer any mounting hardware or seals from the old assembly if needed
• After installation, ensure the door moves freely and allow up to 24 hours for temperatures to stabilize

This bypass is a small electrical connector used to complete or reroute a circuit inside the appliance, restoring continuity so the unit can be tested or operated while diagnosing a faulty component. What it does:

• Provides a safe path to complete an electrical circuit when a component or sensor is removed for testing
• Helps verify whether a control or subsystem is causing an interruption in power or signal
• Can be used temporarily to isolate faults and confirm repairs
• Resolve symptoms like intermittent operation or no-response from a circuit while troubleshooting

• Disconnect all power to the appliance before installing to avoid shock or damage
• Intended for diagnostic or temporary use; replace failed components with correct OEM parts for permanent repair
• Follow the appliance wiring diagram and manufacturer's instructions
• Ensure secure, insulated connections to prevent short circuits

The Refrigerator Water Filter Base is an OEM part for Frigidaire refrigerators. It holds the water filter in place and provides a secure connection to the water supply, ensuring clean and filtered water flows through the refrigerator.

Causes of a bad water filter base can include wear and tear over time, damage from improper filter installation, or issues with the water connections leading to leaks. Additionally, mineral buildup from hard water can affect the performance and integrity of the base.

Symptoms of a bad water filter base include:

• Water leaks around the filter area
• Poor water flow or reduced water pressure
• Filter not fitting securely or falling out
• Unusual tastes or odors in the filtered water

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This shroud assembly is the molded housing that directs airflow and protects internal components. It restores proper airflow routing for efficient operation and helps reduce noise and debris entry around the blower area. What it does:

• Directs and channels airflow from the blower to the vent or drum, improving performance.
• Protects the blower motor and wiring from lint, debris, and incidental contact.
• Helps reduce blower noise by enclosing and stabilizing the blower area.
• Worn, cracked, or damaged shrouds can contribute to reduced airflow, unusual noise, or visible gaps near the blower.

• One shroud assembly

• Disconnect power (and gas if applicable) before beginning work.
• Remove outer panels or access covers to reach the blower housing.
• Support the blower/motor assembly during removal and align mounting tabs carefully; avoid forcing fasteners.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

This genuine replacement spring provides the tension for the refrigerator water/filter release rod so the filter stays secured and releases correctly. Restores proper filter engagement for smooth insert and removal. What it does:

• Applies tension to the filter release rod so the filter locks and ejects reliably
• Helps prevent the filter from slipping or failing to latch
• Reduces binding or sticking when inserting or removing the filter
• Works with the filter housing release mechanism to maintain normal operation

• One filter release rod spring

• Disconnect power to the appliance before servicing; shut off water if accessing the water/filter area
• Remove the filter housing cover per your model's service instructions to access the spring
• Springs can be under tension—wear eye protection and handle carefully
