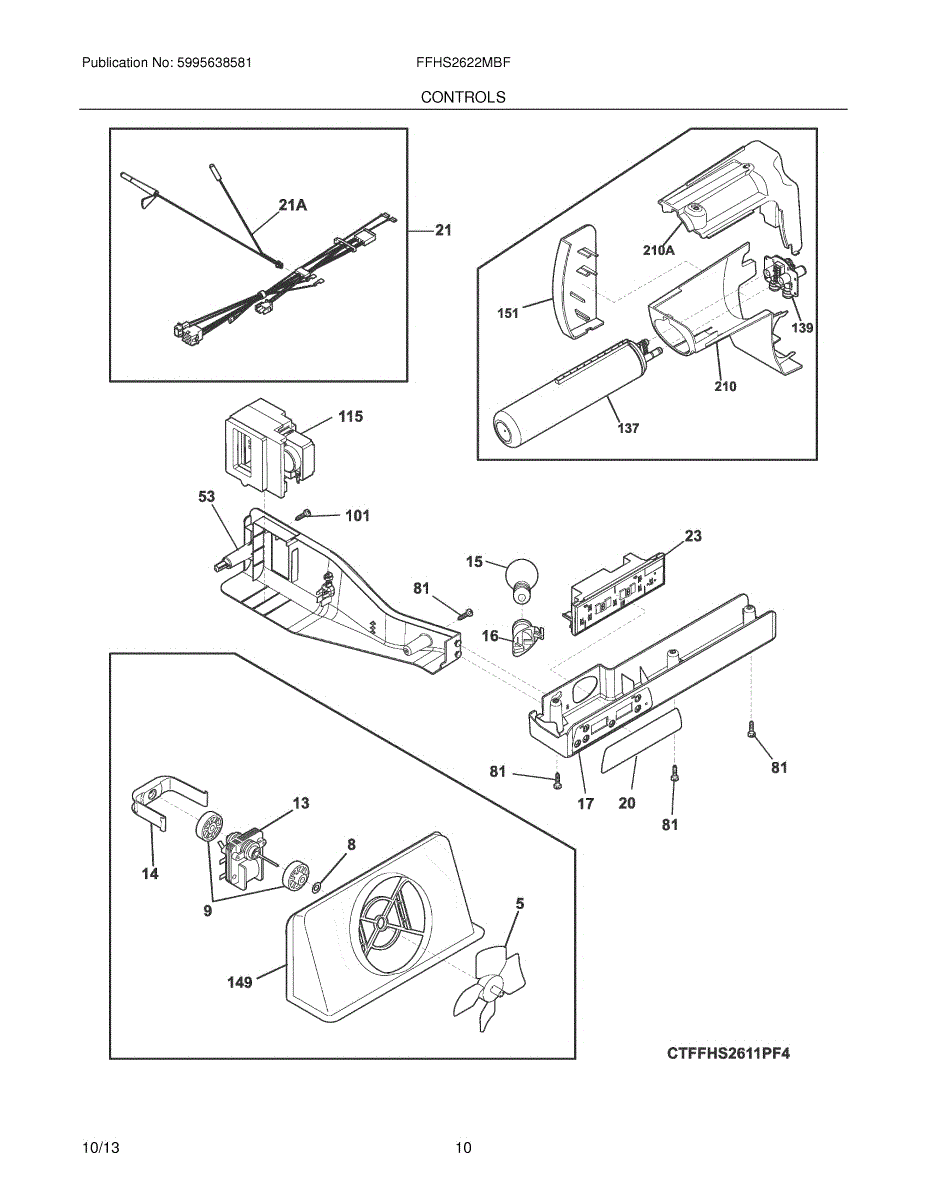

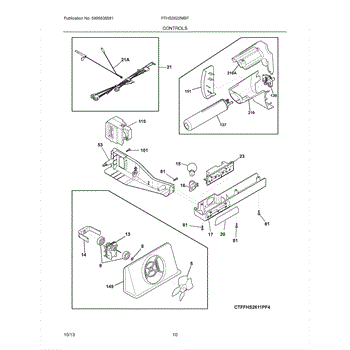

Parts for Frigidaire FFHS2622MBF: 11 - Controls Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

This evaporator fan motor mounting bushing isolates the motor from its bracket to reduce vibration and rattling. Replacing a worn bushing helps keep the fan secure and centered so airflow remains smooth and operation is quieter. What it does:

• Cushions and isolates the evaporator fan motor to reduce vibration and noise
• Helps maintain motor alignment to prevent the fan blade from rubbing the shroud
• Secures the motor to the mounting bracket
• Typical symptoms: rattling or buzzing from the freezer, fan wobble, loose motor, or a cracked/missing bushing

• One motor mounting bushing

• Unplug the refrigerator before servicing and wear safety gloves
• Remove the freezer back panel/evaporator cover to access the fan motor
• Support the motor, remove fasteners, and transfer/install the bushing on the bracket/motor as shown in your service diagram
• Ensure the bushing is fully seated and the fan blade spins freely with proper clearance before reassembly

The Evaporator Fan Motor is an OEM replacement part for Frigidaire refrigerators. Located inside the freezer, this motor is responsible for powering the evaporator fan, which circulates cold air throughout the refrigerator and freezer compartments.

Causes of a bad evaporator fan motor can include bearing wear, electrical faults, or failure due to extended use over time. Without proper air circulation, cold spots can develop inside the fridge.

Symptoms of a bad evaporator fan motor include:

• Inconsistent or fluctuating interior temperatures
• Formation of frost or ice buildup
• Cold air not reaching all shelves and compartments evenly
• Excessive noise originating from the fan/motor area

This OEM Frigidaire replacement motor restores critical airflow needed to maintain temperatures. It is also compatible with refrigerator models by Electrolux, Gibson, Kelvinator, and Kenmore.

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Light Socket is an OEM part for Frigidaire refrigerators. It is responsible for holding the light bulb in place and providing the electrical connection needed to illuminate the refrigerator's interior. This ensures visibility inside the refrigerator, helping you easily find and access your stored food items.

Causes of a bad light socket can include electrical malfunctions, wear and tear over time, or damage due to bulb replacements or impact.

Symptoms of a bad light socket include:

• The refrigerator light not turning on
• Flickering or dim light
• Visible damage to the socket
• Electrical sparking or unusual noises when the light is on

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control box is the electronic control assembly that manages appliance functions and user inputs, restoring normal control response and cycle operation. It replaces a failed or unresponsive control module to help the appliance run correctly. What it does:

• Houses the main control circuitry that sends and receives signals for cycles, timers, and user commands
• Replaces a control box that causes unresponsive buttons, error codes, or intermittent operation
• Restores proper communication between the user interface and internal components
• Helps stop erratic cycles, failure-to-start issues, or unexpected shutdowns when the control is defective

• One control box (electronic control assembly), as shown

• Disconnect power before servicing to avoid electric shock; verify power is off at the breaker
• Handle the board and connectors carefully to avoid static or physical damage
• Confirm connector locations and reinstall any mounting hardware in original positions

This adhesive control-box label replaces a missing or damaged identification/sticker on the appliance control enclosure, restoring legible part, wiring and safety markings so the control area can be identified during service. What it does:

• Replaces faded, torn or missing identification and safety markings on the control box
• Restores printed part and wiring callouts used for troubleshooting and repairs
• Helps technicians confirm control-box location and basic service information
• Prevents confusion from illegible or peeling labels during maintenance

• Disconnect power to the appliance before doing any service or label replacement
• Clean and dry the control-box surface; remove dirt, grease, and loose material for best adhesion
• Peel backing and carefully align the label before pressing firmly to set
• Do not place over moving parts, ventilation openings, or heat sources; replace only as intended by OEM

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Thermistor Assembly is an OEM part for Frigidaire refrigerators. It plays a critical role in monitoring and regulating the internal temperature of the refrigerator. By sending temperature readings to the control board, the thermistor helps maintain the appropriate cooling levels, ensuring food stays fresh.

Causes of a bad thermistor can include electrical failures, exposure to moisture, or physical damage.

Symptoms of a bad thermistor include:

• Inconsistent or incorrect temperature readings
• The refrigerator running too cold or too warm
• The compressor running constantly or not at all

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Electronic Control with Cover is an OEM part for Frigidaire refrigerators. It manages and regulates the various functions of the refrigerator, including temperature control, defrost cycles, and compressor operation. The cover protects the electronic components from dust and moisture, ensuring reliable performance.

Causes of a bad electronic control can include electrical surges, wear and tear over time, or exposure to moisture or dust. Faulty wiring or connections can also lead to malfunction.

Symptoms of a bad electronic control include:

• Inconsistent temperature regulation
• Refrigerator not cooling properly
• Unresponsive control panel
• Frequent cycling on and off
• Error codes displayed on the control panel

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control box houses the refrigerator's electronic control components, protecting circuitry and connectors for reliable operation. Replacing a damaged control box restores a secure mounting point and proper enclosure for the control board. What it does:

• Provides a protective enclosure and mounting for the appliance's electronic control board and connectors
• Prevents exposure of wiring and circuit components to moisture and debris
• Restores secure electrical connections if the original housing is cracked or broken
• Can eliminate intermittent electrical contact or loose-fit symptoms related to a damaged enclosure

• One control box (electronic control housing)

• Disconnect power to the appliance before beginning any work
• Use care when removing panels to access the control area; keep screws and fasteners organized
• Handle the control board and connectors by the edges; avoid contact with circuitry and static-sensitive components

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

A single replacement screw used to secure appliance panels, brackets, or small components — restores proper fastening and reduces noise from loose parts. Simple, direct replacement when an original screw is missing or damaged. What it does:

• Fastens panels, trim, brackets or internal components to keep parts aligned and secure.
• Stops rattling, vibration or loose-panel movement caused by a missing or stripped screw.
• Provides the correct fit when replacing a lost or damaged original fastener.
• Intended for use where the OEM screw specification matches the appliance requirement.

• Disconnect power or unplug the appliance before accessing internal parts to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the head; hand-start threads before final tightening.
• Tighten until snug—do not overtighten, which can strip threads or crack plastic panels.
• Replace with an identical screw (head style, length, and thread) for proper fit and safety.

The Damper Assembly is an OEM part for Frigidaire refrigerators. This part regulates the flow of cold air from the freezer compartment to the refrigerator compartment. By adjusting the opening of the damper, it ensures that the refrigerator maintains the desired temperature, providing optimal conditions for preserving food.

Causes of a bad part can vary, ranging from normal wear and tear that accumulates over time to issues like blocked airflow caused by food or other debris. Additionally, electrical or mechanical damage can also contribute to the malfunction of a part.

Symptoms of a malfunctioning Damper Assembly include:

• Inability to maintain consistent refrigerator temperatures
• Over-cooling or under-cooling in the refrigerator compartment
• Unusual noises, such as clicking or buzzing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

This water filter base secures the refrigerator's replaceable water filter cartridge and directs filtered water to the dispenser and icemaker. Replacing a damaged base restores a proper seal and helps prevent leaks and flow interruptions. What it does:

• Holds and seals the water filter cartridge so water passes through the filter media
• Directs filtered water to the dispenser and icemaker plumbing
• Prevents leaks caused by cracked or worn filter housing
• Can resolve low water flow, intermittent dispensing, or water taste issues when base is leaking or not sealing

• One water filter base assembly

• Turn off refrigerator and shut off the water supply before starting
• Relieve system pressure by dispensing water until flow stops, if applicable
• Remove the old housing carefully; inspect O-rings and replace if damaged
• Hand-tighten only; check connections and test for leaks after restoring water and power

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

Shroud assembly that covers internal refrigerator components and helps direct airflow for consistent cooling. Replacing a cracked or damaged shroud restores proper airflow paths and can reduce fan vibration and contact-related noise. What it does:

• Covers and protects internal components from debris and accidental contact.
• Directs airflow around the evaporator/fan area to support even cooling; symptoms of a failing shroud include uneven cooling or frost buildup.
• Reduces fan noise and vibration when mounting tabs or the housing are intact.
• Visible cracks, broken tabs, or holes are common signs the shroud needs replacement.

• Always disconnect power to the appliance before beginning any repair.
• Remove interior panels and fasteners carefully; retain hardware for reinstallation.
• Align tabs and mounting points; do not force broken tabs—replace damaged fasteners as needed.

This water filter cover encloses the refrigerator's filter housing for a clean look and protection. Replace a cracked, loose, or missing cover to restore a secure, smooth-opening access door for routine filter changes.

• Covers and protects the water filter in the fresh food compartment
• Opens to provide access when replacing the filter
• Helps prevent items from catching on the filter or housing
• Replace if the cover is cracked, the hinge or latch is broken, it won't stay closed, or it's missing

• Disconnect power and shut off the water supply before servicing
• Open the filter area and release the retaining tabs or hinge pins to remove the old cover
• Transfer any screws or hinge pieces from the original part if required
• Align and snap or secure the new cover; verify smooth opening and closing

This water filter housing secures and seals the refrigerator's filter cartridge, routing water to the dispenser and ice maker. Replace it if the filter area leaks, the filter won't seat, or water/ice flow is reduced. What it does:

• Holds and seals the filter cartridge to the water system
• Directs water through the filter to the dispenser and ice maker
• Helps maintain proper pressure and a leak-resistant connection at the filter head
• Typical symptoms: leaking at the filter area, slow/no water from the dispenser, no ice production, filter won't lock in place

• 1 water filter housing assembly

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Note tube routing; use the quick-connect collets to release/insert water lines fully
• Restore water and power, check all connections for leaks, and flush the dispenser to clear air

This refrigerator water filter mount secures the filter head/housing to the liner so the cartridge seats squarely and seals. Replace a cracked or loose mount to restore a snug fit and help prevent leaks or vibration.

• Holds the water filter housing firmly in place
• Aligns the cartridge for proper engagement with the filter head
• Helps maintain a watertight seal at the filter connection
• Common symptoms: filter won't lock in or sits crooked, drips around the filter area, difficulty installing/removing the filter, or rattling from a loose housing

• Disconnect power and shut off the water supply; dispense water to relieve line pressure
• Remove the filter and any cover/trim to access the mount; retain existing screws for reuse
• Install the new mount and tighten screws gently to avoid cracking plastic
• Reinstall the filter, restore water and power, flush the dispenser, and check for leaks
