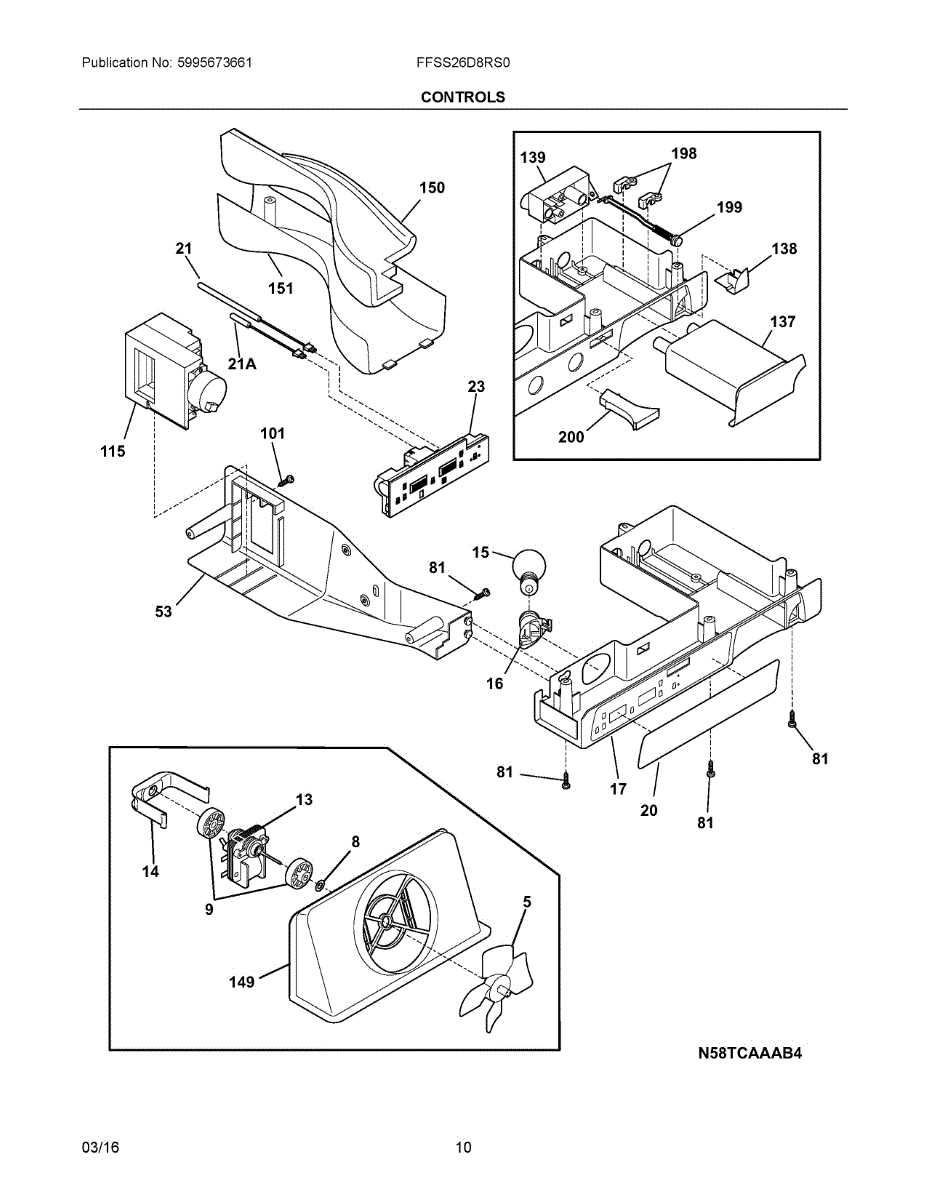

Parts for Frigidaire FFSS26D8RS0: 06 - Controls Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

This evaporator fan motor mounting bushing isolates the motor from its bracket to reduce vibration and rattling. Replacing a worn bushing helps keep the fan secure and centered so airflow remains smooth and operation is quieter. What it does:

• Cushions and isolates the evaporator fan motor to reduce vibration and noise
• Helps maintain motor alignment to prevent the fan blade from rubbing the shroud
• Secures the motor to the mounting bracket
• Typical symptoms: rattling or buzzing from the freezer, fan wobble, loose motor, or a cracked/missing bushing

• One motor mounting bushing

• Unplug the refrigerator before servicing and wear safety gloves
• Remove the freezer back panel/evaporator cover to access the fan motor
• Support the motor, remove fasteners, and transfer/install the bushing on the bracket/motor as shown in your service diagram
• Ensure the bushing is fully seated and the fan blade spins freely with proper clearance before reassembly

The Evaporator Fan Motor is an OEM replacement part for Frigidaire refrigerators. Located inside the freezer, this motor is responsible for powering the evaporator fan, which circulates cold air throughout the refrigerator and freezer compartments.

Causes of a bad evaporator fan motor can include bearing wear, electrical faults, or failure due to extended use over time. Without proper air circulation, cold spots can develop inside the fridge.

Symptoms of a bad evaporator fan motor include:

• Inconsistent or fluctuating interior temperatures
• Formation of frost or ice buildup
• Cold air not reaching all shelves and compartments evenly
• Excessive noise originating from the fan/motor area

This OEM Frigidaire replacement motor restores critical airflow needed to maintain temperatures. It is also compatible with refrigerator models by Electrolux, Gibson, Kelvinator, and Kenmore.

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Light Socket is an OEM part for Frigidaire refrigerators. It is responsible for holding the light bulb in place and providing the electrical connection needed to illuminate the refrigerator's interior. This ensures visibility inside the refrigerator, helping you easily find and access your stored food items.

Causes of a bad light socket can include electrical malfunctions, wear and tear over time, or damage due to bulb replacements or impact.

Symptoms of a bad light socket include:

• The refrigerator light not turning on
• Flickering or dim light
• Visible damage to the socket
• Electrical sparking or unusual noises when the light is on

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Thermistor is an OEM Replacement Part that maintains the temperature inside your Frigidaire refrigerator. This thermistor handles reading the internal temperature. After reading, it transmits this information to the control system. At a temperature of 29 degrees, the thermistor should exhibit a resistance of about 35k ohms. While at room temperature, it should read approximately 5k ohms.

Causes of a bad thermistor can include regular wear and tear, exposure to moisture, or electrical issues. Over time, the thermistor may become less accurate or stop working altogether.

Symptoms of a bad thermistor include:

• Inconsistent or incorrect temperature readings
• The refrigerator being too warm or too cold
• The cooling system running continuously or not at all
• Error codes related to temperature control

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

The Thermistor Assembly is an OEM part for Frigidaire refrigerators. It plays a critical role in monitoring and regulating the internal temperature of the refrigerator. By sending temperature readings to the control board, the thermistor helps maintain the appropriate cooling levels, ensuring food stays fresh.

Causes of a bad thermistor can include electrical failures, exposure to moisture, or physical damage.

Symptoms of a bad thermistor include:

• Inconsistent or incorrect temperature readings
• The refrigerator running too cold or too warm
• The compressor running constantly or not at all

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement control is the infinite switch that regulates a cooktop burner's heat level, restoring proper burner temperature control and consistent cooking performance. Fits select Frigidaire electric ranges and cooktops. What it does:

• Controls the amount of electrical current to a surface heating element so burners heat and cycle correctly
• Helps stop burners from staying too hot or not reaching desired heat settings
• Addresses symptoms like burners that won't change temperature, won't turn on, or only work on one setting
• Works as the user-side control that the knob attaches to for selecting heat levels

• One replacement infinite surface element control

• Disconnect power to the appliance at the breaker before any service
• Requires removal of the cooktop or control panel to access and replace the switch; use proper tools
• Handle terminals carefully and match wire locations exactly during reassembly

This control box houses the refrigerator's electronic control components, protecting circuitry and connectors for reliable operation. Replacing a damaged control box restores a secure mounting point and proper enclosure for the control board. What it does:

• Provides a protective enclosure and mounting for the appliance's electronic control board and connectors
• Prevents exposure of wiring and circuit components to moisture and debris
• Restores secure electrical connections if the original housing is cracked or broken
• Can eliminate intermittent electrical contact or loose-fit symptoms related to a damaged enclosure

• One control box (electronic control housing)

• Disconnect power to the appliance before beginning any work
• Use care when removing panels to access the control area; keep screws and fasteners organized
• Handle the control board and connectors by the edges; avoid contact with circuitry and static-sensitive components

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

A single replacement screw used to secure appliance panels, brackets, or small components — restores proper fastening and reduces noise from loose parts. Simple, direct replacement when an original screw is missing or damaged. What it does:

• Fastens panels, trim, brackets or internal components to keep parts aligned and secure.
• Stops rattling, vibration or loose-panel movement caused by a missing or stripped screw.
• Provides the correct fit when replacing a lost or damaged original fastener.
• Intended for use where the OEM screw specification matches the appliance requirement.

• Disconnect power or unplug the appliance before accessing internal parts to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the head; hand-start threads before final tightening.
• Tighten until snug—do not overtighten, which can strip threads or crack plastic panels.
• Replace with an identical screw (head style, length, and thread) for proper fit and safety.

The Damper Assembly is an OEM part for Frigidaire refrigerators. This part regulates the flow of cold air from the freezer compartment to the refrigerator compartment. By adjusting the opening of the damper, it ensures that the refrigerator maintains the desired temperature, providing optimal conditions for preserving food.

Causes of a bad part can vary, ranging from normal wear and tear that accumulates over time to issues like blocked airflow caused by food or other debris. Additionally, electrical or mechanical damage can also contribute to the malfunction of a part.

Symptoms of a malfunctioning Damper Assembly include:

• Inability to maintain consistent refrigerator temperatures
• Over-cooling or under-cooling in the refrigerator compartment
• Unusual noises, such as clicking or buzzing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

The Refrigerator Water Filter Base is an OEM part for Frigidaire refrigerators. It holds the water filter in place and provides a secure connection to the water supply, ensuring clean and filtered water flows through the refrigerator.

Causes of a bad water filter base can include wear and tear over time, damage from improper filter installation, or issues with the water connections leading to leaks. Additionally, mineral buildup from hard water can affect the performance and integrity of the base.

Symptoms of a bad water filter base include:

• Water leaks around the filter area
• Poor water flow or reduced water pressure
• Filter not fitting securely or falling out
• Unusual tastes or odors in the filtered water

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Shroud assembly that covers internal refrigerator components and helps direct airflow for consistent cooling. Replacing a cracked or damaged shroud restores proper airflow paths and can reduce fan vibration and contact-related noise. What it does:

• Covers and protects internal components from debris and accidental contact.
• Directs airflow around the evaporator/fan area to support even cooling; symptoms of a failing shroud include uneven cooling or frost buildup.
• Reduces fan noise and vibration when mounting tabs or the housing are intact.
• Visible cracks, broken tabs, or holes are common signs the shroud needs replacement.

• Always disconnect power to the appliance before beginning any repair.
• Remove interior panels and fasteners carefully; retain hardware for reinstallation.
• Align tabs and mounting points; do not force broken tabs—replace damaged fasteners as needed.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

This genuine replacement spring provides the tension for the refrigerator water/filter release rod so the filter stays secured and releases correctly. Restores proper filter engagement for smooth insert and removal. What it does:

• Applies tension to the filter release rod so the filter locks and ejects reliably
• Helps prevent the filter from slipping or failing to latch
• Reduces binding or sticking when inserting or removing the filter
• Works with the filter housing release mechanism to maintain normal operation

• One filter release rod spring

• Disconnect power to the appliance before servicing; shut off water if accessing the water/filter area
• Remove the filter housing cover per your model's service instructions to access the spring
• Springs can be under tension—wear eye protection and handle carefully

This is not a filter. Use this bypasss if don't want to use the PureSource 2 Water Filter WF2CB or the Pure Advantage Water Filter EWF2CBPA.
