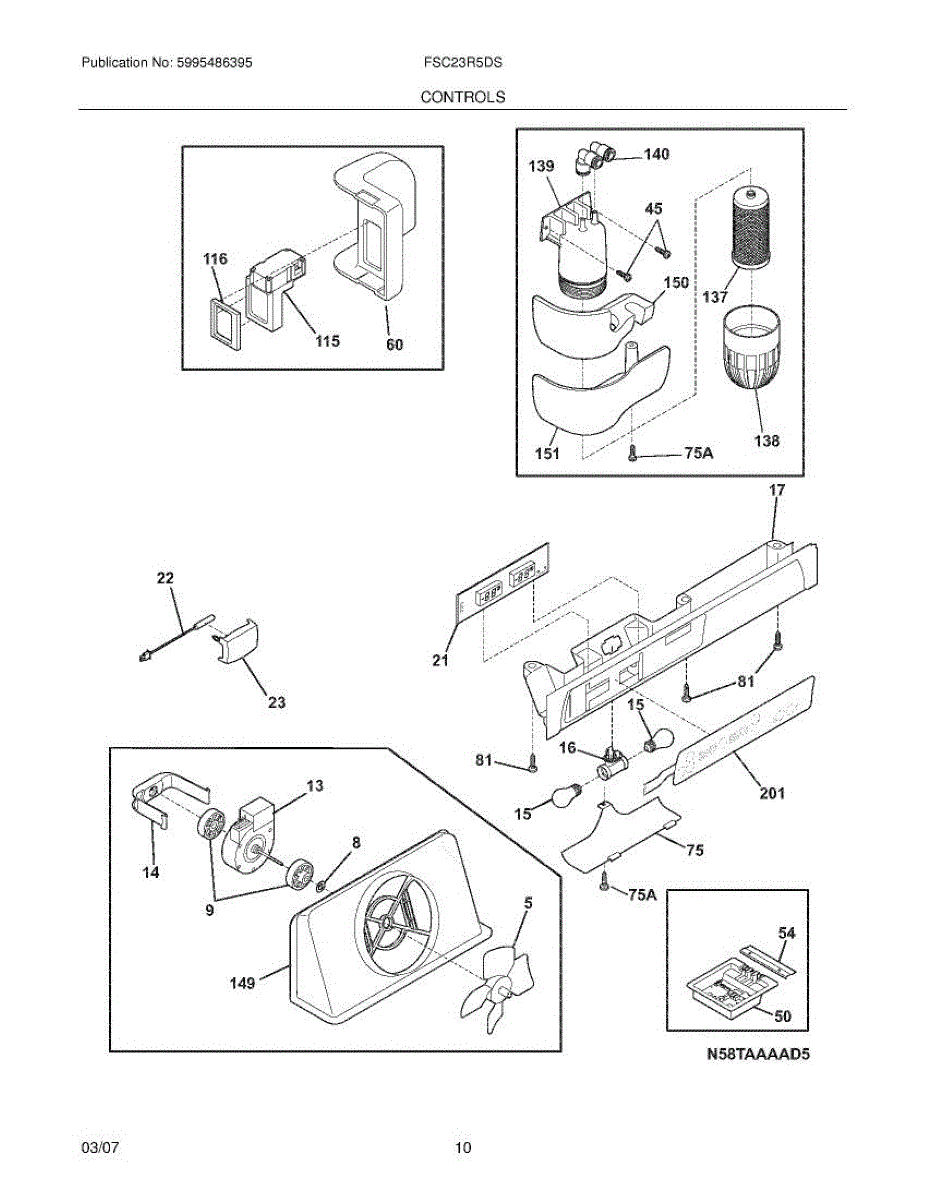

Parts for Frigidaire FSC23R5DSBB: 11 - Controls Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

A replacement bushing that supports a rotating shaft and reduces wear between moving metal parts, restoring smooth, quiet operation. Fits OEM specification to ensure proper alignment and long-lasting performance. What it does:

• Cushions and guides a rotating shaft or drum to prevent metal-on-metal contact
• Reduces noise, vibration, and wobble caused by worn support surfaces
• Helps maintain proper shaft/drum alignment for even operation
• Limits premature wear to adjacent bearings, seals, and housing

• One bushing

• Disconnect power before starting any repair and follow OEM disassembly instructions
• Replacement typically requires access to the motor/shaft or drum housing; some disassembly may be necessary
• Inspect adjacent bearings and seals and replace if worn to prevent repeat failures

The Evaporator Fan Motor is an OEM replacement part for Electrolux refrigerators. It is responsible for circulating air throughout the refrigerator’s interior to maintain consistent cooling and optimal temperature distribution. This motor works to move air over the evaporator coils, aiding in the cooling process and ensuring that the refrigerator and freezer compartments remain at the desired temperature.

Over time, the evaporator fan motor can wear out or fail due to mechanical stress, dust or debris accumulation, or electrical issues. A malfunctioning motor can lead to uneven cooling or inadequate refrigeration, impacting the overall performance of the appliance.

Symptoms of a bad evaporator fan motor include:

• Unusual noises such as rattling or humming
• Inconsistent or inadequate cooling
• Ice buildup in the freezer or refrigerator compartments
• The refrigerator running constantly without reaching the desired temperature

This OEM replacement is also compatible with Electrolux, Frigidaire, Gibson, Kelvinator, and Kenmore models.

NOTE: THE CHANGE FROM 4-WIRE TO 3-WIRE DOES NOT IMPACT PART

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

This electronic console control replaces a failed or unresponsive control module so your appliance can send and receive commands reliably. It restores user input and cycle control for normal operation. What it does:

• Serves as the main control interface to manage cycles, timing, and functions
• Interprets button/knob inputs and sends signals to motors, valves, and heaters
• Prevents erratic behavior caused by failed or damaged control electronics
• Commonly used when displays, lights, or cycle selection stop responding

• One electronic console control module

• Disconnect power before attempting replacement to avoid shock or damage
• Handle the board by edges; avoid touching electronic components or solder joints
• Check connectors for proper seating and secure mounting per service manual

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This genuine OEM part is the main control board for refrigerators. The main control board is the primary circuit board that controls the refrigerator's essential functions of maintaining and controlling temperature. If the refrigerator is no longer staying cool, powering on, or maintaining proper temperature, the main control board will need to be replaced. Luckily, this is a fairly simple repair.To begin, start by unplugging the refrigerator. Once unplugged, proceed to uninstall the inner door panel of the refrigerator by removing the mounting screws. Once removed, access the old control board. Remove the wire harness and any individual wires attached to the old board. After that, pull the old board out of its mounting brackets to fully remove it from the refrigerator. Reinsert the wires into their correct terminals on the new board and snap it into its mounting brackets. Once secured, reinstall the inner panel of the refrigerator and restore power to the appliance. This authentic replacement part is sold individually and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand refrigerators.

This interior light shield protects and diffuses the refrigerator light, helping produce even illumination while covering the bulb. It restores a finished look and prevents direct contact with the lamp for safer operation. What it does:

• Covers the interior light to diffuse and soften illumination for better visibility
• Protects the bulb from accidental impact and food contact
• Helps prevent direct glare from the lamp
• Replaces cracked, yellowed, missing, or loose light covers that reduce light output

• Disconnect power before servicing the appliance to avoid shock
• Handle the plastic shield carefully to avoid cracking during removal/installation
• Usually snaps or screws into place; align tabs with housing and press gently

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Damper is an OEM replacement part for Frigidaire refrigerators. It controls the flow of cold air circulating inside the fridge compartment including the damper seals. The damper opens and closes automatically depending on temperature conditions to maintain proper cooling levels.

Causes of a bad damper can include seal failure allowing air leaks over time, restricted movement from mineral deposits binding internal parts, or physical damage bending critical damper components.

Symptoms of a bad damper include:

• Inability to achieve recommended temperature settings
• Areas inside the fridge feeling warmer than others
• Fluctuating temperatures requiring frequent adjustments

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This seal-damper is the gasket that fits around a refrigerator's air damper to help keep compartments properly separated and maintain intended airflow. Replacing a torn or compressed seal helps reduce uneven cooling and drafts. What it does:

• Seals the air damper opening to limit unwanted air exchange between compartments
• Helps maintain stable temperatures by preventing cold or warm air leakage
• Common symptom fix: reduces uneven cooling or warm spots near the damper area
• Also helps reduce excess frost or condensation that can form from persistent air leaks

• Disconnect power to the appliance before starting any repair and remove nearby food/shelves for access
• Access the damper housing per your model's service instructions, remove the old seal, and seat the new seal onto the damper frame or mounting groove
• Clean the mounting surface of debris or old adhesive so the new seal sits flat; use gentle pressure to fully engage the seal
• If the damper housing is cracked or the seal does not seat properly, replace the damper assembly.

This filter wrench is a ring-style tool used to loosen or tighten a refrigerator's water filter housing or canister. It provides extra leverage to free a stuck filter cup and helps ensure an even, secure reinstallation.

• Provides leverage to loosen a stuck water filter housing/cup
• Assists with secure, even tightening during reinstallation
• Useful when the housing is difficult to turn by hand
• Helpful in tight spaces where hand access is limited

• Turn off the water supply and dispense water to relieve pressure
• Position the wrench around the filter housing/cup; turn counterclockwise to loosen
• After replacing the filter, tighten the housing until snug—do not overtighten
• Restore water supply and check for leaks

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire Refrigerator Water Filter Cover is an OEM part for Frigidaire refrigerators. It serves as a protective casing for the water filter, ensuring it is shielded from damage and securely in place within the appliance. This cover helps maintain the aesthetic integrity of the interior of your refrigerator while also providing easy access for filter changes.

Causes of a bad water filter cover can include physical damage such as cracks or breaks, which may occur from accidental impacts or during the filter replacement process.

Symptoms of a bad Water Filter Cover include:

• Difficulty in accessing or replacing the water filter
• Loose fit that can lead to vibration or noise
• Visible damage like cracks or warping

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Filter O-ring is an OEM replacement part for Frigidaire refrigerators. It is specifically designed to create a secure seal for the water filter, preventing leaks and ensuring that the filtration system operates effectively.

Causes for a malfunctioning Water Filter O-ring can include wear and tear from regular use, improper installation that leads to damage, or material degradation that affects its sealing capability.

Symptoms of a bad Water Filter O-ring include:

• Water leaks around the filter area
• Reduced effectiveness in water filtration
• The need for frequent filter replacements due to compromised seals
• Visible damage or wear to the O-ring

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire Refrigerator Water Filter Housing is an OEM part for Frigidaire refrigerators. It is designed to securely hold the water filter in place, ensuring proper filtration of water that flows into the ice maker and water dispenser.

Causes of a bad water filter housing can include cracks or damage from over-tightening the filter, wear and tear from regular use, or leaks caused by compromised seals. A malfunctioning water filter housing can result in water leaks, reduced water flow, and ineffective filtration.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Decreased water flow from the dispenser
• Water not being properly filtered
• Difficulty in installing or removing the water filter

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For the o-ring order 218904301. For the filter order wfcb. For the cup order 240434401.

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

This shroud assembly is the molded housing that directs airflow and protects internal components. It restores proper airflow routing for efficient operation and helps reduce noise and debris entry around the blower area. What it does:

• Directs and channels airflow from the blower to the vent or drum, improving performance.
• Protects the blower motor and wiring from lint, debris, and incidental contact.
• Helps reduce blower noise by enclosing and stabilizing the blower area.
• Worn, cracked, or damaged shrouds can contribute to reduced airflow, unusual noise, or visible gaps near the blower.

• One shroud assembly

• Disconnect power (and gas if applicable) before beginning work.
• Remove outer panels or access covers to reach the blower housing.
• Support the blower/motor assembly during removal and align mounting tabs carefully; avoid forcing fasteners.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating
