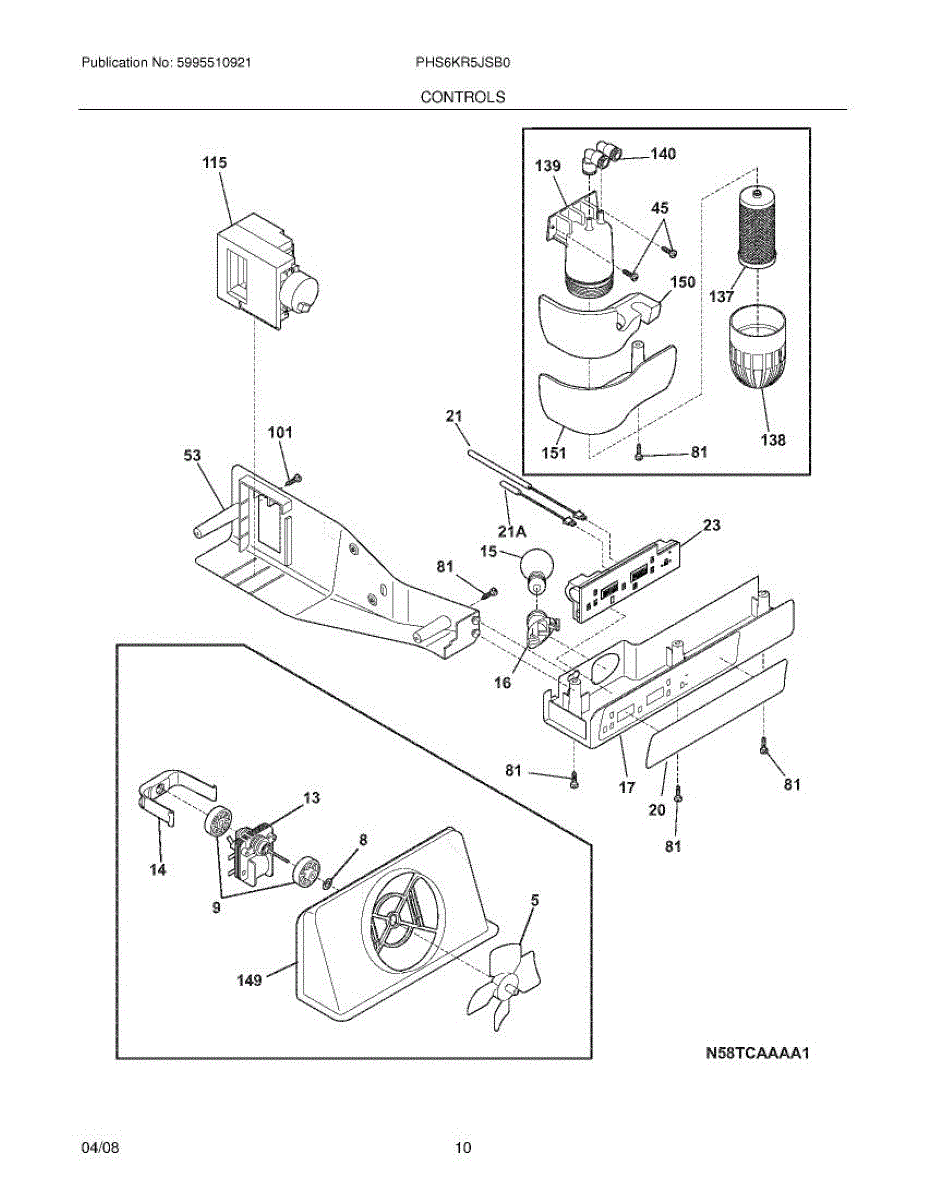

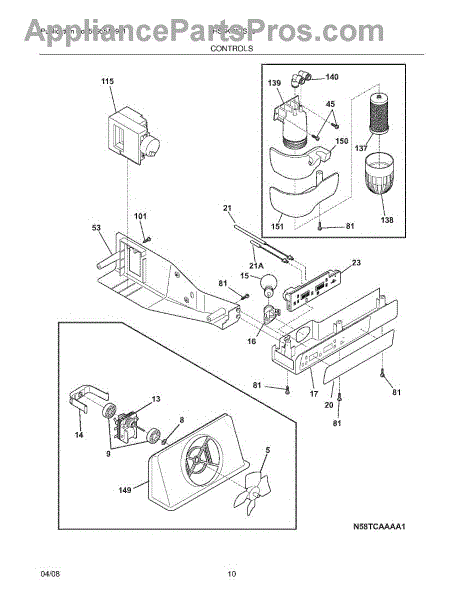

Parts for Frigidaire PHS6KR5JSB0: 11 - Controls Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Nylon

This evaporator fan motor mounting bushing isolates the motor from its bracket to reduce vibration and rattling. Replacing a worn bushing helps keep the fan secure and centered so airflow remains smooth and operation is quieter. What it does:

• Cushions and isolates the evaporator fan motor to reduce vibration and noise
• Helps maintain motor alignment to prevent the fan blade from rubbing the shroud
• Secures the motor to the mounting bracket
• Typical symptoms: rattling or buzzing from the freezer, fan wobble, loose motor, or a cracked/missing bushing

• One motor mounting bushing

• Unplug the refrigerator before servicing and wear safety gloves
• Remove the freezer back panel/evaporator cover to access the fan motor
• Support the motor, remove fasteners, and transfer/install the bushing on the bracket/motor as shown in your service diagram
• Ensure the bushing is fully seated and the fan blade spins freely with proper clearance before reassembly

The Evaporator Fan Motor Kit is an OEM part for Frigidaire refrigerators. It is crucial for the circulation of air over the evaporator coils, helping to distribute cold air throughout the refrigerator and freezer compartments. This ensures that the appliance maintains the correct temperature to keep food fresh and prevent spoilage.

Causes of a bad Evaporator Fan Motor Kit can include motor burnout due to continuous use, obstructions that hinder fan movement, or electrical issues that prevent the motor from functioning correctly.

Symptoms of a bad Evaporator Fan Motor Kit include:

• The refrigerator or freezer section is too warm
• Unusual noises emanating from the fan area
• The motor does not run despite power to the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The evaporator fan motor mounting clip secures the freezer fan motor to its bracket, keeping it properly positioned to move air across the evaporator. A broken or missing clip can cause vibration, noise, or poor airflow.

• Holds the evaporator fan motor firmly in the freezer fan assembly
• Maintains proper fan blade alignment and clearance
• Helps prevent vibration, rattling, or scraping noises
• Common signs of failure: loose/wobbling motor, blade contact, inconsistent airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan assembly
• Release the old clip, position the motor, and snap the new clip fully into the bracket
• Ensure the fan spins freely and wiring is clear before reassembly and restoring power

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Light Socket is an OEM part for Frigidaire refrigerators. It is responsible for holding the light bulb in place and providing the electrical connection needed to illuminate the refrigerator's interior. This ensures visibility inside the refrigerator, helping you easily find and access your stored food items.

Causes of a bad light socket can include electrical malfunctions, wear and tear over time, or damage due to bulb replacements or impact.

Symptoms of a bad light socket include:

• The refrigerator light not turning on
• Flickering or dim light
• Visible damage to the socket
• Electrical sparking or unusual noises when the light is on

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control box is the electronic control assembly that manages appliance functions and user inputs, restoring normal control response and cycle operation. It replaces a failed or unresponsive control module to help the appliance run correctly. What it does:

• Houses the main control circuitry that sends and receives signals for cycles, timers, and user commands
• Replaces a control box that causes unresponsive buttons, error codes, or intermittent operation
• Restores proper communication between the user interface and internal components
• Helps stop erratic cycles, failure-to-start issues, or unexpected shutdowns when the control is defective

• One control box (electronic control assembly), as shown

• Disconnect power before servicing to avoid electric shock; verify power is off at the breaker
• Handle the board and connectors carefully to avoid static or physical damage
• Confirm connector locations and reinstall any mounting hardware in original positions

This freezer thermistor is the sensor that reports compartment temperature to the control system. Replacing a faulty sensor restores accurate temperature feedback and normal cycling so the freezer maintains consistent, food-safe temperatures.

• Monitors freezer temperature and sends a resistance signal to the control
• Helps regulate compressor and evaporator fan operation for stable cooling
• Failure can cause temperatures that are too warm or too cold
• May lead to long run times, short cycling, or erratic temperature displays/alarms

• Disconnect power before servicing
• Access the sensor in the freezer and note its original routing and position
• Install the new sensor in the same location; route wires along the factory path and ensure a secure connection
• Restore power and allow up to 24 hours for temperatures to stabilize

The Thermistor is an OEM Replacement Part that maintains the temperature inside your Frigidaire refrigerator. This thermistor handles reading the internal temperature. After reading, it transmits this information to the control system. At a temperature of 29 degrees, the thermistor should exhibit a resistance of about 35k ohms. While at room temperature, it should read approximately 5k ohms.

Causes of a bad thermistor can include regular wear and tear, exposure to moisture, or electrical issues. Over time, the thermistor may become less accurate or stop working altogether.

Symptoms of a bad thermistor include:

• Inconsistent or incorrect temperature readings
• The refrigerator being too warm or too cold
• The cooling system running continuously or not at all
• Error codes related to temperature control

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This control box houses the refrigerator's electronic control components, protecting circuitry and connectors for reliable operation. Replacing a damaged control box restores a secure mounting point and proper enclosure for the control board. What it does:

• Provides a protective enclosure and mounting for the appliance's electronic control board and connectors
• Prevents exposure of wiring and circuit components to moisture and debris
• Restores secure electrical connections if the original housing is cracked or broken
• Can eliminate intermittent electrical contact or loose-fit symptoms related to a damaged enclosure

• One control box (electronic control housing)

• Disconnect power to the appliance before beginning any work
• Use care when removing panels to access the control area; keep screws and fasteners organized
• Handle the control board and connectors by the edges; avoid contact with circuitry and static-sensitive components

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

A single replacement screw used to secure appliance panels, brackets, or small components — restores proper fastening and reduces noise from loose parts. Simple, direct replacement when an original screw is missing or damaged. What it does:

• Fastens panels, trim, brackets or internal components to keep parts aligned and secure.
• Stops rattling, vibration or loose-panel movement caused by a missing or stripped screw.
• Provides the correct fit when replacing a lost or damaged original fastener.
• Intended for use where the OEM screw specification matches the appliance requirement.

• Disconnect power or unplug the appliance before accessing internal parts to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the head; hand-start threads before final tightening.
• Tighten until snug—do not overtighten, which can strip threads or crack plastic panels.
• Replace with an identical screw (head style, length, and thread) for proper fit and safety.

The Damper Assembly is an OEM part for Frigidaire refrigerators, crucial for regulating the airflow between the refrigerator and freezer compartments. This part plays a pivotal role in maintaining the desired temperature in your refrigerator, ensuring your food remains fresh and safe for consumption. Note: Damper Control w/ one switch, if you need a Damper Control with two switches, order part# AP3772850.

Causes of a bad Refrigerator Damper Assembly can involve normal wear of internal mechanisms responsible for damper rotation. Mineral accumulation on electronic sensors may hinder proper damper response.

Symptoms of a bad Damper Assembly include:

• Temperature fluctuations between fridge and freezer sections
• Condensation or frosting around cooling coils and duct intakes
• Energy inefficiency and higher utility costs over time
• Strange noises emittng from behind refrigerator exterior panels

This genuine OEM Frigidaire is also compatible with Electrolux, Gibson, and select Kenmore models.

This filter wrench is a ring-style tool used to loosen or tighten a refrigerator's water filter housing or canister. It provides extra leverage to free a stuck filter cup and helps ensure an even, secure reinstallation.

• Provides leverage to loosen a stuck water filter housing/cup
• Assists with secure, even tightening during reinstallation
• Useful when the housing is difficult to turn by hand
• Helpful in tight spaces where hand access is limited

• Turn off the water supply and dispense water to relieve pressure
• Position the wrench around the filter housing/cup; turn counterclockwise to loosen
• After replacing the filter, tighten the housing until snug—do not overtighten
• Restore water supply and check for leaks

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire Refrigerator Water Filter Cover is an OEM part for Frigidaire refrigerators. It serves as a protective casing for the water filter, ensuring it is shielded from damage and securely in place within the appliance. This cover helps maintain the aesthetic integrity of the interior of your refrigerator while also providing easy access for filter changes.

Causes of a bad water filter cover can include physical damage such as cracks or breaks, which may occur from accidental impacts or during the filter replacement process.

Symptoms of a bad Water Filter Cover include:

• Difficulty in accessing or replacing the water filter
• Loose fit that can lead to vibration or noise
• Visible damage like cracks or warping

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Filter O-ring is an OEM replacement part for Frigidaire refrigerators. It is specifically designed to create a secure seal for the water filter, preventing leaks and ensuring that the filtration system operates effectively.

Causes for a malfunctioning Water Filter O-ring can include wear and tear from regular use, improper installation that leads to damage, or material degradation that affects its sealing capability.

Symptoms of a bad Water Filter O-ring include:

• Water leaks around the filter area
• Reduced effectiveness in water filtration
• The need for frequent filter replacements due to compromised seals
• Visible damage or wear to the O-ring

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire Refrigerator Water Filter Housing is an OEM part for Frigidaire refrigerators. It is designed to securely hold the water filter in place, ensuring proper filtration of water that flows into the ice maker and water dispenser.

Causes of a bad water filter housing can include cracks or damage from over-tightening the filter, wear and tear from regular use, or leaks caused by compromised seals. A malfunctioning water filter housing can result in water leaks, reduced water flow, and ineffective filtration.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Decreased water flow from the dispenser
• Water not being properly filtered
• Difficulty in installing or removing the water filter

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For the o-ring order 218904301. For the filter order wfcb. For the cup order 240434401.

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

This replacement door seal creates a tight perimeter seal to help keep conditioned air inside and reduce moisture or frost buildup. Fits factory specifications to restore proper sealing and improve efficiency. What it does

• Forms an airtight barrier around the door to limit air exchange and energy loss
• Helps prevent frost, condensation, and water pooling inside or under the appliance
• Reduces strain on the compressor by maintaining correct internal temperature
• Common symptom fix for visible gaps, torn or flattened gasket, or excessive frost buildup

• Seal as shown

• Disconnect power or unplug the appliance before starting any service
• Clean the door frame thoroughly before installing to ensure a good seal
• Work the gasket into the channel evenly; avoid overstretching or twisting
• If clips or retainer strips are present, follow OEM guidance for proper seating

Shroud assembly that covers internal refrigerator components and helps direct airflow for consistent cooling. Replacing a cracked or damaged shroud restores proper airflow paths and can reduce fan vibration and contact-related noise. What it does:

• Covers and protects internal components from debris and accidental contact.
• Directs airflow around the evaporator/fan area to support even cooling; symptoms of a failing shroud include uneven cooling or frost buildup.
• Reduces fan noise and vibration when mounting tabs or the housing are intact.
• Visible cracks, broken tabs, or holes are common signs the shroud needs replacement.

• Always disconnect power to the appliance before beginning any repair.
• Remove interior panels and fasteners carefully; retain hardware for reinstallation.
• Align tabs and mounting points; do not force broken tabs—replace damaged fasteners as needed.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.
