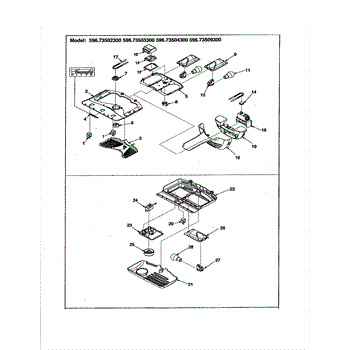

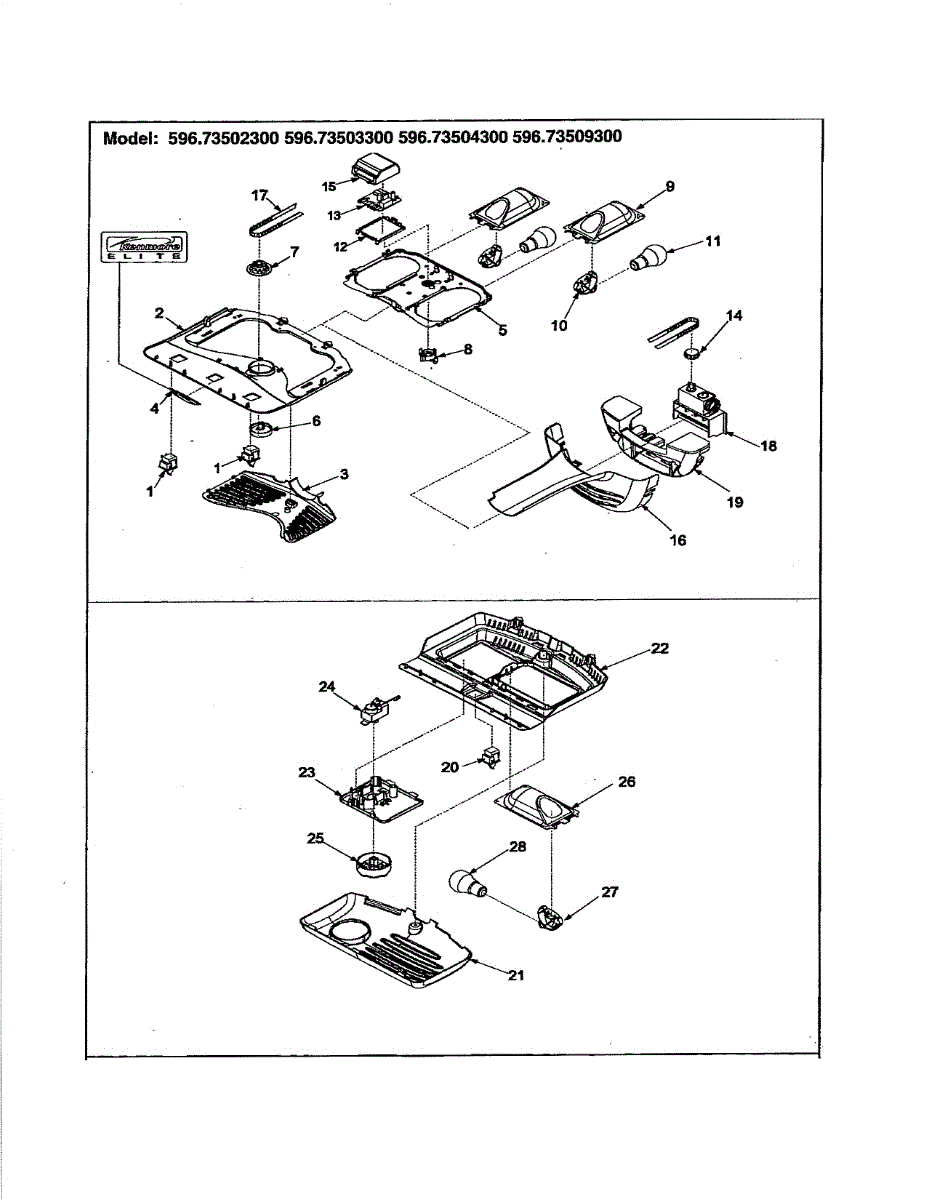

Parts for Kenmore 596.73504203 (59673504203, 596 73504203): Controls Parts

This replacement pan-timer/light housing assembly secures the timer and light components behind the control panel and restores proper fit and operation. Use it when the original housing is cracked, loose, or not holding the lamp/timer correctly. What it does:

• Provides the mounting structure for the timer and control panel light so components sit securely
• Keeps the light assembly aligned to illuminate the control area
• Prevents rattling or movement of timer/light parts caused by a damaged housing
• Safe, common symptom fix for visible cracks, loose control trim, or intermittent light alignment

• One pan-timer/light housing assembly

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the control panel or trim; handle plastic tabs and clips carefully to avoid breakage
• Reinstall screws and connectors to factory torque; do not force parts into position
• If wiring or bulbs are damaged, replace those items separately

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This electronic control board manages the appliance's functions and user interface, restoring normal operation when the original board fails. It replaces a faulty control module to help re-enable cycles, settings, and display feedback. What it does:

• Receives input from the control panel and sensors to run timed cycles and selected options
• Controls power delivery, timers, and cycle sequencing for proper operation
• Can cause error codes, unresponsive buttons, or intermittent operation if damaged

• One electronic control board (main control board) as shown

• Disconnect power before removing or installing the control board to avoid shock or damage
• Handle the board carefully; avoid touching circuitry and use anti-static precautions when possible
• Verify the board mounting, wiring harness connections, and connectors seat fully during installation

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic freezer control module manages the freezer's temperature and defrost cycles so the compartment runs on schedule and helps protect stored food. It replaces a failed or intermittent control board to restore normal freezer operation. What it does:

• Regulates freezer temperature by running compressor and fans per thermostat/temperature sensor inputs
• Controls automatic defrost cycles and related timing functions
• Can correct intermittent cooling or defrost issues caused by a faulty control board
• Stop error codes or unresponsive control behavior when the original board is defective

• One freezer control module (single electronic control board)

• Disconnect power to the appliance before starting—risk of electric shock
• Handle the board by the edges and avoid static discharge; use an anti-static strap if available
• Verify connector orientation and secure all wiring harnesses before restoring power

This is the mechanical cold-control thermostat for the freezer. It senses temperature and switches the cooling system on and off to maintain your selected setting, restoring steady freezer temps and normal compressor cycling.

• Regulates freezer temperature by opening/closing electrical contacts to control cooling
• Symptoms of a failing control include freezer too warm or too cold
• Unit runs constantly, won't start, or won't shut off at set point
• Temperature knob feels unresponsive or no distinct "click" when turned

• Disconnect power before servicing
• Access the control housing; note wiring and transfer leads one at a time
• Route the sensing tube exactly as original; do not kink, pinch, or cut it
• Set to a mid setting after install and allow up to 24 hours for temps to stabilize
