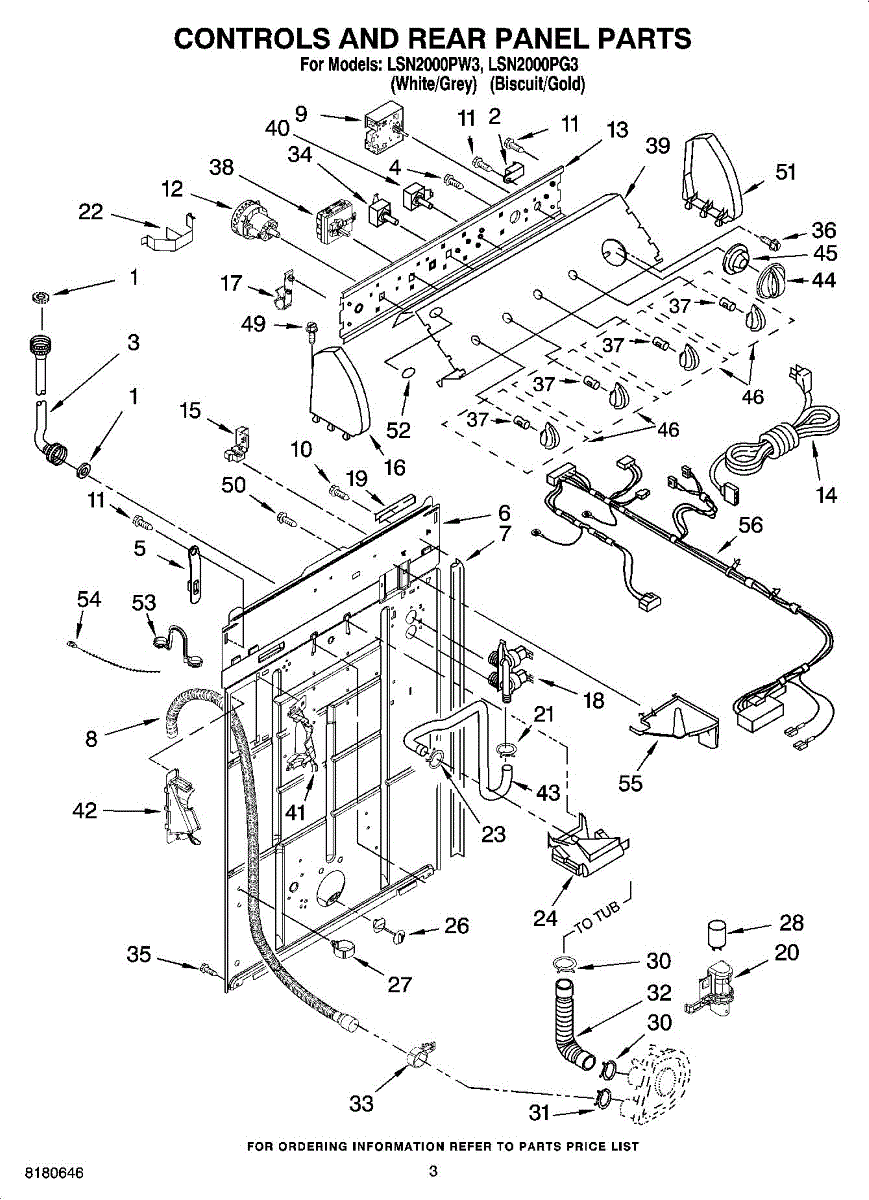

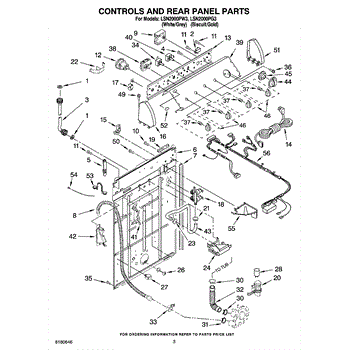

Parts for Whirlpool LSN2000PW3: 02 - Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 10 - 24 x 3/8

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

The Drain Hose is an OEM part for Whirlpool washing machines. It is responsible for directing and carrying away water that is pumped out of the washer tub during drain cycles. The drain hose connects from the bottom of the washtub to the household plumbing or out the back of the machine. This washer drain hose includes the retaining clips to hold in place.

Causes of a bad drain hose can include mineral deposits from hard water building up inside the hose, cracking from flexing during use, rodent damage, or general degradation from years of service.

Symptoms of a faulty drain hose include:

• Water not completely draining from the washer tub after cycles
• Puddles or flooding under the appliance
• Strange noises or vibrations during drainage

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This timer is the user-selectable control that advances cycles and powers timed functions on compatible laundry appliances. It replaces a worn or failed mechanical timer to restore proper cycle sequencing and timing. What it does:

• Advances the control through wash/dry cycles and selected settings
• Routes power to motors, heaters, and other timed components as the cycle progresses
• Commonly used when cycles won't advance, the timer knob turns but nothing happens, or cycle timing is incorrect
• Mechanical design — does not include a serviceable timer motor

• Disconnect power before inspecting or replacing the timer to avoid shock or damage
• Some models require removing the console or control panel for access; keep fasteners and wiring order documented
• The timer motor is not a separately serviceable part; replace the complete timer assembly if the motor fails

Size: 10-24 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This water level pressure switch monitors the washer's tub water level through the air-pressure hose and signals the control when to stop filling. Replacing a faulty switch helps restore accurate fills and consistent cycle progress.

• Senses air pressure from the tub to determine water level
• Signals the control to start/stop filling and advance the cycle
• Common symptoms of a failed switch: fills too little or too much, stops filling early, won't advance into wash/spin, or shows water-level error codes
• Helps protect against overfill conditions when operating correctly

• Disconnect power and shut off water supplies before servicing
• Access through the control/console area; note hose and connector orientations
• Transfer the pressure hose and wire harness; ensure an airtight hose fit with no kinks or cracks, and clear any water/debris from the hose
• With the tub empty, run a quick fill test to ensure proper shutoff and cycle progression

This is a replacement power cord that supplies electrical power from a wall outlet to your appliance. A fresh cord helps ensure safe, reliable power delivery when the original is damaged, overheated, or worn.

• Delivers household power to the unit's main electrical connection
• Replace if the cord is cut, cracked, burnt, loose, or intermittently powers the appliance
• Helps resolve issues like no power, tripping breakers, or visible cord damage

• Unplug the appliance and turn off the circuit breaker before starting
• Verify outlet type and cord routing match your original installation
• Transfer any cord clamp/retainer as needed and secure against sharp edges
• Inspect for proper grounding and test operation before returning to service

The Water Inlet Valve Assembly is an OEM part for Whirlpool washing machines.  This part controls the flow of water into the appliance during the fill cycle. This assembly consists of a valve that opens and closes to allow water from the household supply to enter the washing machine at the right times and in the correct amounts, depending on the selected wash cycle and water temperature settings.

Causes of a bad water inlet valve can include sediment buildup, which restricts water flow, wear and tear that impairs the valve's operation, or electrical issues that prevent the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve Assembly include:

• The washing machine not filling with water
• Water filling too slowly or overflowing
• Unusual noises during the fill cycle
• Water not reaching the desired temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Used on the pressure switch hose harness.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vacuum Break is an OEM part for Whirlpool washing machines, designed to prevent the siphoning of water back into the machine once it has been drained. This part ensures that dirty water does not re-enter the wash drum, maintaining the cleanliness of the wash cycle and protecting the integrity of the clothes being washed.

A malfunctioning Vacuum Break can lead to various issues, including inefficiencies in water use, prolonged or ineffective wash cycles, and even the risk of mildew or odors developing from standing water.

Symptoms of a bad Vacuum Break include:

• Water siphoning back into the tub after the spin cycle
• Unusual noises coming from the washing machine during or after the drain cycle
• Clothes being wetter than usual at the end of the cycle, indicating incomplete draining
• Potential leaks or water buildup at the back of the washing machine

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rear panel support is the structural bracket that secures the appliance's rear cover/backguard in place. Replacing a worn or broken support restores proper alignment, helps protect internal components, and reduces vibration noise.

• Secures the rear panel/backguard to the chassis for stable, proper fit
• Maintains alignment of panels and mounting points
• Helps minimize vibration, flexing, and rattles from a loose rear panel
• Common signs of failure: cracked or missing bracket, stripped mounting points, panel movement or buzzing

• Disconnect power at the breaker; shut off gas supply
• Pull the appliance forward carefully to access the back; protect flooring
• Remove fasteners, replace the damaged support, and reuse original hardware/clips
• Keep wiring clear of sharp edges; tighten screws evenly without over-torquing and check for vibration before repositioning

The Capacitor is an OEM part for Whirlpool washers that starts the motor by storing electrical energy and releasing it when the washer begins its cycle. This part ensures the washer operates smoothly from the moment it starts, providing the necessary jolt to the motor that enables it to begin its various functions, including spinning and agitating.

Causes of a bad capacitor can vary. Electrical surges can harm its internal components, while wear and tear over time may result in a reduced capacity to hold a charge.

Symptoms of a failing Capacitor include:

• The washer failing to start.
• A humming noise when the washer is supposed to begin its cycle
• The washer starting but then quickly shutting down due to insufficient power to the motor.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining clip secures small panels and components to help keep assemblies aligned and reduce rattles or movement during operation. It's a simple replacement that restores proper fit where the original clip has broken or gone missing. What it does:

• Holds trim, panels or small assemblies in place to prevent loosening and vibration
• Restores proper alignment and fit where a worn or broken clip causes gaps or rattling
• Commonly used where snap-in retention is required for plastic or sheet-metal parts
• Simple, single-piece part with no electrical or mechanical adjustments needed

• One retaining clip

• Turn power off and unplug the appliance before accessing the repair area
• Remove any adjoining panels or fasteners as needed to access the clip location
• Press or snap the clip into the mating slot; use care to avoid bending surrounding parts

2 position. Extra rinse.

10 - 16 x 1/2

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cycle selector switch lets the user choose wash or dry cycles by turning the control dial. It restores reliable cycle selection and responsive dial behavior so the machine starts the intended program. What it does:

• Selects the appliance cycle position when the control knob is turned
• Sends the chosen cycle signal to the timer/control assembly
• Commonly replaced when the dial slips, feels loose, or won't advance between cycle positions
• Helps resolve issues where the machine won't start the selected cycle or changes settings unexpectedly

• Disconnect power (and water if a washer) before servicing
• Access typically requires removing the control console or panel; follow your model service manual
• Avoid bending terminals; match connector orientation during reassembly

The Drain Hose is an OEM part for Whirlpool washing machines. It is responsible for directing and carrying away water that is pumped out of the washer tub during drain cycles. The drain hose connects from the bottom of the washtub to the household plumbing or out the back of the machine. This washer drain hose includes the retaining clips to hold in place.

Causes of a bad drain hose can include mineral deposits from hard water building up inside the hose, cracking from flexing during use, rodent damage, or general degradation from years of service.

Symptoms of a faulty drain hose include:

• Water not completely draining from the washer tub after cycles
• Puddles or flooding under the appliance
• Strange noises or vibrations during drainage

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Drain Hose is an OEM part for Whirlpool washing machines. It is responsible for directing and carrying away water that is pumped out of the washer tub during drain cycles. The drain hose connects from the bottom of the washtub to the household plumbing or out the back of the machine. This washer drain hose includes the retaining clips to hold in place.

Causes of a bad drain hose can include mineral deposits from hard water building up inside the hose, cracking from flexing during use, rodent damage, or general degradation from years of service.

Symptoms of a faulty drain hose include:

• Water not completely draining from the washer tub after cycles
• Puddles or flooding under the appliance
• Strange noises or vibrations during drainage

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Vacuum Break Hose is an OEM part for Whirlpool washing machines. It connects the vacuum break to the outer tub, preventing siphoning and ensuring proper water levels during the wash cycle. This hose plays a crucial role in maintaining the efficiency and performance of the washing machine by regulating the water flow.

Causes of a bad vacuum break hose can include wear and tear over time, kinks or blockages in the hose, or damage due to improper installation or handling. A compromised hose can affect water levels and overall washing performance.

Symptoms of a bad vacuum break hose include:

• Water not draining properly
• inconsistent water levels in the tub
• Leaks or puddles around the washing machine
• Error codes related to water flow or pressure

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement timer dial restores a clean, usable control surface so you can set cycles and times easily. Fits original timer shafts and matches the appliance's white control styling. What it does:

• Provides a functional interface to turn and select timer settings
• Replaces cracked, faded, or worn dials that are hard to read or grip
• Helps ensure positive engagement with the timer shaft for accurate selection
• Restores original appearance on white control panels

• Remove power to the appliance before attempting service
• Usually press-fit or secured on the timer shaft; pull straight off and press new dial onto the shaft
• If fit feels tight, avoid excessive force—confirm alignment with shaft splines before seating

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This U-bend retainer secures the drain U-bend or trap tubing in place to prevent leaks and keep plumbing routed safely under the appliance. It's a small but important clip that helps maintain proper drain alignment. What it does:

• Holds the U-shaped drain/trap tubing securely to the appliance drain outlet
• Helps prevent the drain hose from slipping free and causing leaks
• Keeps the drain line routed to avoid kinks or contact with moving parts
• Commonly replaced when the original clip is broken, cracked, or missing

• One U-bend retainer clip

• Basic hand tools may be required; disconnect power and water supply before servicing
• Remove any obstructing panels to access the drain outlet area
• Press the clip into position over the U-bend until it snaps or seats securely

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
