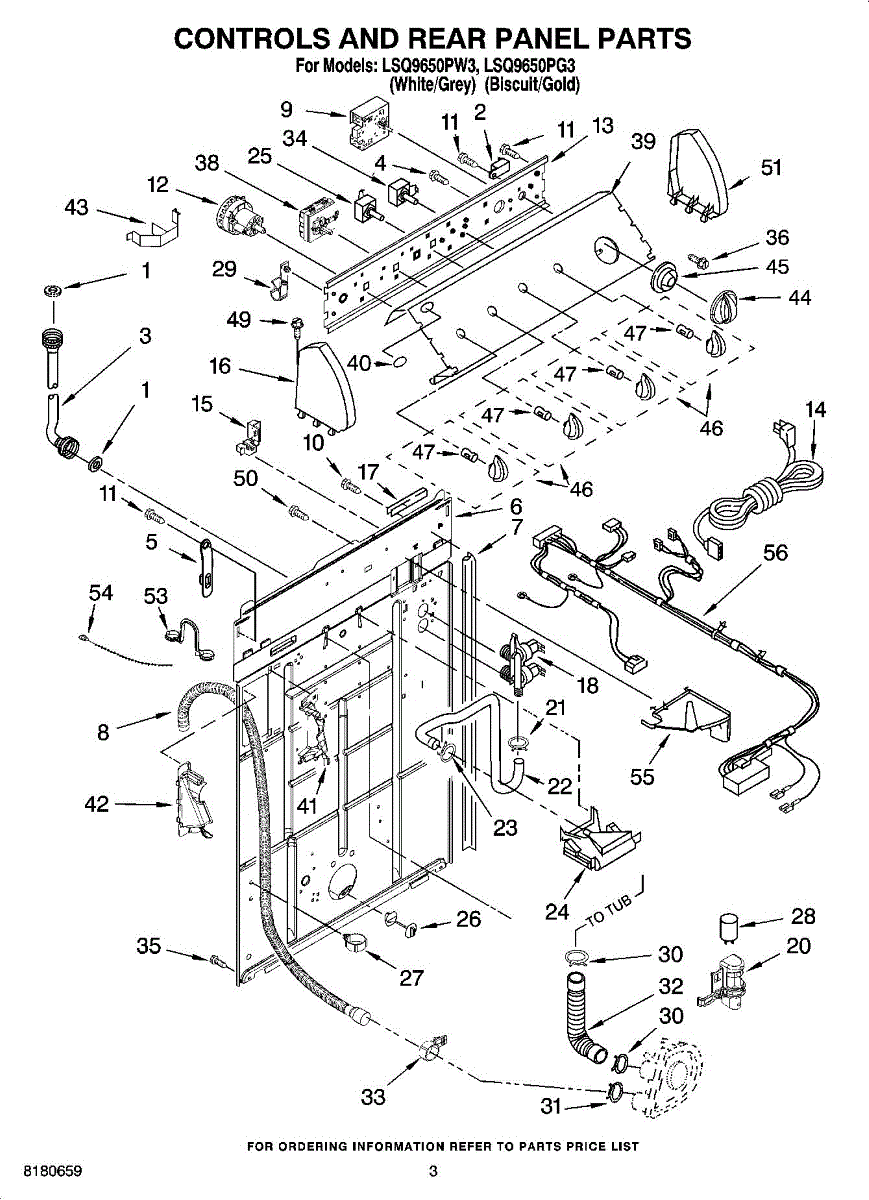

Parts for Whirlpool LSQ9650PW3: 02 - Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 10 - 24 x 3/8

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Drain hose routes wastewater from your washer tub to household plumbing. Replace if cracked, leaking, worn through, or damaged from wear or friction.

Fix a washer that won't advance through cycles or gets stuck mid-cycle. This timer control restores proper cycle sequencing. Moderate DIY repair, about 1 hour.

Size: 10-24 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Washer overfilling or not filling correctly? This water level pressure switch kit fixes fill issues. Includes switch, tube, and clamp. Easy DIY repair.

Replacement power cord that connects your washer to the wall outlet. Includes strain relief for cable protection. Needed when original cord is damaged, pinched, shorted, or worn. Direct plug-in installation.

Washer not filling with water? A faulty water inlet valve is often the cause. This assembly controls water flow during fill cycles. DIY repair in 15 minutes.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Connects the vacuum break to the outer tub in your washer. Replace if cracked, split, or leaking to prevent water from bypassing the tub during fills.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Washer slowly filling or dripping when off? A faulty vacuum break allows water to siphon back into the drum. Takes 30 minutes with our video guide.

Fix a washer that won't advance cycles or gets stuck between rinse and spin. This cycle selector switch controls washing cycle progression.

Structural bracket that secures the rear panel to the washer chassis. Replace if cracked, broken, or missing to restore proper alignment and cabinet stability.

Secures hoses and components in your washer. Replace if broken, loose, or causing leaks. Verify compatibility with your model number before ordering.

Fix a washer that hums but won't spin or agitate with this motor start capacitor. Repairs motor startup issues. Moderate DIY, 30-60 minutes.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Replacement drain hose connecting washer tub to pump assembly. Replace if cracked, split, leaking, or worn. Carries water from tub during drain cycle.

Secures panels and components in your washer to prevent rattles and maintain alignment. Replace when broken or missing to restore proper fit.

If your washer won't start the correct cycle or the dial feels unresponsive, this cycle selector switch restores proper program selection and control.

10 - 16 x 1/2

Fixes loose or wobbly timer controls by securing the timer assembly to its mounting bracket. Simple 5-minute repair restores proper cycle operation.

Drain hose routes wastewater from your washer tub to household plumbing. Replace if cracked, leaking, worn through, or damaged from wear or friction.

Drain hose routes wastewater from your washer tub to household plumbing. Replace if cracked, leaking, worn through, or damaged from wear or friction.

Used on the pressure switch hose harness.

If your timer knob is cracked, broken, or pulls off when starting cycles, this washer timer dial restores full control. Simple snap-on replacement.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures your washer's drain U-bend to prevent leaks and keep plumbing properly aligned. Simple push-fit installation takes just minutes to complete.
