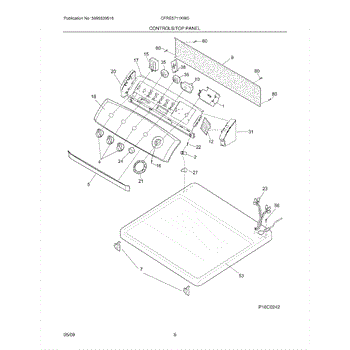

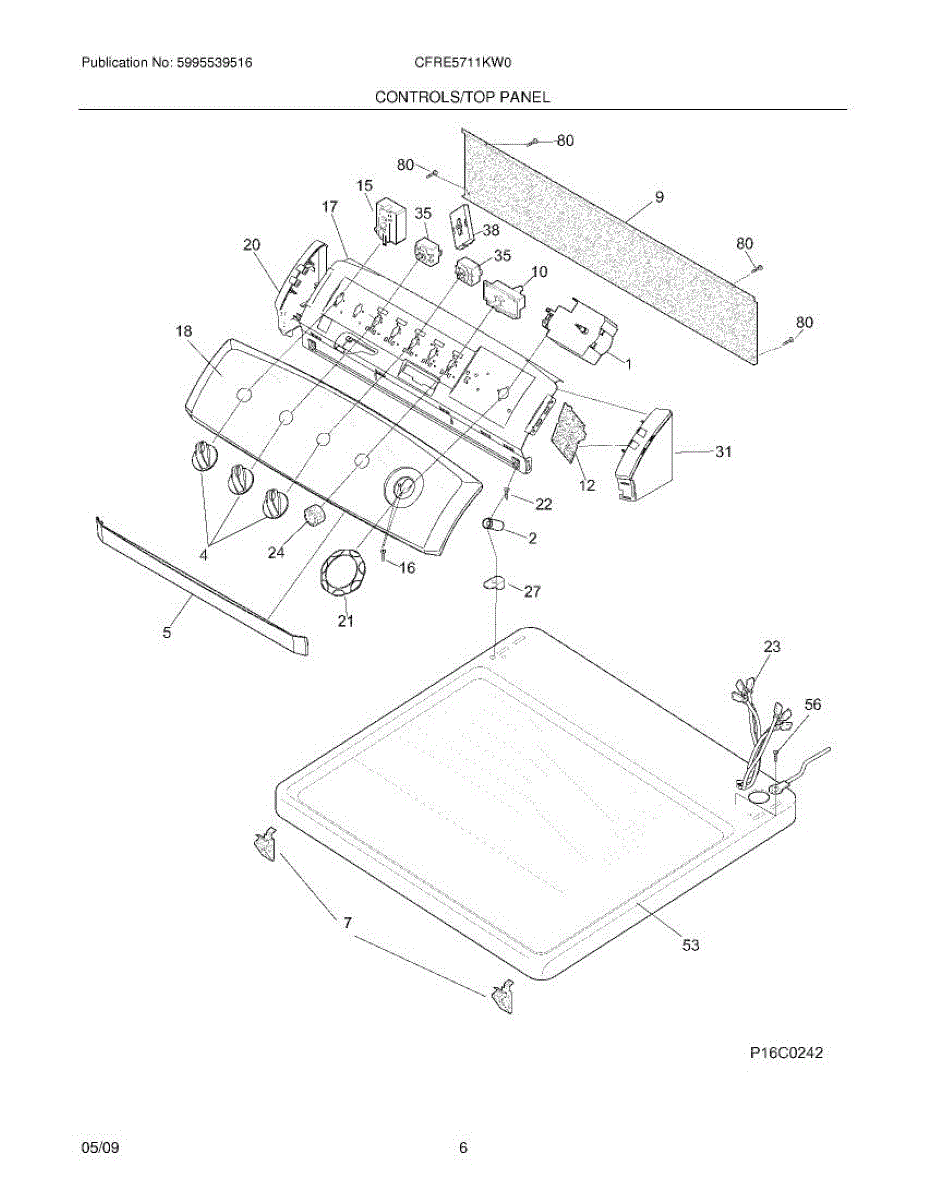

Parts for Frigidaire CFRE5711KW0: 07 - Controls / Top Panel Parts

This dryer timer controls the sequence and length of drying cycles. Replacing a failed timer restores consistent cycle advancement and automatic shutoff so your dryer starts, runs, and ends at the correct time. What it does:

• Advances the selected cycle by opening and closing internal switch contacts on schedule
• Coordinates start/run timing and end-of-cycle shutoff for timed and auto settings
• Common failure signs: timer knob doesn't advance, dryer runs too long or won't shut off, stops early, or only certain cycles work

• Includes 1 dryer timer assembly

• Unplug the dryer or disconnect power before servicing
• Access the timer from the console; remove the control knob and mounting screws to release it
• Transfer wires one at a time to matching terminals on the new timer using your model's wiring diagram
• Mount securely, reassemble the console and knob, then test for proper cycle advancement

The Selector Knob is an OEM part for Frigidaire appliances designed for use on various models of washers and dryers. This knob enables users to select different cycles and settings, providing essential control over the appliance's operations.

Symptoms of a failing selector knob include:

• The knob failing to engage or change settings
• Difficulty in turning or a lack of resistance
• Visual signs of wear such as cracks or breakage

Causes of selector knob deterioration typically involve continuous mechanical use, accidental impacts, or exposure to harsh environmental conditions that can weaken the plastic.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

Temperature selector switch.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

The Timer Knob Assembly is an OEM replacement part for Frigidaire electric dryers. This assembly incorporates the timer dial, stem, and mounting components that allow users to set desired drying periods.

Causes of a faulty timer knob include wear and tear of internal gears from regular cycle selections. Damage to the outer dial or stem connection points may also occur.

Symptoms include:

• Inability to rotate timer dial through full drying options
• Timer selections not initiating or maintaining set programs
• Dial detaching from the front panel during adjustment

This OEM Frigidaire replacement part is compatible with Electrolux, Gibson, and various Kenmore dryer models as well.

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Terminal Block is an OEM replacement part for Frigidaire clothes dryers. It is the part the power cord connects to. This kit includes 3 screws and 3 terminals.

Causes of a bad terminal block can include damage from age, overheating from worn wires or loose connections, or improper installation during manufacturing.

Symptoms of a bad terminal block include:

• The dryer not powering on
• Intermittent heating issues
• Loose, frayed, or damaged wires

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.
