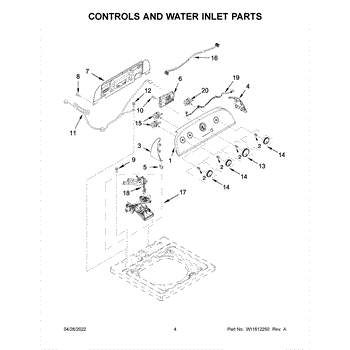

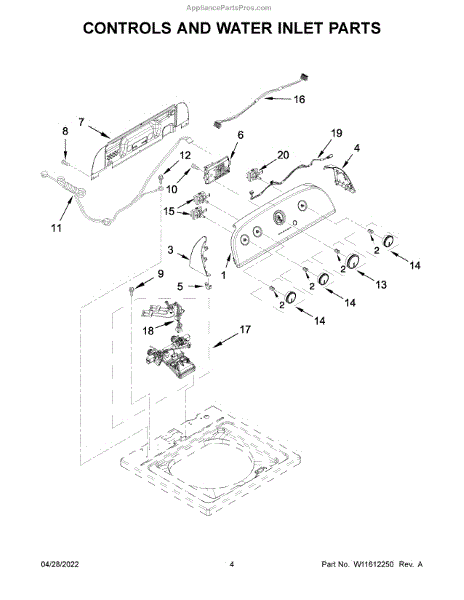

Parts for Whirlpool 3DWTW3000FW1: Controls And Water Inlet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This control panel is the user interface assembly that lets you select cycles and monitor oven/dryer/washer functions. Replacing a faulty panel restores responsive controls and visible status feedback. What it does:

• Provides the buttons/touchpads and display used to start and select appliance cycles
• Sends user commands to the control board so the appliance runs selected settings
• Restores visible status indicators and error display when the original panel is unresponsive
• Commonly replaced when buttons do not respond, the display is blank or unreadable, or touch inputs fail

• Control panel (1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Handle the panel and its ribbon/connector carefully to avoid damage to fragile contacts
• Installation typically requires removing the top or front console trim; keep fasteners and small parts organized

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear panel replaces the backguard that covers the appliance's rear housing, protecting internal components and wiring while giving the unit a finished appearance. It restores a safe, enclosed back area and helps prevent debris entry. What it does:

• Covers and protects control wiring, terminals, and components at the appliance rear
• Prevents accidental contact with electrical parts and reduces debris or grease buildup
• Restores a finished exterior back surface for safety and appearance
• Helps maintain proper airflow routing behind the appliance

• Disconnect power (unplug or shut off circuit breaker) before starting work.
• Handle edges carefully—metal panels may be sharp; wear gloves.
• Typical installation requires removing a few screws and aligning tabs; keep original fasteners if present.
• If clips, insulation, or mounting hardware are missing or damaged, replace with OEM-specified hardware for proper fit.

This screw is a genuine replacement fastener used to secure appliance panels and components for a reliable fit. It restores proper fastening where original screws are missing, stripped, or damaged. What it does:

• Fastens panels, trim, brackets or small components to keep parts aligned and secure
• Replaces missing or damaged screws that can cause loose panels or rattling
• Restores proper clamping force to prevent movement and wear on adjacent parts
• Matches OEM function and fit when the correct part number is used

• Disconnect power and water before servicing the appliance
• Use the correct driver to engage the head cleanly and avoid stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This wire harness assembly routes power and signals between appliance components to restore proper electrical connections and reliable operation. It replaces a damaged or worn harness to help eliminate intermittent power, control failures, or no-start conditions. What it does:

• Provides factory-style wiring connections between control, motor, heating element, and other components
• Restores lost or intermittent electrical continuity that can cause no-start or inconsistent operation
• Replaces frayed, burnt, or corroded wiring and terminals that create safety or performance issues
• Ensures correct wire routing and secure terminals to prevent shorts and improve reliability

• One complete wire harness assembly with terminals and connectors as shown

• Disconnect all power to the appliance before starting; follow lockout/tagout for safety
• Compare the harness to the original for matching connector types and lengths before installing
• Route and secure wiring away from moving parts and heat sources; use retained clips or ties

The Valve is an OEM part for Whirlpool washing machines. It regulates the flow of water into the washer during different cycles. The valve is designed to control the timing and amount of water entering the washing machine based on settings like load size, soil level, and selected cycle functions.

Causes of a bad washer valve typically include mineral buildup from hard water or sediment accumulation over time that impede the valve's ability to function properly. Mechanical issues of the valve components like worn valve seals can also lead to malfunctioning.

Symptoms of a bad valve can include:

• Improper water fill levels
• Longer cycle times
• Complete failure of water fill.

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness routes power and control signals between the appliance's electrical components, restoring proper connectivity and operation when the original harness is damaged or faulty. It's a direct-fit electrical assembly designed for straightforward replacement. What it does:

• Provides the main electrical connections between control, power source, and other components
• Replaces damaged, frayed, or burned wiring that can cause intermittent or complete loss of function
• Helps eliminate symptoms like no power to controls, intermittent operation, or blown fuses/trips
• Maintains factory-style connector fit and routing to reduce vibration and wear

• One complete wire harness assembly

• Always disconnect power (unplug or shut off circuit breaker) before inspecting or replacing wiring
• Route harness and secure connectors per the appliance wiring diagram to avoid pinching or heat exposure

This replacement wire harness routes power and control signals between the appliance's electrical components to restore reliable operation and proper connections. It replaces a damaged or worn harness to help stop intermittent power loss or component failures. What it does:

• Provides factory-style wiring connections for controls, motors, sensors and switches
• Restores interrupted circuits that can cause intermittent or no operation of affected components
• Replaces burnt, frayed or broken wiring that can cause arcing or poor contact
• Ensures correct routing and connector fit to prevent chafing and shorting

• Disconnect power to the appliance before starting any repair; verify power is off
• Compare the new harness to the old one for connector type and routing before installing
• Route harness to avoid sharp edges and moving parts; secure with existing clips or ties
• If connectors are damaged or corroded, replace them; do not use the appliance with exposed or repaired wiring

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load
