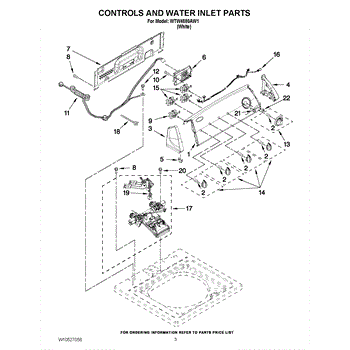

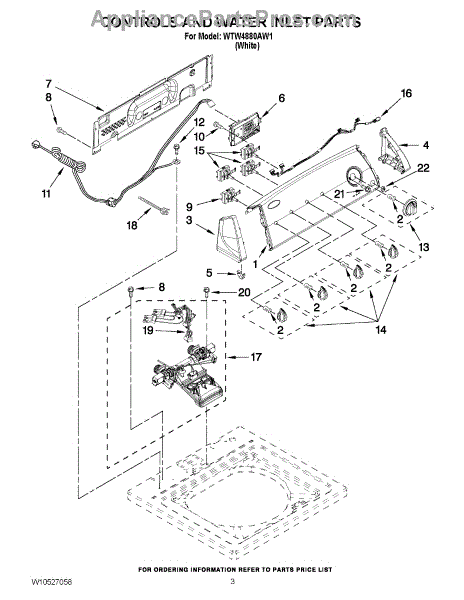

Parts for Whirlpool WTW4880AW1: 02 - Controls And Water Inlet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is an electronic control board that is made for use with washing machines. It is an internal component that ensures the washing machine operates correctly. The electronic control board monitors sensors throughout the appliance to ensure wash and spin speeds, drain and fill time, and water temperature is regulated. It also carries out user commands for washing machine cycle preferences.If the electronic control board has failed or gone bad, it can cause several problems. The washer may not spin, drain, fill, or even start a cycle. If it's determined that the problem is related to the electronic control board, it will need to be replaced. Unplug the washer and check the wire connections on the electronic control board. If they are fine, the electronic control board needs to be replaced. A putty knife, nut driver, and flat screwdriver will be needed. Remove the knob, open the console, and disassemble the main control board to remove it. Install the new replacement part and reassemble.This authentic OEM part is made for washing machines manufactured by Whirlpool. The component comes directly sourced from the manufacturer, and it is sold as a single part.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Cycle Switch is an OEM part for Whirlpool washing machines. It is responsible for controlling the various cycles of the washing machine, such as wash, rinse, and spin. This switch ensures that the machine progresses through each cycle correctly, maintaining the proper sequence for effective cleaning.

Causes of a bad cycle switch can include wear and tear from frequent use, electrical malfunctions, or mechanical failure within the switch mechanism.

Symptoms of a bad cycle switch include:

• The washing machine not advancing through cycles
• The machine getting stuck on a particular cycle
• Irregular or inconsistent cycle timings
• The machine not starting or stopping at the correct times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heavy-duty replacement power cord restores the appliance's connection to household power, delivering reliable electrical continuity for normal operation. Ideal when the original cord is damaged, burned, or fails to supply power. What it does:

• Carries mains electricity from the wall outlet to the appliance so controls and heating elements can operate
• Replaces frayed, cracked, melted, or otherwise damaged cords that may cause intermittent power or no power
• Helps eliminate sparking, overheating, or visible insulation damage at the cord or plug
• Matches the OEM fit and wiring configuration for a direct replacement when compatible

• One power cord

• Disconnect power at the breaker or unplug the appliance before beginning any work
• Verify wiring color and connector orientation match the appliance before attaching
• Secure strain relief and routing to prevent pinching or chafing; tighten terminal connections firmly

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Color: gray. Measures about 3 inches in diameter.

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load

The Water Inlet Valve is an OEM part for Whirlpool washing machines. This valve controls the flow of water into the washer, allowing it to fill with the correct amount of water during the wash and rinse cycles.

Over time, the water inlet valve can become clogged with debris, develop electrical issues, or wear out, leading to problems with the water flow. Causes of a bad water inlet valve include mineral buildup from hard water, internal component failure, or damage to the valve body.

Symptoms of a bad water inlet valve include:

• The washing machine not filling with water
• Slow or insufficient water flow into the washer
• The washer filling with water when it should not
• Unusual noises during the filling process
• Leaks around the valve area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This main wire harness routes power and signals between the appliance control and internal components to restore proper electrical connections and operation. It's a direct-fit replacement when the original harness is damaged. What it does:

• Connects control board, motors, switches and sensors so circuits receive power and communicate correctly
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation or component failure
• Helps stop issues like no power to controls, intermittent runs, or unexpected shutdowns when caused by damaged wiring
• Maintains factory routing and connector types for reliable electrical connections

• One main wire harness

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness
• Compare harness and connectors to the original and route wires following factory paths to prevent chafing
• Secure connectors fully until they click; avoid stretching wires when reinstalling

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This grommet fits around the start/pause pushbutton to cushion the button, keep it aligned, and help block moisture and debris from entering the control console. It restores reliable button feel and appearance. What it does:

• Cushions and centers the start/pause pushbutton for smooth operation
• Helps seal the control panel around the button to reduce moisture and debris intrusion
• Prevents button wobble and improves tactile feedback when pressing start/pause
• Common symptom: button sticks, feels loose, or the console shows wear around the button

• One start/pause button grommet

• Disconnect power to the appliance before starting any work
• Access usually requires removing the control console or panel
• Snap the grommet into the control panel and reinstall the button; avoid stretching or using solvents
• If the button or switch shows damage, inspect those components as well before finishing reassembly
