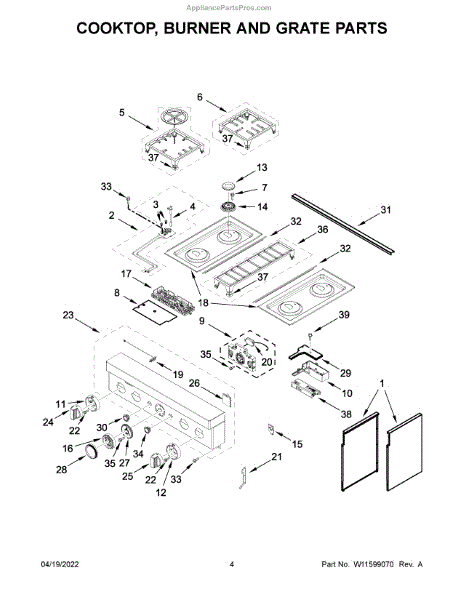

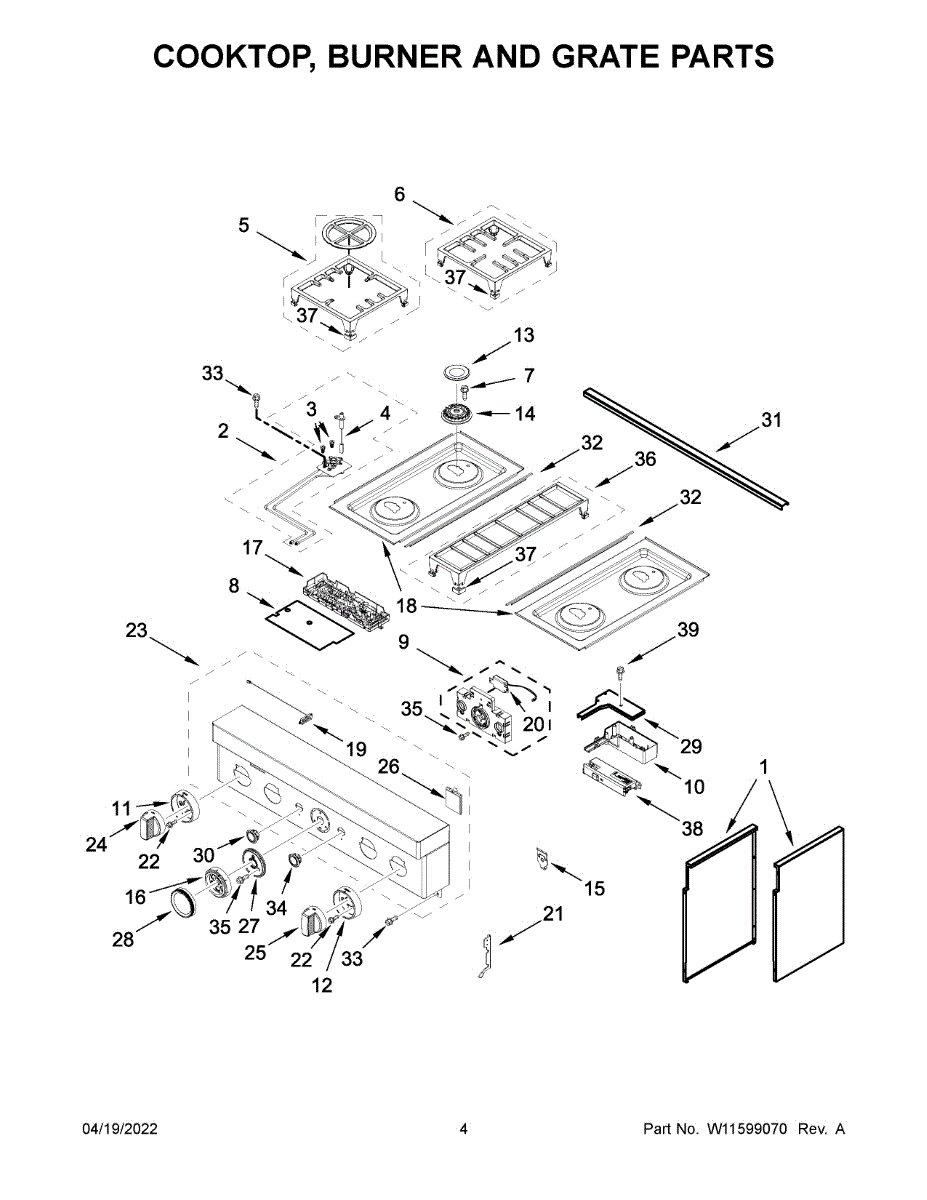

Parts for Kitchenaid KFDC500JSC01: Cooktop, Burner And Grate Parts

This orifice holder secures the burner orifice to the gas valve assembly so the burner receives a steady, correctly aligned gas flow. It's a direct-replacement part for gas cooktop/range burners to restore reliable ignition and flame performance. What it does:

• Holds the burner orifice in the correct position at the valve outlet for a consistent fuel path
• Helps maintain steady, even flame distribution for proper cooking
• Commonly replaced when a burner won't light, has an irregular flame, or after valve/service work
• Works with OEM orifice and valve assemblies to ensure proper alignment

• One orifice holder

• Turn off the gas supply and ensure all controls are OFF before starting work
• Remove burner grates and caps to access the orifice area; use appropriate tools and keep small parts organized
• Install the holder to the valve/orifice per OEM torque/fit—do not overtighten; check for proper alignment
• After reassembly, restore gas and perform a leak check and ignition test per safety guidelines

This Orifice spud secures the burner orifice and helps direct gas flow to the burner for reliable ignition and consistent flames. It's a small replacement part used on compatible gas ranges and cooktops to restore proper burner operation. What it does:

• Holds the burner orifice in place so gas is delivered correctly to the burner
• Helps maintain a stable, even flame for cooking
• Commonly replaced when a burner won't light or flame is weak/irregular
• Works with the burner tube assembly to ensure proper gas alignment

• One orifice spud as pictured

• Turn off gas supply and power to the appliance before servicing
• Inspect surrounding gaskets and fittings; replace any damaged seals
• Hand-start threads and tighten snugly; avoid overtightening to prevent damage
• After installation, check all gas connections for leaks with a soap solution or approved leak detector and test burner operation

This brass burner orifice meters natural gas to the burner for correct flame size and reliable cooking heat. Replaces a worn or clogged orifice to restore consistent ignition and even burner performance. What it does:

• Controls gas flow to the burner for a stable, properly sized flame
• Helps correct low, uneven, or weak burner flames caused by a restricted orifice
• Prevents rich/sooty combustion from an oversized orifice
• Used where a 2.5k BTU natural gas flow rate is required for the burner

• Turn off gas and electricity before servicing; follow all safety precautions
• Remove burner cap and unscrew old orifice; install new orifice hand-tight then snug with appropriate tool
• Do not overtighten; check for gas leaks after installation using a leak-safe method

This gas orifice meters natural gas to a 15,000 BTU burner, helping restore correct flame size and consistent heating. Use this direct-fit replacement when the original orifice is damaged, clogged, or the wrong orifice size. What it does:

• Precisely meters gas flow to the burner for the intended 15k BTU output.
• Helps correct weak, small, or uneven flames caused by a damaged or blocked orifice.
• Can resolve ignition or low-heat symptoms tied to improper gas delivery.
• Restores consistent burner performance when replacing an incorrect or worn orifice.

• Always shut off gas supply and electrical power before servicing the appliance.
• Use appropriate hand tools; avoid overtightening to prevent damage.

This orifice controls natural gas flow to a burner for a precise 17.5K BTU output, restoring proper flame size and consistent heating. Use when a burner produces weak, uneven, or no flame. What it does:

• Meter gas to the burner for a 17.5K BTU natural gas flame
• Helps correct low or uneven burner flames and improves heat output
• Commonly replaced when a burner won't light, sputters, or shows an unstable/yellow flame
• Works as the fixed orifice that matches appliance gas pressure and burner design

• Shut off gas supply and disconnect power before servicing
• Replace only with the correct orifice size for safe operation
• Use proper fittings and thread sealant rated for gas; check all connections for leaks

This is a 10" heavy-duty igniter wire used to connect the oven igniter to the control/safety device, ensuring reliable spark transfer for proper ignition. It replaces worn or damaged wiring to restore safe burner operation. What it does:

• Conducts the ignition current between the igniter and the control/safety module
• Helps the oven or range light and maintain a consistent flame
• Commonly replaced when ignition is intermittent, the oven won't light, or wiring is visibly damaged
• Heavy-duty construction reduces breakage and improves durability

• Turn off power to the appliance and shut off the gas supply before starting any repair
• Handle carefully to avoid damaging insulation or connectors; replace if frayed, corroded, or nicked
• Route and secure the wire away from moving parts and high-heat areas

This surface burner igniter creates the spark that lights the gas at your cooktop burner. Replacing a worn electrode helps restore quick, reliable ignition when you turn the knob to Lite. What it does:

• Directs high voltage from the spark module to the burner to ignite gas
• Maintains the proper spark gap and insulated path at the burner head
• Typical symptoms: burner won't light, clicking without ignition, intermittent or weak spark, lights only with a match

• Includes one surface burner igniter

• Disconnect power and shut off the gas supply before servicing
• Allow the surface to cool; handle the ceramic insulator carefully to avoid cracking
• Reuse existing mounting hardware; position the tip correctly near the burner port and ensure the burner cap is properly seated
• Restore power and gas, then test for spark and burner ignition

The Burner Grate is an OEM part for Whirlpool ranges. It sits atop the gas burner to safely support cookware during food preparation. The heavy-duty grate is manufactured to withstand continuous daily usage without warping or developing hot spots that could impact cooking.

Causes of a bad burner grate can include normal wear and tear from years of use, inadvertent impact damage from cookware being placed on the range, or heat-related defects developing over time.

Symptoms of a bad grate include:

• Protruding or missing grate support wires or bars
• Excessive scorching or charring of food residues on grate surfaces
• Difficulty keeping pots and pans balanced and centered during cooking
• Grate edges becoming raised or misshapen from the burner cavities

Compatible with brands including Maytag, Jenn-Air, Amana, and some Kenmore models.


The Burner Grate is an OEM part for Whirlpool ranges and cooktops. This grate sits atop of gas or burners, providing an even heat distribution surface for cooking pots and pans.

Causes of a bad burner grate can include warping or melting from exposure to excessive heat, damage from scratches or impact, or corrosion over time.

Symptoms of a bad burner grate include:

• Uneven or inefficient heat transfer to cookware
• Hot spots or cool spots on the cooking surface
• Damage, warping or breakage of the grate material

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a #8-18 x 1.125-inch screw used to fasten appliance panels and components. It provides a secure, low-profile hold so parts stay aligned and quiet during normal use. What it does

• Secures panels, brackets, trim pieces, or internal components to prevent movement.
• Restores proper fastening when original fasteners are missing, stripped, or damaged.
• Helps stop rattling, misalignment, or loose parts caused by a failed or missing screw.
• Compatible with common appliance sheet-metal and component mounting points.

• One #8-18 x 1.125 screw.

• Disconnect power before servicing any electrical appliance.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Tighten until snug; avoid over-torquing which can strip threads or deform mating parts.
• If the original screw had a specific washer, clip, or threadlocker, reuse that hardware or equivalent.

The Burner Head is an OEM part for Whirlpool gas ranges. It sits on top of the burner base and distributes the gas evenly for efficient and controlled flame production. This burner head ensures heat distribution and flame stability during cooking. It is designed to withstand high temperatures and daily use.

A bad burner head can occur due to clogs, corrosion, or damage to the burner ports. If you notice symptoms such as uneven or weak flames, poor burner ignition, or a yellow or orange flame instead of a steady blue flame, it may be time to replace this part.

Symptoms of a bad burner head include:

• Uneven or weak flames
• Poor burner ignition
• Yellow or orange flame

Restore your Whirlpool gas range by replacing the faulty or damaged burner head with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This small plastic clip secures appliance panels, trim, or wiring to prevent movement and rattling, restoring proper fit and quiet operation. It's a simple, low-cost part that helps keep components held in place. What it does:

• Acts as a retainer to hold panels, trim pieces, or harnesses in position
• Prevents rattling, vibration noise, and loose or misaligned parts
• Helps maintain proper spacing and alignment of adjacent components
• Commonly replaced when clips are broken, cracked, or missing

• One clip/retainer

• Disconnect power (and water if applicable) before beginning any work
• Clip typically snaps into place; may require a flat screwdriver or trim tool to remove/install
• Inspect surrounding mounting points for damage before fastening replacement clip
• Replace all corresponding fasteners for even fit

This replacement cooktop glass surface restores the smooth, easy-to-clean top on compatible Whirlpool cooktops. It gives a fresh, intact cooking surface when the original glass is cracked, chipped, or cosmetically damaged. What it does:

• Replaces a cracked, chipped, or scratched cooktop glass surface to restore a smooth cooking area
• Provides a sealed, easy-to-clean surface for radiant or electric cooktops
• Helps prevent glass fragments and reduces snagging of cookware on damaged areas
• Restores the appliance's appearance and normal countertop integration

• Disconnect power to the appliance before starting any repair to avoid shock hazards.
• Handle glass with care; wear cut-resistant gloves and eye protection when removing/installing.
• Installation may require removal of trim, burners, or mounting brackets—keep all fasteners and follow model-specific instructions.

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Knob is an OEM part for Whirlpool ranges. This knob allows for precise adjustment and selection of temperature settings on the range. Its ergonomic design makes navigation simple and intuitive, enabling convenient access to all functions directly from the control panel.

Causes of a bad knob can include cracks or chips forming from overtightening, continual exposure to heat, or impact from food packages or cookware.

Symptoms of a bad knob include:

• Failure to lock temperature settings
• Unexpected changes in cooking temperature
• Knob positions not correlating to actual burner/oven settings

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Gas Range Knob is an OEM part for Whirlpool gas ranges. It is the control interface that allows selecting different temperature settings for each gas burner on the cooktop.

Symptoms of a bad gas range knob include:

• Difficulty turning the knob to desired burner settings
• Knob dial numbers fading or becoming illegible
• Loose or wobbly knob that cannot be set securely
• Missing or broken knob that makes burner control impossible

Causes can be general wear and tear over time, exposure to heat warping the plastic material, or accidental damage from rough use.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This push button is the user-facing control used to activate a specific function on the appliance control panel. It restores a responsive tactile button so you can select cycles or options easily. What it does:

• Replaces a cracked, worn, or unresponsive push button on the control panel
• Provides a firm tactile feel for reliable user input
• Helps restore proper button travel and engagement with the switch underneath
• Common symptom: button sticks, feels loose, or does not spring back after pressing

• One push button

• Remove power to the appliance before servicing to avoid shock or injury
• Access the control panel per the appliance service instructions; button may snap into the panel or require removal of the escutcheon
• Inspect the underlying switch or retainer and replace if damaged

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

The Grate Pad is an OEM component for Whirlpool gas and electric ranges. Located underneath grates atop burner assemblies, this insulating pad protects the cooktop surface during use.

Symptoms of a degraded or improperly fitting grate pad include:

• Scratches or nicks appearing on the ceramic glass cooktop
• The range of burners becoming more difficult to clean
• Noise or vibration issues heard from the cooktop area

Causes related to normal wear over extended use, exposure to cleaning chemicals, or damage from heavy pans accidentally sliding off grates.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This electronic control board replaces the appliance's main control module to restore proper operation of timed cycles, displays and user commands. It provides the control logic that manages the unit's functions and user interface. What it does:

• Manages and sequences appliance functions such as cycle selection, timing and accessory control
• Powers and communicates with the display and touch/selector controls
• Interprets user inputs and triggers valves, motors and other components
• Faulty boards can cause unresponsive controls, incorrect cycles, intermittent operation, or display error codes

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Handle the board by the edges and avoid static discharge—use an anti-static wrist strap if available
• Verify connector orientation and secure all wiring; do not force connectors
