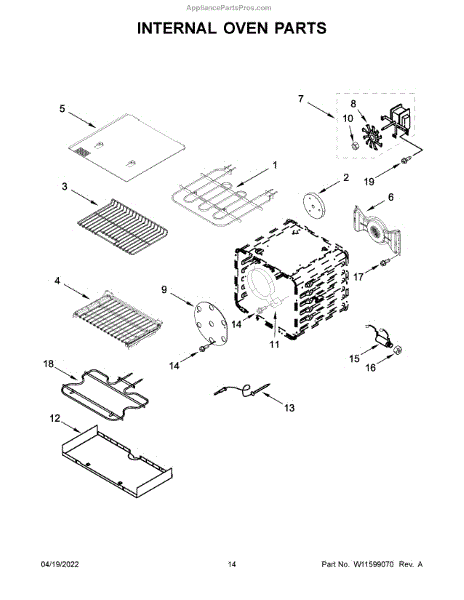

Parts for Kitchenaid KFDC500JSC01: Internal Oven Parts

This broil heating element provides the upper-oven heat for broiling and high-temperature cooking. Replaces a failed or damaged upper element to restore broil performance and even top-heat browning. What it does:

• Produces direct top-oven heat used for broiling and finishing dishes
• Restores broil function when the upper element no longer heats
• Helps eliminate uneven browning or food that won't crisp on top
• Shows visible signs of failure such as burning, breakage, or no heat

• One broil (upper oven) heating element

• Disconnect power (unplug or switch off breaker) before starting any work
• Handle element carefully to avoid bending or damaging terminals
• Electrical connections are secure and routed clear of interior surfaces
• After installation, restore power and test broil function; replace oven light cover or insulation as needed

The Rack is an OEM part for Whirlpool wall ovens. It provides a durable surface for baking and cooking food items. These racks are engineered to maximize capacity while withstanding high heat.

Causes of a bad rack include standard wear and tear from regular cleaning cycles in addition to exposure to grease buildup despite cleaning. Racks support significant weight loads during cooking cycles.

Symptoms of a bad rack include:

• Visible bends, cracks, or detachment of rack elements
• Lack of support leads to spilled/dropped food safety concerns
• Food or debris lodged in rack imperfections promotes residue buildup
• Compromised rack integrity reduces usable oven space for cooking

This Whirlpool OEM replacement rack directly fits the original location and restores full cooking functionality. Models also include Maytag, KitchenAid, Jenn-Air, and select Kenmore ovens for lasting performance.

This replacement oven rack restores a stable, adjustable cooking surface inside the oven so pots and pans sit level and slide in and out smoothly. Fits into existing rack supports for easy restoration of full oven function. What it does:

• Provides a sturdy shelf for cookware and bakeware during cooking and baking
• Slides into factory rack guides so trays and pans can be moved without lifting
• Replaces bent, warped, or missing racks that prevent even cooking or safe handling
• Helps maintain correct clearance and airflow inside the oven for consistent results

• One (1) standard sliding oven rack

• Install when oven is cool; no tools usually required—slide into desired rack supports
• Inspect rack supports/guides for damage before installing; replace damaged guides separately
• Use oven mitts when removing or repositioning loaded racks; do not exceed appliance load recommendations
• Clean per manufacturer instructions before first use if required

The Motor-Fan is an OEM component specifically designed for Whirlpool kitchen ranges. Located within the back wall of the oven cavity, the motor fan works to circulate air and remove excess moisture and smoke during the cooking process. Proper motor-fan functioning helps ensure efficient oven ventilation and performance.

Symptoms of a bad motor fan include:

• Excessive smoke or moisture left in the oven after cooking
• Oven taking longer to preheat and cook due to poor air circulation
• Loud buzzing or grinding noises emanating from the fan

Causes of failure are normally wear and tear of motor windings or fan blade bearings from years of continuous use. Overheating can potentially reduce lifespan as well.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This surface cooktop element provides the heating source for electric ranges and replaces a damaged or non-working burner to restore normal cooking heat. Designed to match OEM fit and function for compatible Whirlpool ranges. What it does:

• Heats cookware for stovetop cooking when the burner control is turned on
• Replaces a burned-out or broken surface element that no longer heats
• Can resolve symptoms like no heat from the burner, intermittent heating, or visible damage to the element
• Restores even heating when the original element has hot spots or partial failure

• Disconnect power at the breaker or unplug the range before servicing to avoid shock
• Allow the element and cooktop to cool completely before removing or installing
• Remove the old element by unplugging the connector or detaching mounting hardware, then connect the new element securely

Color: brown. Its total length is about 25 inches.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.
