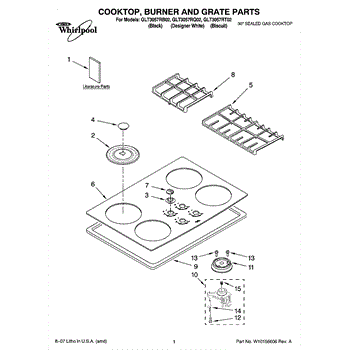

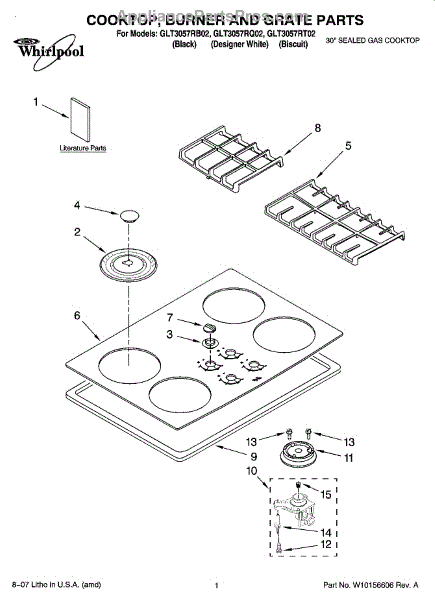

Parts for Whirlpool GLT3057RT02: 01 - Cooktop, Burner And Grate Parts

Color: Biscuit.

Color: Biscuit.

This part is a genuine OEM drip pan that has been manufactured by Whirlpool for use with electric ranges. The drip pan fits underneath the burner to catch spills or drips from cooking food, and prevents spills from entering into the internal components of the appliance. Drip pans can become bent, dented, warped, corroded, lost, or excessively dirty over time, requiring replacement. No tools are required to replace this part. Simply remove the old drip pan, remove the burner, slide the replacement drip pan into place, and then put back the burner. Ensure the range is entirely cooled down and powered off before attempting this. This part is sold individually and is manufactured from high quality, durable, non-corrosive materials to ensure the best possible quality. It is sold individually. This drip pan is intended for use with different compatible electric range models that have been manufactured by brands that include, but are not limited to, Whirlpool, Maytag, Jenn-Air, Amana, Admiral, Kitchenaid, and Magic Chef.

Color: Biscuit. This grommett is located between the glasstop and the knobs. For black order W10854242. For white order WP3180081.

This grommet is located between the glasstop and the knobs. Color: White. Measures about 2 inches in diameter. For black order W10854242. For biscuit order 3191817.

The Grommet is an OEM part for Whirlpool cooktops. This part provides a secure fit and cushioning for the control knobs on the cooktop, ensuring smooth operation and preventing damage to the control panel.

Causes of a bad knob grommet can include general wear and tear, exposure to high temperatures, or damage from frequent use.

Symptoms of a bad knob grommet include:

• Loose or wobbly control knobs
• Difficulty in turning the knobs
• Knobs not staying in place or falling off
• Visible cracks or wear in the grommet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Expresso

A small replacement trim cap that restores the finished appearance and protects exposed fasteners on compatible Whirlpool appliances. Simple, durable replacement for worn or missing caps to keep surfaces looking clean. What it does

• Covers and protects an exposed screw, rivet, or mounting point to prevent debris and corrosion
• Restores the appliance's original finished appearance at the repair location
• Helps reduce rattles or movement around the covered fastener
• Fits into the original mounting opening for a snug, low-profile finish

• Typically snaps or presses into place; alignment should be confirmed before seating
• No special tools usually required; a small flat tool can help with removal
• If working near electrical components or sharp edges, disconnect power and take basic safety precautions
• Inspect the receiving hole for damage or debris and clean before installing

This replacement knob cap restores the look and function of a cooktop or range control knob by covering the knob hub and providing a finished, heat-resistant surface. It's a simple cosmetic and protective fix for worn or missing caps. What it does:

• Covers and protects the exposed knob hub from dirt, grease and wear
• Restores the original appearance when caps are scratched, faded or missing
• Provides the correct surface for turning control knobs comfortably and safely
• Helps keep spills and debris out of the knob shaft area, reducing buildup

• Before installing, make sure the appliance is off and cooled; disconnect power if recommended by your appliance manual
• Push the cap firmly onto the knob hub until it seats; do not force if it won't align
• Inspect the knob and shaft for damage; replace the entire knob assembly if the shaft or mechanism is worn

A replacement finish cap in coal matte black that restores the appliance's appearance and hides exposed hardware. Use it to refresh scratched, faded or missing trim for a neat, factory look. What it does:

• Covers exposed screws, fasteners or openings for a finished appearance
• Helps restore uniform trim color and hide cosmetic damage
• Prevents dirt buildup where trim is missing or damaged
• Useful when replacing damaged or worn decorative trim pieces

• Always disconnect power (or gas where applicable) before servicing the appliance
• Use common hand tools as needed; avoid forcing parts to prevent breakage

This replacement cap restores the finished look of a damaged or missing control cap and helps protect the underlying control shaft and fastener. Matches the coal matte black finish for a factory appearance. What it does:

• Covers and protects the control shaft and retaining screw from debris and wear
• Restores a worn, cracked or missing cap so the control looks like new
• Helps keep the control knob seated and stable during use
• Useful when the original cap is chipped, faded or cosmetically damaged

• Unplug the appliance or shut off power at the breaker before servicing
• Remove the control knob (pull straight off) to access the cap if needed
• Press the cap into place over the control shaft until it snaps or seats securely
• If a retaining screw is present, verify fit before reassembly; do not force or modify the part

Color: Expresso

Color: Expresso

Color: Cumberland Gray

Color: Cumberland Gray

Color: Coal Matte Black

Color: Coal Matte Black

This replacement control knob restores a worn, cracked or missing oven/range control interface and makes settings easy to see and adjust. The biscuit finish matches common appliance trim for a factory look and simple operation. What it does:

• Replaces a damaged, loose or missing control knob so temperature and function settings can be selected reliably
• Provides a tactile grip and clear pointer for accurate setting selection
• Restores a finished appearance to the control panel when the original knob is faded or broken
• Fits standard shaft-style control stems used on compatible models

• Disconnect power to the appliance before starting any repair
• Pull the old knob straight off the control shaft; align new knob and push on until fully seated
• If knob is stiff to install, verify shaft orientation and avoid excessive force to prevent damage
• For models with retaining caps or adapters, transfer any necessary hardware from the old knob

This white replacement control knob restores a secure grip and clear setting indicator on an appliance control panel. It lets you select temperatures, cycles, or functions accurately when the original knob is cracked, loose, or missing. What it does:

• Fits onto the control shaft to rotate and select settings on the appliance control panel.
• Provides a visible indicator to line up the desired temperature, cycle, or function.
• Replaces knobs that are cracked, stripped, loose, missing, or no longer engaging properly.
• Simple cosmetic and functional replacement to restore user control without replacing the entire control assembly.

• Disconnect power to the appliance before performing any service.
• Pull the old knob straight off the control shaft; press the replacement knob onto the shaft, aligning the indicator to the selected setting.
• If the knob does not pull off or push on easily, check for a retaining clip or set screw.

The Burner Control Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows users to adjust the flame or heat level of the burners, providing precise control over cooking temperatures. It is designed to fit securely onto the control shaft and offer smooth operation for adjusting the settings.

Causes of a bad burner control knob can include physical damage such as cracks or breaks from impact, wear and tear from frequent use, or melting due to excessive heat exposure. Misalignment or loosening of the knob can also impair its functionality.

Symptoms of a bad Burner Control Knob include:

• Difficulty in turning the knob
• The knob not staying in place or feeling loose
• Cracks, chips, or visible damage on the knob
• Inconsistent or unresponsive burner adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cooktop miscellaneous part.

This orifice holder routes gas from the surface burner valve to the burner head and supports proper burner alignment. Replacing a damaged holder helps restore reliable ignition and steady, even flame on your cooktop/range. What it does:

• Directs gas from the valve to the burner head for correct flame output
• Positions and supports the burner head for stable operation
• Helps maintain proper igniter alignment for consistent lighting
• Common failure symptoms include delayed or no ignition, weak/uneven flame, or a burner head that won't sit securely

• 1 orifice holder assembly

• Disconnect power and shut off gas supply; allow the appliance to cool before servicing
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Transfer the existing orifice spud, screws, gasket, and spark electrode as required by your model
• After reassembly, restore gas and check connections with a soapy-water solution per safety best practices

This orifice holder mounts beneath a gas burner and channels gas from the valve through the orifice to the burner head. Replacing a damaged holder helps restore consistent ignition, stable flame, and a secure burner fit.

• Directs gas flow from the control valve through the orifice jet into the burner
• Provides a solid mounting point for the burner head and orifice spud
• Helps maintain correct burner alignment for consistent flame quality
• Common symptoms: hard-to-light burner, uneven or weak flame, burner head not seating securely, stripped threads or visible cracks on the holder

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the burner cap and head; access the holder from below or by lifting the cooktop, depending on model
• Transfer the existing orifice spud and mounting hardware to the new holder; use thread sealant only if specified by the manufacturer
• After reassembly, restore gas and check all joints for leaks with an approved leak-detection solution; verify burner operation

This G4 orifice holder mounts beneath the cooktop to secure the burner orifice and route gas from the valve to the burner head. Replacing a damaged holder helps restore proper gas flow and consistent burner performance.

• Holds and aligns the orifice for the G4-designated surface burner
• Channels metered gas from the valve to the burner head
• Supports stable, even flame and reliable ignition at that burner
• A worn, cracked, or stripped holder may cause weak/uneven flame, delayed ignition, or a gas odor near the burner

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Remove burner caps/heads and access the holder
• Transfer the existing orifice spud if reusing, or install the correct orifice specified for your gas type
• Tighten fittings to spec and leak-test all gas connections with an approved solution before restoring service

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Spark Electrode is an OEM part for Whirlpool ranges. It is responsible for generating the spark that ignites the gas in the burners, allowing for efficient and reliable lighting of the stove. The spark electrode is located near the burner and produces a high-voltage spark to ignite the gas.

Causes of a bad spark electrode can include wear and tear over time, buildup of food debris or grease that can interfere with the spark, and damage from cleaning or handling. Electrical issues can also cause the electrode to fail.

Symptoms of a bad Spark Electrode include:

• The burner not igniting
• Weak or no spark
• Clicking sound without ignition
• The burner lighting inconsistently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Location: Right rear & left rear.

This genuine wire harness routes electrical signals and power between components to restore proper operation and connectivity. It replaces damaged or frayed wiring to help eliminate intermittent power, control failures, or non-responsive functions. What it does:

• Carries power and control signals between appliance components to enable normal operation
• Replaces worn, burned, or broken wires and connectors that cause intermittent or no power
• Helps resolve issues like unresponsive controls, motors not running, or lights that won't turn on
• Preserves factory routing and connector fit for a secure, reliable connection

• One complete wire harness as shown

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the harness
• Compare connectors and wire colors to the old harness to ensure correct fit before installing
• Secure wires along original routing and fasten any clips or ties to prevent rubbing or pinching

This single-conductor replacement wire restores an electrical connection between components in compatible Whirlpool appliances. It's a straightforward part used when a damaged or broken wire prevents normal operation. What it does

• Carries electrical current between terminals or components to enable operation.
• Replaces frayed, broken, or heat-damaged wiring that can cause intermittent or no power to a component.
• Common symptom: affected circuit or component won't power on or works sporadically.
• Helps re-establish a reliable connection when the original wire is corroded or has a broken conductor.

• Disconnect power (unplug appliance or shut off circuit breaker) before starting any repair.
• Use proper wire connectors/crimping techniques and ensure secure, insulated connections.
• Verify correct routing and strain relief to avoid contact with moving parts or heating elements.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned
