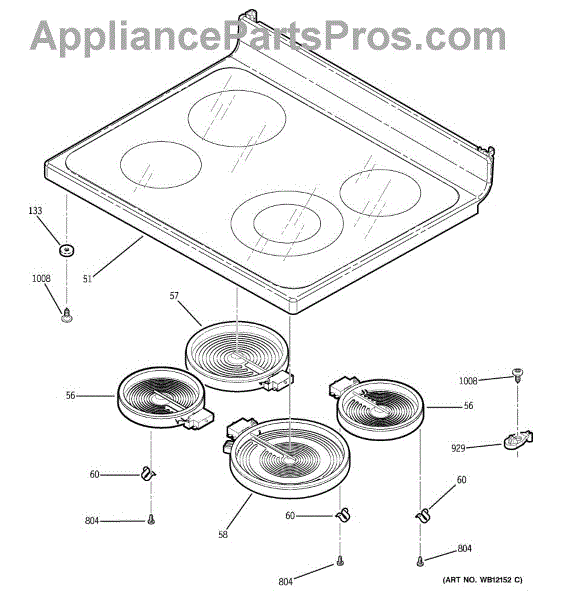

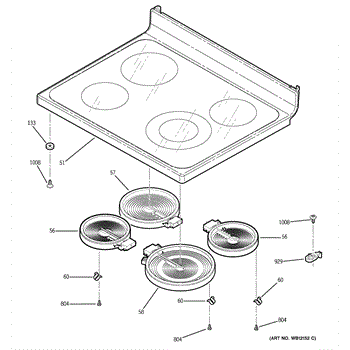

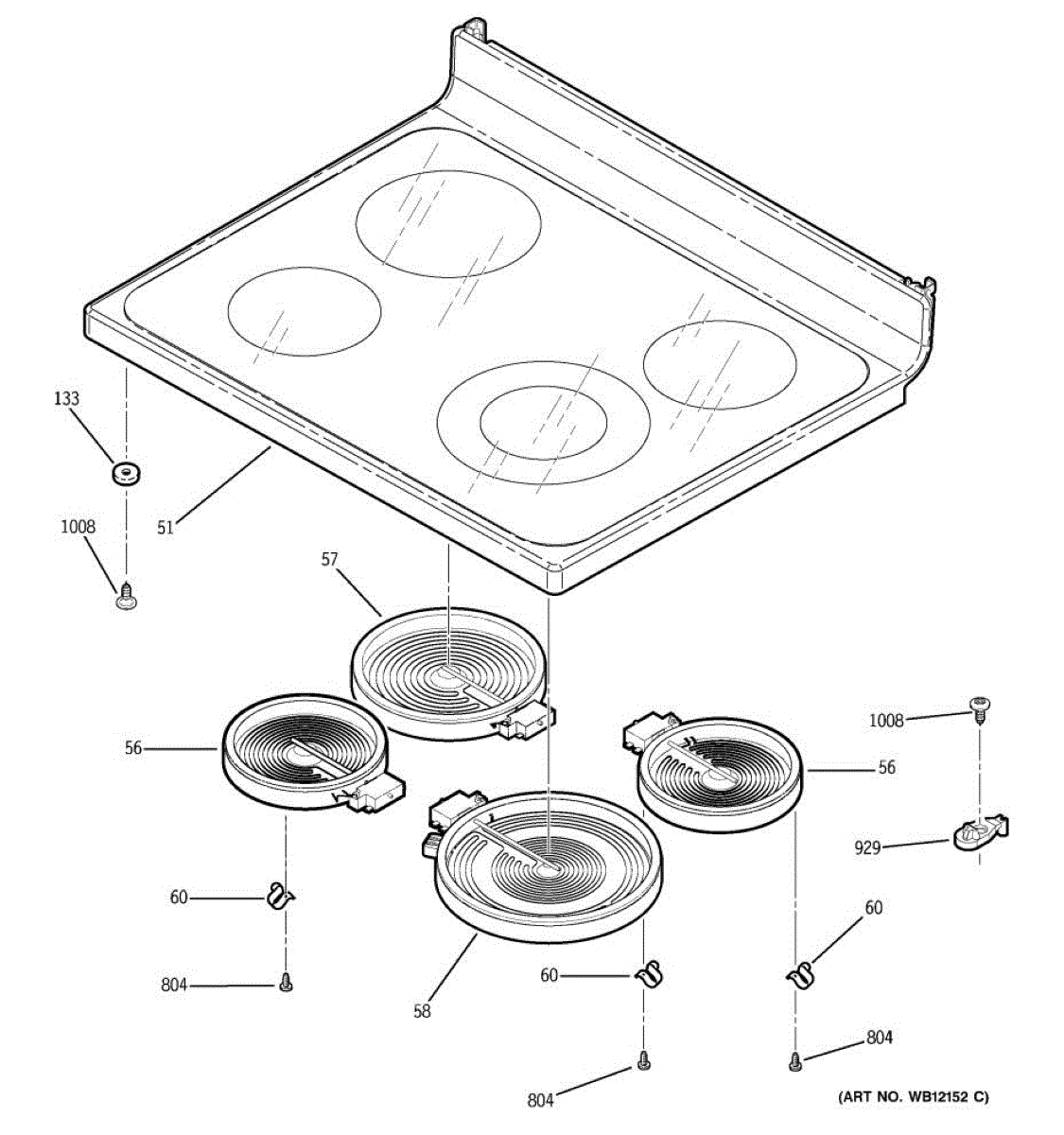

Parts for Ge JB940KD1CC: 02 - Cooktop Parts

Color: Bisque

The Medium Haliant Element is an OEM part for GE cooktops. This radiant heating element is located beneath the ceramic cooktop surface and provides a medium-sized heating area for cooking various dishes. This element measures 6 Inches.

Causes of a bad haliant element can include electrical issues such as short circuits, wear and tear from regular use, or physical damage from impacts or overheating.

Symptoms of a bad medium haliant element include:

• The element not heating up or only heating partially
• Inconsistent or uneven heating
• The cooktop displaying error codes related to the heating element
• Visible damage or discoloration on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Radiant Element is an OEM part for GE ranges and cooktops. This part provides efficient and even heating for cooking. This part uses electricity to heat up and transfer warmth directly to the cookware. The radiant element is encased under the glass surface of the cooktop, offering a sleek and easy-to-clean cooking area while ensuring optimal heat distribution and cooking performance.

Causes of failure might include a burnt-out heating coil, damage to the element's electrical connections, or a malfunction within the control system that regulates power to the element.

Symptoms of a bad Radiant Element include:

• The element not heating up, leading to insufficient cooking temperatures.
• Uneven heating, causing inconsistent cooking results.
• The cooktop surface not responding or only partially heating, indicating a possible failure in the element's circuit.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is the door pad. Consider replacing both when replacing trim number WB07T10230

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

Size: 8-18 BA POR 3/4 SN
