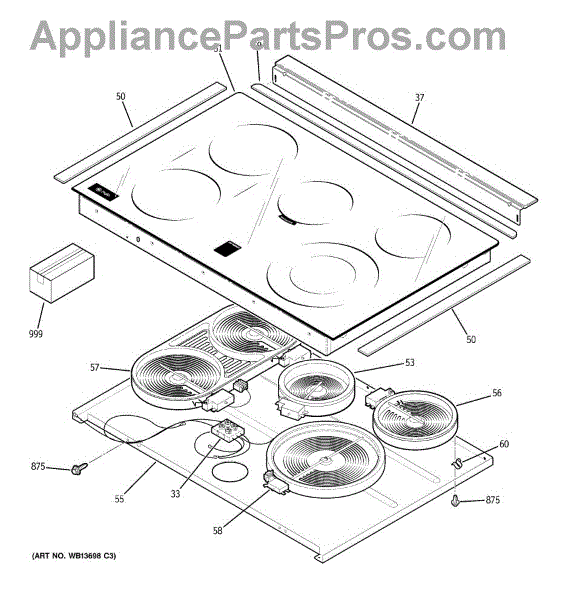

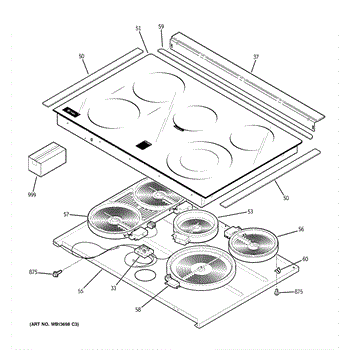

Parts for Ge PD968TP2WW: 02 - Cooktop Parts

This indicator light module controls the status lights on your range or cooktop, providing clear visual alerts during operation. Replace it to restore reliable, easy-to-see indicators for key functions. What it does:

• Illuminates key status indicators on the appliance's control area
• Helps when functions are active and when conditions require attention
• Common symptoms: lights do not illuminate, stay on continuously, flicker intermittently, or show heat-related damage
• Direct replacement restores normal indicator operation

• Includes: 1 indicator light module

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the module from the control area per your model's service information; note screw and wire locations
• Transfer connectors one at a time to the new module, secure it, reassemble, and test

This right-hand main top gasket seals and cushions the cooktop's right edge. It helps keep spills and debris out of the chassis and keeps the main top seated securely without rattles or metal-on-metal contact.

• Creates a seal between the main top and side frame on the right-hand side
• Helps prevent liquids and crumbs from entering the cabinet beneath the top
• Reduces vibration and rubbing for a quieter, more secure fit
• Replace if torn, flattened, missing, or no longer stays in place
• Common signs: visible gap on the right edge, top not sitting flush, rattling, or spills leaking below

• Disconnect power; shut off gas and allow the surface to cool completely
• Raise or remove the main top per your model's service instructions
• Remove the old gasket and residue; clean and dry the mating surface
• Position the new gasket on the right side; avoid stretching, press firmly, then reassemble and verify alignment

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

The Maintop Glass Assembly is an OEM part for GE electric ranges. As the cooktop surface, this glass panel protects burners from spills and facilitates easy cleaning.

Symptoms of a bad glass assembly include:

• Cracks, chips or breaks compromising structural integrity
• Discoloration reducing visibility of burner operations
• Detaching from supporting frame causing a seam gap

Causes can be normal wear from cooking tools and scrubbings. Thermal shocks like sudden temperature changes also weaken glass over time.

This OEM replacement part is compatible with all GE and select Kenmore electric and gas ranges.

Warming Element

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant bridge element restores heat to the bridge zone on a smooth-top range or cooktop, letting two adjacent burners operate together as one larger cooking area. It replaces a failed element to bring back even, responsive heating.

• Provides the elongated heat source that links two surface elements when the Bridge setting is selected
• Delivers consistent, even heat across larger cookware or griddles
• Replaces a failed or open bridge element to restore normal operation
• Common symptoms: bridge zone won't heat, weak or uneven heating, only works when an adjacent element is on, element tests open

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Lift the glass top or remove the cooktop per your model's procedure to access the element from below
• Note wire positions; move connections to the new element one at a time and secure with existing hardware
• Handle the element carefully; avoid bending or stressing the heating ribbon, verify alignment, then reassemble and test

The Haliant Element is an OEM part for GE ranges. It is a high-performance radiant heating element used in the stovetop, designed to provide consistent and efficient heat for cooking. This element heats up quickly and delivers precise temperature control for various cooking tasks.

Over time, the Haliant element can wear out due to repeated heating and cooling cycles, physical damage, or electrical issues. When the element becomes faulty, it can significantly impact the range's cooking performance.

Symptoms of a bad Haliant element include:

• The burner not heating up
• Uneven heating or hot spots
• Visible damage or breaks in the element
• The element cycling on and off irregularly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This maintop gasket seals the top maintenance panel on over-the-range units to help keep grease, steam and cooking residue out of internal cavities. Replacing a worn gasket restores a snug seal and helps prevent odors and buildup. What it does:

• Seals the maintop/upper cavity to limit grease, steam and debris from entering internal components
• Helps reduce rattling or gaps caused by a deteriorated or compressed gasket
• Maintains intended airflow paths and helps keep the oven/microwave interior cleaner
• Common symptom: visible wear, cracks or a compressed gasket edge allowing leakage or noise

• One maintop gasket

• Disconnect power to the appliance before starting any work
• Access usually requires removing the maintop/upper cover—keep fasteners organized
• Clean mating surfaces before installing the new gasket and press into place per OEM alignment; avoid stretching the gasket
• If adhesive or clips are used, replace only with the correct part number to ensure a proper fit

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
