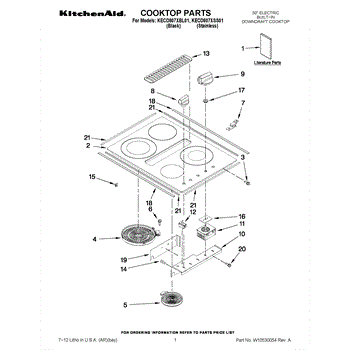

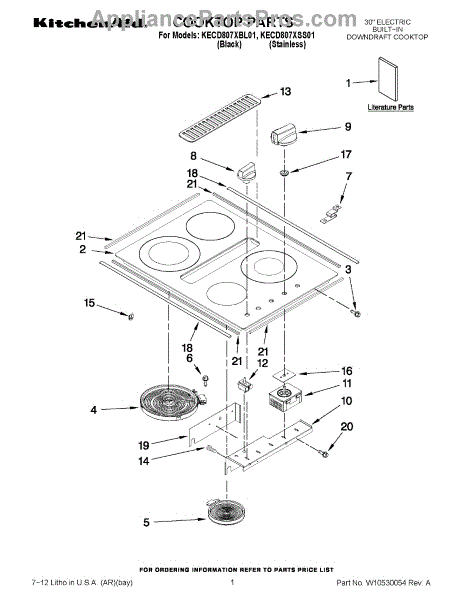

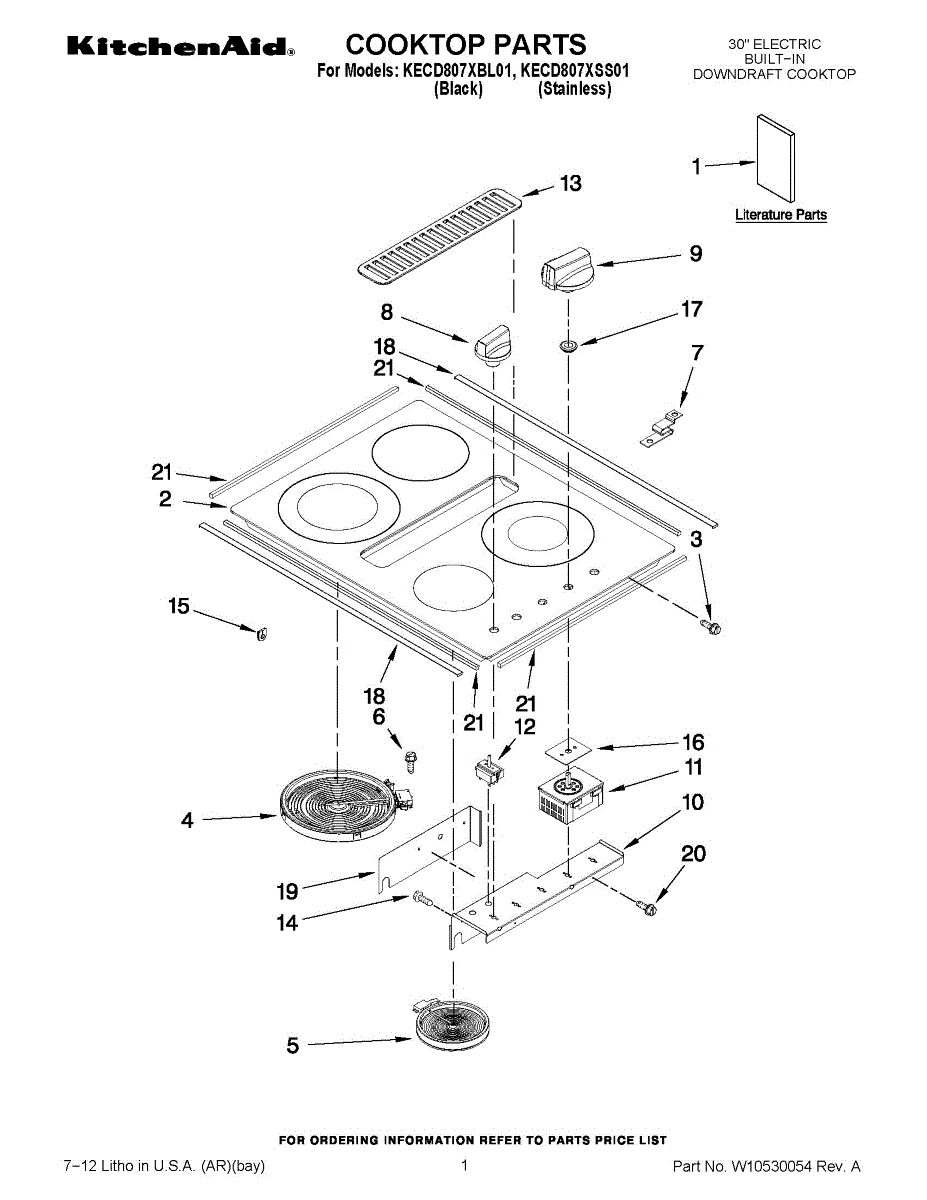

Parts for Kitchenaid KECD807XBL01: 01 - Cooktop Parts

The Cooktop is an OEM part for Whirlpool ranges. It is the glass surface that is used for warming and cooking food. This cooktop features multiple warming zones with varying heat levels to accommodate different types of cooking needs. It has a smooth glass design that is easy to clean.

Causes can be general wear and tear from frequent use. Accidental impacts or stresses from heavy cookware can also damage the cooktop.

Symptoms of a bad cooktop include:

• Zones not heating up properly or uneven heating
• Cracks or breaks in the glass surface
• Dirty burners that leave residue
• Warping or discoloration of the glass over time

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The LF Surface Heating Element is an OEM part for Whirlpool ranges. It is a top burner element responsible for generating heat on the cooktop for cooking. This element ensures consistent and even heating when in use, allowing for efficient cooking performance.

Causes of a bad surface heating element can include normal wear and tear over time, electrical failures, or damage due to overheating or spills. A faulty element may also result from a damaged terminal block or loose connections.

Symptoms of a bad surface heating element include:

• The burner not heating at all
• Uneven heating or hot spots
• The element sparking or producing a burning smell
• Visible damage such as cracks or breaks in the coil

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This radiant surface element uses a ribbon-style heater to provide even heat beneath a glass-ceramic cooktop. Replace a failing burner to restore consistent, reliable heating on the affected cooking zone.

• Provides radiant heat to one surface burner zone beneath the glass top
• Works with the surface control to regulate cooking temperature
• Common fix for a burner that won't heat, heats unevenly, or takes too long to heat
• Replace if the element shows an open circuit when tested for continuity

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; support the glass top per service instructions to access the element
• Transfer wires from the old element to the new one position-by-position; secure using existing brackets
• Avoid touching the element surface; test operation before reassembly

1800 watt

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This push-on control knob replaces a worn, cracked, or missing range/oven control knob so you can reliably set temperature or burner settings. Simple cosmetic and functional replacement for front panel controls. What it does

• Fits onto the control shaft to turn oven or burner controls and select settings
• Restores secure grip when original knob is loose, stripped, or broken
• Helps ensure accurate selection of temperature or heat levels
• Common symptom fix: knob won't turn, spins freely, is cracked, or is missing

• One control knob

• Turn all appliance controls OFF and disconnect power before servicing
• Most knobs pull straight off the control shaft and push onto the splined shaft until seated
• If resistance is encountered, remove carefully to avoid damaging the control shaft or surrounding trim

Control knob restores a worn or damaged range/stove control interface so you can select settings reliably. Installs quickly to replace missing, cracked, or loose knobs and improve control feel. What it does:

• Replaces a damaged or missing flush-style control knob so you can select heat/power settings accurately.
• Fits over the control shaft to provide a secure grip and tactile feedback when turning.
• Common symptoms: broken, loose, cracked, or missing knob; difficulty selecting or holding settings.
• Helps prevent accidental setting changes compared with a worn or slippery knob.

• One control knob

• Disconnect power to the appliance and turn off gas supply before beginning work.
• Remove the old knob by pulling it straight off the control shaft; align and push the new knob onto the splines until it seats.
• Do not force a knob that doesn't fit—verify shaft type and orientation before installing.
• After installation, restore power/gas and test all control positions for correct operation.

This infinite switch is the user control that regulates heat levels for a stove's top burner, restoring variable temperature control for smooth cooking. It fits into the cooktop control assembly and replaces a worn or non-responsive controller. What it does:

• Regulates electrical power to a single surface burner so you can set low-to-high heat
• Replaces a switch that sticks, skips settings, or produces no heat
• Helps stop unpredictable burner behavior like intermittent operation or failure to cycle
• Works with manual knob controls to provide stepped variable heat

• Disconnect power to the range at the breaker before servicing to avoid shock
• Access typically requires removing the cooktop or control panel—refer to your model's service guide
• Inspect and match terminal configuration before installation; secure all wire connections

This dual surface element infinite switch controls power to an electric cooktop or range's dual radiant burner. It restores precise heat selection and lets you choose inner-only or full dual-ring operation when the original switch fails.

• Regulates power cycling to maintain the selected heat level on a dual radiant element
• Selects between inner-only and dual-ring operation on compatible burners
• Common failure symptoms: no heat, only runs on high, cannot adjust temperature, burner won't shut off, dual feature won't engage
• Restores consistent, controllable surface cooking performance

• Disconnect power at the breaker before servicing—this is a high-voltage component
• Pull the control knob and open the control panel or rear cover to access the switch
• Photograph/note wire locations; move wires to the new switch one at a time
• Secure the switch, reassemble, restore power, and test both inner and dual-ring settings

This dual infinite switch controls power to a dual surface element on electric ranges and cooktops, allowing precise heat selection. Replacing a failing switch restores responsive temperature control and ensures both inner and outer sections of the element operate correctly.

• Regulates power cycling to the surface element to reach and maintain the selected heat
• Controls single- or dual-section operation on models equipped with a dual element
• Common failure symptoms: burner won't heat, heats only on high, temperature won't adjust, one section doesn't heat, or burner won't turn off

• Disconnect power at the breaker before servicing
• Remove the control knob and open the control panel to access the switch
• Transfer wires one at a time from the old switch to matching terminals on the new switch; take a photo to guide reassembly
• Secure the switch, reassemble the panel/knob, restore power, and test the burner

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

This air grille is the top front vent cover for an over-the-range microwave. It channels airflow through the intake/exhaust opening and restores a secure, finished appearance when the original grille is cracked, loose, or missing.

• Covers and protects the microwave's upper vent opening
• Helps direct intake/exhaust airflow as designed
• Restores proper fit when tabs or mounting points are damaged
• Common signs include visible cracks, rattling, or a missing vent cover

• Disconnect power to the microwave before servicing
• Open the door; remove the screws securing the top grille
• Slide the grille to release the side tabs, then pull forward to remove
• Position the new grille and reuse the original screws; hand-tighten to avoid cracking

Color: black. Measures about 1-1/2 inches in diameter.

This rear trim is a factory-style replacement piece that restores the finished back edge of your 30-inch range or cooktop for a clean, factory look and to help protect internal components from debris. What it does:

• Covers and finishes the rear edge of the cooktop or range for a factory appearance
• Helps block dust, grease and debris from entering the control or rear cavity area
• Replaces damaged, bent or missing trim that can catch food and interfering particles
• Fits the standard 30-inch width for compatible Whirlpool-style ranges

• One rear trim piece (30-inch)

• Disconnect power to the appliance before attempting any service
• Usually secures with screws or clips at the rear; inspect mounting points before installation
• Handle carefully to avoid scratching the finish; use appropriate tools and protective gloves
