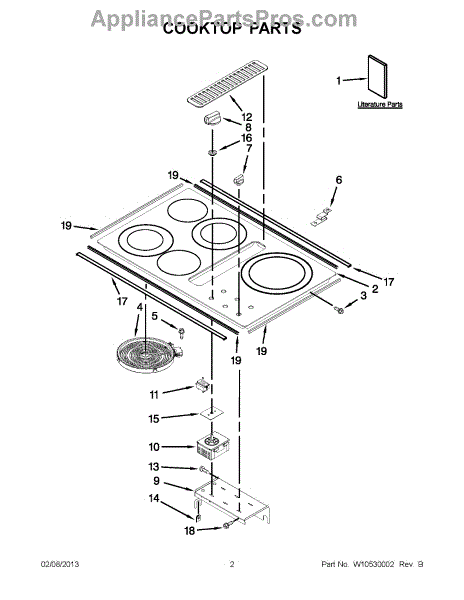

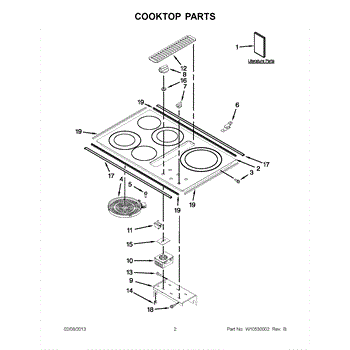

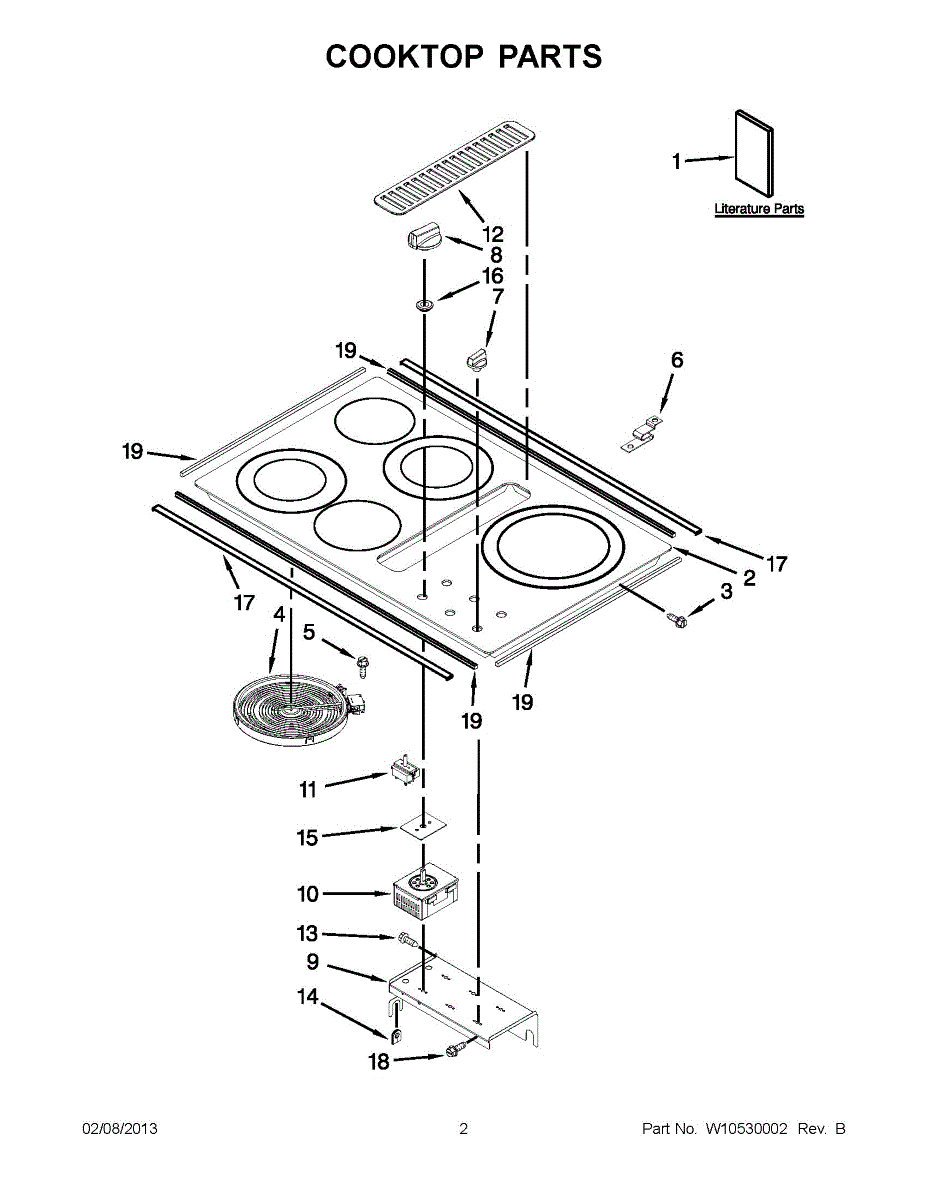

Parts for Kitchenaid KECD867XBL02: 01 - Cooktop Parts

This 100-watt surface element is the replacement warmer element used to keep food warm in compatible appliance warming drawers and compartments. Restores low-level heat so dishes stay at serving temperature between cooking and serving. What it does

• Provides low, consistent heat for warming drawers or warming compartments
• Replaces a failed or weak warmer element that no longer heats or maintains temperature
• Helps eliminate cold spots or inability to hold food at serving temperature
• Works as the heating source; element must be intact and wired correctly to function

• One 100W surface warmer element

• Disconnect power to the appliance before servicing to avoid electric shock
• Handle the element and surrounding surfaces carefully; glass and ceramics can be fragile
• Verify electrical connections and mounting fit before final reassembly

This is a dual radiant surface element for use with certain range models. The surface element supplies heat to the cooking area on the range's surface. If the element is not functioning correctly, the owner will not be able to use the range because it won't heat up.The dual radiant surface element is long-lasting, but this does not mean it will last forever. It could still need to be replaced if it wears out or is damaged. Shut off the circuit breaker to the range or unplug it before starting this replacement.The dual radiant surface element is sold individually. It is compatible with select models from Whirlpool, Maytag, and KitchenAid. This is a genuine OEM replacement part sourced from the manufacturer.

This radiant surface element uses a ribbon-style heater to provide even heat beneath a glass-ceramic cooktop. Replace a failing burner to restore consistent, reliable heating on the affected cooking zone.

• Provides radiant heat to one surface burner zone beneath the glass top
• Works with the surface control to regulate cooking temperature
• Common fix for a burner that won't heat, heats unevenly, or takes too long to heat
• Replace if the element shows an open circuit when tested for continuity

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; support the glass top per service instructions to access the element
• Transfer wires from the old element to the new one position-by-position; secure using existing brackets
• Avoid touching the element surface; test operation before reassembly

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This push-on control knob replaces a worn, cracked, or missing range/oven control knob so you can reliably set temperature or burner settings. Simple cosmetic and functional replacement for front panel controls. What it does

• Fits onto the control shaft to turn oven or burner controls and select settings
• Restores secure grip when original knob is loose, stripped, or broken
• Helps ensure accurate selection of temperature or heat levels
• Common symptom fix: knob won't turn, spins freely, is cracked, or is missing

• One control knob

• Turn all appliance controls OFF and disconnect power before servicing
• Most knobs pull straight off the control shaft and push onto the splined shaft until seated
• If resistance is encountered, remove carefully to avoid damaging the control shaft or surrounding trim

Control knob restores a worn or damaged range/stove control interface so you can select settings reliably. Installs quickly to replace missing, cracked, or loose knobs and improve control feel. What it does:

• Replaces a damaged or missing flush-style control knob so you can select heat/power settings accurately.
• Fits over the control shaft to provide a secure grip and tactile feedback when turning.
• Common symptoms: broken, loose, cracked, or missing knob; difficulty selecting or holding settings.
• Helps prevent accidental setting changes compared with a worn or slippery knob.

• One control knob

• Disconnect power to the appliance and turn off gas supply before beginning work.
• Remove the old knob by pulling it straight off the control shaft; align and push the new knob onto the splines until it seats.
• Do not force a knob that doesn't fit—verify shaft type and orientation before installing.
• After installation, restore power/gas and test all control positions for correct operation.

This infinite switch is the user control that regulates heat levels for a stove's top burner, restoring variable temperature control for smooth cooking. It fits into the cooktop control assembly and replaces a worn or non-responsive controller. What it does:

• Regulates electrical power to a single surface burner so you can set low-to-high heat
• Replaces a switch that sticks, skips settings, or produces no heat
• Helps stop unpredictable burner behavior like intermittent operation or failure to cycle
• Works with manual knob controls to provide stepped variable heat

• Disconnect power to the range at the breaker before servicing to avoid shock
• Access typically requires removing the cooktop or control panel—refer to your model's service guide
• Inspect and match terminal configuration before installation; secure all wire connections

This dual surface element infinite switch controls power to an electric cooktop or range's dual radiant burner. It restores precise heat selection and lets you choose inner-only or full dual-ring operation when the original switch fails.

• Regulates power cycling to maintain the selected heat level on a dual radiant element
• Selects between inner-only and dual-ring operation on compatible burners
• Common failure symptoms: no heat, only runs on high, cannot adjust temperature, burner won't shut off, dual feature won't engage
• Restores consistent, controllable surface cooking performance

• Disconnect power at the breaker before servicing—this is a high-voltage component
• Pull the control knob and open the control panel or rear cover to access the switch
• Photograph/note wire locations; move wires to the new switch one at a time
• Secure the switch, reassemble, restore power, and test both inner and dual-ring settings

This dual infinite switch controls power to a dual surface element on electric ranges and cooktops, allowing precise heat selection. Replacing a failing switch restores responsive temperature control and ensures both inner and outer sections of the element operate correctly.

• Regulates power cycling to the surface element to reach and maintain the selected heat
• Controls single- or dual-section operation on models equipped with a dual element
• Common failure symptoms: burner won't heat, heats only on high, temperature won't adjust, one section doesn't heat, or burner won't turn off

• Disconnect power at the breaker before servicing
• Remove the control knob and open the control panel to access the switch
• Transfer wires one at a time from the old switch to matching terminals on the new switch; take a photo to guide reassembly
• Secure the switch, reassemble the panel/knob, restore power, and test the burner

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

This air grille is the top front vent cover for an over-the-range microwave. It channels airflow through the intake/exhaust opening and restores a secure, finished appearance when the original grille is cracked, loose, or missing.

• Covers and protects the microwave's upper vent opening
• Helps direct intake/exhaust airflow as designed
• Restores proper fit when tabs or mounting points are damaged
• Common signs include visible cracks, rattling, or a missing vent cover

• Disconnect power to the microwave before servicing
• Open the door; remove the screws securing the top grille
• Slide the grille to release the side tabs, then pull forward to remove
• Position the new grille and reuse the original screws; hand-tighten to avoid cracking

Color: black. Measures about 1-1/2 inches in diameter.

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.
