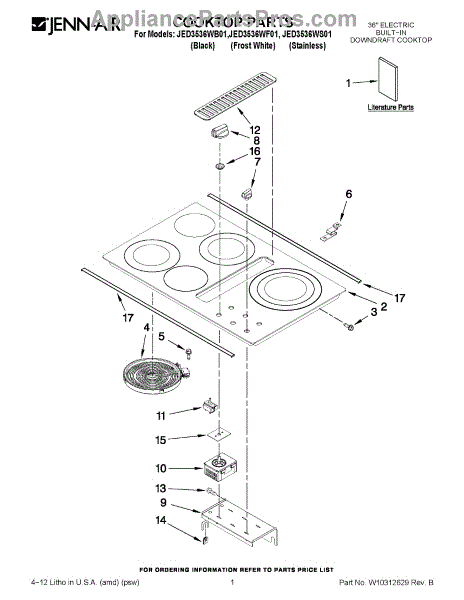

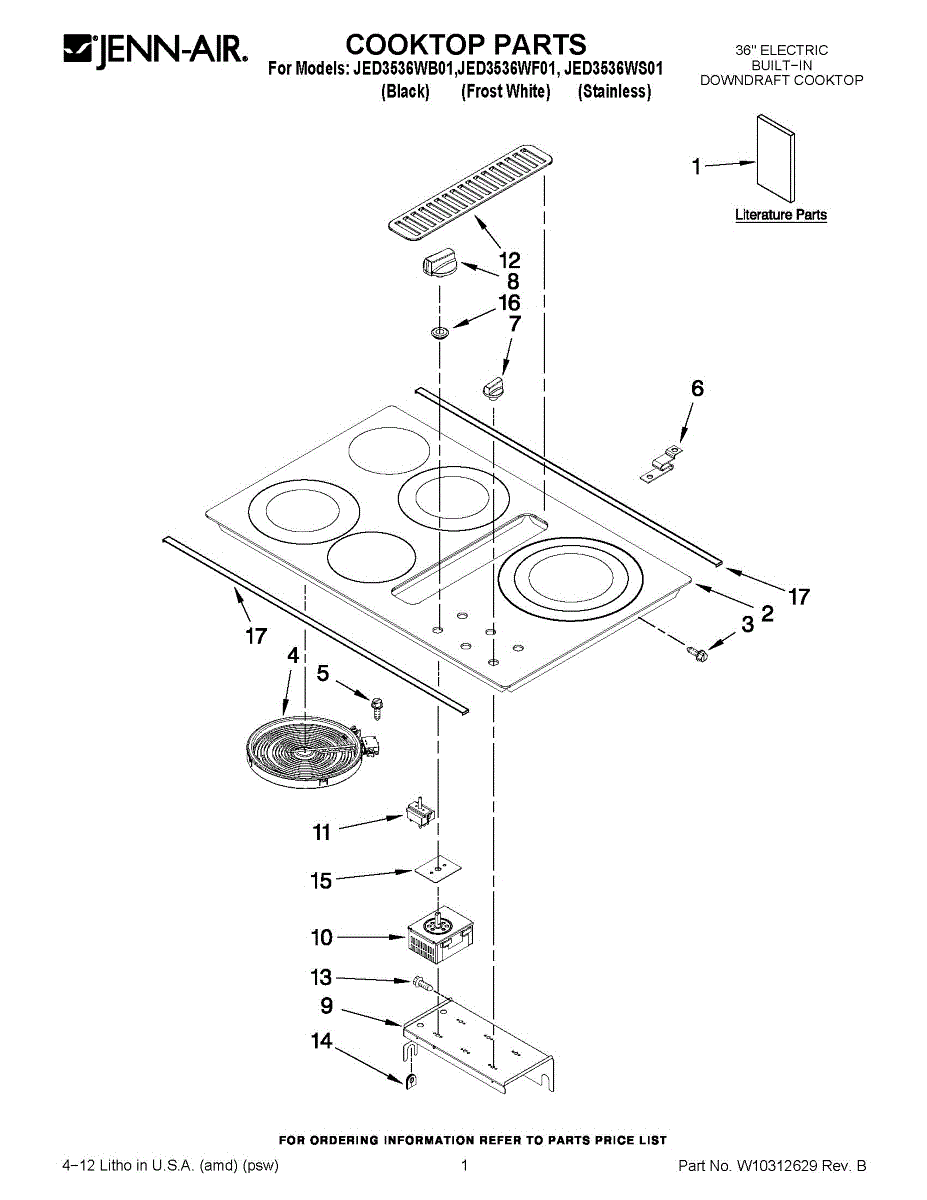

Parts for Maytag JED3536WS01: 01 - Cooktop Parts

This 100-watt surface element is the replacement warmer element used to keep food warm in compatible appliance warming drawers and compartments. Restores low-level heat so dishes stay at serving temperature between cooking and serving. What it does

• Provides low, consistent heat for warming drawers or warming compartments
• Replaces a failed or weak warmer element that no longer heats or maintains temperature
• Helps eliminate cold spots or inability to hold food at serving temperature
• Works as the heating source; element must be intact and wired correctly to function

• One 100W surface warmer element

• Disconnect power to the appliance before servicing to avoid electric shock
• Handle the element and surrounding surfaces carefully; glass and ceramics can be fragile
• Verify electrical connections and mounting fit before final reassembly

This radiant surface element uses a ribbon-style heater to provide even heat beneath a glass-ceramic cooktop. Replace a failing burner to restore consistent, reliable heating on the affected cooking zone.

• Provides radiant heat to one surface burner zone beneath the glass top
• Works with the surface control to regulate cooking temperature
• Common fix for a burner that won't heat, heats unevenly, or takes too long to heat
• Replace if the element shows an open circuit when tested for continuity

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the cooktop to cool completely; support the glass top per service instructions to access the element
• Transfer wires from the old element to the new one position-by-position; secure using existing brackets
• Avoid touching the element surface; test operation before reassembly

The Element-Surf is an OEM part for Whirlpool electric ranges. The element-surface performs a role in safe, even heating.

Causes of a worn or damaged element-surface can include scratches, cracks or chips from cookware use over time. Surface level issues compromise effectiveness.

Symptoms of a damaged element-surface include:

• Uneven or slow heating between elements
• Exposure of electrical components below
• Food debris easily getting lodged in irregularities
• Loss of the glossy smooth appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This replacement control knob restores a secure grip and clear pointer for selecting heat and function settings on compatible Whirlpool appliances. It provides a precise, easy-to-read control surface so you can operate your appliance confidently. What it does:

• Replaces a worn, cracked, or missing control knob to restore manual control
• Fits on standard splined control shafts to select temperature or function positions
• Helps resolve symptoms like loose knob movement, slipping on the shaft, or illegible setting indication
• Matches OEM shape for correct fit and tactile feedback

• Pull off the old knob by hand; align the splines and push the new knob fully onto the shaft until it seats
• If knob is tight or hard to remove, power off the appliance and before using tools
• Do not overtighten or force onto the shaft; avoid using excessive heat or solvents
• If electrical access behind the panel is required, disconnect power first and follow all safety guidelines

This replacement control knob restores a worn or broken stove/oven control interface so you can set temperatures and heat levels accurately. It fits onto the appliance's control shaft for reliable operation. What it does

• Replaces a damaged, cracked, or missing control knob so settings can be changed easily.
• Engages the control shaft spline to select oven/range heat or function positions.
• Helps eliminate slipping or loose-feel when turning the control.
• Appropriate when the original knob is stripped, hard to grip, or will not stay in place.

• Disconnect power to the appliance (and shut off gas if applicable) before servicing.
• Align the knob with the splined control shaft and push straight on until fully seated; do not force.
• If the shaft spline is damaged or the new knob does not fit securely, the control/switch may need replacement.
• Use basic hand tools only; for any electrical or gas-related repairs.

This replacement infinite control knob lets you precisely adjust the heat level on an electric cooktop or range surface element. It restores a secure grip and clear pointer for accurate temperature control during cooking. What it does:

• Fits onto an infinite (infinite-tap) surface element control shaft to select heat settings
• Provides a clear pointer for accurate selection of low-to-high settings
• Replaces worn, cracked, or stripped knobs that slip or won't turn
• Helps stop intermittent or unreliable control caused by a damaged knob

• Remove power to the appliance before servicing for safety
• Pull off the old knob straight from the control shaft; push the new knob onto the shaft until secure
• Confirm proper fit and full range of motion before restoring power

This infinite switch controls the heat level for a stove's top burner, letting the burner cycle through a range of settings for precise cooking. Replaces a failed burner control to restore adjustable heat on the cooktop. What it does:

• Regulates electrical power to a single top burner to change flame/heat between low and high settings
• Replaces a worn or faulty control that causes burners to stay off, not heat, or only work on fixed settings
• Helps resolve intermittent or unresponsive burner control behavior and uneven heating
• Matches OEM function for electronic/mechanical infinite control circuits used on many electric ranges

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Access typically requires removing the cooktop or control panel
• Inspect wiring and terminal connectors for damage; replace any frayed wires or loose terminals before reassembly

This infinite switch is the user control that regulates heat levels for a stove's top burner, restoring variable temperature control for smooth cooking. It fits into the cooktop control assembly and replaces a worn or non-responsive controller. What it does:

• Regulates electrical power to a single surface burner so you can set low-to-high heat
• Replaces a switch that sticks, skips settings, or produces no heat
• Helps stop unpredictable burner behavior like intermittent operation or failure to cycle
• Works with manual knob controls to provide stepped variable heat

• Disconnect power to the range at the breaker before servicing to avoid shock
• Access typically requires removing the cooktop or control panel—refer to your model's service guide
• Inspect and match terminal configuration before installation; secure all wire connections

This dual surface element infinite switch controls power to an electric cooktop or range's dual radiant burner. It restores precise heat selection and lets you choose inner-only or full dual-ring operation when the original switch fails.

• Regulates power cycling to maintain the selected heat level on a dual radiant element
• Selects between inner-only and dual-ring operation on compatible burners
• Common failure symptoms: no heat, only runs on high, cannot adjust temperature, burner won't shut off, dual feature won't engage
• Restores consistent, controllable surface cooking performance

• Disconnect power at the breaker before servicing—this is a high-voltage component
• Pull the control knob and open the control panel or rear cover to access the switch
• Photograph/note wire locations; move wires to the new switch one at a time
• Secure the switch, reassemble, restore power, and test both inner and dual-ring settings

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

This air grille is the top front vent cover for an over-the-range microwave. It channels airflow through the intake/exhaust opening and restores a secure, finished appearance when the original grille is cracked, loose, or missing.

• Covers and protects the microwave's upper vent opening
• Helps direct intake/exhaust airflow as designed
• Restores proper fit when tabs or mounting points are damaged
• Common signs include visible cracks, rattling, or a missing vent cover

• Disconnect power to the microwave before servicing
• Open the door; remove the screws securing the top grille
• Slide the grille to release the side tabs, then pull forward to remove
• Position the new grille and reuse the original screws; hand-tighten to avoid cracking

Color: black. Measures about 1-1/2 inches in diameter.

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.
