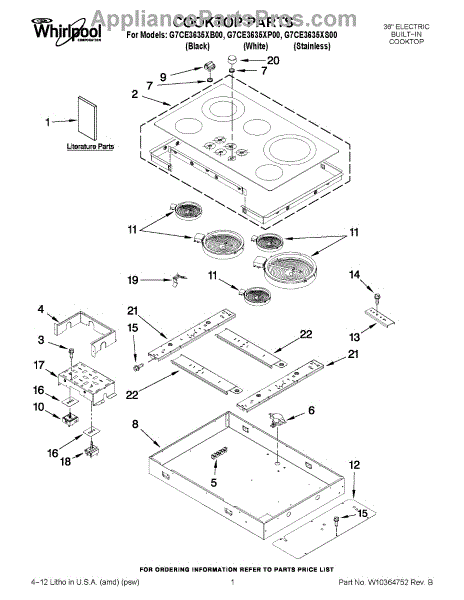

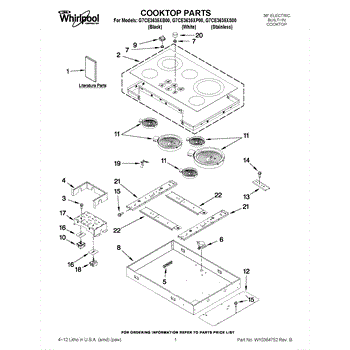

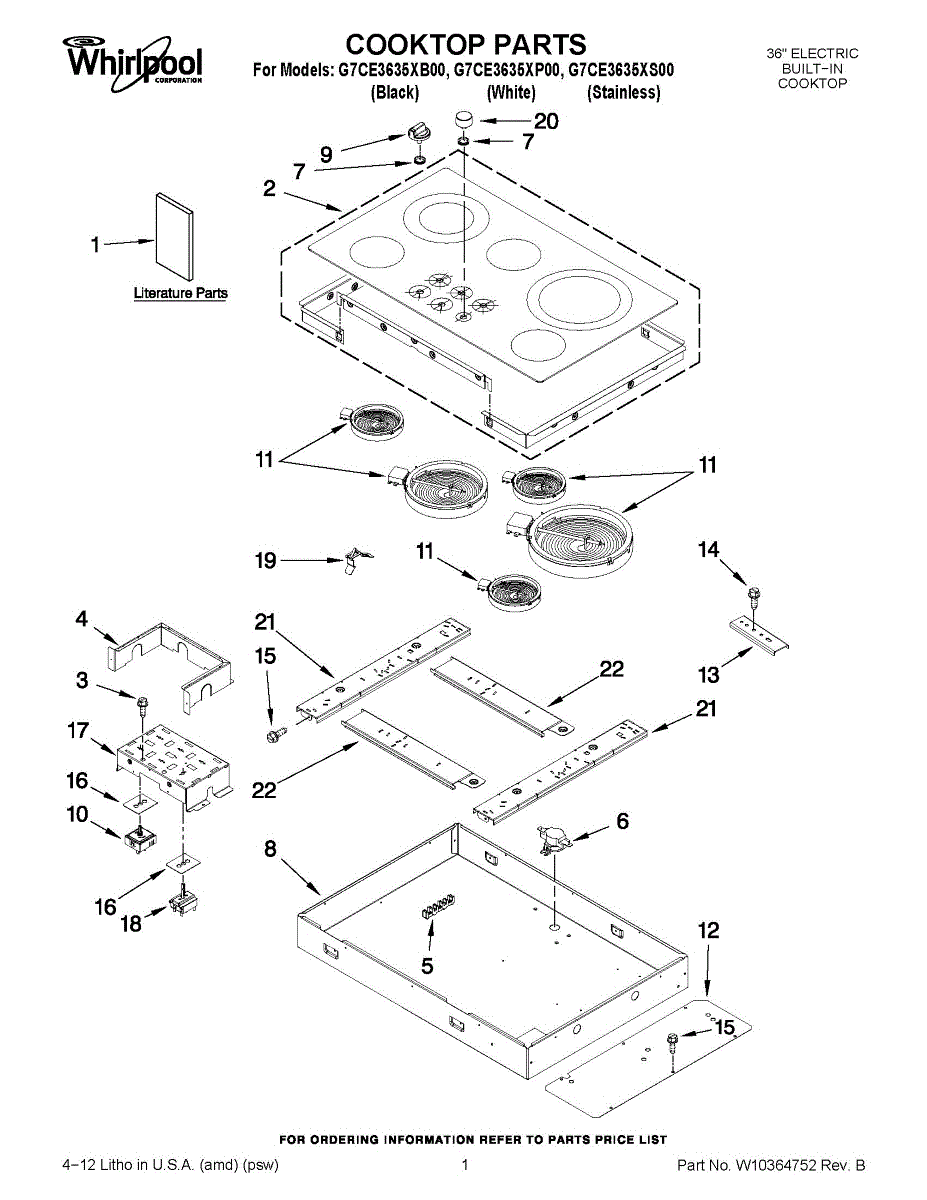

Parts for Whirlpool G7CE3635XP00: 01 - Cooktop Parts

Color: White

Color: Stainless

The Cooktop (black) is an OEM replacement part for Whirlpool cooktops. It is the main cooking surface where burners or heating elements are located. The cooktop is designed to withstand high temperatures and provide a durable, easy-to-clean surface for your cooking needs.

Symptoms of a bad Cooktop include:

• Visible cracks, chips, or damage to the cooktop surface
• Uneven heating or hot spots on the cooking surface
• Discoloration or warping of the cooktop material
•  Difficulty in cleaning or maintaining the cooktop

Causes of a bad cooktop can range from physical damage due to impact or improper use, to excessive heat exposure or thermal shock. Over time, repeated heating and cooling cycles can also lead to the degradation of the cooktop material or its surface finish.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges and cooktops.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk. What it does:

• Monitors internal temperature and opens the circuit if heat gets too high
• Prevents overheating that can cause damage or burn odors
• Commonly replaces a failed or intermittently tripping thermal safety switch
• Works as part of the appliance's temperature-safety system, not a primary temperature control

• Disconnect power to the appliance before attempting replacement
• Observe proper wiring orientation and secure terminal connections
• Replace only with the exact part specified for your appliance

Color: black. Measures about 1-1/2 inches in diameter.

Color: White

Color: Black

The Knob is an OEM part for Whirlpool cooktops. This knob allows you to control the heat level of your cooktop burners, providing precise adjustment for cooking.

Causes of a bad cooktop knob can include wear and tear from regular use, damage due to excessive force, or exposure to high heat that can cause the knob to crack or become discolored.

Symptoms of a bad cooktop knob include:

• Difficulty turning the knob or adjusting the burner heat
• The knob feeling loose or not fitting securely on the control shaft
• Cracks, breaks, or discoloration on the knob surface
• Inconsistent or unresponsive burner operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Stainless

The Control Knob is an OEM part for Whirlpool ranges and ovens. It is used to adjust the settings for the oven or stove, allowing precise control over temperature and cooking functions.

Causes of a bad control knob can include normal wear and tear, cracking or breaking from frequent use, or damage from exposure to heat.

Symptoms of a bad control knob include:

• Difficulty in turning or adjusting the settings
• The knob not staying in place
• Visible cracks or broken pieces
• Inaccurate temperature or setting control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This infinite top burner control switch restores variable heat control to an electric range burner so the cooktop responds correctly to knob settings. It replaces a worn or faulty rotary control for simmer-to-high temperature adjustment. What it does:

• Regulates power to a single surface element so you can adjust burner heat across multiple settings
• Commonly used when a burner won't heat, heats inconsistently, or won't change temperatures with the knob
• Can address symptoms like a burner stuck on one setting, no heat from a specific burner, or erratic temperature control
• Works with the range's knob and wiring harness to provide stepped/resistive control rather than simple on/off operation

• Disconnect power to the appliance at the breaker before inspecting or replacing the switch
• Handle terminals and wiring carefully; avoid touching live contacts and verify correct connector orientation before reassembly
• The switch matches the original by comparing terminal layout and mounting points

This surface burner infinite switch regulates power to a range or cooktop's heating element, letting you adjust heat from simmer to boil. Replace a failed switch to restore smooth, consistent temperature control at the knob.

• Regulates the on/off cycling of a surface element based on the selected knob setting
• Can help resolve a burner not heating, stuck on high, or heat that won't adjust consistently
• Addresses intermittent heating or a burner that won't turn off
• Installs in the control panel behind the surface burner knob

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control panel; label or photograph wire positions on the old switch
• Move wires to the matching terminals on the new switch and secure the switch
• Reinstall the knob, restore power, and test burner operation

This Hiper-style top burner infinite switch regulates power to a surface element on your range or cooktop. Replacing a worn switch restores smooth, accurate heat selection across all settings.

• Regulates electrical power to the surface/radiant element based on the knob setting
• Cycles the element on and off to maintain steady heat from low to high
• Common failure symptoms include: no heat, only high heat, erratic temperatures, or no response when turning the control

• Disconnect power at the breaker before servicing
• Remove the burner knob and access the switch from the control panel area
• Photograph wiring and transfer wires one at a time to matching terminals on the new switch
• Secure the switch, reassemble panels, restore power, and test the burner through all settings

This dual infinite switch regulates power to a dual surface element on your range or cooktop, delivering smooth, adjustable heat. Replacing a failing switch restores precise temperature control and consistent burner performance.

• Controls power to the inner and outer coils of a dual surface element
• Provides variable heat settings from low to high
• Common symptoms: no heat or only high heat, temperature won't adjust, one part of the dual element doesn't heat, or the element won't turn off
• Helps restore even, predictable cooking temperatures

• Disconnect power to the appliance before servicing
• Remove the knob and access the control panel to reach the switch
• Transfer wires one at a time to matching terminals on the new switch; use terminal markings or a photo for reference
• Secure the switch, reinstall the knob/panel, restore power, and test both inner and outer element functions

This surface heating element replaces a failed top burner to restore stovetop heating for cooking. It installs into the cooktop and provides the heating surface that transfers heat to cookware. What it does:

• Heats cookware when the stove element control is on
• Restores a burner that does not heat or only heats intermittently
• Replaces elements that show visible damage, breaks, or do not glow when powered
• Helps correct uneven heating or inconsistent temperature at one burner

• Includes one surface heating element

• Disconnect power to the range at the breaker before beginning repair
• Allow the cooktop and element to cool completely before handling
• Handle terminals carefully and reconnect using the original wiring and hardware
• After installation, test the burner on low and high settings to ensure proper operation

This 300mm, 3000W radiant surface element restores the large cooking zone on a smooth-top range or cooktop. Replace it to bring back consistent, even heating when the large burner stops working or only heats partially. What it does:

• Supplies radiant heat to the large surface burner beneath the glass cooktop
• Common fix for a burner that won't heat, only part of the ring glows/heats, or shows a visible burned spot/break
• Helps restore even heating and proper cycling when the original element has failed

• 1 radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool fully before servicing
• Lift/remove the glass top per service instructions to access the elements; support the glass and keep insulation in place
• Transfer mounting hardware and wires one at a time to matching terminals; handle the ceramic element carefully—it is fragile
• Reassemble and test the burner for proper operation before returning to use

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A rotary selector switch that accepts the control knob and routes user selections to the appliance control circuitry, restoring reliable selection of functions and settings when the original selector fails or becomes intermittent. What it does:

• Routes electrical signals from the control knob to the appliance control board so selected functions or settings engage properly.
• Common symptoms indicating replacement: knob won't turn or stays between positions, settings do not change, or selector works intermittently.
• Replaces a worn, damaged, or non-responsive selector to restore consistent user control.
• Designed for panel-mounted installation where the knob mates to the switch shaft.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Access typically requires removing the control panel or console; keep screws and fasteners organized.
• Match the switch orientation and connector pattern to the removed part; do not force connectors.
• After installation, restore power and test all selector positions for correct function before reassembling fully.

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

Color: Stainless

Color: White

Color: Black
