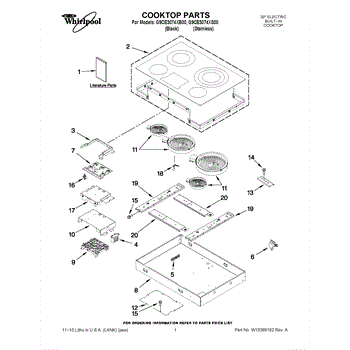

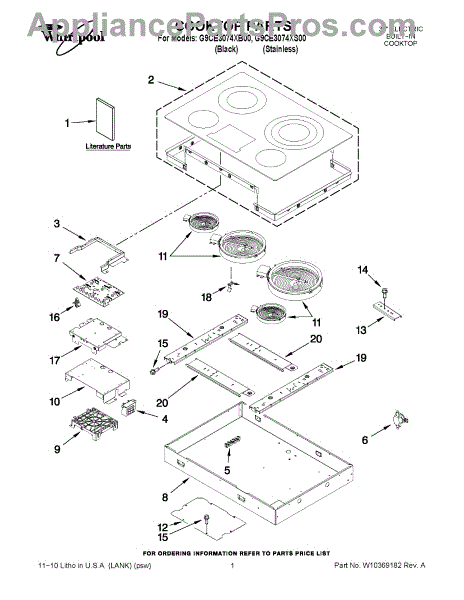

Parts for Whirlpool G9CE3074XB00: 01 - Cooktop Parts

The Cooktop is an OEM replacement part for Whirlpool cooktops. It is the main cooking surface where burners or heating elements are located. The cooktop is designed to withstand high temperatures and provide a durable, easy-to-clean surface for your cooking needs.

Symptoms of a bad Cooktop include:

• Visible cracks, chips, or damage to the cooktop surface
• Uneven heating or hot spots on the cooking surface
• Discoloration or warping of the cooktop material
•  Difficulty in cleaning or maintaining the cooktop

Causes of a bad cooktop can range from physical damage due to impact or improper use, to excessive heat exposure or thermal shock. Over time, repeated heating and cooling cycles can also lead to the degradation of the cooktop material or its surface finish.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges and cooktops.

This light transformer (20VA) steps down incoming voltage for the appliance's light circuit. Replace a failing transformer to restore dependable illumination so you can monitor cooking progress and see clearly when cleaning.

• Steps down line voltage to the lower voltage used by the light circuit
• Supports consistent, reliable interior lighting
• A failed transformer can leave the light inoperative even with a good bulb
• Intermittent operation or flickering can indicate a weakening transformer

• Disconnect power at the breaker or unplug the unit before servicing
• Access and mounting location vary by model; note wiring and orientation before removal
• Move wires one at a time to the matching terminals/leads on the new transformer
• Secure the transformer and route wiring away from hot or moving parts; test light operation before reassembly

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk. What it does:

• Monitors internal temperature and opens the circuit if heat gets too high
• Prevents overheating that can cause damage or burn odors
• Commonly replaces a failed or intermittently tripping thermal safety switch
• Works as part of the appliance's temperature-safety system, not a primary temperature control

• Disconnect power to the appliance before attempting replacement
• Observe proper wiring orientation and secure terminal connections
• Replace only with the exact part specified for your appliance

Restore a reliable burner with this replacement surface element. It provides the heat your cookware needs so meals warm efficiently and evenly when the control is turned on, replacing a worn or failed top burner element. What it does:

• Heats the selected cooking zone when its control is engaged
• Replaces a failed, shorted, or physically damaged element
• Helps resolve issues like a burner not heating, heating only partially, or heating inconsistently
• Supports even cooking performance across the cooking surface

• 1 surface element

• Disconnect power at the breaker or unplug the appliance; allow all components to cool
• Access the element; support the cooktop surface if lifted
• Move wires to the new element one at a time to maintain correct connections; reuse existing brackets as needed
• Handle the element carefully; avoid touching heating surfaces and verify secure connections before reassembly and testing

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed
