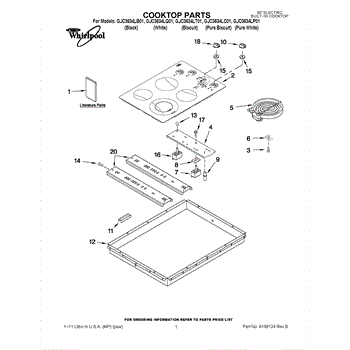

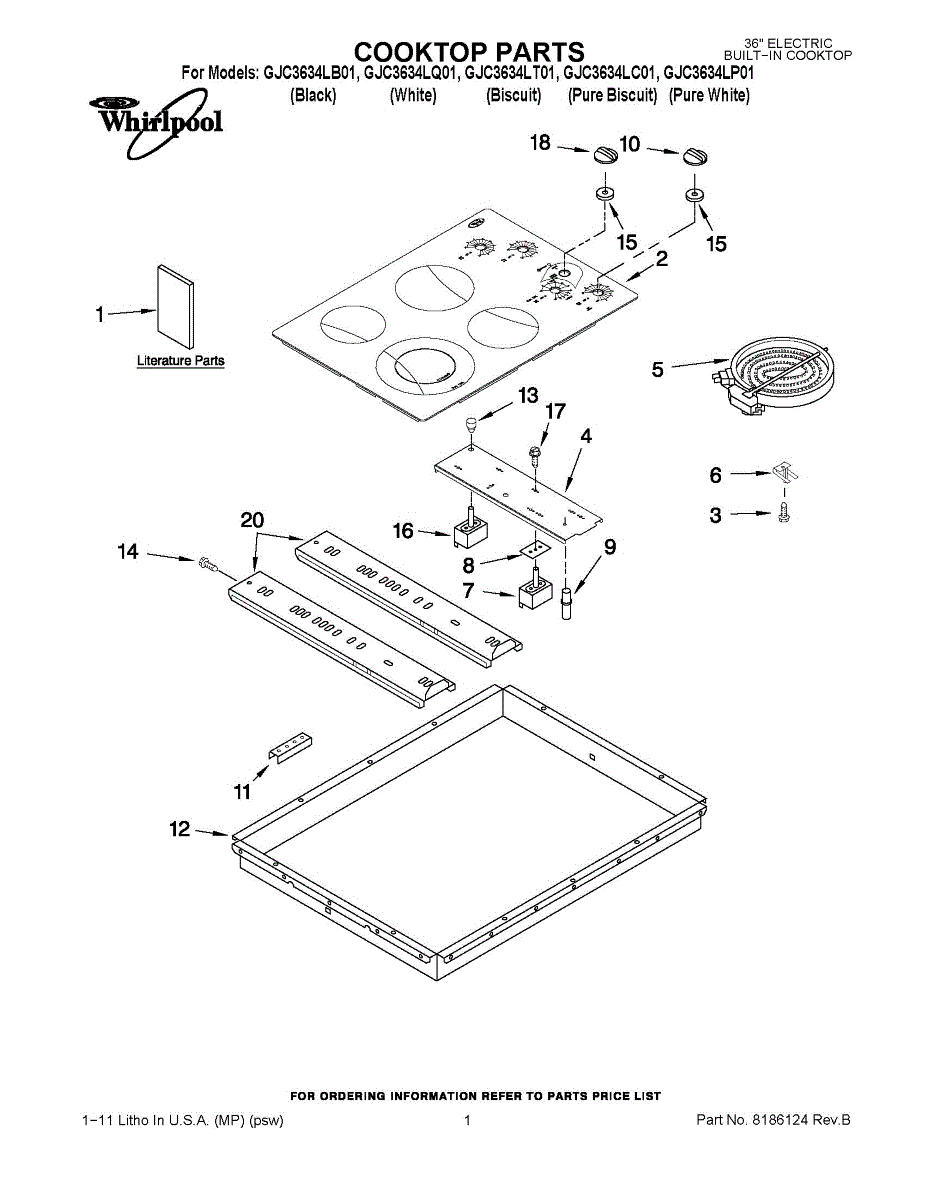

Parts for Whirlpool GJC3634LT01: 01 - Cooktop Parts

This top assembly is for a white model cooktop, the color of this top has some grey in it. For a pure white top order WP8285133.

This top assembly is for a biscuit model cooktop, the color of this top has some grey in it. For a pure biscuit top order WP8285134.

Size: 6-32 x 3/8 inch.

Replace a weak or failed warming zone that won't keep food at serving temperature. This surface element restores low, steady heat to your cooktop's warming zone.

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Burner won't heat or stays cold? This surface heating element restores consistent heat distribution. Most DIYers complete this repair in under 30 minutes.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

Fix a burner that won't heat or has no temperature control by replacing this 6-inch element switch. Restores smooth low-to-high heat adjustment in 30 minutes.

If your 8-inch burner won't heat, stays on high, or lost temperature control, this infinite switch is the fix. 30-minute DIY repair restores precision.

Burner stuck on high heat or won't regulate temperature? This infinite switch controls heat levels on your cooktop. DIY repair in 20-30 minutes.

Protects cooktop switches from moisture and debris that cause shorting and corrosion. Replace if damaged, missing, or when installing new switches.

Color: Biscuit. For white use WP8522565. For black use WP8522566.

Black burner control knob for cooktop infinite switches. Replace cracked, broken, or missing knobs. Pulls off switch shaft for easy installation.

White infinite control knob for ranges and cooktops. Replaces lost, cracked, or broken knobs. Mounts onto the infinite switch stem on your control panel.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Centers and cushions control knobs while sealing against spills that can damage switches. Replace if knobs wobble or spills leak underneath. Verify fit.

Fix burners stuck on high or won't adjust temperature with this selector switch. Restores reliable control of cooktop functions. Moderate DIY repair.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Gasket is 3 inches long with 2 metel clips. Does not seal entire cooktop. For foam tape seal order WP3191239.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.
