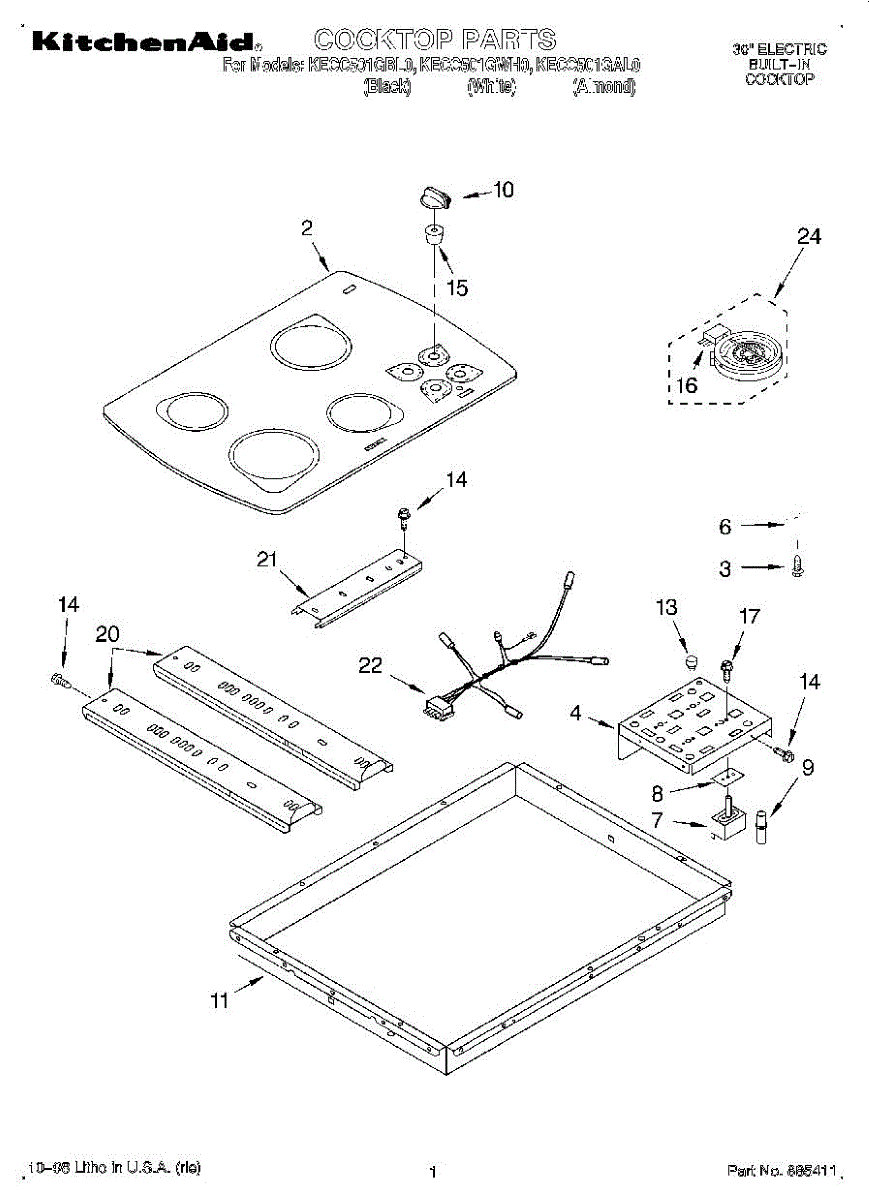

Parts for Kitchenaid KECC501GAL0: 01 - Section Parts

Size: 6-32 x 3/8 inch.

An infinite switch that controls the heat level for an electric range surface element, allowing smooth temperature adjustments and reliable burner control. Replaces a faulty control to restore consistent element heating and variable heat settings. What it does:

• Regulates power to a single electric surface element so the burner can vary between low and high heat.
• Used when a burner won't heat, stays at one temperature, or heats inconsistently.
• Replaces the control behind the range knob to return normal temperature responsiveness.
• Matches the original function and is intended for surface (coil/glass-top) element control.

• Disconnect the range from power at the breaker before starting any repairs.
• Keep terminals and wiring dry; avoid touching exposed contacts during installation.

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This is the variable heat control for an 8-inch surface element. When the switch fails, the burner may stop heating, stay on high, or lose precise temperature control—replacing it restores smooth, adjustable cooking performance. What it does:

• Regulates power to the 8-inch surface element for variable heat settings
• Common symptoms: burner only on high, no heat, won't shut off, or won't adjust temperature
• Restores proper cycling of the element for consistent heating
• Matches the 8-inch element position designated on the appliance

• 1 surface burner infinite switch

• Disconnect power at the breaker before servicing
• Remove the control knob and access the switch from the control panel/rear panel
• Transfer wires one at a time from the old switch to the same terminals on the new switch
• Secure the switch, reinstall panels/knob, and test the 8-inch burner operation

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

Color: Almond.

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

2400 watt

1200w. Location: Left rear.

1400watt

1700 watt

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

Comes with limiter

Comes with limiter

This surface heating element restores reliable heat to an electric range or cooktop's top burner. Replace a failed or damaged element to bring back even, responsive heating for everyday cooking. What it does:

• Supplies heat to the selected surface burner when the control is turned on
• Can correct no-heat, weak or intermittent heat, or overheating due to internal failure
• Replaces elements with visible damage such as breaks, burn marks, or hot spots
• Helps restore consistent temperature control across the cooking zone

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model; note wire locations and any brackets before removal
• Transfer wires and any retaining hardware to the new element in the same positions
• Avoid stressing the element or insulation; ensure it sits level and clear of glass/trim before reassembly

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

Razor blade scraper.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
