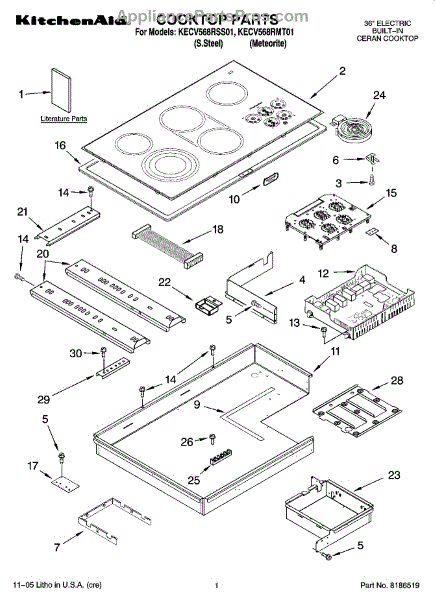

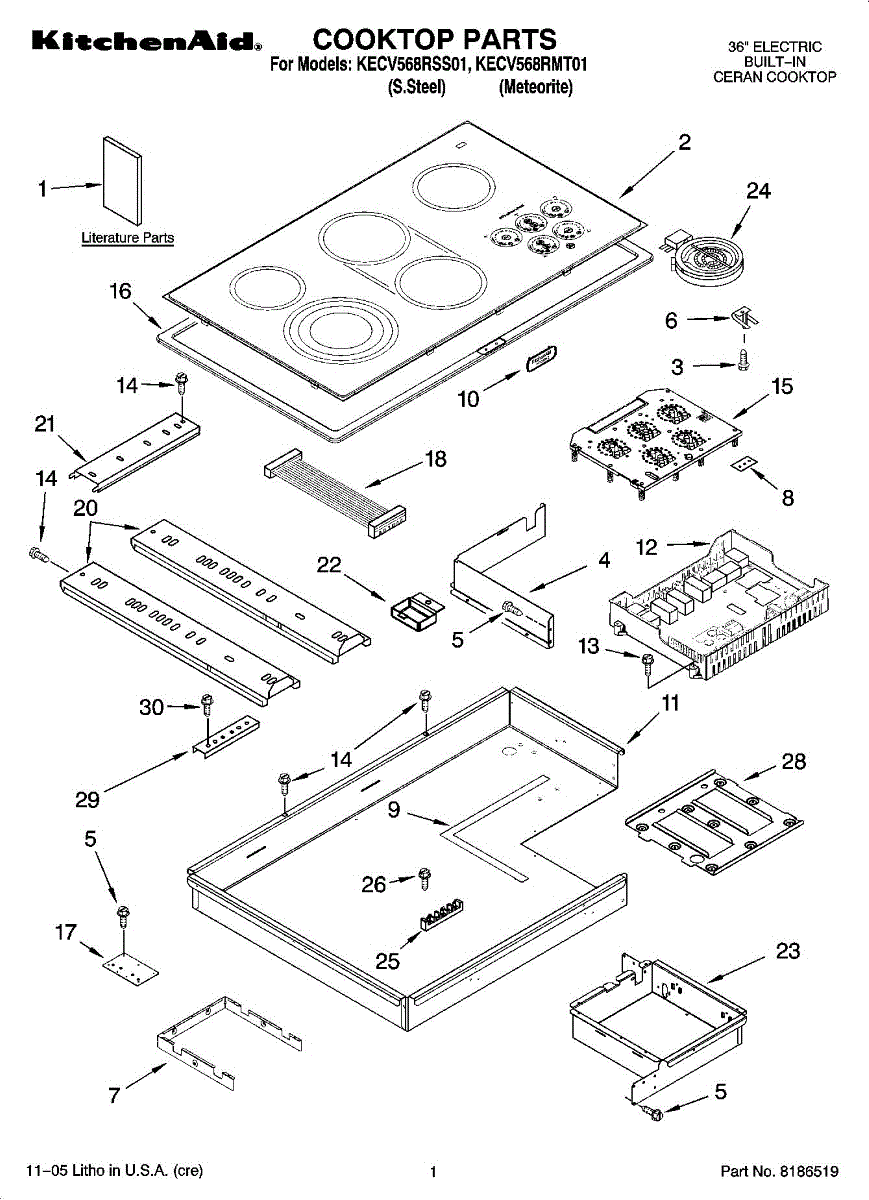

Parts for Kitchenaid KECV568RSS01: 01 - Cooktop Parts, Optional Parts

Color: Black

Size: 6-32 x 3/8 inch.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

Screw for control panel.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This electronic control board manages key functions and cycles for the washer, restoring responsive controls and reliable cycle selection. It replaces a failed or unresponsive main control to return normal operation. What it does:

• Receives user input and runs washer cycles, timers, and display functions
• Controls motor, water fill, and other timed operations via relay/triac outputs
• Works as the main logic/control interface between sensors and mechanical components

• Disconnect power before servicing to avoid shock or damage
• Handle board by edges and avoid static discharge; use ESD precautions if available
• Verify connectors and wire harness seating; replace only with matching part
• For panel removal and exact procedures

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

This 1500W surface heating element replaces a damaged or worn top burner to restore proper cooktop heating. It's designed for direct-fit replacement to get one burner heating reliably again. What it does:

• Heats cookware on the cooktop for stovetop cooking tasks.
• Replaces an element that no longer heats or only heats intermittently.
• Restores even heating when a burner is cooler than expected.
• Replaces elements with visible damage, breaks, or burnt spots.

• One surface heating element (1500W top burner).

• Disconnect power at the house breaker before starting; element will be hot and can cause burns.
• Allow the cooktop to cool completely and handle the element by its terminals or edges.
• Ensure correct terminal alignment and secure connections; avoid forcing the element into place.

This 1200W ribbon surface heating element replaces a faulty cooktop burner to restore even, consistent heat for stovetop cooking. It fits into the range's burner receptacle and reconnects to the existing terminal block. What it does:

• Heats cookware for stovetop cooking; provides the heating surface for a single top burner.
• Replaces a worn or burned-out element that no longer reaches temperature.
• Fixes burners that heat unevenly, have cold spots, or fail to come on.
• Works with the stove's existing receptacle and wiring—matches OEM element design.

• One surface heating element (1200W ribbon top burner).

• Disconnect power to the appliance at the breaker before servicing to avoid shock.
• Allow the cooktop and old element to cool fully before handling.
• Handle terminals carefully; confirm proper alignment with the receptacle before securing.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

The Range Door Handle Screw is an OEM part compatible with Whirlpool ranges. Over time, the door handle screw may become loose due to frequent use or other external factors. If the screw is damaged or missing, it can lead to a loose or wobbly handle, making it difficult to open and close the range door securely.

Size: 10-16” x 7/8”

Symptoms of a faulty or missing screw may include:

• Loose or wobbly handle
• Difficulty in opening or closing the range door
• Handle coming off from the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
