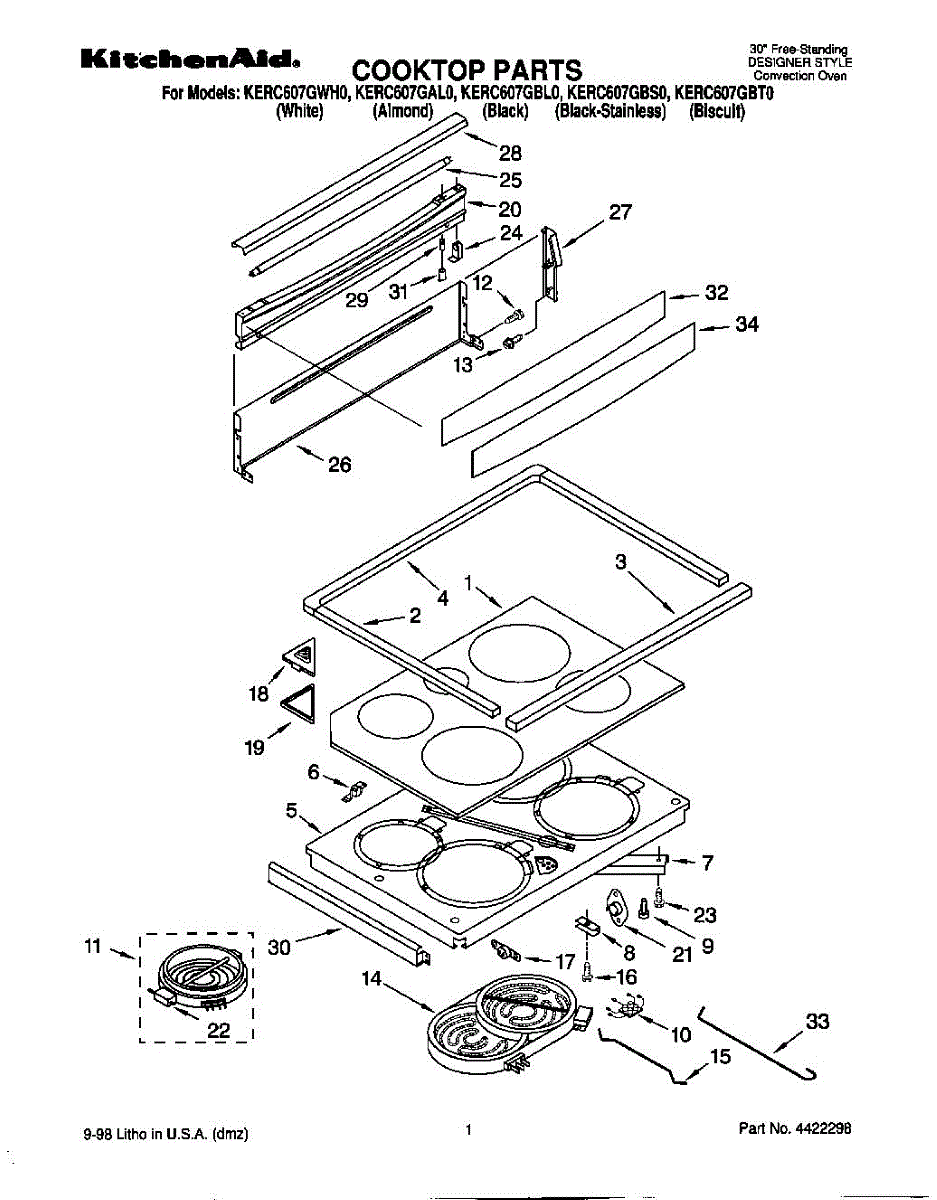

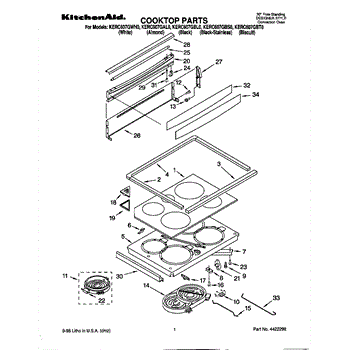

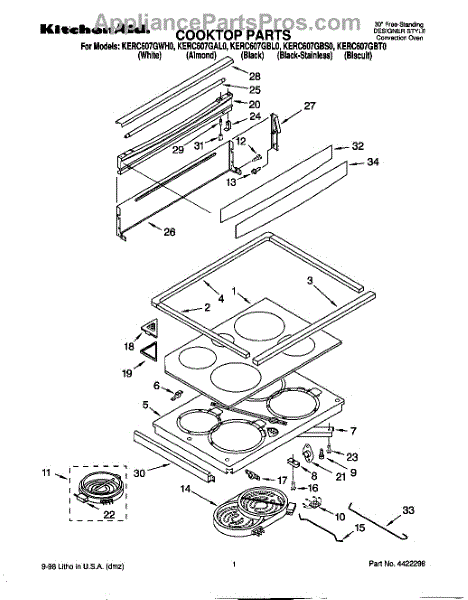

Parts for Kitchenaid KERC607GBS0: 01 - Cooktop Parts

This cooktop gasket seals the gap between the cooktop and countertop to help prevent spills and moisture from entering the cabinet while restoring a secure fit and finished appearance. Ideal when the original edge seal is worn or missing. What it does:

• Seals the cooktop edge to keep liquids and crumbs from getting under the appliance — symptoms: visible gaps, pooling liquids, or debris under the cooktop.
• Cushions and stabilizes the cooktop to reduce vibration and rattling during use — symptoms: shifting or noisy cooktop.
• Protects countertop and cabinetry from heat, spills, and food buildup that can cause staining or damage — symptoms: discolored or damaged counter edges.
• Restores fit and finish for a clean, professional appearance — symptoms: loose or uneven cooktop edges.

• Disconnect power (and gas, if applicable) and allow the cooktop to cool before starting work.
• Remove the old gasket and thoroughly clean and dry the mating surfaces before installing the new gasket.
• Press the new gasket into place along the cooktop edge; trim excess material as needed without overstretching.

Rubber bumper. Color: Grey.

Size: 10-16 x 3/8 inch.

Large, ceran element rod.

Size: 10-16 x 3/8 inch.

Color: Black.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Size: 10-16 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

Size: 26 inches long. F18t8/cw/k26.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: Black. Other colors: For biscuit use 9753320, for white use 9751327.

Color: Biscuit. Other colors: For black use 9751632, for white use 9751327.

Color: White. Other colors: For biscuit use 9753320, for black use 9751632.

Fluorescent light bulb starter. 22W. FS-25.

Color: White.

Color: Black.

Color: Biscuit.

Color: White.

Color: Black.

Color: Biscuit.

Fluorescent light bulb starter holder.

Color: White.

Color: Clear for stainless steel model.

Small, ceran element rod.
