This part is discontinued by the manufacturer and is no longer available for purchase.

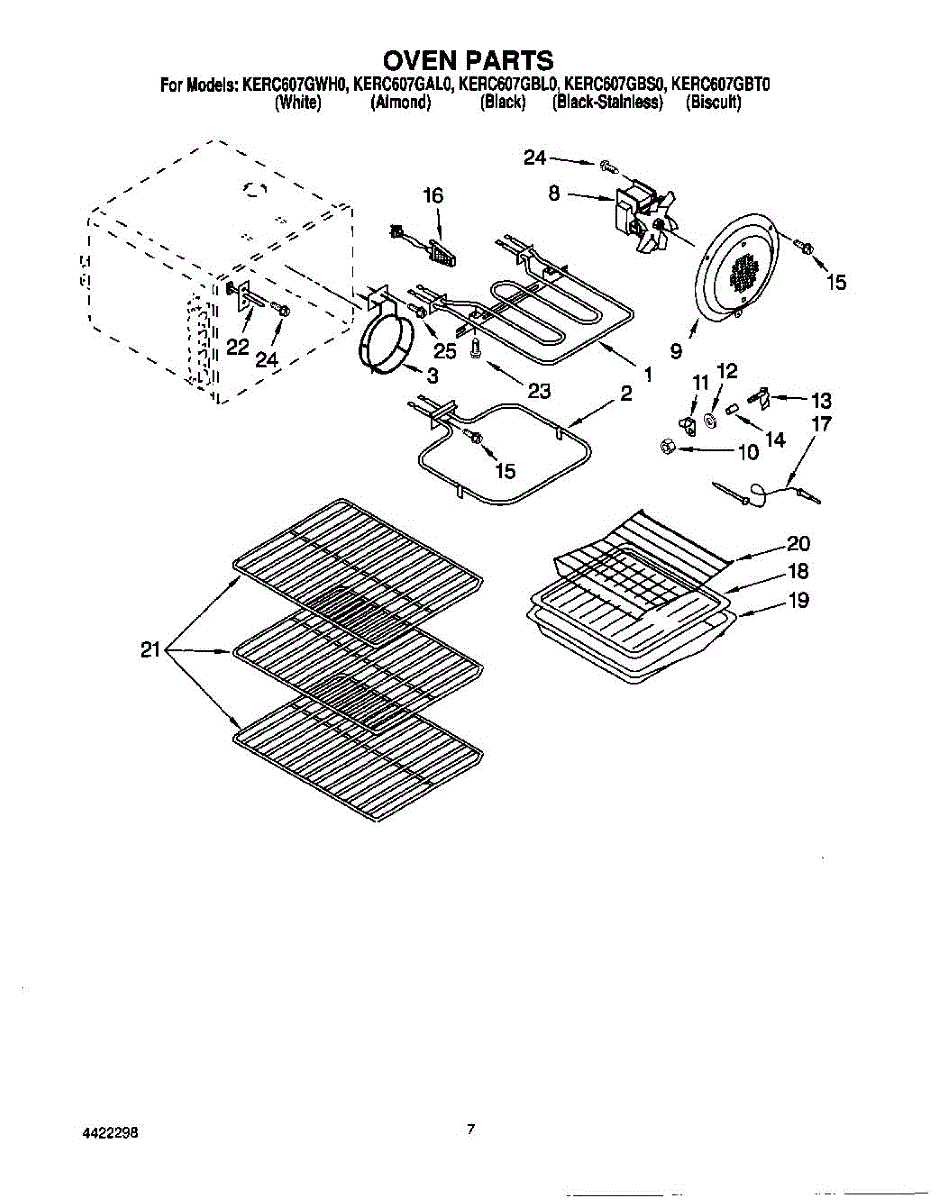

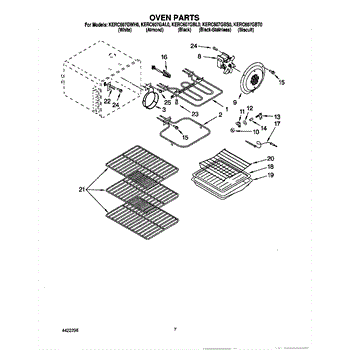

The Bake Heating Element is an OEM Replacement Part for Whirlpool ovens, designed with push-on terminals. It measures 14-5/8" from the front to the mounting bracket, 19" in width, and 2-1/2" from the mounting bracket to the terminal end. The mounting holes on the bracket are spaced 1-7/8" apart, center to center. The terminals are designed as 1/4" male spades and the unit is rated for 2500 Watts at 240 Volts.
Causes of a bad bake element may include repeated heating and cooling cycles over time, electrical malfunctions, or physical damage from impact or exposure to spills.
Symptoms of a faulty bake element include:
This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
Oven not heating? This bake element restores bottom heat for even baking and roasting. Moderately easy DIY repair—remove back panel and swap element.
Usually ships within 4 - 14 days
Convection fan motor.
Size: 8-32 x 3/8 inch.
Light assembly illuminates your oven cavity during cooking. Replace if light stays off, lens cracks, or wire connection breaks. Verify fit by model number.
Meat temperature probe.
Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.
Size: 6 inches long. Includes ceramic wire connectors.
Replacement mounting screw for washers. Secures internal components and panels. Needed when original screws are stripped, missing, or damaged.
Size: 10-16 x 1/2 inch.
Size: 8 x 3/8 inch.
