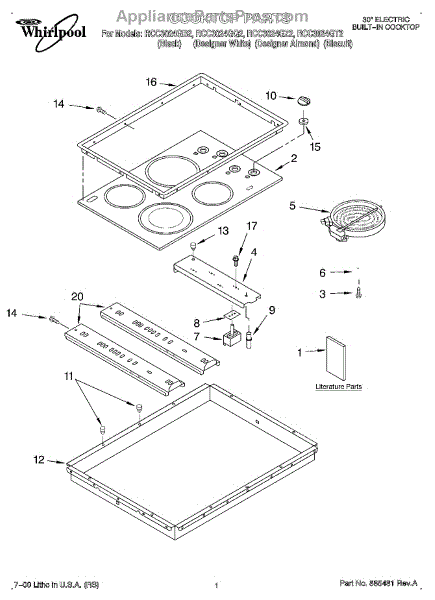

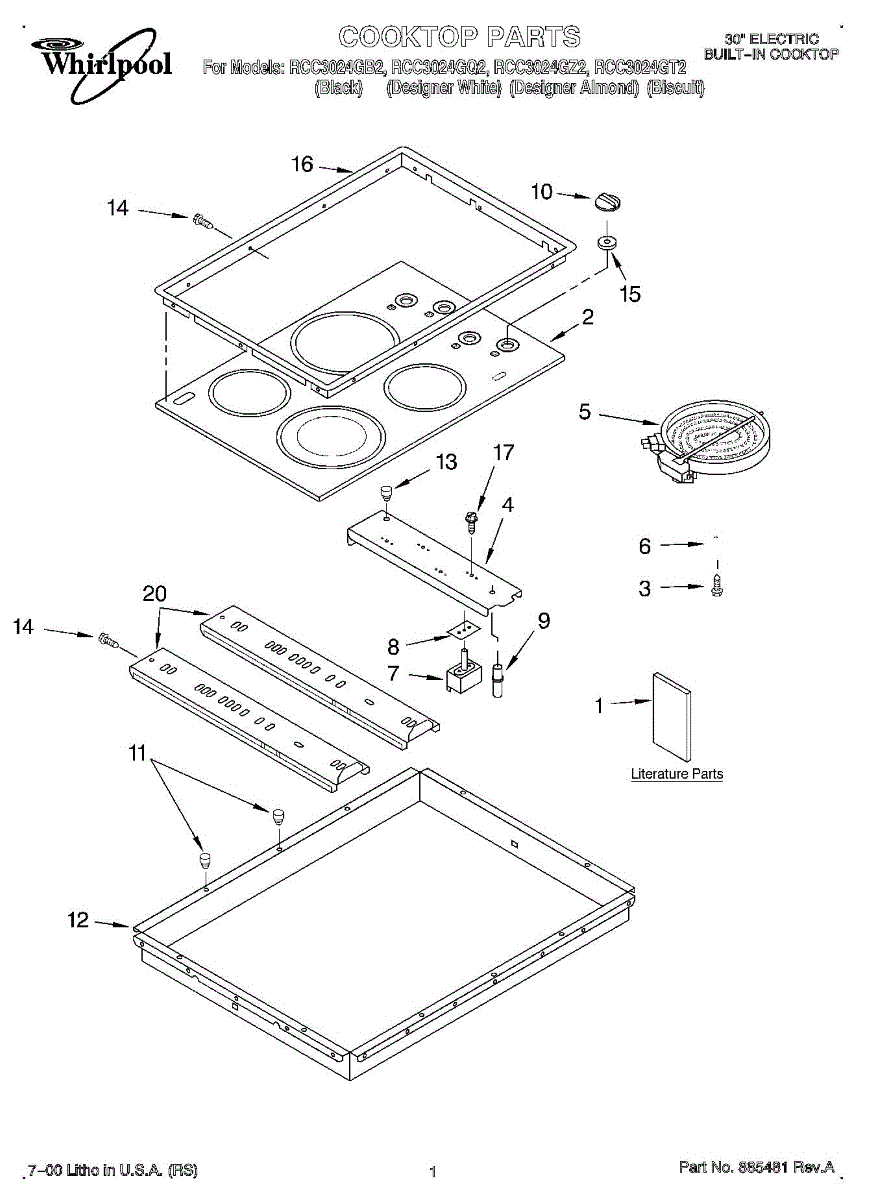

Parts for Whirlpool RCC3024GZ2: 01 - Section Parts

This OEM replacement part is an electric stove cooktop. The cooktop is the main glass piece that sits on top of the stove. It is the flat surface above the burners where pots and pans are placed for cooking.To replace the cooktop, start by getting under the stovetop through the oven. Locate the mounting brackets and loosen them to a vertical position. After brackets have been loosened, push the cooktop up to lift above the stove. The glass top will be attached to a metal chassis. Unthread the screws that secure the top to the chassis. Take the new cooktop and place it on top of the chassis. Tighten the screws to secure the new top. Drop back into the stove and re-secure the mounting bracket.This genuine replacement cooktop is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand electric stoves.

Size: 6-32 x 3/8 inch.

Large burner not heating or stuck on high? This surface heating element restores proper cooktop function. Easy DIY repair in 30-60 minutes with basic tools.

Burner won't heat or stays cold? This surface heating element restores consistent heat distribution. Most DIYers complete this repair in under 30 minutes.

Burner not heating or 'Hot Surface' light stays on? This electric cooktop surface element is likely the fix. DIY-friendly, most installs take 15 minutes.

Burner won't heat or won't turn off? This infinite switch controls surface element temperature. DIY repair restores variable heat settings.

Fix a burner that won't heat or has no temperature control by replacing this 6-inch element switch. Restores smooth low-to-high heat adjustment in 30 minutes.

If your 8-inch burner won't heat, stays on high, or lost temperature control, this infinite switch is the fix. 30-minute DIY repair restores precision.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

Color: Almond. Size: 2 inches in diameter. Range surface unit knob. For white order WP3196232. For black order WP3196231.

Range surface unit knob. Color: Black. Size: 2 inches in diameter. It measures about 2 inches in diameter. For white order WP3196232. For bisque order WP3196233.

Replace your range control knob if cracked, broken, or missing. This knob installs on the control panel to select burners and oven functions by rotation.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

Hardware kit for securing cooktop to countertop. Includes mounting brackets and fasteners. Replace if brackets are bent, screws stripped, or missing.

Protects cooktop switches from moisture and debris that cause shorting and corrosion. Replace if damaged, missing, or when installing new switches.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

Hardware kit for securing cooktop to countertop. Includes mounting brackets and fasteners. Replace if brackets are bent, screws stripped, or missing.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
