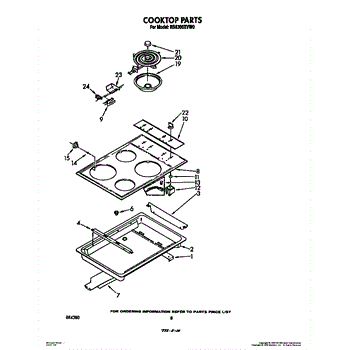

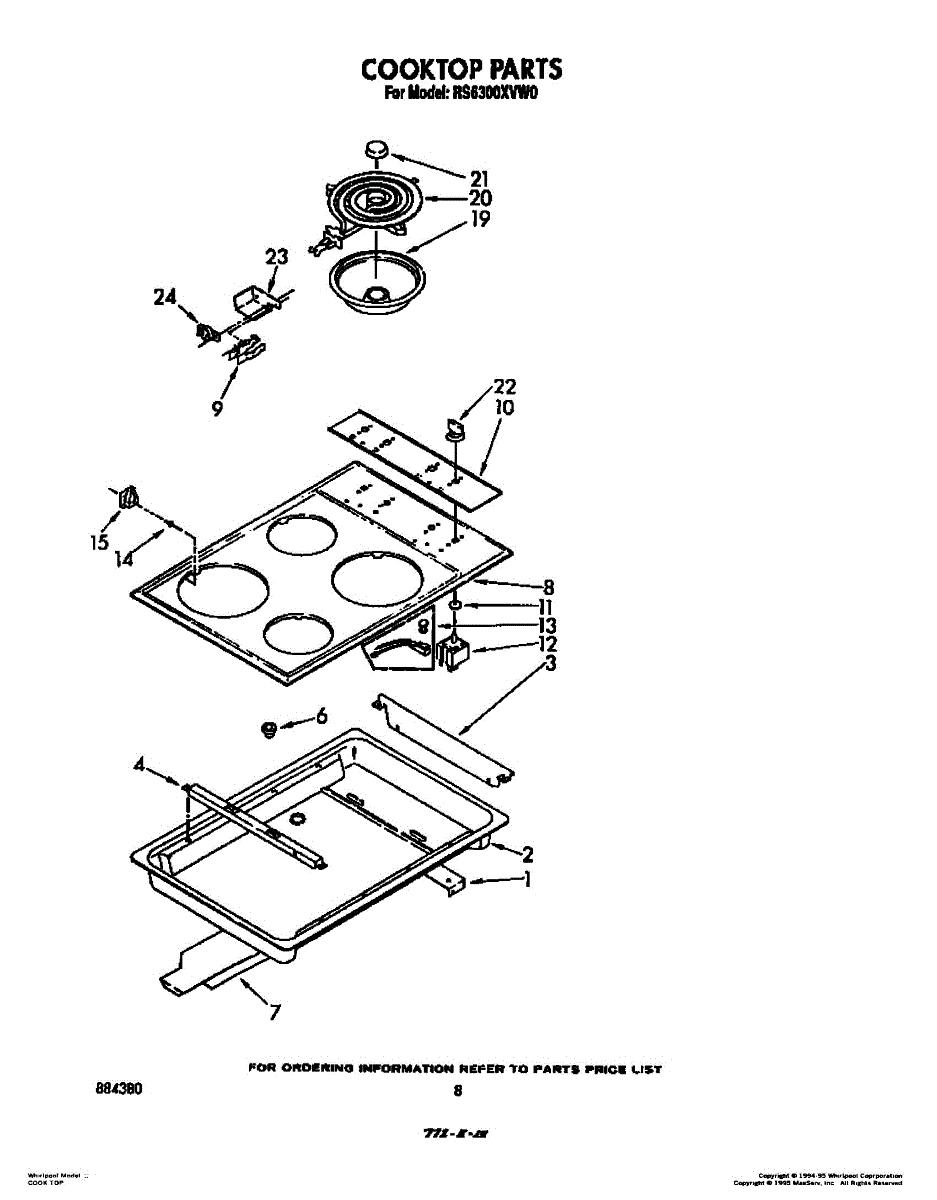

Parts for Whirlpool RS6300XVW0: 05 - Cooktop Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 10-32 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 10-32 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 6-32 x 9/32 inch.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Burner won't heat or cycles on and off? This infinite switch controls temperature levels on electric range surface elements. DIY repair in 10 minutes.

This metal clip secures and stabilizes surface burner components on gas cooktops. It prevents burner parts from shifting during cooking and ensures proper alignment for safe gas flow. Install this clip if burner grates move during cooking, flames appear uneven, or burner parts seem loose or misaligned.

This metal clip secures and stabilizes surface burner components on gas cooktops. It prevents burner parts from shifting during cooking and ensures proper alignment for safe gas flow. Install this clip if burner grates move during cooking, flames appear uneven, or burner parts seem loose or misaligned.

This is an 8-inch drip pan that sits beneath the large burner element on an electric range cooktop. It catches spills, crumbs, and grease to keep them from reaching the wiring and components below the cooking surface. Replace this drip pan if it is heavily stained, corroded, warped, or pitted - a damaged pan reduces heat reflection and can create a fire hazard.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

This part has been discontinued and is no longer available.

Color: black. Measures about 1-1/2 inches in diameter.

Size: 6-32 x 9/32 inch.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.
