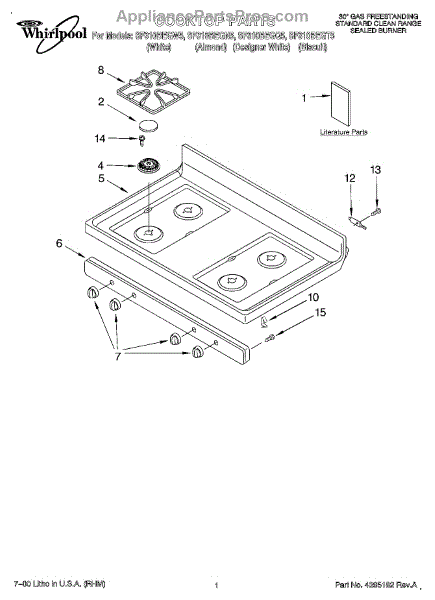

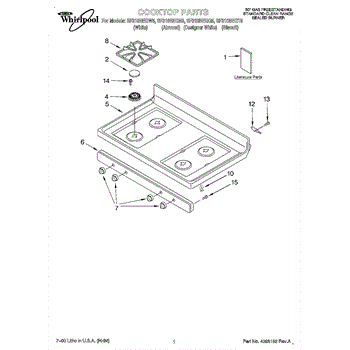

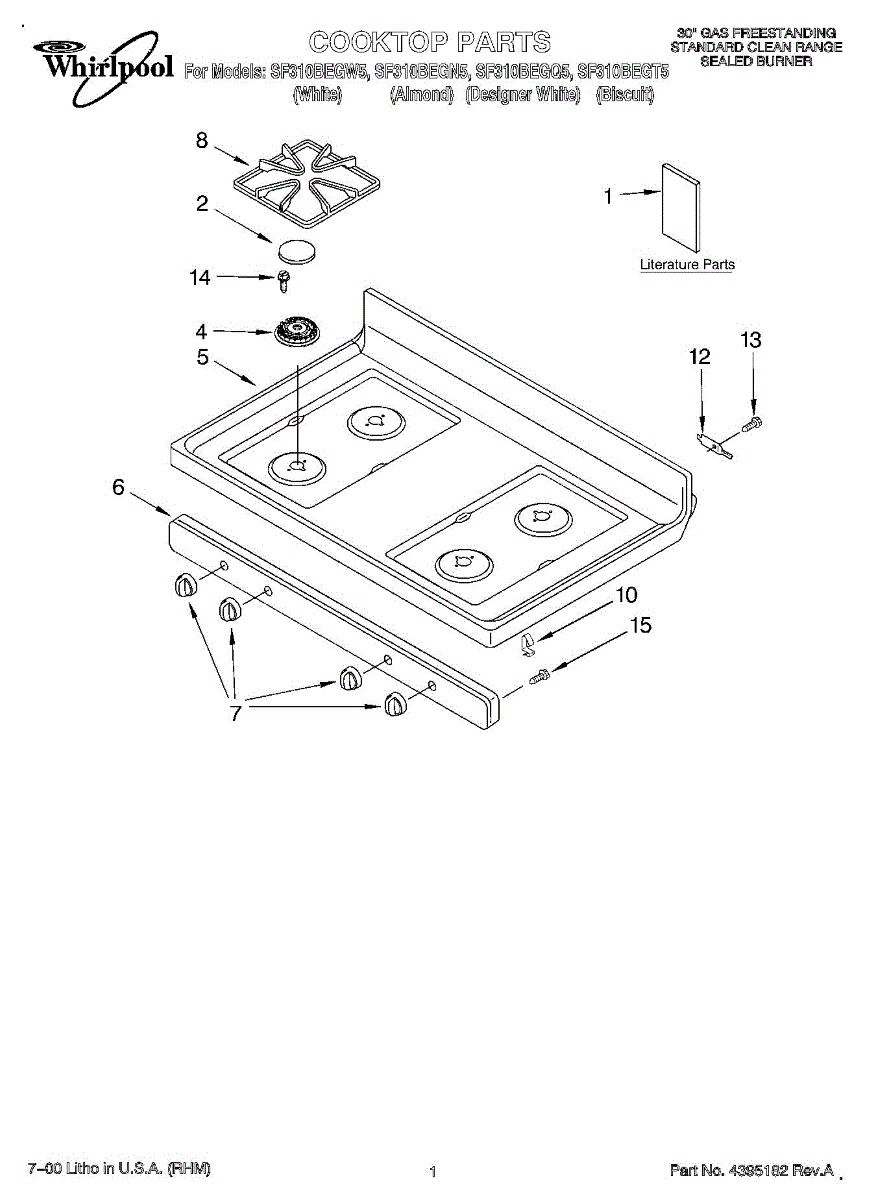

Parts for Whirlpool SF310BEGN5: 01 - Cooktop, Literature Parts

Color: Gray. Size: Small. For black order WP3191898. For the large cap order WP3191905.

The Range Burner Cap is an OEM replacement part designed for Whirlpool ranges. This burner cap fits medium-sized burners and evenly distributes the flame from the burner, providing stable cooking heat. It also acts as a protective cover, preventing debris from clogging the burner and ensuring efficient operation.

Causes of a bad burner cap can include regular wear and tear, damage from high temperatures, or accidental impact during cleaning or cooking.

Color: Gray

Symptoms of a faulty burner cap include:

• Uneven or inconsistent flames
• Lost or missing
• Visible cracks or warping on the cap

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Medium. Color: Black. Measures about 2-1/2 inches in diameter.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Almond. For white order W11213959. For black order W11213958.

Color: Biscuit.

Color: White

Color: Black.

Color: Biscuit.

Color: White.

This black surface burner control knob restores easy, precise control of your cooktop or range heat settings. Replace a cracked or missing knob so you can securely turn the valve from Off to your desired temperature.

• Attaches to the surface burner valve stem to select Off through Low–High settings
• Provides a clear pointer and secure grip for everyday adjustments
• Helps restore smooth engagement when turning the control
• Replace if the knob is cracked, stripped, loose/falls off, melted, or hard to turn

• Disconnect power and shut off gas; allow all surfaces to cool before service
• Pull the old knob straight off the valve stem—avoid prying or twisting forcefully
• Align the new knob with the stem flats/D-shape and press straight on until fully seated
• Test each setting for proper engagement before use

This cooktop grate kit replaces damaged or worn grates to restore stable, even support for pots and pans on a gas range. It helps maintain proper burner performance and keeps cookware level during cooking. What it does:

• Provides a sturdy surface for cookware so pots and pans sit flat and stable over burners
• Protects the cooktop surface from spills and direct flame contact
• Restores proper cookware alignment if existing grates are warped, chipped, or heavily worn
• Helps reduce wobble and improves cooking consistency when grates are compromised

• Turn burners off and allow the cooktop to cool completely before removing or installing grates
• Lift old grates straight up; install new grate pieces so they sit flush and stable over each burner
• No special tools typically required, but follow your range manual for any model-specific steps

Replace worn or damaged cooktop grates with this grate kit to restore a stable, level platform for your pots and pans. It helps maintain safe, consistent pan support and keeps your range or cooktop looking and performing its best. What it does:

• Supports cookware above the burners at the correct height
• Restores level, stable pan support when grates are cracked, warped, or missing
• Helps reduce rocking or tipping of pots and pans
• Common signs it's needed: chips or cracks, grates won't sit flat, unstable cookware

• One grate kit

• Turn off all burners and allow the appliance to cool completely before handling
• Lift off old grates; clean support ledges and burner surrounds
• Position new grates per the burner layout; ensure they sit level and centered
• Verify pan stability before cooking

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
