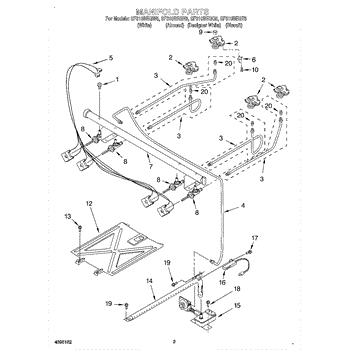

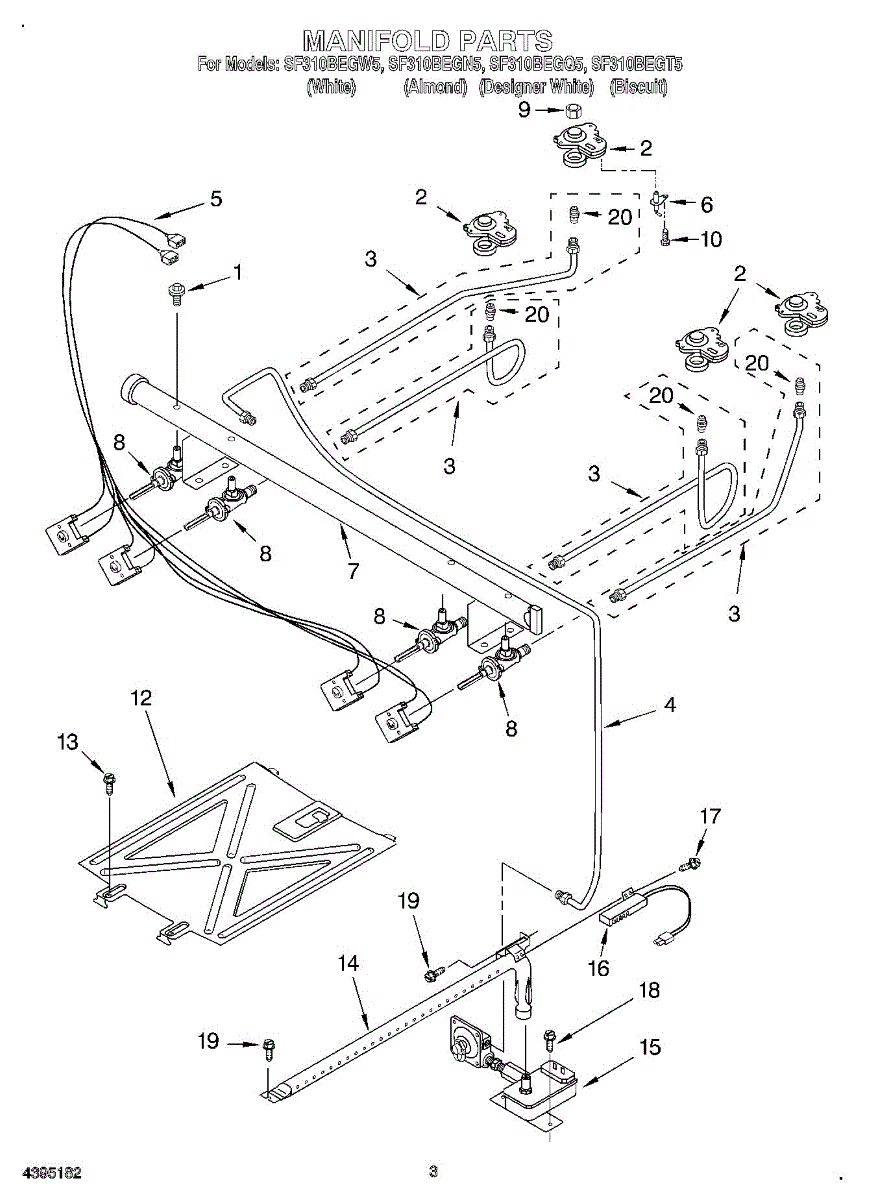

Parts for Whirlpool SF310BEGN5: 03 - Manifold Parts

This range burner base is a replacement part that is used for gas stovetops and ranges. This burner base directs gas to the burner head. It also holds the orifice. If this part of the range is broken or not working properly, it will not direct the gas where it needs to go. It could make it more difficult to head up the burner, and it could prove to be dangerous.While the metal pieces are durable and made to last, they may still need to be replaced. They could become dirty or corroded, or they could suffer damage when the range is moved. When replacing the burner base, owners will first want to shut off the gas supply to the stove and ensure the burner is completely cool before starting. When repairing, owners should also wear gloves to protect their hands.The burner base is compatible with many models of ranges from Whirlpool, Roper, Crosley, Estate, and Inglis. This is a genuine OEM part that has been sourced from the manufacturer. It is sold individually.

Tubing with orifice.

Tubing with orifice.

Tubing with orifice.

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Includes bracket and connecting harness.

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Conversion kit. Natural gas to lp gas. Kit of 4.

This replacement burner orifice controls the flow of natural gas to a cooktop or range burner so the appliance lights and burns with the correct flame size. Fits one burner and restores proper gas delivery. What it does:

• Regulates gas flow to a single burner for correct flame height and heat output
• Used where a worn or clogged spud causes weak, uneven, or yellow flames
• Commonly replaced when a burner won't light reliably or produces poor combustion
• Ensures the burner receives the correct orifice opening for natural gas operation

• Turn off gas supply and power to the appliance before servicing.
• Gas fittings should be tightened and tested for leaks.
• Do not file, drill, or modify the orifice; use the correct OEM part for safe operation.
• Test all burners after installation to ensure proper ignition and flame pattern.

This spud orifice regulates the flow of natural gas to a burner, helping maintain the correct flame size for safe, efficient cooking. It replaces worn or damaged orifices to restore reliable ignition and burner performance. What it does:

• Meters natural gas to the burner to produce the proper flame for cooking
• Helps maintain consistent heat output and stable ignition
• Commonly replaced when flames are weak, uneven, yellow-tipped, or the burner won't light reliably
• Compatible with factory burner assemblies that use a spud-style orifice

• Turn off gas supply and unplug the appliance before servicing
• Use appropriate tools; avoid overtightening the orifice when installing
• After installation, check for gas leaks and proper burner operation before regular use

This spud orifice controls the gas flow to a burner, ensuring proper flame size and consistent cooking or baking performance. It replaces a worn or damaged natural-gas orifice to restore safe, reliable burner operation. What it does:

• Meter gas to the burner for correct flame height and even heat
• Helps prevent weak flames, uneven cooking, or ignition issues
• Restores proper combustion when the original orifice is clogged or damaged
• Works with the burner tube and manifold to maintain oven/range performance

• Only install with the appliance disconnected from gas and power; follow local codes
• Use correct torque and fittings; check for leaks with a soap solution or approved leak detector
• Replace only with the same or manufacturer-approved orifice size for safe operation
