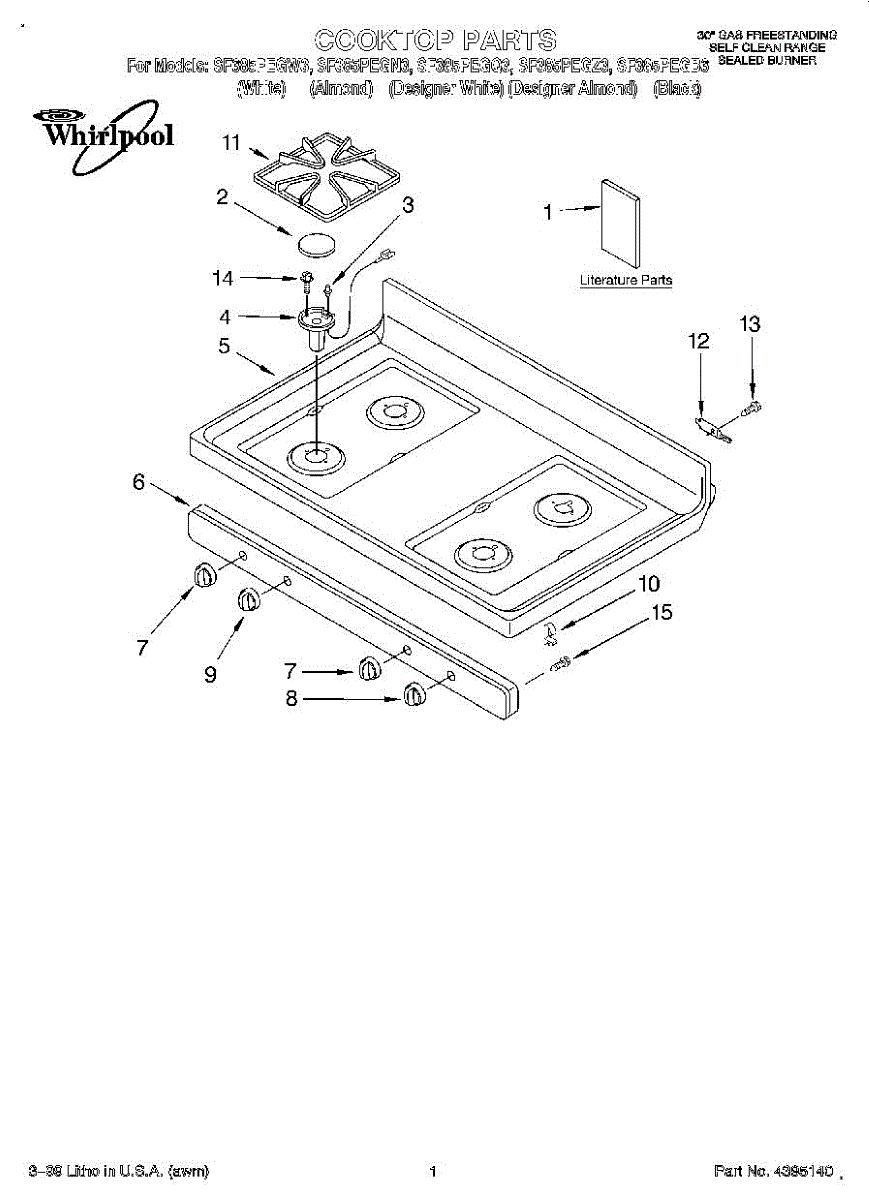

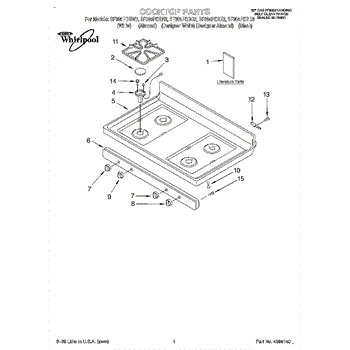

Parts for Whirlpool SF385PEGB3: 01 - Cooktop, Literature Parts

Color: Black. Size: Large.

Color: Grey. Size: Large.

Color: Grey. Size: Small.

Color: Black. Size: Small.

The Surface Igniter is an OEM part for Whirlpool gas ranges. This igniter is responsible for lighting the gas burners on the stove, providing the necessary spark to ignite the gas and create a flame for cooking.

Causes of a bad igniter can include wear and tear from regular use, exposure to food spills or cleaning chemicals, or damage from high heat. A malfunctioning igniter can lead to difficulty in lighting the burners or uneven flame production.

Symptoms of a bad surface igniter include:

• Burners not lighting or taking longer to ignite
• Clicking sound without ignition
• Weak or uneven flame
• No spark visible when trying to ignite the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Igniter is an OEM replacement part for Whirlpool ovens and ranges. It is a crucial component responsible for igniting the gas burners or the oven's baking and broiling elements. The component features an orange wire with a length of 39 inches and a female terminal at the wire end.

Symptoms of a need to replace the surface igniter include:

• Failure of the burners or oven elements to ignite or heat up
• Delayed ignition or inconsistent heating performance
• Visible damage, cracks, or discoloration of the igniter surface

Causes of a faulty surface igniter can include general wear and tear from frequent use, exposure to spills or food debris, electrical malfunctions, or physical damage from impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven and range models.

This surface burner igniter creates the arc that lights gas at the cooktop/range burner. Replace a cracked or worn electrode to restore fast, reliable ignition and reduce repeated clicking when trying to light a burner.

• Generates a high-voltage spark at the surface burner to ignite gas
• Typical symptoms: no spark, intermittent/weak spark, burner lights only with a match, or constant clicking
• Mounts near the burner head; works with the spark module and switch harness
• Inspect for a cracked ceramic insulator, damaged tip, or loose lead

• Disconnect power and shut off gas before servicing
• Handle the ceramic insulator carefully; avoid touching or contaminating the electrode tip
• Confirm proper gap and alignment to the burner head/cap after installation
• Check the spark module, switch harness, wiring connections, and burner cap/grounding

The Surface Burner Igniter is an OEM part for Whirlpool ranges and cooktops. This component is crucial for igniting the gas that fuels the surface burners, ensuring that the burners light up safely and efficiently when the control knob is turned. The igniter produces a spark that lights the gas, allowing you to cook with precision and control. The surface burner igniter wire measures approximately 43" long.

Symptoms of a failing Surface Burner Igniter include:

• The burner not lighting or taking multiple attempts to light
• Weak or no spark produced when trying to ignite the burner
• A clicking sound without ignition of the burner
• Visible damage or wear to the igniter tip

Causes of a bad surface burner igniter can include regular wear and tear from frequent use, exposure to spills and food debris that can affect its function, and electrical issues such as a short circuit or a worn-out spark module.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Burner cap sold separately.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer avaialble.

Color: Black.

Color: Almond.

Color: White.

Color: Almond. Other colors: For black knob use WP8053595, for white knob use WP8053596.

Color: White. Other colors: For black knob use WP8053595, for almond knob use WP8053597.

Color: Black. Other colors: For almond knob use WP8053597, for white knob use WP8053596.

Color: Almond. Other colors: For black knob use WP8053595, for white knob use WP8053596.

Color: White. Other colors: For black knob use WP8053595, for almond knob use WP8053597.

Color: Black. Other colors: For almond knob use WP8053597, for white knob use WP8053596.

Color: Almond. Other colors: For black knob use WP8053595, for white knob use WP8053596.

Color: White. Other colors: For black knob use WP8053595, for almond knob use WP8053597.

Color: Black. Other colors: For almond knob use WP8053597, for white knob use WP8053596.

Color: Black. For gray order WPW10447925.

The Grate Kit is an OEM part for Whirlpool gas ranges. The burner grates sit on top of the stove, providing a stable surface for pots and pans during cooking. These grates are designed to withstand high temperatures and support cookware securely. Note: Kit of 4 grates

Causes of a bad grate can include prolonged exposure to heat, accidental dropping of heavy cookware, or normal wear and tear from regular use.

Symptoms of a bad grate include:

• Chipped or cracked grates
• Uneven or unstable surface for cookware
• Difficulty balancing pots and pans during cooking
• Rust or discoloration on the grate surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hinge pin fits hinged-top ranges and provides the pivot point for the cooktop. Replacing a worn or missing pin helps restore smooth lift action, alignment, and stability when opening the top for cleaning or service.

• Provides the pivot between the cooktop and hinge bracket for lift-up operation
• Helps keep the cooktop aligned and stable when closed
• Common symptoms include a loose or wobbly cooktop, scraping or binding when lifting, or uneven gaps
• Replacing a damaged pin helps restore smooth, secure movement

• Disconnect power and turn off gas supply before servicing
• Support the cooktop to prevent strain on the hinges while working
• Remove the old pin and any retainer; install the new pin in the same orientation and fully seat it
• Verify smooth, aligned operation before restoring power and gas

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
