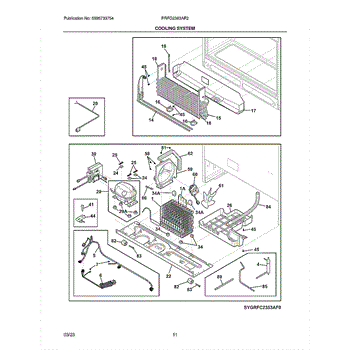

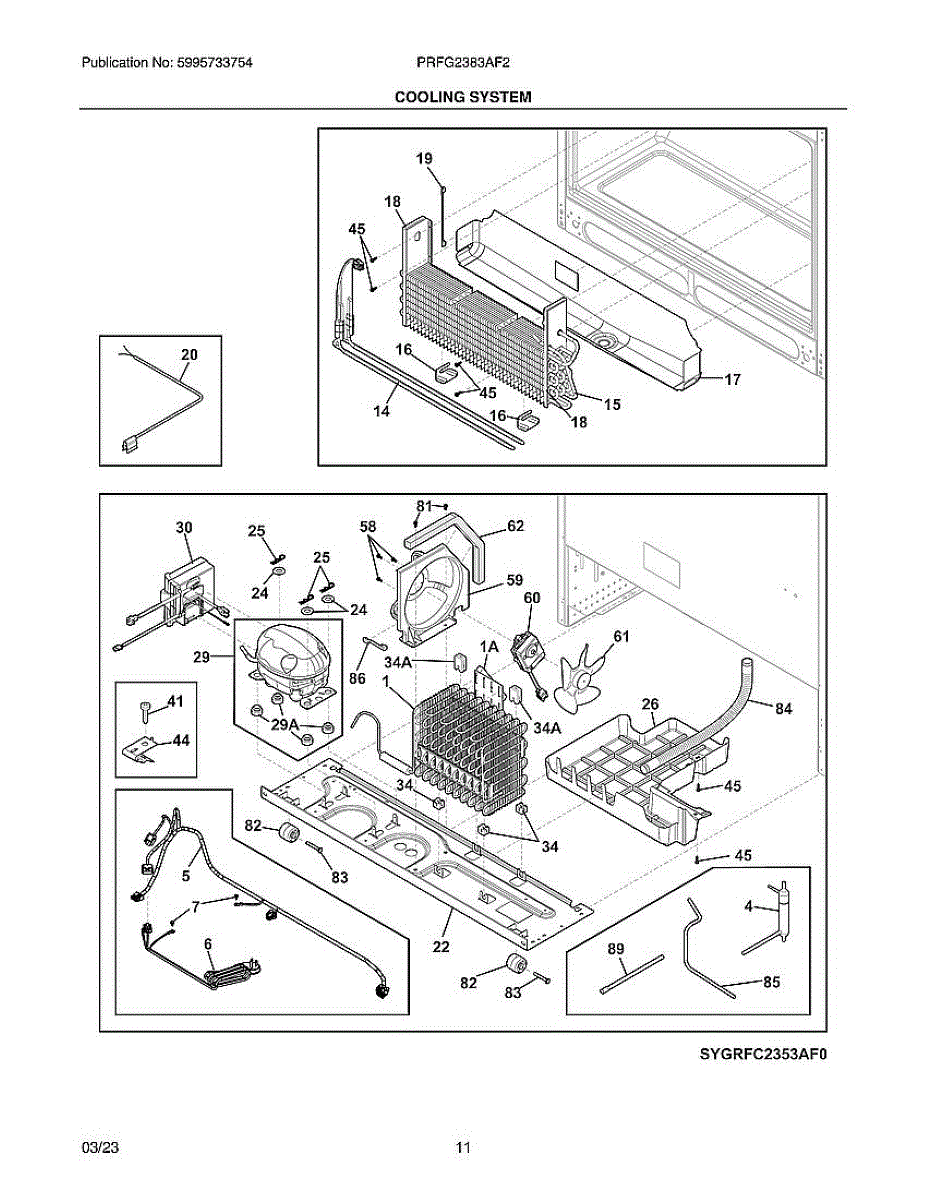

Parts for Frigidaire PRFG2383AF2: Cooling System Parts

Includes service line.

The Power Cord is an OEM part for Frigidaire refrigerators. It transmits electrical current from the wall outlet directly to the internal refrigerator components, allowing them to operate properly. As the critical link supplying energy, this power cord plays an essential role in refrigerator performance.

Causes can involve normal wear over many years, accidental punctures, harsh chemicals, or excessive bending/pulling that strains and weakens internal wiring. Rodent damage is another potential issue.

Symptoms of a bad power cord include:

• The refrigerator not powering on when plugged in
• Flickering lights or intermittent operation
• Warm temperatures inside the fridge compartment
• Evidence of cord damage like cracks, blisters, or exposed wires

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Defrost Heater Assembly is an OEM part for Frigidaire refrigerators. It is responsible for preventing excessive frost buildup on the evaporator coils by heating them during the defrost cycle.

A bad defrost heater assembly can be caused by electrical issues, component failure, or damage. When the defrost heater assembly becomes faulty, it can result in issues such as excessive frost accumulation in the freezer, poor cooling performance, or even a complete defrost system failure.

Symptoms of a bad defrost heater assembly include:

• Excessive frost or ice buildup on the evaporator coils
• Poor cooling in the refrigerator or freezer
• Water leaking or pooling under the refrigerator
• Refrigerator running continuously

Replace your faulty defrost heater assembly with this genuine OEM Frigidaire part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

The Thermistor Kit is an OEM part for Frigidaire refrigerators. Consisting of a thermistor temperature sensor and mounting bracket, this kit plays a key role in refrigeration system operation. Strategically positioned inside the unit, the sensor continually monitors interior temperatures to maintain proper cooling levels throughout all compartments.

Symptoms of a bad thermistor kit include:

• Fluctuating or uncontrollable temperatures within sections of the fridge
• The condenser or evaporator fans running excessively long periods
• Ice buildup inside compartments disrupting temperature regulation

Causes can involve thermistor degradation over time losing sensitivity and providing inaccurate reads to system computers.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This base assembly replaces the refrigerator's lower cabinet base to support internal components and help manage drainage and airflow. Restores cabinet stability and helps prevent leaks or excessive vibration when installed correctly. What it does:

• Provides a stable mounting platform for compressor and other under-cabinet components
• Channels and contains condensate/drain water away from cabinet interior
• Helps reduce vibration and noise caused by loose or damaged base supports
• A damaged or cracked base can lead to water leaks, uneven cabinet alignment, or unusual noises

• Disconnect power and empty/remove food and shelves before starting work
• Use proper lifting support; base replacement may require tilting or lifting the appliance
• Retain and reuse original mounting hardware unless replacements are specified by the manufacturer

This defrost pan is the refrigerator drain/drip tray that catches and channels water from the automatic defrost cycle to the evaporator/transit area. It prevents water from pooling under the fridge and directs meltwater to the drain system. What it does:

• Collects condensate and defrost runoff from the evaporator during the defrost cycle
• Channels water toward the drain/evaporator area to evaporate safely
• Helps prevent water pooling or leaks under the refrigerator cabinet
• Supports proper defrost operation when aligned with the drain tube

• One defrost pan/drip tray

• Disconnect power before service to reduce risk of shock
• Remove front kick plate or access panel to reach and slide out the old pan
• Inspect and clear the drain tube before reinstalling to ensure proper flow
• Handle carefully to avoid cracking plastic or cutting on sharp cabinet edges

This inverter is the electronic drive board that controls the refrigerator compressor motor, helping regulate cooling performance and energy use. Replaces a failed inverter to restore proper compressor speed control and steady operation. What it does:

• Converts DC/AC and controls compressor motor speed for variable-capacity cooling
• Helps maintain consistent temperature by adjusting compressor operation
• Works with the fridge's control system to manage power delivery and protection functions

• One inverter (compressor drive board) as shown

• Install only after disconnecting power to avoid shock or damage
• Handle the board by edges; avoid static discharge—use grounding strap if available
• Verify connector seating and mounting; use manufacturer's torque/fastening guidance when available

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This condenser fan shroud sits in the rear machine compartment and positions the fan and motor to move air through the condenser coil. A cracked or warped shroud can reduce cooling performance and increase noise or vibration.

• Directs and focuses airflow across the condenser coil and compressor to remove heat
• Holds the condenser fan motor and blade in proper alignment
• Helps maintain stable refrigerator/freezer temperatures and efficient operation
• When damaged, may cause weak airflow, warmer temps, vibration, or fan scraping/rubbing noises at the back of the unit

• Unplug the refrigerator and wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the machine compartment
• Take a photo of fan/motor orientation; transfer components to the new shroud and reuse existing hardware
• Confirm blade spins freely with proper clearance before restoring power

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

This drawer roller allows your refrigerator's bin or crisper drawer to glide smoothly along its track. Replacing a worn or missing roller helps restore easy opening and closing and prevents drawers from sticking or binding.

• Supports the drawer as it slides on the rail/track
• Helps correct stiff, rough, or noisy drawer movement
• Can reduce uneven sliding or a drawer that pops off the track
• Common wear item when drawers are overloaded or used heavily

• Unplug the refrigerator before servicing
• Remove the affected drawer to access the roller
• Note roller orientation and reuse existing fasteners if applicable
• Test drawer travel after replacement to ensure smooth operation

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This refrigerator drain tube channels defrost water from the evaporator to the rear drain pan so it can evaporate. Replace a cracked, missing, or clogged tube to stop interior leaks and ice buildup.

• Routes defrost meltwater from the freezer drain to the condenser drip pan
• Helps prevent pooling under crisper drawers or water on the floor
• Common failure symptoms: water under drawers, ice sheet in the freezer bottom, recurring drain clogs or freeze-ups, dripping at the rear base
• Restores proper drainage when the original tube is brittle, split, or obstructed

• Disconnect power; pull the unit forward and remove the lower rear access panel
• Remove the old tube from the drain outlet and drip pan; clear any ice/debris with warm water—avoid sharp tools
• Seat the new tube fully on the drain outlet and position the outlet into the pan; verify flow by pouring warm water down the drain
• Restore power and monitor for leaks as normal defrost cycles resume

This rigid water fill tube directs water from the refrigerator supply to the ice maker, ensuring a steady fill for ice production. Replaces a cracked or clogged fill tube to restore proper ice-maker filling and reduce leaks. What it does:

• Guides water from the supply line to the ice maker's fill cup for normal ice production
• Prevents leaks and water spray when intact and properly seated
• Helps stop slow fills or no-fill symptoms caused by damaged or kinked tubing
• Works with the ice maker assembly and water inlet valve to deliver measured fills

• Designed for refrigerator ice-maker systems; handle with care to avoid kinks
• Turn off water supply and power to the appliance before removing or installing
• Make sure fittings and clamps are secure and sealed to prevent leaks

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing
