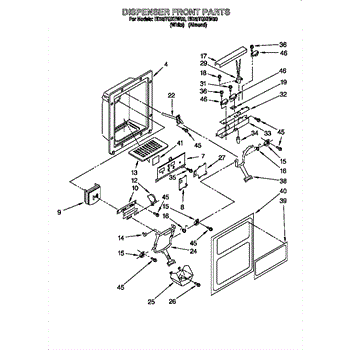

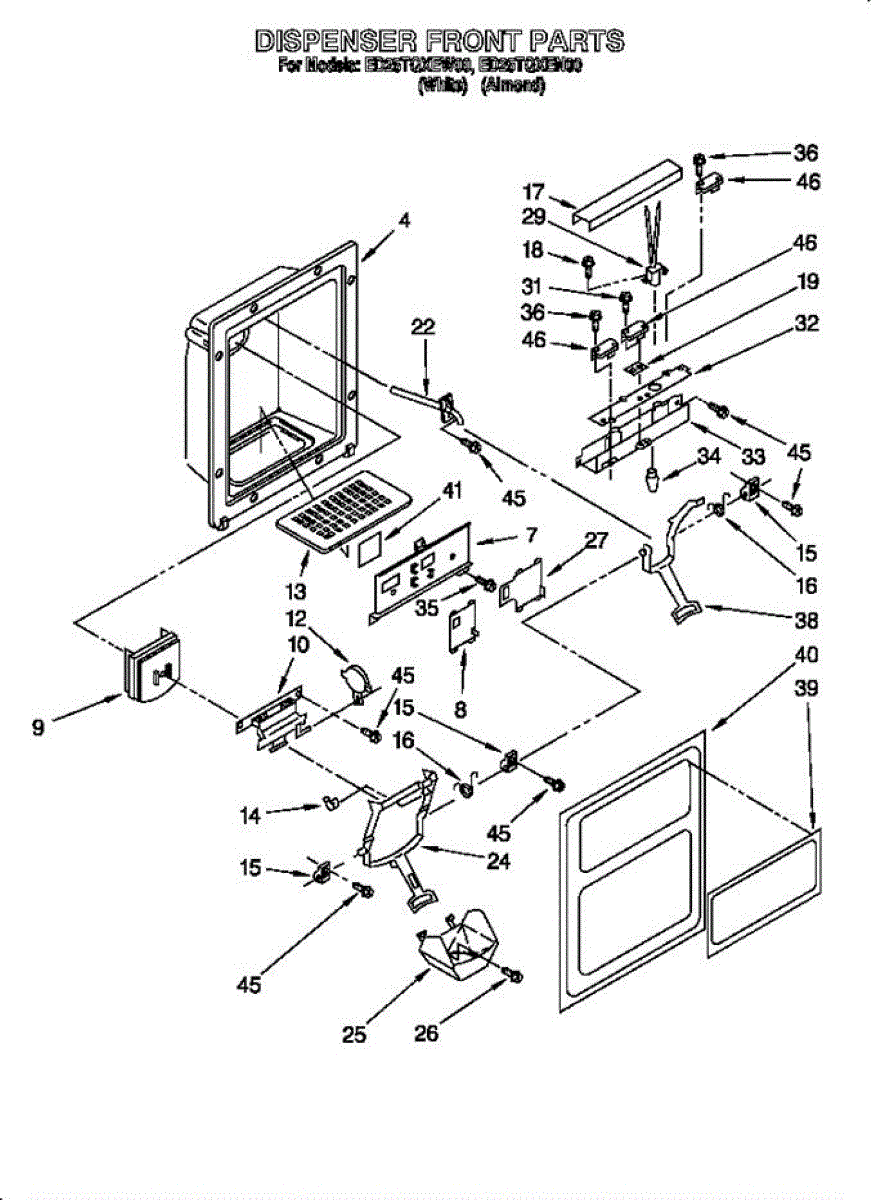

Parts for Whirlpool 82 4421985: Diepenser Front Parts

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

An ice maker delay mechanism is the small timing device that staggers the steps of the ice-making cycle so each action happens in the right order. Replacing a worn unit helps restore steady, predictable ice production.

• Provides a brief, controlled delay in the ice maker cycle so components engage in the correct order
• Helps prevent short cycling or erratic operation
• Failure may result in no ice, intermittent ice, or stalls mid-cycle
• May be accompanied by repeated clicking or ticking from the ice maker head

• Disconnect power to the refrigerator and shut off the water supply before servicing
• Remove the ice maker assembly to access the delay mechanism
• Transfer any brackets or clips from the original part if required
• Align components carefully during reassembly to avoid bending any lever arms

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

Screw: 8-16 x 3/8 inch.

The Water Tube Assembly is an OEM part for Whirlpool refrigerators. It supplies water from the inlet valve to the ice maker and water dispenser, ensuring a steady and reliable flow of water for ice production and drinking.

Causes of a bad water tube assembly can include blockages from mineral deposits, kinks or cracks in the tubing, or damage from regular use. If the tube becomes compromised, it can lead to inadequate water supply or leaks.

Symptoms of a bad water tube assembly include:

• Reduced or no water flow to the ice maker or dispenser
• Leaking water inside or outside the refrigerator
• Ice maker not producing ice
• Water dispenser not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

White

White

White

White

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This replacement screw secures appliance panels and internal components. Installing a correct OEM fastener restores a tight fit, reduces rattles and vibration, and helps keep assemblies aligned so your machine operates smoothly.

• Fastens brackets, panels, ducts, or housings to the cabinet or frame
• Replaces missing, stripped, or corroded hardware
• Helps stop rattles, vibration, and loose or misaligned parts
• Maintains proper alignment for reliable operation

• Disconnect power; shut off gas and water before servicing
• Match this screw to the original location and hardware type used on your model
• Start threads by hand to avoid cross-threading; use the correct driver
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Micro Switch is an OEM part for Whirlpool refrigerators that is responsible for controlling the ice and water dispenser. The switch operates by responding to mechanical actions, like the pressing of the dispenser paddle or button to open or close to allow water and ice to be dispensed.

Symptoms of a bad Micro Switch include:

• The ice or water dispenser not functioning
• Intermittent operation of the dispenser
• Stuck dispenser preventing ice or water from stopping

Causes of a bad Micro Switch can include physical damage from heavy use, wear and tear over time, or electrical issues such as short circuits that impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Broken Tab Ice Door Kit is an OEM part for Whirlpool refrigerators. This kit includes all the necessary components to repair or replace the ice door chute, which is responsible for dispensing ice from the ice maker to the ice bucket or directly to the user. The ice door chute must seal properly to prevent warm air from entering the freezer compartment, which can lead to frost and ice buildup.

Symptoms of a failing or broken ice door chute include:

• Ice accumulating around the ice dispenser chute
• Frost buildup in the freezer compartment
• Warm air leaking into the freezer, causing temperature fluctuations
• The ice door not closing properly or becoming stuck
• Unusual noises from the ice dispenser area

Causes of a broken ice door chute can include regular wear and tear, physical damage from mishandling or excessive force, or deterioration of the sealing components over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This kit is used if the ice door mounting tabs are broken off of the dispenser wall. If your model number uses this ice door WP2180353 or this ice door kit W10823377 this kit can be used.
