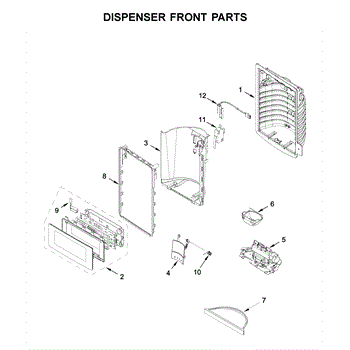

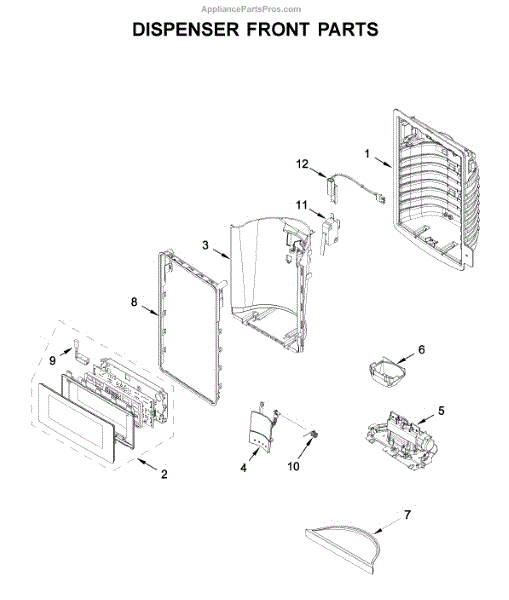

Parts for Kitchenaid KRMF706EBS04: Dispenser Front Parts

The Dispenser Control Board is an OEM part for Whirlpool refrigerators. It is responsible for controlling the various functions of the refrigerator dispenser, such as ice dispensing and water flow. It communicates with other electronic components to ensure accurate dispensing of ice and water, as well as controlling the display and lights associated with the dispenser.

A bad dispenser control board can occur due to electrical malfunctions, damage from power surges, or wear and tear over time. If you notice symptoms such as the dispenser not working, the display not lighting up, or erratic behavior from the dispenser, it may be time to replace this part.

Symptoms of a bad dispenser control board include:

• Dispenser not working
• Display not lighting up
• Erratic behavior from the dispenser

Restore your Whirlpool refrigerator's dispenser by replacing the faulty or damaged dispenser control board with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This shield is a replacement protective cover that helps protect internal components from heat, debris, and contact damage. It restores the appliance's original protection and helps prevent damage to wiring and nearby parts. What it does:

• Covers and protects internal components or wiring from heat and physical contact
• Helps prevent debris buildup and reduces risk of shorts or damage to nearby parts
• Use when the original shield is cracked, warped, missing, or shows heat damage
• Restores the correct barrier needed for safe, reliable operation

• One replacement shield

• Disconnect power (unplug or shut off breaker) before servicing
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Install in the same orientation as the original; secure with existing fasteners
• Use only the exact replacement part number to maintain proper fit and safety

This rubber pad cushions and isolates appliance components to reduce vibration and noise while protecting surfaces from wear. It's a simple replacement that restores stability and helps prevent rattling during operation. What it does:

• Acts as a vibration/isolation cushion between moving parts and the cabinet or frame
• Dampens noise and reduces rattling during operation
• Helps protect metal and painted surfaces from abrasion and wear
• Maintains proper spacing to prevent rubbing or contact-related damage

• Disconnect power to the appliance before servicing to avoid injury
• Replace the pad where worn, flattened, or missing; location varies by model
• Use appropriate hand tools and support surrounding components to avoid damage
• If multiple pads are used in the same area, replace all matching pads for even support

This separator assembly is a flat, single-piece support that keeps adjacent components aligned and prevents rubbing or contact. It restores proper spacing to reduce noise and wear for long-lasting appliance operation. What it does:

• Maintains correct spacing between moving parts to prevent metal-on-metal contact and rubbing
• Reduces noise caused by misalignment or loose components
• Helps prevent premature wear of adjacent parts from friction
• Supports smooth operation of the affected assembly for reliable performance

• Disconnect power (and gas, if applicable) before servicing the appliance
• Basic hand tools may be required; follow the appliance service manual for disassembly/reassembly
• Inspect surrounding parts (fasteners, brackets, bushings) and replace if worn to ensure a proper fit

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This dispenser drip tray sits beneath the refrigerator's ice/water dispenser to catch drips and splashes, helping keep the door area clean and dry. Replace a damaged or missing tray to maintain appearance and prevent water from pooling.

• Collects residual water after dispensing to reduce streaks down the door
• Contains minor spills to help protect the door panel and floor area
• Provides a stable resting surface for cups during dispensing
• Typical symptoms: cracked, warped, stained, loose, or missing tray; water marks on the door or puddles at the base

• Power off the refrigerator if working near electrical components
• Lift out the old tray (release tabs if present) and remove debris
• Clean the dispenser recess before installing the new tray
• Align and press the tray fully into place so it sits flush

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

A replacement tension/return spring that restores proper tension and return action to the appliance component it supports. Helps stop sagging, reduce noise, and return moving parts to their intended position for reliable operation. What it does

• Provides tension and controlled return for a door, latch, lever or similar moving part.
• Restores correct alignment and helps parts stay closed or in their resting position.
• Reduces rattling, popping or grinding noises caused by a weakened or broken spring.
• Common symptom: parts that sag, fail to stay closed, or don't return smoothly after use.

• Disconnect power (and gas/water if applicable) before starting any repair.
• Use proper hand protection and avoid overstretching the spring during installation.
• Inspect surrounding components (clips, brackets, hinge points) and replace any worn pieces.
• Follow OEM instructions for safe removal and correct routing/attachment.

The Switch is an OEM replacement part for Whirlpool refrigerators. It is designed to control the water dispensing function of your refrigerator, providing a convenient and easy way to access filtered water. It is responsible for activating the water flow when pressed, allowing you to dispense water into your glass or container.

A bad refrigerator water dispenser switch can occur due to wear and tear, physical damage, or electrical malfunction. If you notice symptoms such as the switch not responding when pressed, inconsistent water flow, or a complete lack of water dispensing, it may be time to replace the switch.

Symptoms of a bad refrigerator water dispenser switch include:

• Switch not responding when pressed
• Inconsistent water flow
• Lack of water dispensing

Restore your refrigerator's water dispenser by replacing the faulty or damaged water dispenser switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
