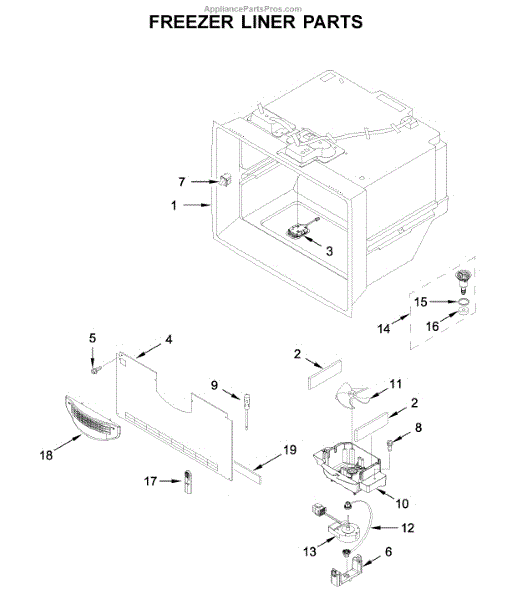

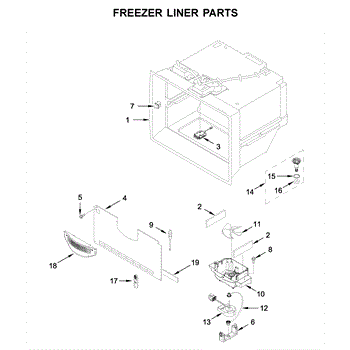

Parts for Kitchenaid KRMF706EBS04: Freezer Liner Parts

This evaporator cover is the molded shroud that protects the freezer evaporator and helps direct airflow for consistent cooling. It replaces a damaged or missing cover to reduce frost buildup and improve temperature performance. What it does:

• Shields the evaporator coil from physical damage and debris
• Directs airflow over the evaporator for more even cooling
• Helps reduce frost buildup and ice forming on the coil
• Can reduce vibration/noise caused by loose or broken shrouds
• Addresses symptoms like excessive frost, uneven temperatures, or unusual freezer noise

• Always disconnect power to the appliance before beginning any repair
• Remove food, shelving, and interior panels as needed to access the evaporator compartment
• Handle carefully to avoid bending the evaporator coil or damaging mounting tabs
• Defrost and dry the area before installing the new cover

The Door Switch is an OEM part for Whirlpool-brand French door refrigerators. Located inside refrigerator door frames, it functions to detect the opening and closing of doors.

Causes of a bad door switch failure can include cracks in wiring from repeated door flexing or moisture/debris buildup inside the sensitive contact points over time.

Symptoms of a bad door switch include:

• Interior lights failing to illuminate on door opening
• Refrigeration system running constantly
• Door alarm incorrectly detecting doors as ajar

Replacing with this OEM switch helps optimize efficiency and restores the alerts homeowners rely on. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore French door models.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This evaporator fan shroud directs air from the evaporator coil into the cabinet and protects the fan assembly for consistent cooling performance. It helps maintain proper airflow and reduces fan noise when installed correctly. What it does:

• Channels air across the evaporator coil to improve cold-air circulation in the compartment
• Protects the evaporator fan motor and blade from contact with ice and debris
• Helps reduce rattling or whistling caused by loose or damaged housings
• Can help address uneven cooling or warmer temperatures when the original shroud is cracked or missing

• (1) evaporator fan shroud / fan housing

• Disconnect power to the appliance before starting any repair
• Remove interior panels and the evaporator cover to access the fan area; keep track of fasteners
• Inspect mounting tabs and gaskets; replace any damaged hardware for a secure fit
• Reassemble panels fully and restore power; verify fan runs and airflow is unobstructed

The Evaporator Fan Grommet is an OEM component specifically designed for Whirlpool refrigerators. Found along the rear wall of the fridge compartment where the evaporator fan motor is located, the evaporator fan grommet serves an important sealing function.

Constructed of flexible rubber, the evaporator fan grommet forms a tight, airtight seal around the electrical wiring harness and ventilation ductwork attached to the rear-mounted evaporator fan motor. This helps prevent the escape of cold air from the refrigeration system and allows the evaporator fan motor to work efficiently.

Causes of a bad evaporator fan grommet include cracks or splits from vibration stress over years of use. Dried-out seals no longer achieving a tight fit is also possible.

Symptoms of a bad evaporator fan grommet include:

• Cold air leaking from around the rear wall area
• Increased humidity inside the fridge compartment
• Decreased cooling performance efficiency

Compatible with Whirlpool, KitchenAid, Jenn-Air, and select Kenmore side-by-side models.

The Evaporator Motor is an OEM replacement part for Whirlpool refrigerators. It circulates air past evaporator coils to lower temperatures inside compartments.

Symptoms of a faulty evaporator motor can include:

• Failure to lower interior temperatures sufficiently
• Disrupted airflow causing frost or condensation issues
• Unusual vibrations or sounds from inside refrigerator walls

Causes can be wearing bearings or severed wiring from years of constant use.

If the motor is damaged or clogged, it will need to be replaced. This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

• Puddling or spilled water inside refrigerator interiors
• Uncontrolled leaks potentially damaging other components
• Restricted airflow if funnel clogs from sediment buildup
• Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement outer cover restores the appliance's exterior protection and appearance by shielding internal components from dust and debris and helping reduce noise from loose parts. A direct-fit repair for visible damage or missing panels. What it does:

• Protects internal components and wiring from dust, lint, and accidental contact
• Helps maintain proper airflow paths and prevents debris buildup
• Reduces rattles and vibration caused by a damaged or loose cover
• Improves appliance appearance when the original cover is cracked, warped, or missing

• Always unplug the appliance or disconnect power before starting work
• Remove any necessary access panels or trim to reach mounting screws or clips
• Transfer any hardware, gaskets, or insulation from the old cover if required
• Tighten fasteners securely and test the appliance for proper operation after reassembly

This grille is a decorative exterior cover for your appliance. It conceals openings or component areas while preserving the unit's intended airflow and clean, finished appearance. Replacing a cracked or missing grille restores a secure fit and look. What it does

• Covers and protects an opening or component area while allowing proper clearance/airflow as designed
• Helps prevent debris from entering sensitive areas
• Restores a clean, finished front appearance
• Common symptoms: cracked or warped grille, broken mounting tabs, loose/rattling panel, missing piece

• 1 grille

• Disconnect power before servicing the appliance
• Remove retaining screws or release locking tabs; retain existing hardware for reuse
• Align tabs/hooks, seat the grille, and secure; do not overtighten screws
• Confirm a snug fit and unobstructed openings before restoring power

This replacement door gasket creates a tight seal to help prevent leaks and maintain proper appliance performance. It restores the sealing surface around the door so the appliance can operate as intended. What it does:

• Seals the door opening to help prevent water or air from escaping
• Helps maintain consistent internal temperature and cleaning performance
• Reduces leaks and pooling beneath the appliance
• Can eliminate drafts, rattling, or improper door closure related to a worn seal

• One gasket

• Designed for direct replacement; inspect mounting channel for damage before installing
• Clean the sealing surface and remove old adhesive or debris for a proper fit
• Press gasket fully into the channel and verify an even seal around the entire door
• Disconnect power and water before servicing
