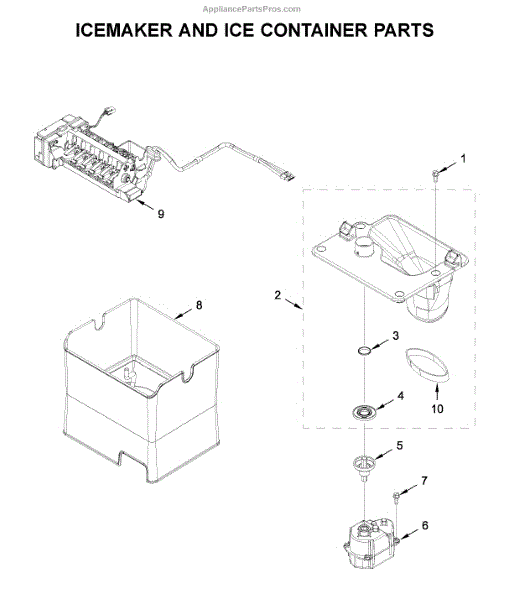

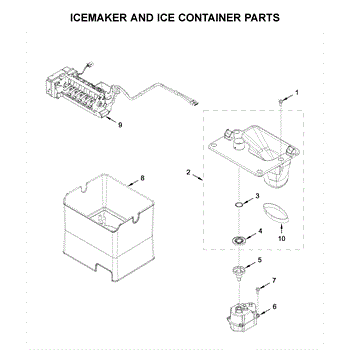

Parts for Kitchenaid KRMF706EBS04: Icemaker And Ice Container Parts

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This small but critical clip secures a component or panel within the appliance. Replacing a cracked or missing clip restores a tight fit and helps prevent looseness, rattling, and premature wear over time. What it does:

• Holds a component, trim piece, or panel firmly in place
• Maintains proper alignment to reduce vibration and noise
• Helps prevent rubbing or wiring abrasion caused by loose parts
• Typical symptoms include a loose/sagging piece, rattling, or a visibly broken/missing clip

• 1 clip

• Disconnect power (and shut off water or gas, if applicable) before servicing
• Note the original clip orientation and location for correct reassembly
• Align parts carefully; do not force the clip into place
• Replace any additional damaged fasteners or clips found during service

The Auger Drive Shaft is an OEM part for Whirlpool refrigerators. This part transfers power from the motor to the ice auger, enabling the movement and dispensing of ice from the ice maker.

Causes of a bad auger drive shaft can include wear and tear from regular use, damage due to overloading or jamming, or corrosion over time.

Symptoms of a bad Auger Drive Shaft include:

• Ice not dispensing or dispensing slowly
• Grinding or unusual noises when trying to dispense ice
• The auger not rotating or moving as expected
• Ice build-up around the auger mechanism

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Auger Drive Motor is an OEM part for Whirlpool refrigerators. It is responsible for powering the auger mechanism that dispenses ice from the ice maker into the ice bucket or directly through the door dispenser. This motor ensures that ice is delivered smoothly and efficiently whenever needed.

Over time, the auger drive motor can wear out or fail due to constant use or electrical issues. Causes of a bad auger drive motor can include motor burnout, electrical malfunctions, or damage from ice buildup.

Symptoms of a bad auger drive motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice maker area
• The auger not turning or moving slowly
• Intermittent operation of the ice dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This ice container stores the ice made by your refrigerator and feeds it to the dispenser. Replacing a cracked or jammed bin restores smooth dispensing and helps prevent spills, jams, and stray ice in the freezer.

• Holds and organizes ice produced by the icemaker
• Interfaces with the dispenser mechanism to deliver cubed or crushed ice
• Keeps ice contained and accessible for in-door dispensing
• Common symptoms: cracked bin, broken tabs, ice not dispensing or dispensing intermittently

• Unplug the refrigerator and turn off the icemaker/water supply before servicing
• Open the compartment, remove and empty the old bin
• Slide the new container in until it fully seats and engages the drive
• If your model reuses any hardware on the bin, transfer it from the old unit; restore power and test dispense

The Ice maker is an OEM replacement part for Whirlpool refrigerators. It automatically produces ice cubes that are then dispensed for use through the refrigerator door. The ice maker uses water from the refrigerator's internal plumbing system which it then freezes into uniform ice cubes and stores in the ice bucket until needed.

Causes of a bad ice maker can include issues like mechanical failure, damaged parts that prevent proper freezing and harvesting of ice, or problems such as limescale buildup that impact ice production.

Symptoms of a bad ice maker include:

• Failure to produce ice cubes or very slow production
• Cubes that are malformed or stuck together
• Strange sounds coming from the ice maker area
• The ice bucket not filling properly
• Ice cubes dispensing inconsistently or not at all

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly
