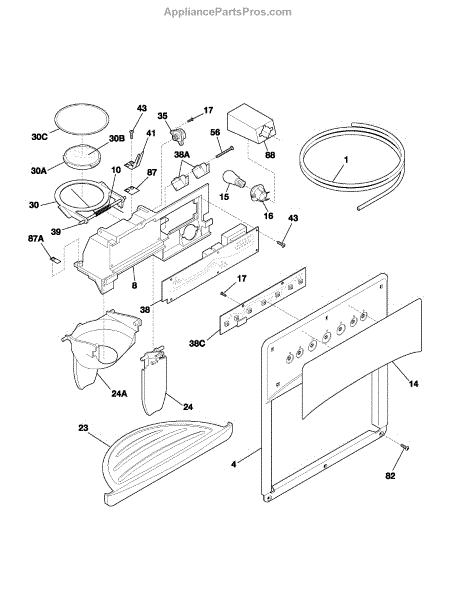

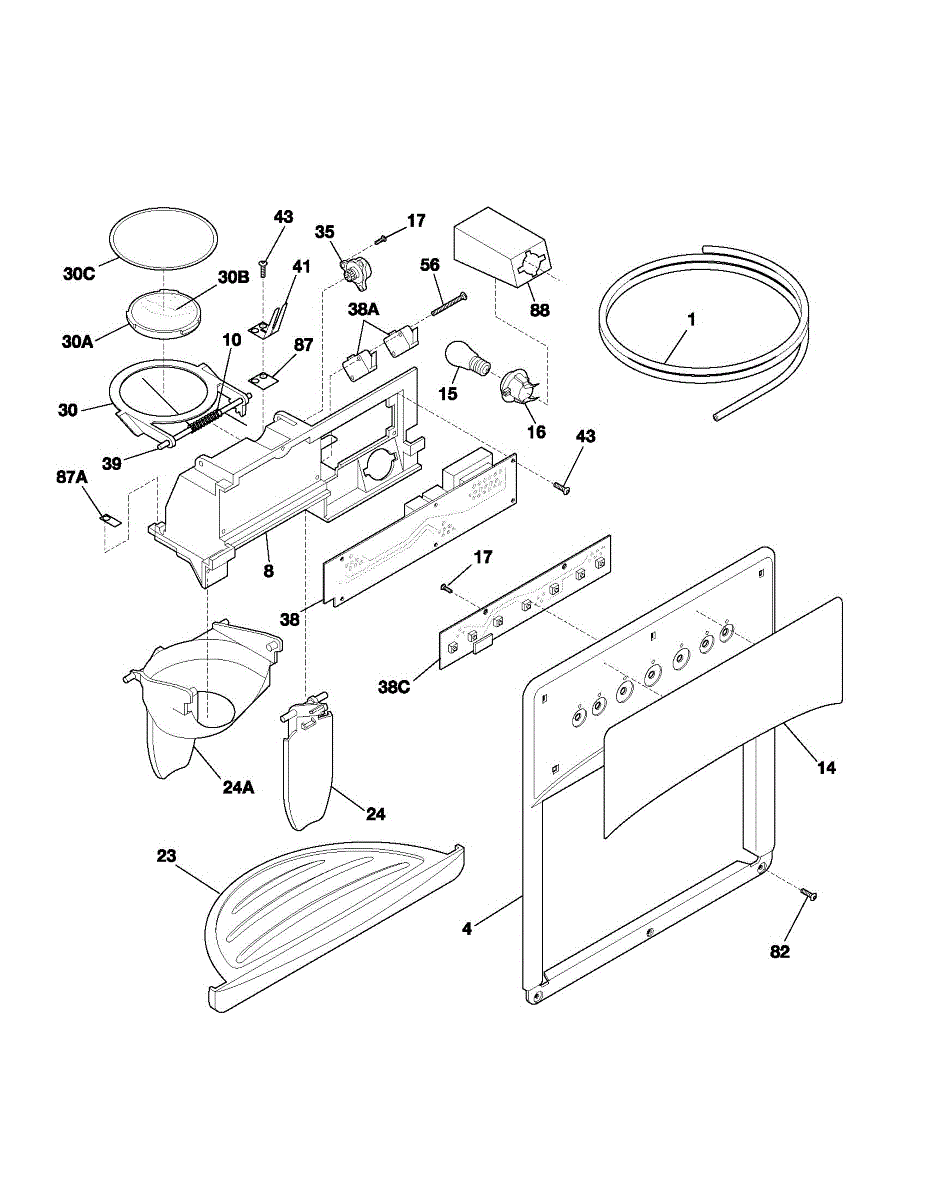

Parts for Kenmore 253.54742301 (25354742301, 253 54742301): Dispenser Parts

Water supply tube that routes water through your refrigerator to the ice maker and dispenser. Replace if cracked, leaking, or damaged during moving.

This decorative front panel covers the refrigerator's water and ice dispenser mechanism, located on the exterior door. Replace when the panel is cracked, discolored, or when dispenser buttons become stuck or unresponsive.

Torsion spring that returns the dispenser ice chute door to closed position. Replace if broken, weak, or missing to restore proper door closure.

This replacement light bulb restores clear illumination inside your appliance, making it easy to check progress and find items. It matches the original fit and connection for dependable lighting exactly where the manufacturer intended.

• Provides appliance illumination per the original design
• Replaces bulbs that are burned out, dim, flickering, or intermittent
• Helps you monitor progress and see the compartment clearly
• Fits the original socket for straightforward replacement

What's included: 1 light bulb Install notes:

• Disconnect power to the appliance before replacing the bulb
• Allow the bulb and surrounding area to cool completely
• Handle the bulb by the base; avoid touching the glass
• Replace with the same type and wattage specified on the appliance or in the manual

Fix a refrigerator light that won't turn on with this interior light socket replacement. Restores reliable bulb connection for proper lighting. DIY-friendly.

Single mounting screw for securing refrigerator panels, brackets, and trim pieces. Replaces worn, stripped, or missing screws to restore proper fit.

Refrigerator drip pan installs under the cabinet to collect defrost and condensation water. Replace if cracked, broken, or missing to prevent leaks.

Includes both lighted water and ice arms.

Includes both lighted water and ice arms.

This ice chute assembly includes the funnel and actuating lever that directs ice from your refrigerator's dispenser to your glass or container. It ensures ice flows smoothly and activates the dispensing mechanism when you press your container against the lever. Replace this assembly if ice doesn't dispense, gets jammed in the chute, or if the lever doesn't activate the dispenser.

This actuator kit controls the refrigerator air damper to regulate airflow between compartments, helping maintain steady temperatures and proper cooling. It restores damper movement so the appliance can direct cold air where needed. What it does:

• Rotates or opens/closes the air damper to control airflow between freezer and fresh-food compartments
• Restores damper movement when the damper is stuck, noisy, or unresponsive
• Helps correct temperature imbalance or uneven cooling that can result from a faulty damper actuator
• Stops clicking or grinding noises caused by worn actuator gears or motor

• Always disconnect power to the appliance before beginning repair to avoid shock or injury
• Handle the actuator and plastic gears gently; do not force the damper shaft or gears during installation
• Reconnect electrical connectors fully and verify actuator orientation so the damper opens/closes correctly

This actuator kit controls the refrigerator air damper to regulate airflow between compartments, helping maintain steady temperatures and proper cooling. It restores damper movement so the appliance can direct cold air where needed. What it does:

• Rotates or opens/closes the air damper to control airflow between freezer and fresh-food compartments
• Restores damper movement when the damper is stuck, noisy, or unresponsive
• Helps correct temperature imbalance or uneven cooling that can result from a faulty damper actuator
• Stops clicking or grinding noises caused by worn actuator gears or motor

• Always disconnect power to the appliance before beginning repair to avoid shock or injury
• Handle the actuator and plastic gears gently; do not force the damper shaft or gears during installation
• Reconnect electrical connectors fully and verify actuator orientation so the damper opens/closes correctly

Insulating foam that installs on the ice chute door to prevent warm air and moisture around the dispenser. Replace if compressed, cracked, or missing.

Rubber ice dispenser door center seals the ice chute on your refrigerator. Replace if cracked, worn, missing, or not sealing properly to stop frost buildup.

Rubber seal for the ice dispenser door on side-by-side refrigerators. Replaces cracked, worn, or missing seals that allow warm air into the freezer.

Bracket that supports and aligns the ice dispenser door. Replace if broken, cracked, or causing the ice door to hang open or fail to seal properly.

The Ribbon Cable Harness is an OEM part for Frigidaire refrigerators. It connects various electronic components within the refrigerator, facilitating communication and control signals between them. This harness is essential for the proper functioning of the refrigerator's electronic systems.

Causes of a bad cable harness can include physical damage from bending or pinching, wear and tear from regular use, or electrical failures that disrupt signal transmission. Ensuring the integrity of this component is crucial for maintaining the appliance's performance.

Symptoms of a bad ribbon cable harness include:

• Intermittent or complete loss of electronic functions
• Error codes or malfunctioning display
• Unresponsive buttons or controls
• Inconsistent operation of refrigerator features

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Fix a dispenser that won't stop running water or ice, or won't dispense at all. This switch controls water and ice flow. Moderate DIY repair.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

Small spring that provides return tension for refrigerator actuator lever mechanisms. Replace if spring is broken, stretched, missing, or lost during repair.

Pan head

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Bearing plate for refrigerators. Provides structural support for rotating components. Replace if cracked, warped, or damaged to restore stability.

Bearing plate for side-by-side refrigerators. Mounts and supports rotating components. Replace if cracked, worn, or broken to restore stability.

Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Inlet valve to door

Replace your refrigerator's water inlet tube when cracked, split, or leaking. Connects water inlet valve to internal filter or dispenser system.

Water inlet tube connects the water valve to your ice maker. Replace if cracked, leaking, or damaged. Installs at the back of your refrigerator.
