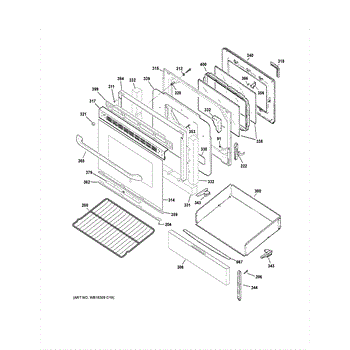

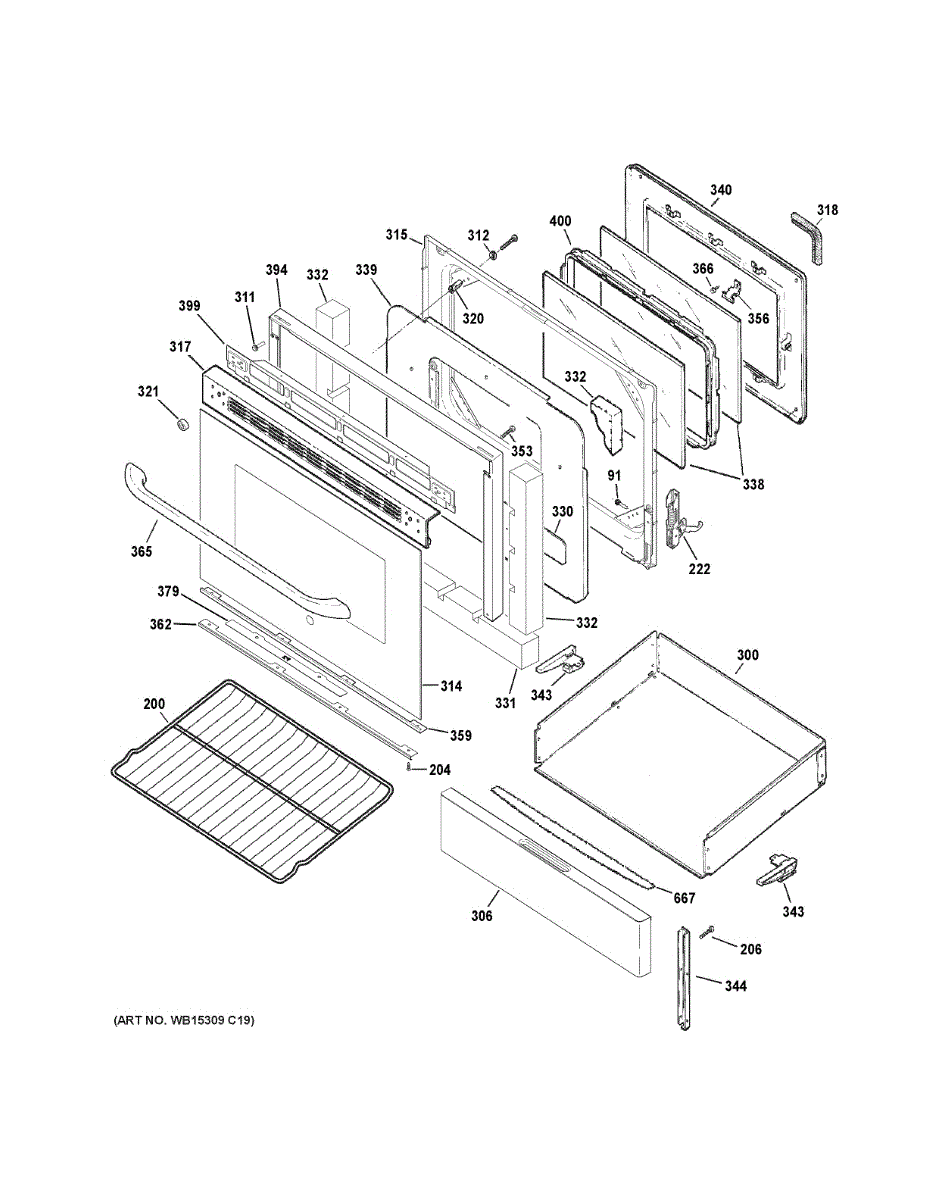

Parts for Ge JGB645DEK2BB: Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This door hinge restores smooth, secure door movement so the door aligns and seals properly. Replace a worn or damaged hinge to correct doors that sag, rub, or won't close all the way.

• Supports the door and guides controlled opening and closing
• Keeps the door aligned for a proper latch/gasket seal
• Helps prevent heat/steam escape caused by poor closure
• Common symptoms: door won't close fully, door drops or feels loose, uneven sealing, squeaking or binding at the hinge

• Disconnect power at the breaker or unplug; allow the appliance to cool completely
• Support the door while removing screws/retainers; note hinge orientation for reassembly
• Use care—hinge mechanisms can be under tension and edges may be sharp; wear gloves/eye protection
• After installation, verify door alignment and closure; replace the opposite hinge if needed for even action

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

Includes 12 washers.

The outer door glass is an OEM part for GE ovens. It serves as the protective barrier for the oven door, providing insulation and a visually appealing finish. It is designed to maintain the desired temperature inside the oven while keeping the exterior cool to the touch.

A bad outer door glass can result in issues such as cracks, shattered glass, or loose trim. Causes of a bad assembly can include accidental impacts, exposure to extreme temperatures, or wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or shattered glass on the oven door
• Loose or damaged trim around the glass panel
• Heat escaping from the oven door
• Difficulty in cleaning or removing stains from the glass

Replace your worn-out or damaged outer door glass with this genuine OEM GE part to restore your oven.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This door line weld assembly secures and reinforces the oven door structure to maintain alignment and a stable seal during use. It replaces a damaged or bent welded door line to restore proper door fit and operation. What it does:

• Provides the welded structural connection used in the oven door assembly
• Restores door alignment and helps maintain an effective seal after damage
• Addresses symptoms like a loose, misaligned, or sagging oven door
• Works as a direct-fit replacement when the original welded door line is worn or damaged

• Requires basic appliance disassembly; follow manufacturer instructions for door removal
• Disconnect power to the appliance before beginning any repair
• Handle sharp edges with care and use appropriate gloves

This vent trim is the exterior trim piece that finishes the vent opening on your range or oven, restoring a clean, factory look and helping cover the gap where the appliance vents. What it does

• Replaces damaged, dented, or missing vent trim to restore appliance appearance.
• Covers and protects the vent opening edges for a finished look.
• Helps prevent small items from catching on exposed vent edges.
• Stops rattling or loose trim that may occur when the original piece is bent or broken.

• One vent trim

• Disconnect power to the appliance before beginning any repair.
• Handle trim carefully—edges can be sharp.
• May require removal of the oven door or control panel for access; refer to your model's service manual.
• Use original mounting screws or hardware; replace with manufacturer-specified parts.

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This handle grommet cushions and secures a range or oven door handle, preventing vibration and wear while keeping the handle snug. It's a small replaceable part that restores proper fit and reduces rattling. What it does

• Provides a soft mounting surface between the handle and door to prevent metal-to-metal contact
• Keeps the handle tight and aligned to stop looseness or movement
• Dampens vibration and reduces rattling during operation
• Helps protect the door finish where the handle mounts

• One handle grommet

• High-level push-fit part; remove the handle or access the mounting area per your model's service instructions
• Disconnect power to the appliance before beginning service when accessing electrical or heated components
• Use a plastic trim tool or small screwdriver to pry out the old grommet carefully to avoid scratching the door
• If the handle or mounting hardware is damaged, inspect and replace as needed for a lasting repair

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drawer Glide is an OEM part for GE gas ranges. Installed on both sides of the storage drawers, these glides are responsible for providing smooth sliding motion and guided movement.

Causes of bad glides can include wear and tear leading to compromised rollers or tracks, damage or bending inhibiting proper function, or failure of mechanical parts.

Symptoms of faulty drawer glides include:

• Difficulty opening or closing drawers
• Noisy or grinding sounds during movement
• Visible damage or defects on the glide surfaces

This genuine OEM GE replacement is also compatible with Hotpoint, RCA, and select Kenmore models.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This left-side black door handle replaces a damaged or missing handle to restore a secure grip and the appliance's finished appearance. Designed to match the original door hardware for a straightforward replacement. What it does:

• Replaces the left door handle to provide a safe, comfortable grip for opening and closing the door
• Addresses symptoms like cracked, loose, broken, or missing handles
• Restores the appliance's exterior appearance to its intended look
• Designed to align with factory mounting points for direct replacement when compatible

• Follow the appliance manufacturer's service instructions for removal and installation
• Preserve existing mounting screws/fasteners unless new hardware is explicitly included
• Use basic hand tools; wear gloves to protect finish and avoid cuts from sharp edges

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This outer door trim replaces a damaged or worn decorative outer ring on the appliance door, restoring a secure fit and finished appearance. It protects the edge of the door and improves sealing and alignment. What it does

• Replaces cracked, chipped or dented door trim to restore a flush, finished appearance
• Helps hold the door components together and maintains proper edge alignment
• Reduces visible gaps and drafts caused by damaged trim
• Useful when trim is loose, bent, or causing rubbing against the cabinet or adjacent parts

• Disconnect the appliance from power (and gas, if applicable) before beginning any work.
• Follow the appliance service manual for disassembly steps; trim installation typically requires removing the door or outer panel and securing fasteners/clips.
• Handle glass and painted surfaces carefully to avoid damage or scratching.

This panel backer is the interior support piece that helps secure and align the appliance control panel, protecting wiring and switches while keeping the panel stable during use. It restores proper fit and prevents rattling or loose controls. What it does:

• Supports and positions the control/display panel so buttons and switches align correctly
• Protects internal wiring and components behind the control panel
• Reduces panel flexing, vibration noise, and intermittent button contact
• Helps maintain a flush, stable control surface for reliable operation

• Disconnect power before starting — follow appliance-specific safety steps
• Remove the outer control/display panel to access and replace the backer
• Transfer any buttons, clips, or switches from the old backer to the new part as needed
• Inspect adjacent wiring and mounting clips; replace any damaged fasteners for a secure fit

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This oven door insulation panel fits behind the oven door to help retain cooking heat and reduce heat transfer to the outer door. It restores proper thermal performance for safer, more consistent cooking. What it does:

• Provides a thermal barrier behind the oven door to help keep heat inside the oven cavity
• Helps the oven reach and hold set temperatures more consistently
• Reduces excessive heat on the exterior door surface
• Replace if insulation is torn, missing, or visibly degraded

• Disconnect power to the appliance before beginning any service
• Follow the oven/door removal and reassembly steps from the manufacturer's service manual
• Wear gloves and eye protection; insulation may have fibrous material
• Avoid compressing or folding the insulation during installation; ensure it is positioned as originally installed
