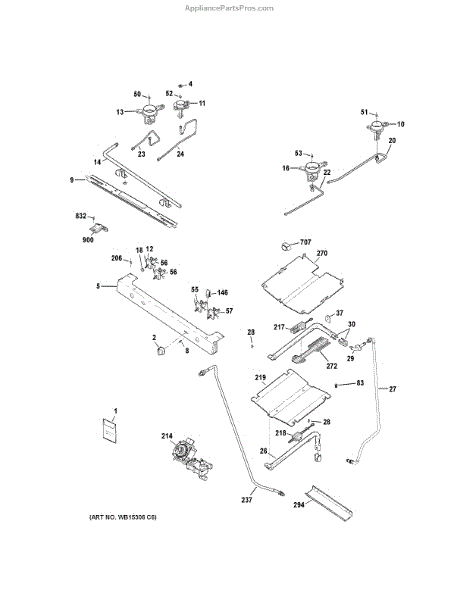

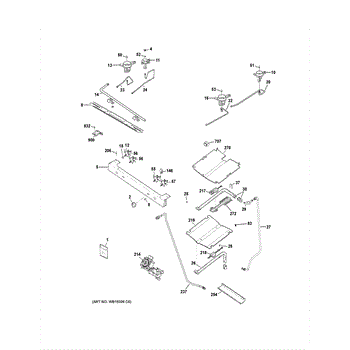

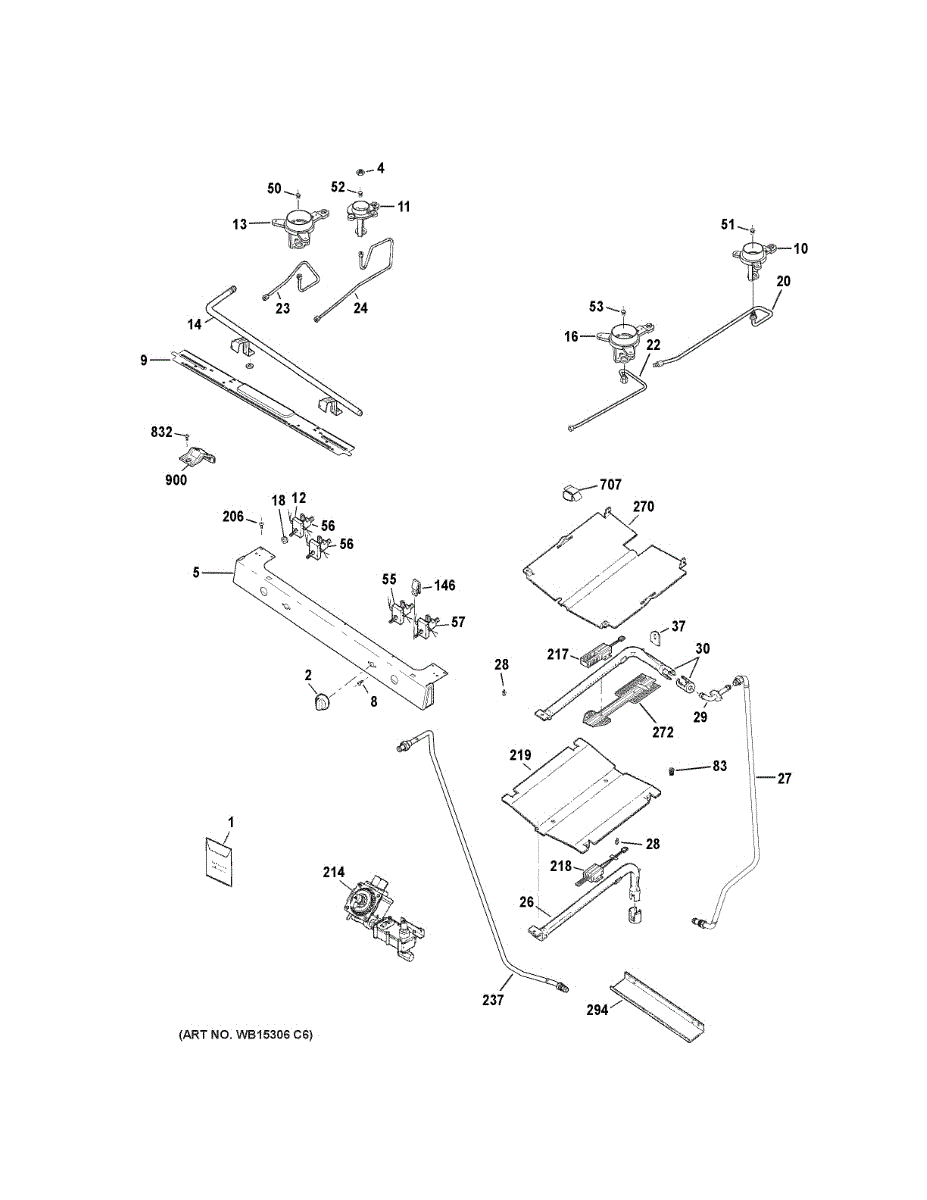

Parts for Ge JGB645DEK2BB: Gas & Burner Parts

This LP conversion kit lets a factory-set natural gas cooktop or range be converted to use LP/propane fuel, restoring safe, consistent burner performance after a fuel type change. Use the kit to adapt orifices and fittings for correct gas flow. What it does:

• Provides parts needed to convert a natural gas appliance to LP/propane so burners operate properly on the new fuel
• Replaces factory-set orifices/fittings that are sized for natural gas to prevent improper flame or performance on LP
• Helps eliminate common fuel-mismatch symptoms such as uneven flames, poor ignition, or burners that won't regulate correctly on the wrong gas type
• Supports proper safe operation when conversion is performed to match household fuel supply

• Shut off the gas supply and electrical power before starting work; perform a certified leak test after installation
• Follow the included instructions and the appliance manufacturer's conversion procedure exactly
• Do not attempt conversion if you are not familiar with gas appliance service; improper conversion can create unsafe conditions

The Range NG High Altitude Kit is an OEM part for GE gas ranges. This high-altitude conversion kit allows the range to operate properly at elevations above 2000 feet.

Causes related to needing this kit are using the range at a high elevation without proper adjustment for decreased air pressure and oxygen levels.

Symptoms of needing this high-altitude kit include:

• Unstable or inconsistent flame during operation
• Excessive cooking times
• Incomplete combustion of gas resulting in carbon monoxide issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Gas Range Knob Asm is an OEM component specifically designed for GE gas ranges. It consists of the sturdy knob handles used to turn gas burners on and off, or adjust flame levels.

Causes of a bad gas range knob assembly include general wear and tear from frequent use. Exposure to cooking spillages and cleaning solutions may also negatively impact knob integrity if not properly cleaned.

Symptoms of a bad gas range knob assembly consist of:

• Difficulty turning knobs fully on or off
• Knobs slipping out of set positions
• Knobs cracking, splitting, or signs of damage
• Inconsistent or uncertain burner control

This genuine GE replacement part is also compatible with some gas ranges from Hotpoint, Magic Chef, and select Kenmore models

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

The Medium surface burner base is an OEM part for GE ranges. It serves as the base for the surface burners, covering and protecting the burner cavities.

Causes of a bad surface burner base include warping or deformation from high heat over time, cracks or breaks from impact damage, or corrosion from liquid spills or grease accumulation.

Symptoms of a bad surface burner base include:

• Burners no longer sitting flush or securely on the cooktop surface
• Excessive air gaps around the burners allowing gas/flames to escape
• Difficulty cleaning due to liquid leaks into the burner cavities
• Visible cracks, breaks, or deformities in the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This switch harness connects the surface-burner knob switches to the spark ignition system, carrying the signal that makes the burners click and light. Replace a damaged or shorted harness to restore consistent, dependable ignition. What it does:

• Provides the circuit path between each burner valve switch and the spark module/igniters
• Sends the signal to spark when a knob is turned to the Light/ignite position
• A failed harness can cause continuous clicking, no spark on one or more burners, or ignition only when another knob is turned

• 1 switch harness assembly

• Disconnect electrical power; shut off gas supply if work will disturb gas connections
• Remove burner knobs and lift the cooktop/top panel to access the switches and wiring
• Transfer connectors one at a time; seat each switch fully on the valve stem and route wires away from sharp edges and hot surfaces
• Reassemble, restore power, and test each burner for proper sparking

This genuine OEM GE replacement is compatible with additional Hotpoint, RCA and Kenmore gas range models.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

The Orifice Holder is an OEM part for GE gas ranges. This part holds the burner orifice in place, ensuring the proper flow of gas to the burner for consistent and efficient cooking performance.

Causes of a bad orifice holder can include exposure to high heat, grease buildup, or accidental impact during cleaning or maintenance.

Symptoms of a bad orifice holder include:

• Uneven or weak burner flames
• Difficulty igniting the burner
• Gas odors around the burner area
• Visible damage or corrosion on the holder

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Orifice Spud LP is an OEM part for GE gas ovens. This part controls the flow of liquid propane (LP) gas into the oven burner box. The oven orifice spud plays a role in gas combustion, adjusting flow to match the needs of a liquid propane system. It connects directly to the gas supply, so an improperly sized or damaged spud can lead to gas leaks or incomplete burning.

Causes of a bad oven orifice spud include normal wear over time from constant heating cycles, exposure to cleaning chemicals, or damage during part replacement.

Symptoms of needing a replacement include:

• Uneven or inconsistent oven heating
• Extended cooking times or inability to reach desired temperatures
• Gas smell coming from the oven area
• Visible damage or cracks on the spud itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Orifice Holder is an OEM part for GE gas ranges. It secures the gas orifice nozzle in place to properly fuel each burner.

Causes of a bad orifice holder can include cracks or wear allowing gas to leak over time. Residue buildup may cause the holder to stick or prevent proper fit.

Symptoms of a bad orifice holder include:

• Burner flames that appear too high or too low and unstable
• Differences in flame size or cooking power between burners
• Gasoline-like smell indicates leaks around the holder

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

This left-front orifice holder sits beneath the surface burner on gas cooktops and ranges. It routes gas from the control valve to the burner head, supporting reliable ignition and a steady flame when the original holder is damaged or stripped.

• Directs gas from the surface valve to the left-front burner
• Positions and supports the burner head/orifice for correct alignment
• Helps maintain reliable ignition and stable flame at the LF burner
• Common symptoms of a failing holder: LF burner won't light, delayed ignition, weak or uneven flame, or visible damage/stripped threads

• Gas appliance service only—disconnect power and shut off gas supply before starting.
• Allow the unit to cool; remove grates, caps, and burner head as required by your model.
• Access the holder under the cooktop; handle gas tubing carefully and tighten fittings to manufacturer specifications.
• After reassembly, restore gas and check all joints with a non-corrosive leak-detection solution; verify proper ignition and flame.

The Burner Bake Tube is an OEM part for GE gas ovens and ranges. It acts as the path by which gas travels from the valve to the burner, where it is ignited and the flame produced.

Symptoms of a bad burner tube include:

• Inability to ignite or extinguish the gas flame properly
• Burner flames that appear abnormal in color or size
• Decreased gas pressure at the burner resulting in weak flames
• Frequent sensor issues or interrupted baking

Causes can be cracks in the tubing allowing gas leaks, blockages restricting fuel flow, or permanent damage from overheating. Installing this GE replacement restores efficient combustion ensuring reliable oven or range operation.

Compatible with Hotpoint, RCA, and select Kenmore models as well, replacing yours prevents future troubles from minor issues left unaddressed.


This tube burner supply is the replacement gas tube that delivers fuel from the range/oven valve to the burner, restoring proper gas flow for reliable ignition and consistent flame performance. What it does:

• Directs gas from the appliance valve to the burner for normal operation
• Replaces cracked, corroded, or clogged burner tubing that can cause fuel flow disruption
• Helps correct symptoms such as burners that won't light, weak or uneven flames, or intermittent ignition
• Restores a sealed path for gas to reduce leakage risk when installed and tightened correctly

• Turn off gas supply and electrical power to the appliance before beginning work
• Verify proper fit and orientation to the valve and burner; use the OEM clamp/hardware if provided
• After installation, check all connections for leaks (soap-and-water test) and restore power per the appliance manual

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Elbow 90° Asm is an OEM replacement part for GE gas ranges. It joins sections of burner piping at precise right angles, guiding fuel and air flow to burner heads.

Causes of a bad elbow joint can be wear from years of vibrations, cracks developing from heat cycling, or accidental damage during maintenance.

Symptoms of a faulty elbow include:

• Yellow burner flames or incomplete combustion
• Gas smell or leaks around pipes
• Reduced heat levels from affected burners
• Premature deterioration of other components

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models too.

This broil burner provides concentrated heat for the oven's broil function, restoring high-temperature top-down cooking for browning and searing. Designed to match the original part shape and heat output for safe, consistent performance. What it does:

• Generates the concentrated high heat used during the oven's broil cycle
• Helps restore proper browning, crisping, and searing on top of foods
• Commonly replaced when broil heat is weak, uneven, or the burner won't light
• Works as the direct heating element for the oven's broil operation

• Disconnect power (and gas supply, if applicable) before beginning service
• Handle carefully; edges may be sharp and burner surfaces can be fragile

The Orifice Spud is an OEM replacement part for GE gas ranges. It is responsible for metering the flow of gas into each burner pipe, controlling the air and gas mixture for proper flame combustion.

Symptoms of a bad orifice spud include:

• Yellow or unstable burner flames
• Improper heating of pots and pans
• Decreased gas pressure or cooktop output
• Gas leaks or excessive clicking from the gas valve

Causes for a bad orifice spud can include wear from contaminants over time, cracks or blockages altering gas flow, or damage from mishandling.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models as well.

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP Gas. LG .99mm

The Surface Burner Valve is an OEM replacement part for GE gas ranges. Located beneath each burner head, this valve regulates gas flow to its associated burner for consistent temperature control.

Causes of faulty valves often relate to corrosion or debris accumulation from gas vapors over time. Physical damage from impacts or misuse could also restrict proper valve function.

Symptoms include:

•  Burners failing to ignite or heat properly
•  Inability to adjust temperatures across burner settings
•  Abnormally loud noises or small flame projects during use

This genuine GE part is compatible with Hotpoint, RCA, and select Kenmore range models as well.

The Valve and Burner Assembly is an OEM part for GE gas ranges. As the central mechanism delivering gas fuel to each burner, it works to control flames precisely while maintaining consistent heat levels.

Causes of a bad valve and burner assembly include failure of internal valves, cracks in manifolds allowing gas leaks, or blockages restricting proper fuel flow.

Symptoms of a bad valve burner include:

• Inability to ignite or extinguish burners properly
• Burners that produce unstable or excessively large/small flames
• Difficulty maintaining the desired heat setting
• Repeated sensor errors or shutdowns

This GE replacement assembly ensures your range's stove-top functions safely and dependably by accurately metering gas movement. It is also compatible with Hotpoint, RCA, and Kenmore models. Install yours today before minor issues require costly repairs.


The Valve Burner is an OEM part for GE gas ranges. It delivers gas to the cooktop through a valve system. This burner distributes gas evenly across its surface to provide consistent heating for pots and pans.

Causes can be wear over time, defects, dirt/debris buildup affecting the valve mechanism, or damage from mishandling.

Symptoms of a bad valve burner include:

• Uneven or abnormal flames when lit
• Inability to control burner flames and temperatures
• Burner making clicking/hissing noises
• No gas flow or faulty ignition

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This oven orifice spud secures the oven orifice and directs gas to the oven burner for proper ignition and steady flame. It restores safe, consistent gas flow for reliable oven heating. What it does:

• Holds the oven orifice in the correct position for accurate gas delivery to the burner
• Helps maintain steady flame and proper combustion in the oven cavity
• Can resolve issues like weak or uneven oven heating when damaged or misaligned
• Works as a small-mounting component in the oven manifold assembly

• One oven orifice spud

• Inspect surrounding components (orifice, burner, manifold) and replace any damaged parts
• Turn off gas supply and electricity before starting work; follow appliance safety procedures
• Tighten to OEM torque; avoid overtightening which can damage threads

The Valve Control Assembly is an OEM part for GE gas ranges. This assembly governs the gas valves that deliver fuel to each burner on the cooktop for precise flame control. Programmed settings adjust gas flow based on temperature and cooking requirements.

Causes of a bad Valve Control Assembly can include worn valve components, clogged gas ports, or failure of electronic controls from heat exposure over time.

Symptoms of a bad gas range Valve Control Assembly include:

• Inconsistent or abnormal burner flames
• Inability to regulate flame sizes as desired
• One or more burners not functioning properly
• Improper gas pressure levels reaching the burners

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement igniter glowbar. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace defective or burnt-out igniter glowbars in a variety of gas powered oven and stove models. A glowbar igniter works to electrically ignite the gas source on a stove or range. A defective glowbar will prevent the burner from lighting and emitting a flame. Always make sure that the stove is entirely disconnected from power and gas before starting any repair work. Proper tools are required to replace this part. Please ensure the appropriate safety precautions are followed when attempting to fix any appliances. For more accurate information on how and where to install this igniter glowbar, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this igniter glowbar is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
